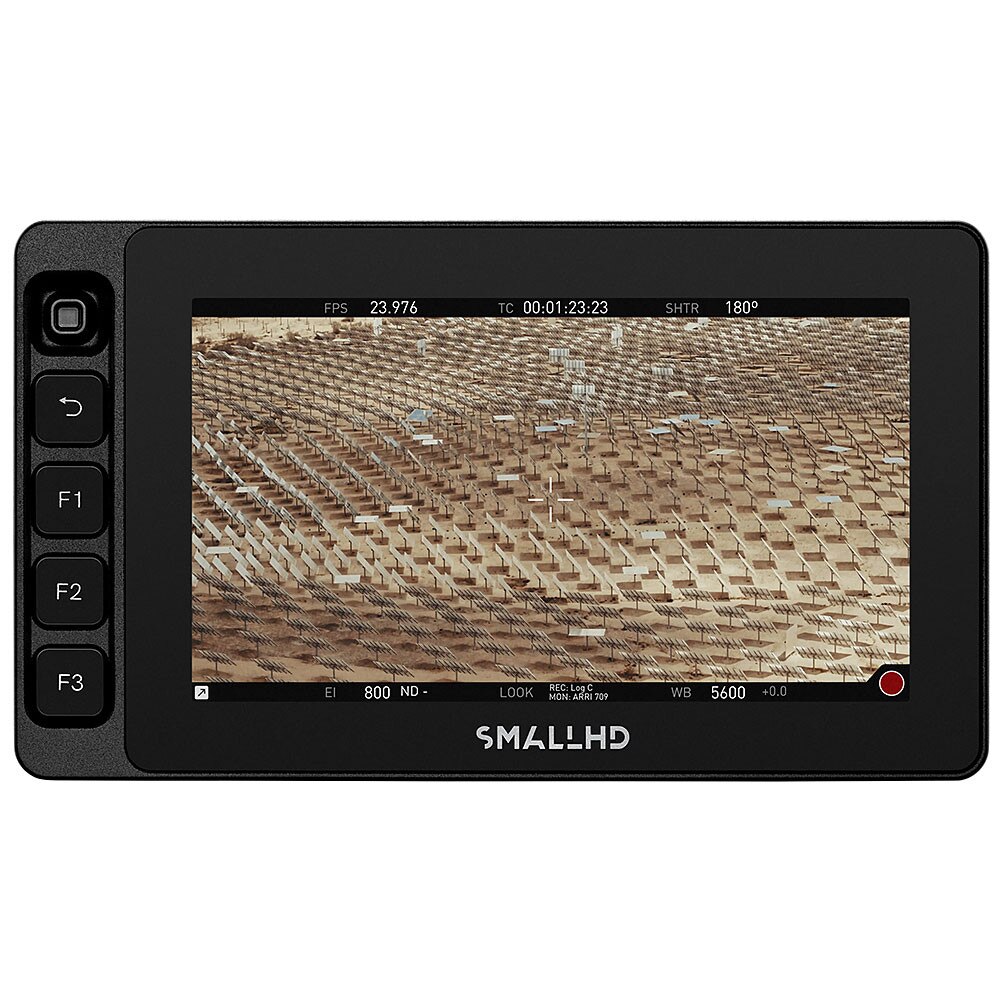

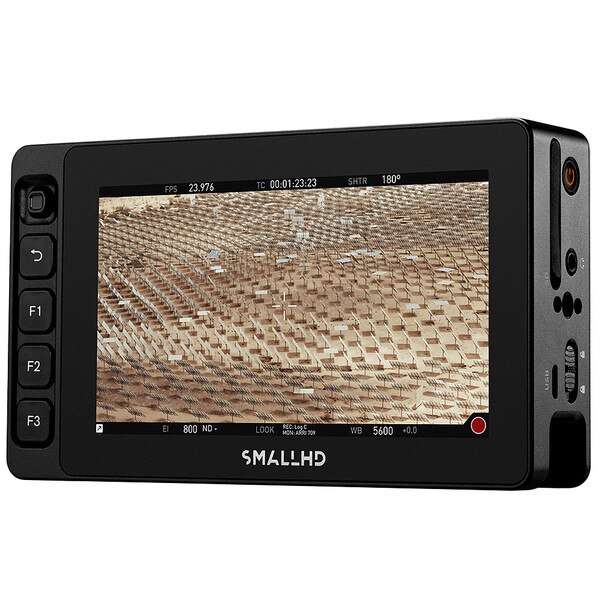

SmallHD Ultra 5 Monitor

Ultra Bright. Ultra Powerful. Ultra Compact.

SmallHD's brightest screen, locking power & USB connectors, touchscreen, and 3x custom function buttons make Ultra 5 the best-in-class 5-inch monitor.

Ultra 5

Powerful, portable, and adaptable, the Ultra 5 offers 3000nits of dazzling brightness, a locking power adaptor, an Ethernet port for camera control, plus a full suite of large, front-facing physical buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

• 3000nits Max Brightness
• 1000:1 Contrast Ratio
• Edgelit Backlight Type
• Camera Control ARRI, RED, Sony VENICE
• 1920x1080 Resolution
• 10-Bit Color Depth

Next-Gen Tools, Customizable Workflow, Premium UX

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and much, much more.

A Camera Interface On Every Page

View and adjust crucial camera-control functions and PageOS 5 tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

Lens Control Overlays

View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

Light Metering Evolved

Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

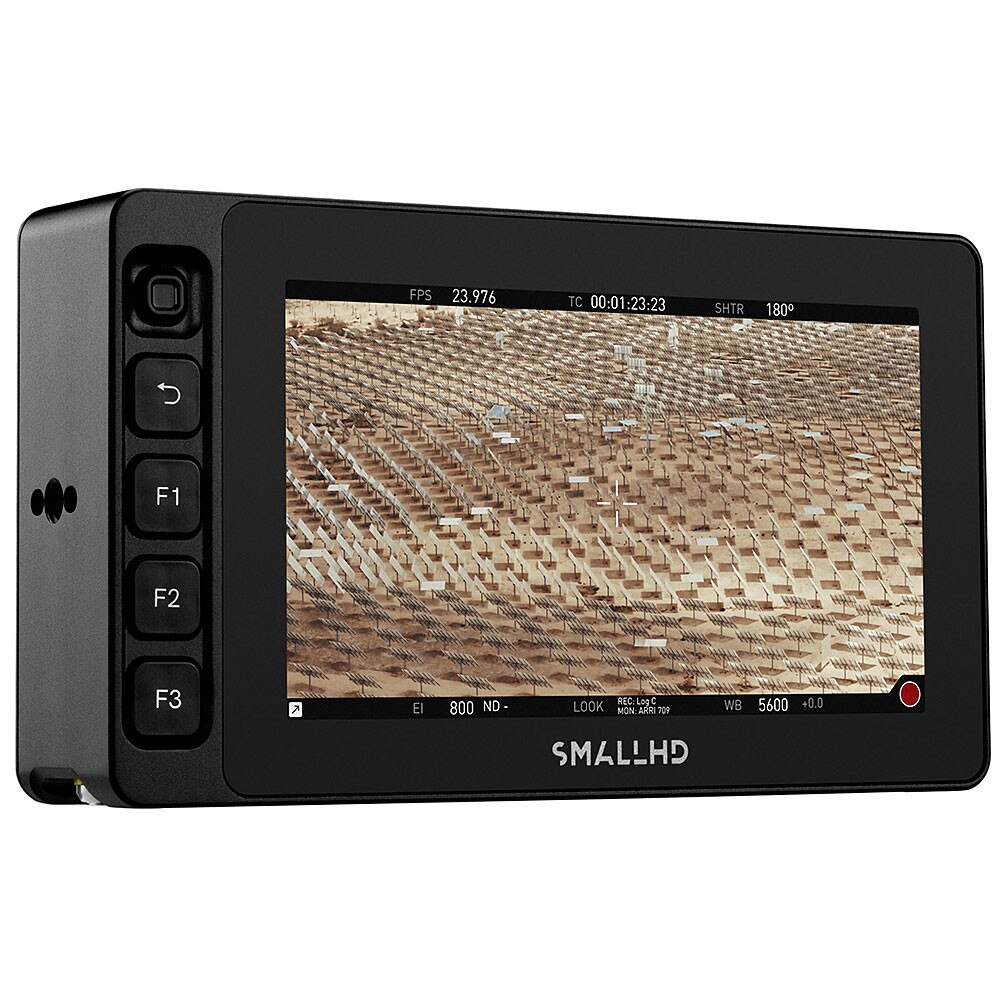

A Tactile Complement to Touchscreen UI

Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.

Keep Your Frame on the Level

A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

SPECS:

Environmental

• Item Weight (oz): 17.8
• Height (in): 3.39
• Width (in): 5.28
• Length/Depth (in): 1.36
• Mount Points: 6x 1/4-20 Mounting Points

Display

• Panel Type: Touch-Screen
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Max Brightness: 3000nits
• Backlight Type: Edgelit

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

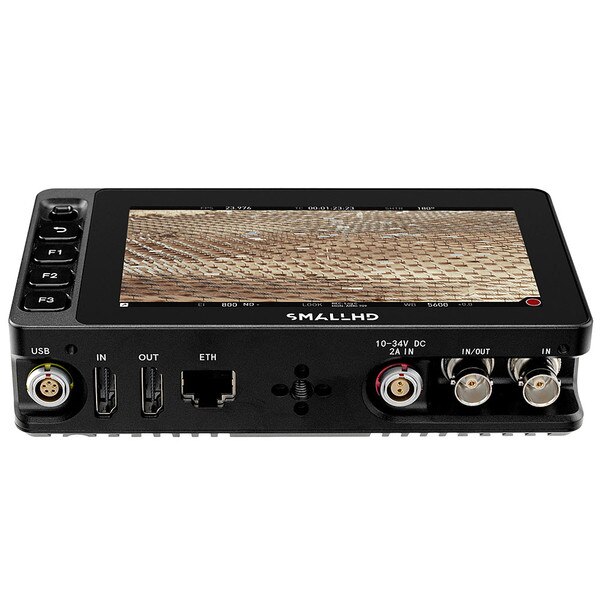

Connector Type

• SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
• HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
• Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

• Connector Type: 1x RJ45 Ethernet
• Storage Media: 1x SD Card Slot
• USB: 1x Micro USB 1x Locking USB

Power

• Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

Software

• Pixel Zoom: Yes
• Focus Assist: Yes
• Peaking: Yes
• False Color: Customizable False Color Overlays
• Waveform: Customizable 4K Waveform w/Region of Interest Highlighting
• Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
