SmallHD 503 Ultrabright On-Camera Monitor
SmallHD 503 Ultrabright On-Camera Monitor
SKU: # shd-mon-503u
Price $1,699.99
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
Custom Options
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description

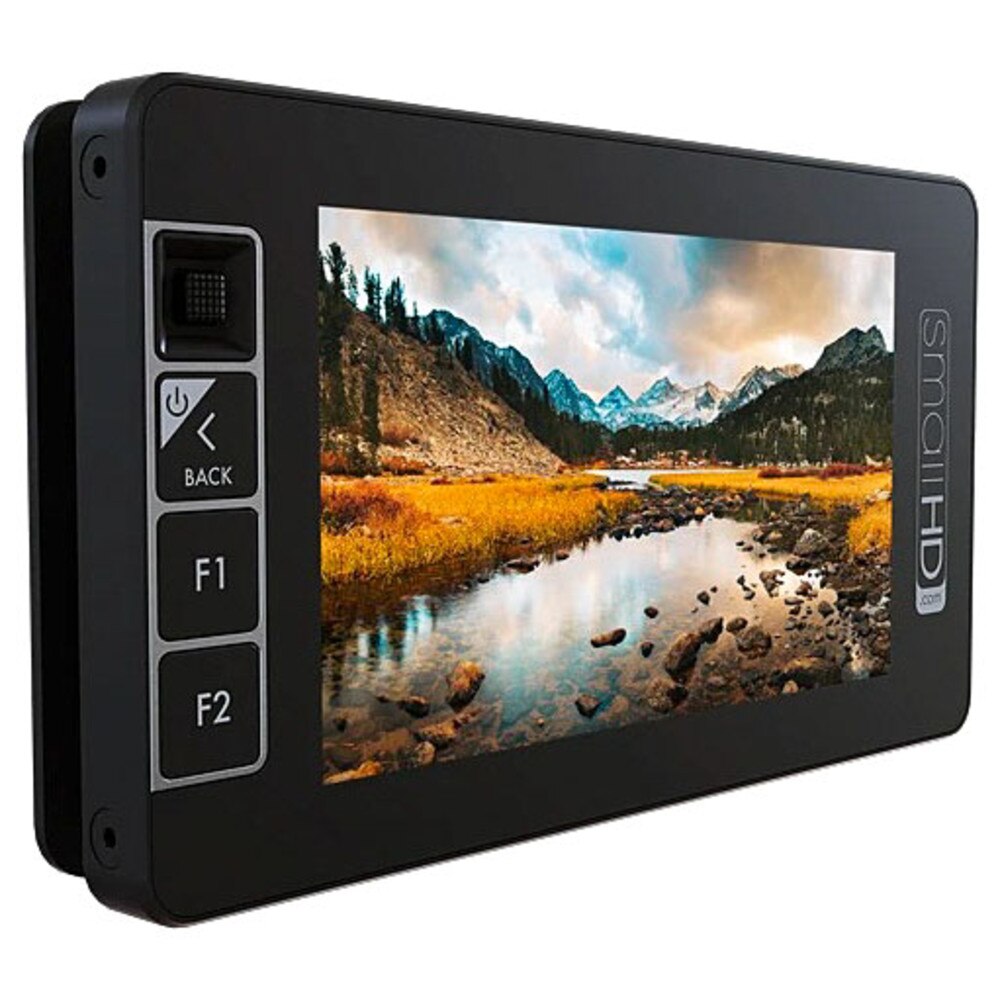

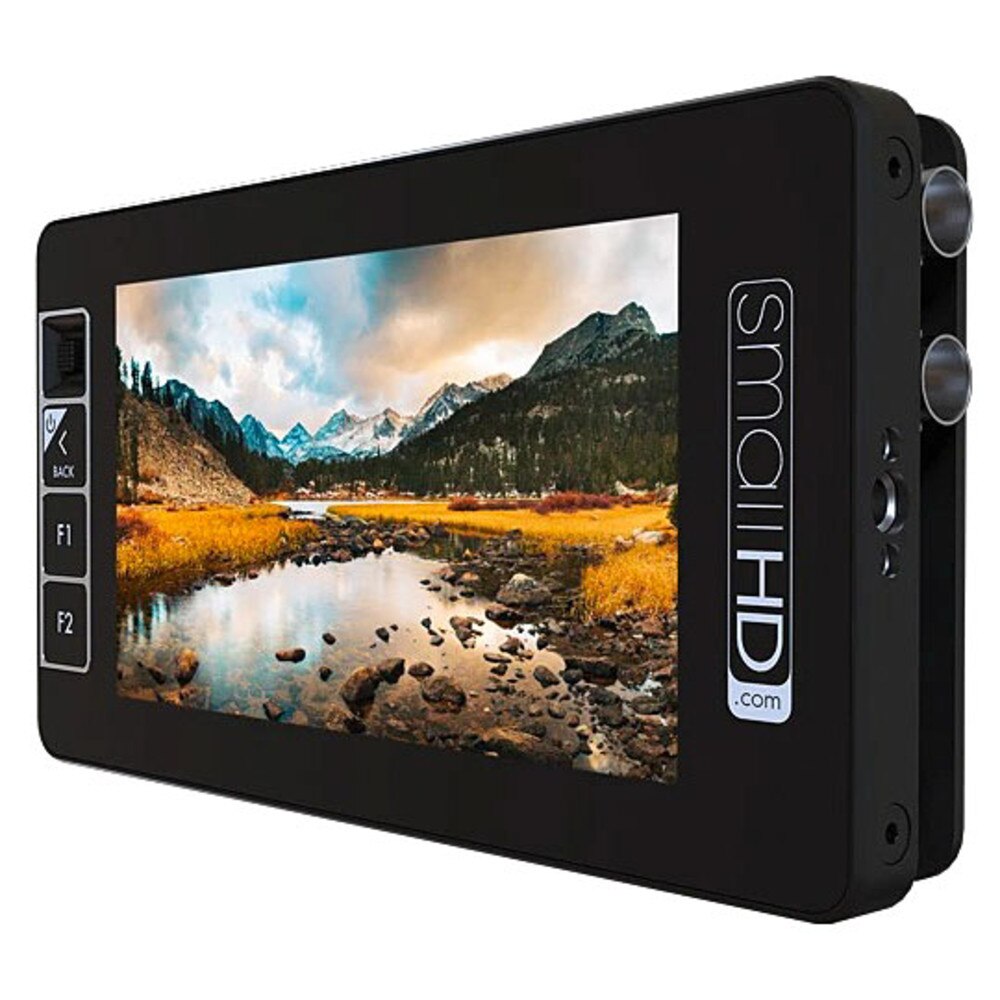

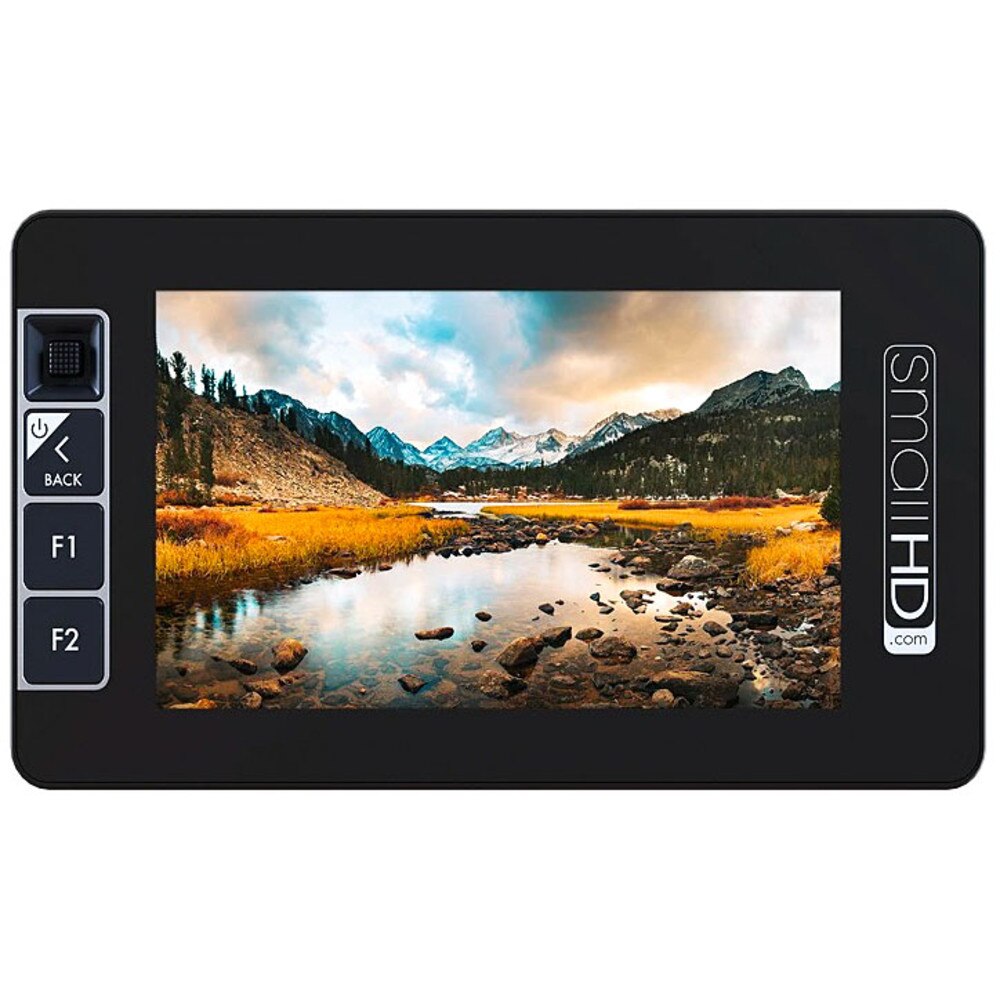

SmallHD 503 Ultrabright On-Camera Monitor
PageBuilder OS
PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.HDR Preview and 3D LUT Support
UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine-tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.Efficiently UltraBright
The 503 and 703 UltraBright are the Brightest 5" and 7" monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount, and Sony L-Series battery plates are available.Software That Eliminates Hardware
Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion.HD Scopes with Pixel Accurate Data Analysis
Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.Expose with Confidence
Exposure Assist supports both ARRI and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.Dual View
Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post-LUT footage. You can also apply tools to each page individually.Custom Focus Assist & Peaking Tools
Focus assist creates a bright highlight on the in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking increases the image sharpness allowing more detailed focusing. Change the color and intensity of your focus tools.Versatile Image Framing
Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity levels and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).Package Includes:
- SmallHD 503 UltraBright On-Camera Monitor
- SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
- Limited 1-Year Warranty

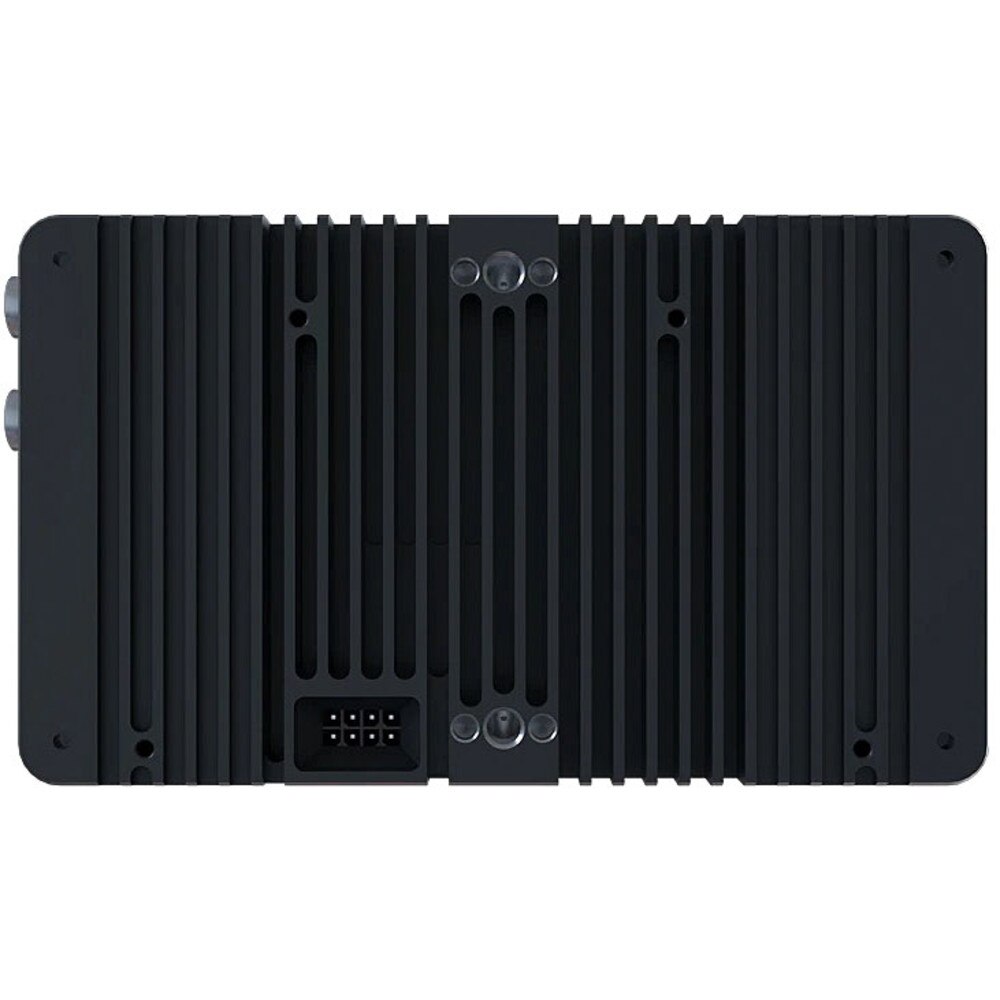

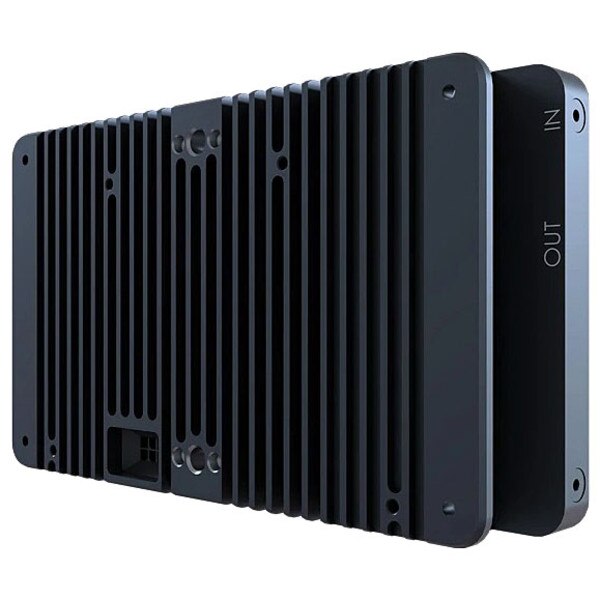

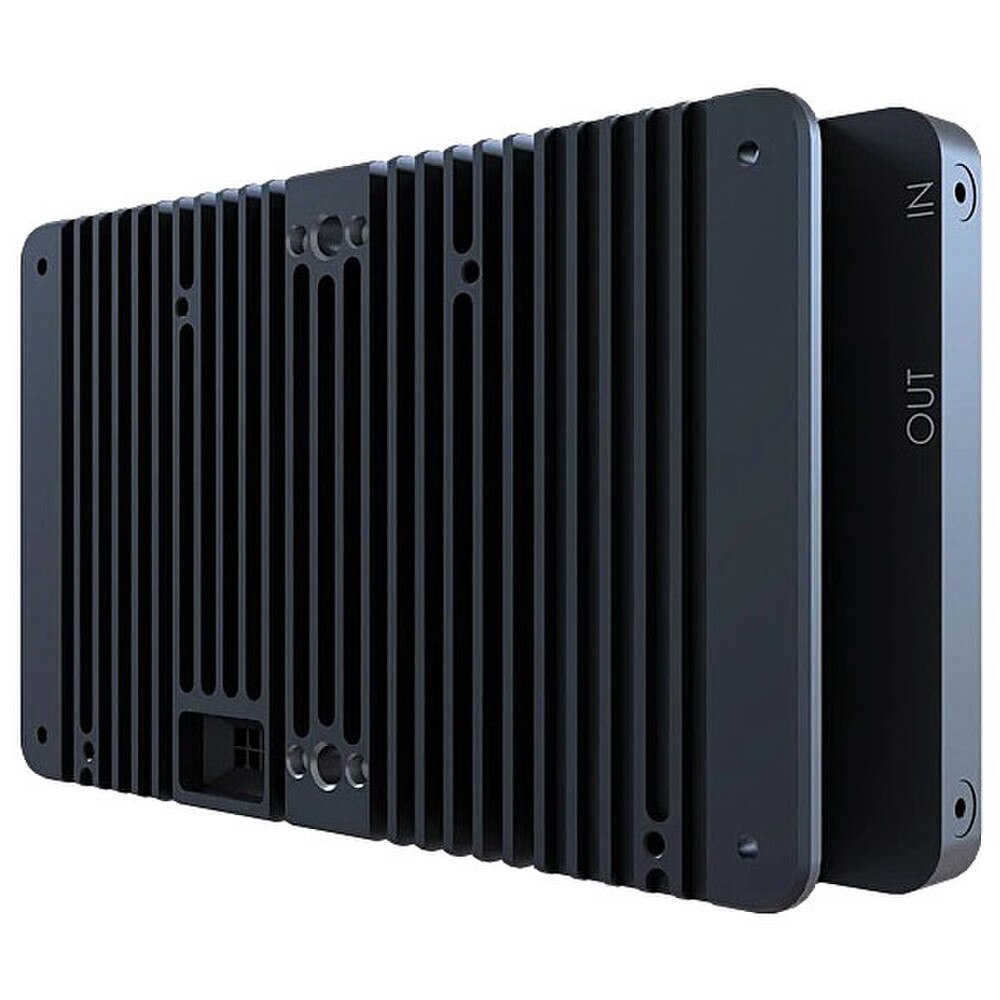

Physical Features:
- Durability
- Rugged milled aluminum housing
- 1x ⅛" headphone jack
- Function buttons
- 12v 2-pin LEMO in
- SD Card Slot
- Cross Conversion
- HDR Preview
SPECS:
Environmental
- Item Weight (oz): 15.2
- Package Weight (oz): 25
- Height (in): 3.36
- Width (in): 6.16
- Length/Depth (in): 1.13
- Compliance: FCC, IC, CE, RoHS
- Operating Temperature: 0 - 100 degrees F
- Storage Temperature: -4 - 120 degrees F
- Screen Protection: AR Coated Gorilla Glass Optical Bonding on Panel
- Mount Points: 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor, 1x ¼”-20 Thread on back of Monitor @ Bottom Center
- Construction: Anodized Aluminum Unibody Chassis
- User Function Buttons: 2
Display
- Panel Type: IPS LCD
- Diagonal Size: 5
- Resolution: 1920 x 1080
- Pixel Density: 443 ppi
- Aspect Ratio: 16:9
- Active Area: 4.9
- Brightness: 2200 nits
- Contrast: 1000:1
- Gamut: 100% Rec 709
- Color Depth: 10-Bit Color Intelligence Engine
- Viewing Angle: 170 degrees Typical
- Backlight Type: White LED
- Adjustable Backlight: Yes
- Display Size: 5" Diagonal 1920x1080 IPS LCD
EVF
- Variable Field of View: range
- Weight: .95 lb / 15.2 oz
Input Signal
- 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
- HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
- HDMI Input Types: YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
- Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
- 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
- HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
- HDMI Output Types: YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
- Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

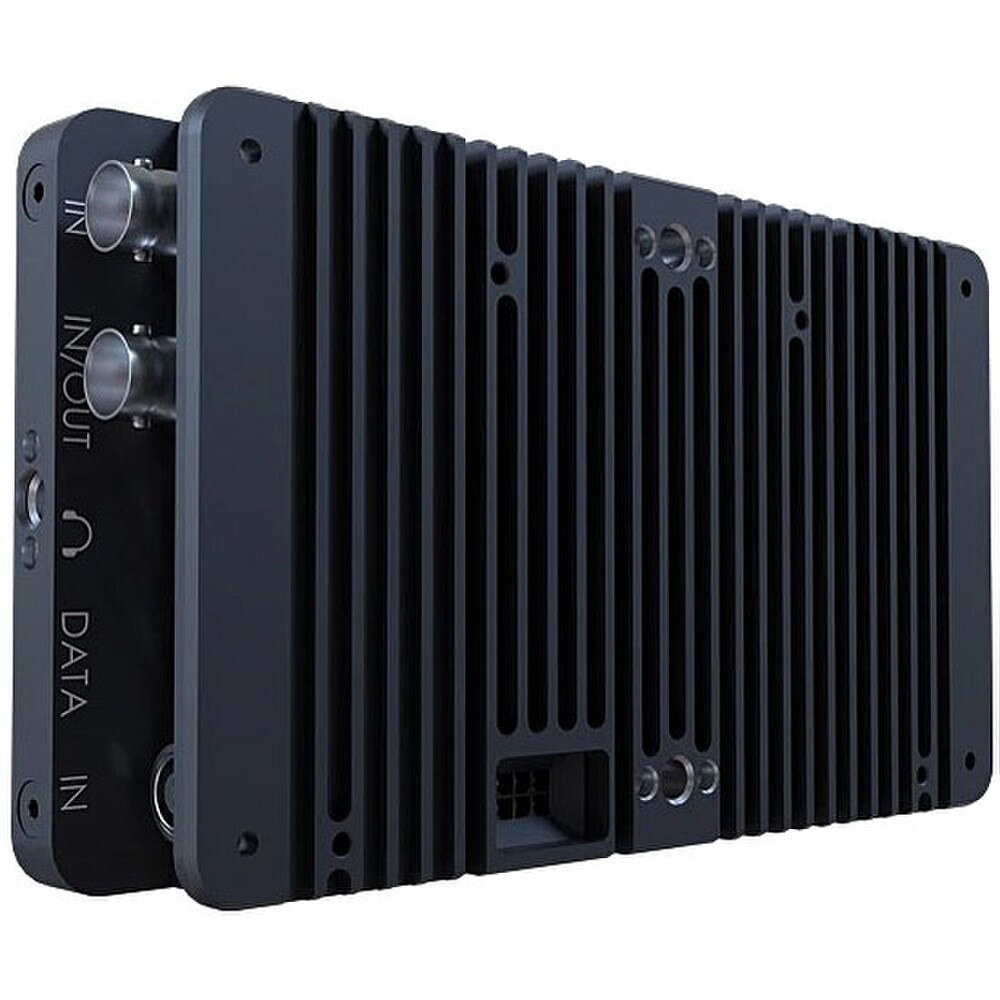

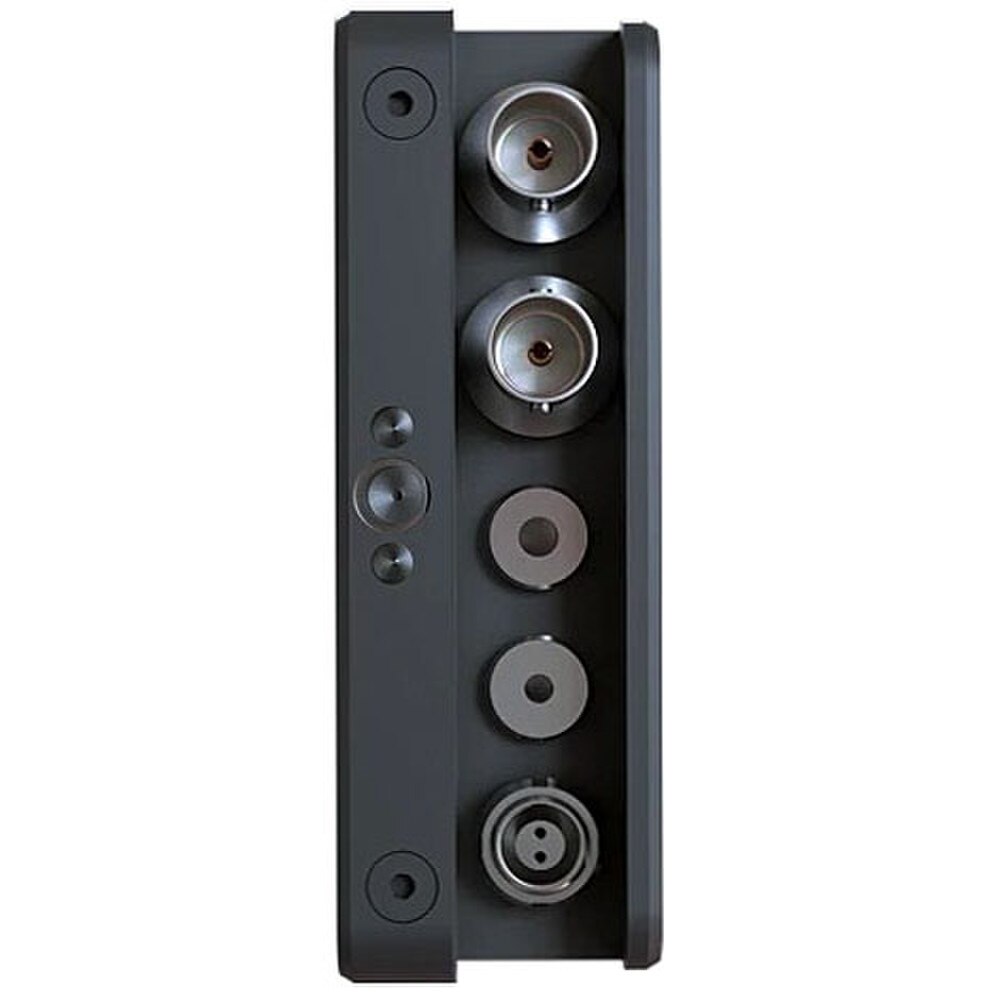

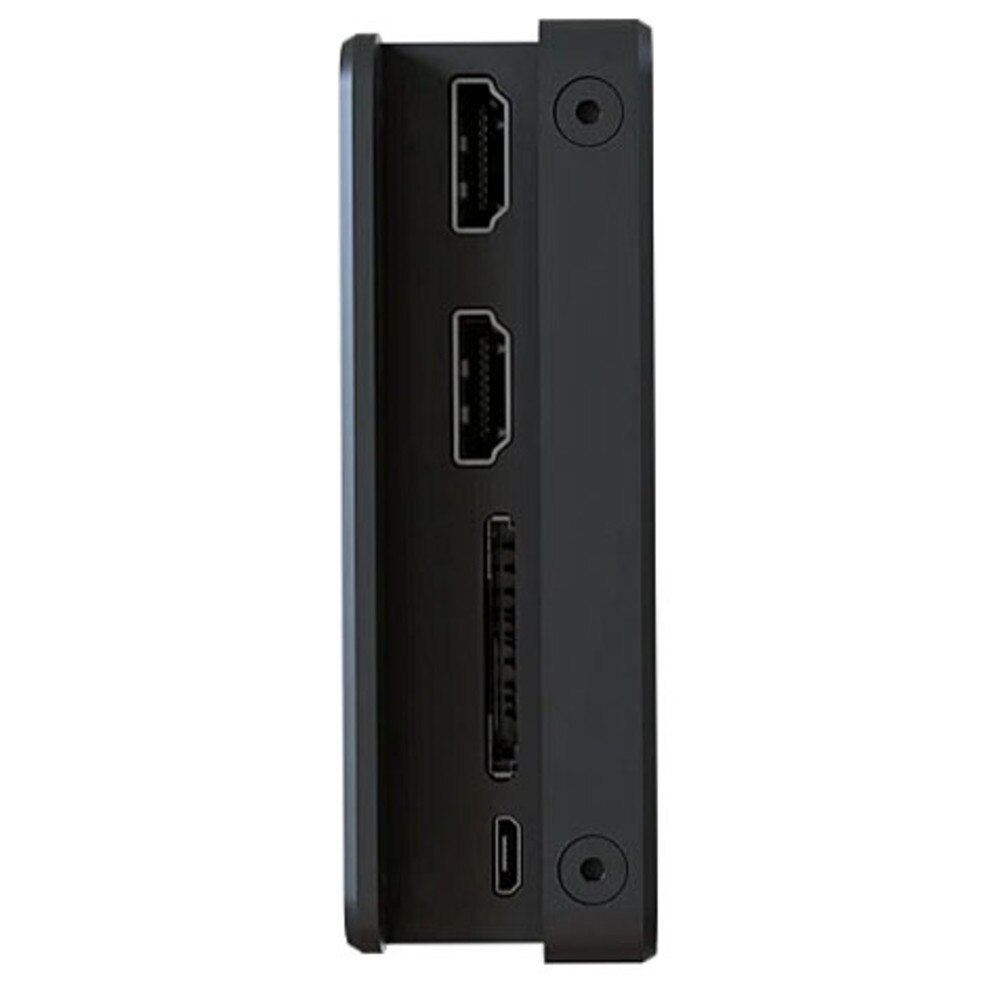

Connector Type
- SDI: 1x 3g Input, 1x 3g Output
- HDMI: 1x Input, 1x Output
- Component: Not Supported
- Composite: Not Supported
- Audio: 1x ⅛” Headphone Jack
- Power In: 1x Locking LEMO 2-pin Connector
- USB: 1x Micro USB
Controls
- Primary: Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons
Data I/O
- Storage Media: SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
- USB: USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
- Monitoring I/O: 2x 3G-SDI in, 1x HD-SDI out 1x HDMI in, 1x HDMI out
Power
- Connector: 1x Locking LEMO 2-pin Connectors: for Power Input
- Voltage: With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
- Consumption: 11 watts
- Power Supply: Included
- Overload Protection: Yes
- Power: 1 x 2-pin Locking Connector (Power In Only)
Software
- Pixel Zoom: 2x & 4x Zoom with smooth pan via joystick
- Frame Guides: Yes: Preset Aspect Ratios & Customizable
- DSLR Scale: Canon 5DMkii & Canon 7D
- Custom Scale: Yes (Underscan Only)
- Anamorphic De-Squeeze: Yes: 1.33x, 1.5x, 1.66x, 2.0x
- Image Rotate: Yes - Automatic or Manual Control
- Image Flip: Yes - Automatic or Manual Control
- Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
- Focus Assist: Yes - User Adjustable Color Style and Intensity
- Peaking: Yes - User Adjustable Intensity
- False Color: Yes - Rainbow & Arri Style
- Zebra: Yes - Dual - User Configurable
- Waveform: Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
- Vectorscope: Yes
- RGB Parade: Yes - Fully User Customizable
- Histogram: Yes - Luma & RGB Style
- Image Capture: Yes - With Dedicated Button
- Custom LUTS: Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
- LUT Downstream: Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.
- LUT Import: via SD Card or USB Storage Device
- Overlay: Yes with Opacity Slider and Blink Setting
- Firmware: Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.
- Audio Meters: Yes - HDMI & SDI up to 8 channel
