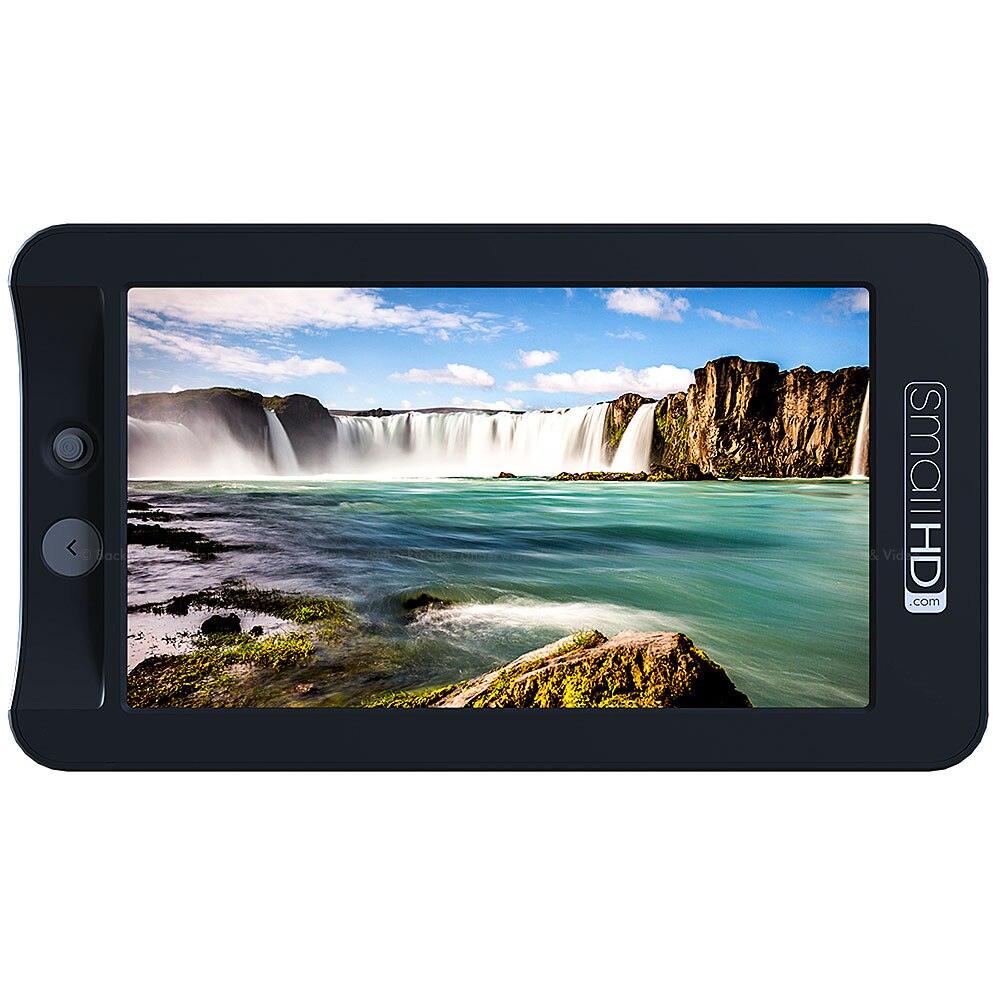

SmallHD 502 Bright 5-inch Daylight Viewable Monitor
SmallHD 502 Bright 5-inch Daylight Viewable Monitor
Tack sharp and tactfully designed
Lean and rugged build quality
Quality tools with quick accessibility
SKU: # shd-mon-502b
Regular Price $999.00
Sale Price $699.00
You Save $300.00
Price as Configured
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
Custom Options
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
SmallHD 502 Bright 5-inch Daylight Viewable Monitor with HDMI/SDI Cross Conversion Kit
Tack sharp and tactfully designed.

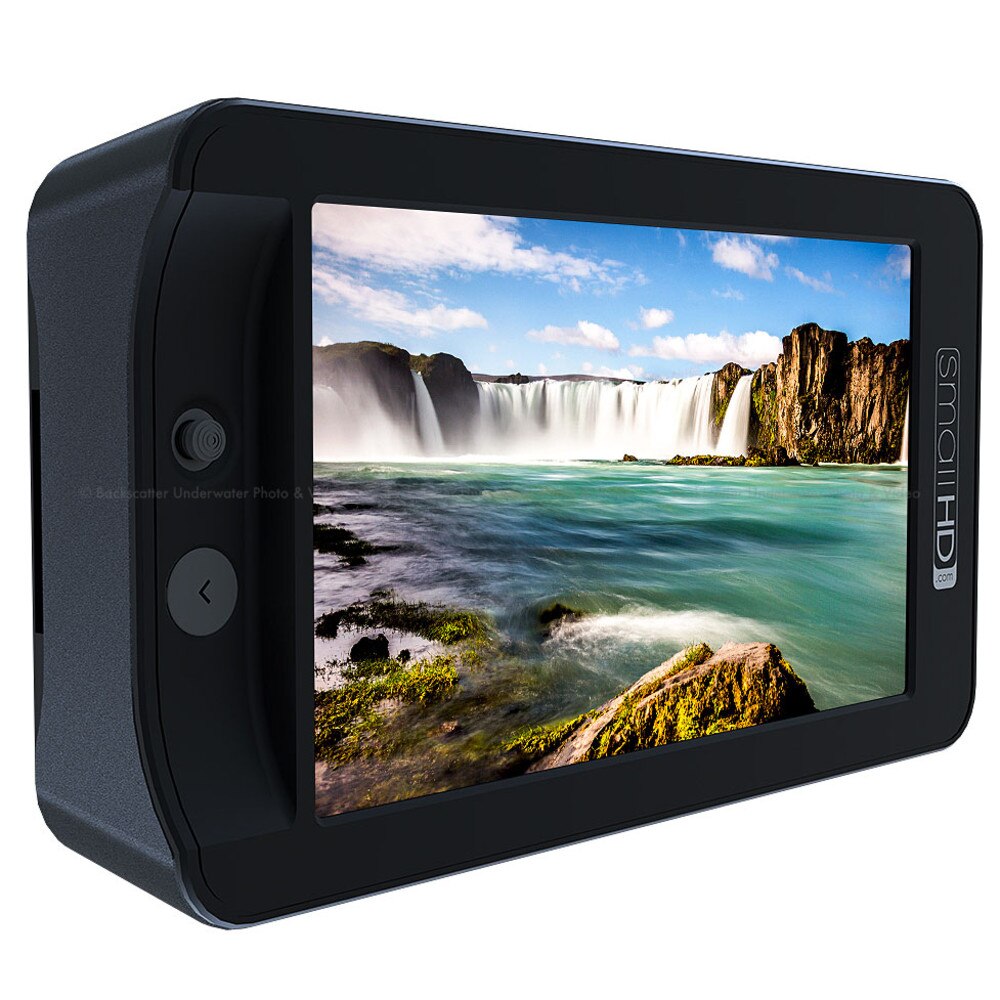

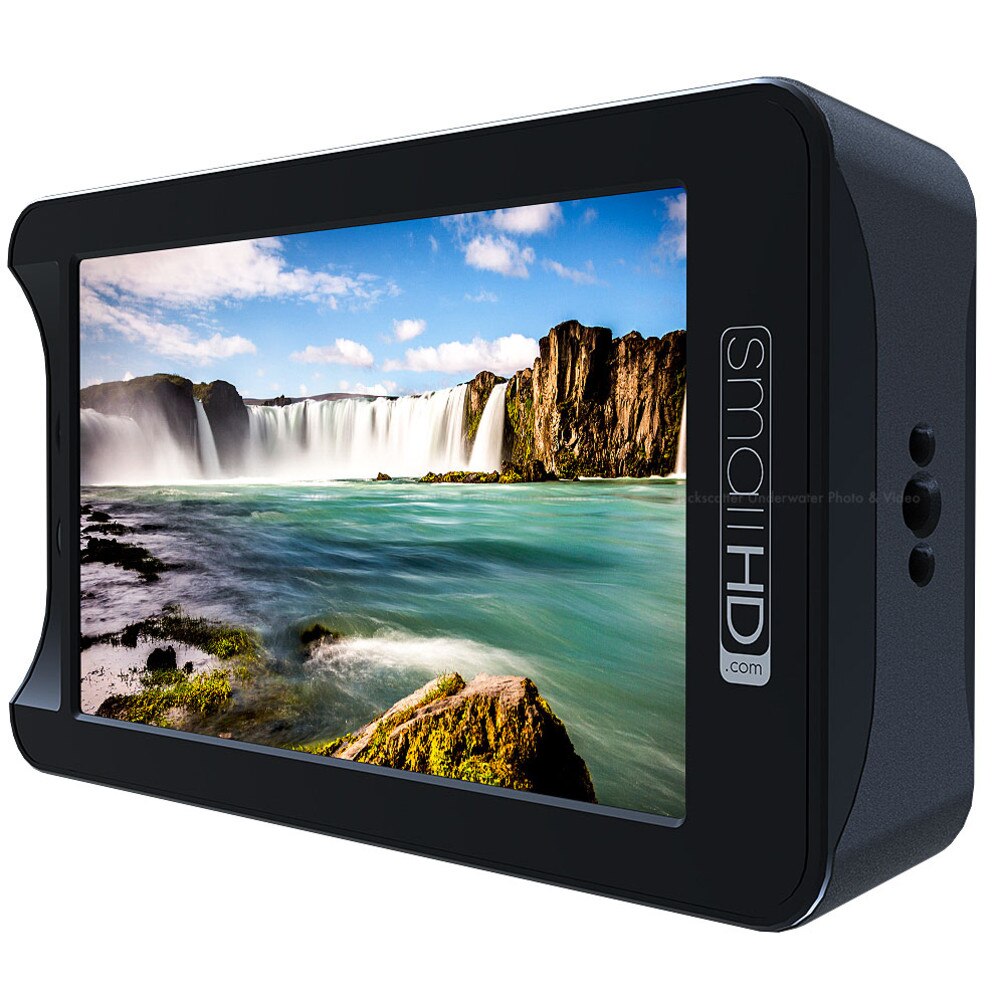

Boasting a screen resolution of 1920x1080, the 502 Bright is one of the sharpest 5-inch displays in the world. It’s convenient size and display brightness make it easy to see what’s in focus, even in high ambient lighting conditions.Lean and rugged build quality.

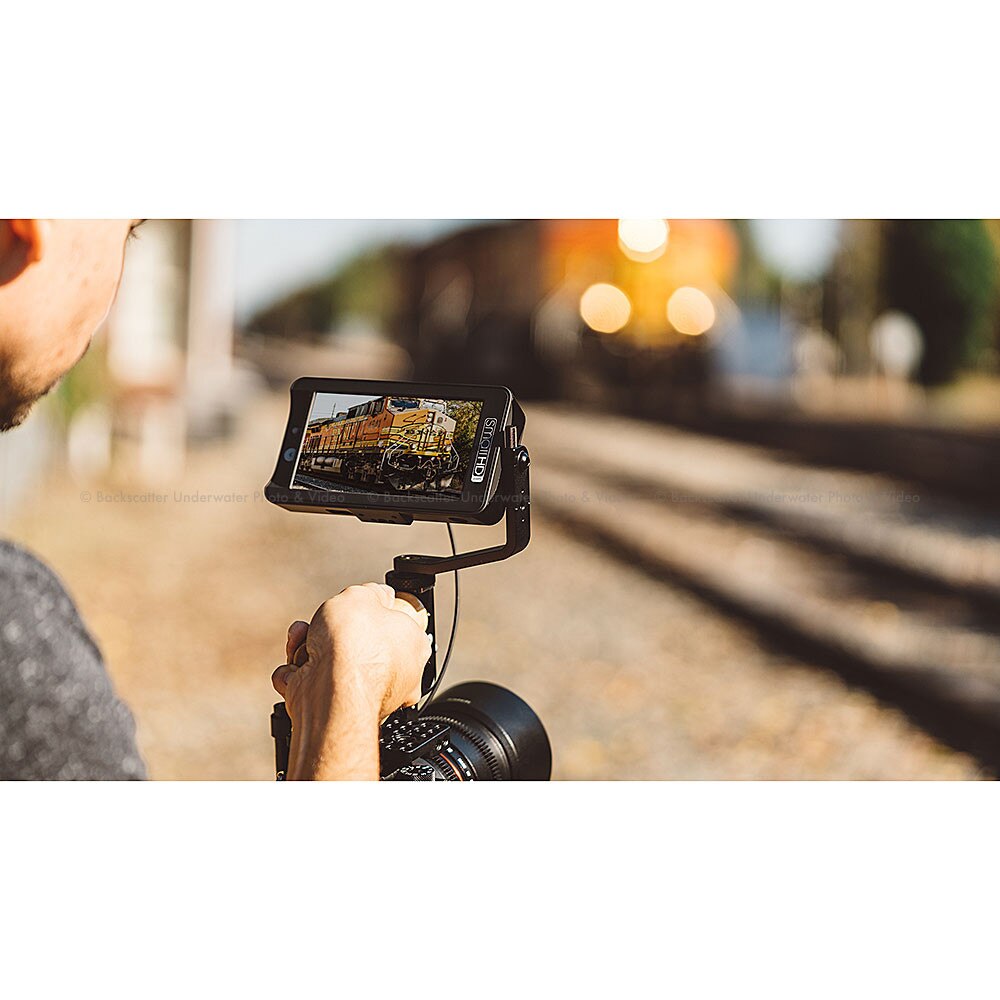

The 502 Bright offers extreme durability without being exceedingly heavy. Housed in an aircraft grade aluminum unibody with plenty of mounting points, this 5-inch monitor is ruggedly handsome and beautifully designed.Quality tools with quick accessibility.
With real-time 3D LUTs, Scopes, Waveform, False Color, and Focus Assist/Peaking, the 502 Bright is equipped with SmallHD’s premium tool set and Page Builder operating system. Data driven software tools become easy to access with an intuitive user experience.Specs:
Display
- Panel Type: LCD
- Size Diagonal: 5
- Resolution: 1920 x 1080
- Pixel Density (PPI): 441
- Aspect Ratio: 16:9
- Active Area: 5"
- Brightness: 1000nits
- Contrast: 1500:1
- Color Gamut: 100% Rec 709
- Color Depth: 10-bit Color Processing
- Viewing Angle: Full 179 degrees
- Backlight Type: LED
Input Signal Types/Formats
- 3G-SDI: 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120
- HD-SDI: 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98,
- SD-SDI: 576i50,480i59.94
- HDMI: Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
- Component: Not Supported
- Composite: Not Supported
- Audio: HDMI and SDI
Output Signal Types/Formats
- 3G-SDI: 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120
- HD-SDI: 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98,
- SD-SDI: 576i50,480i59.94
- HDMI: Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
- Component: Not Supported
- Composite: Not Supported
- Audio: Stereo Out (headphones)
Connector Type

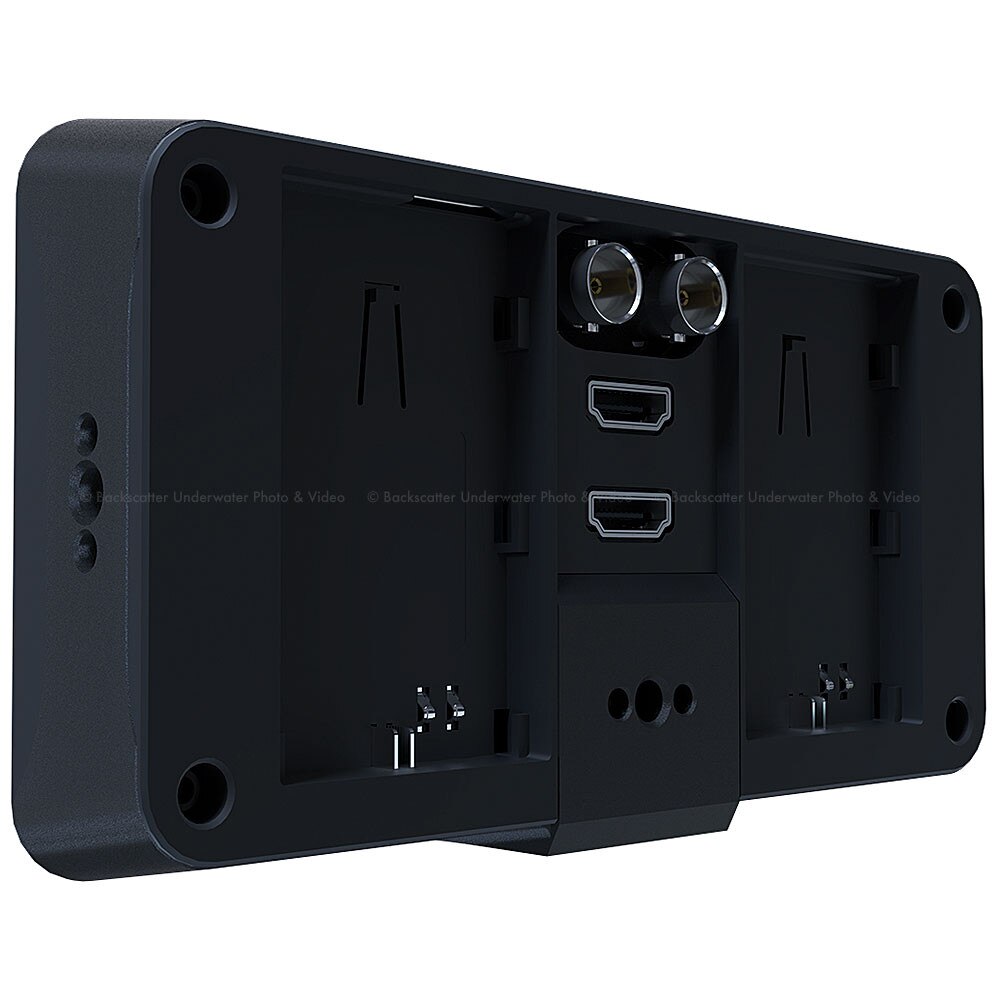

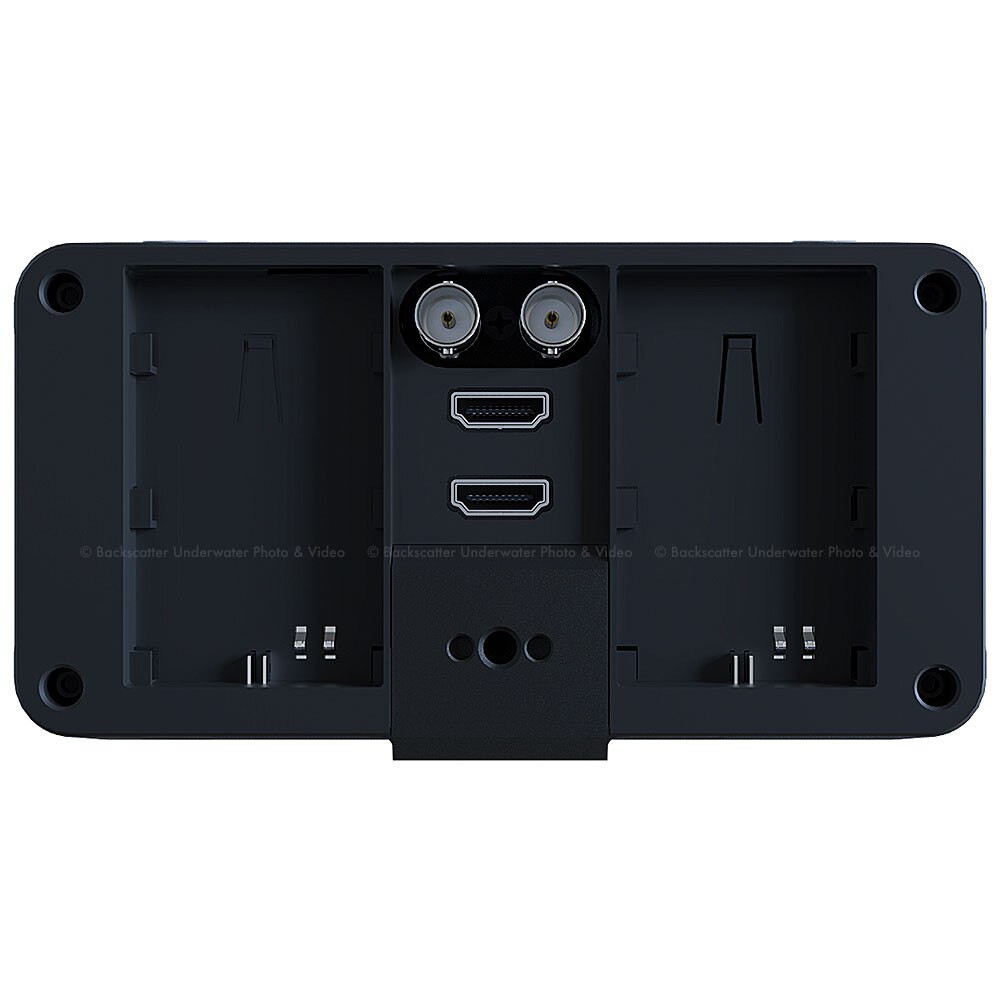

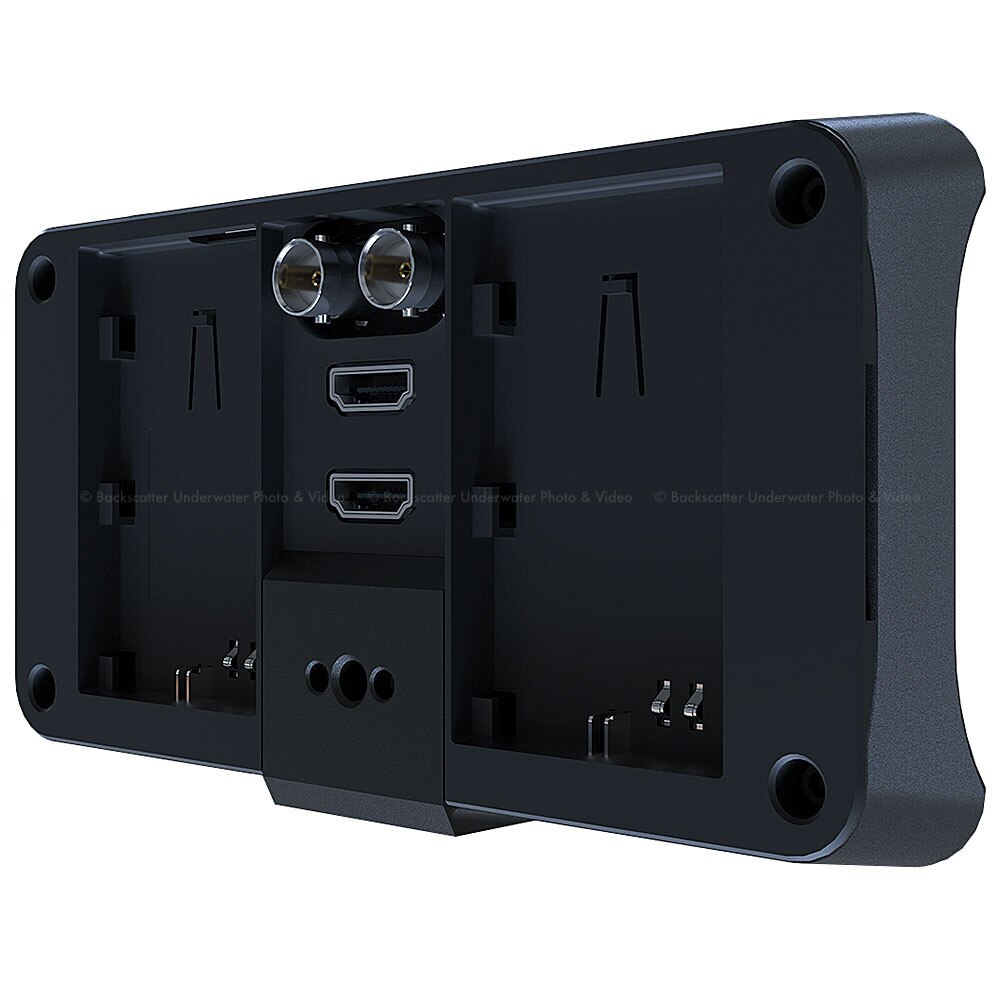

- SDI: 1 SDI (in), 1 SDI (out - selectable)
- HDMI: 1 HDMI (in), 1 HDMI (out - selectable)
- Component: Not Supported
- Composite: Not Supported
- Audio: 1/8in Mini Stereo Headphone
- Power In: LP-E6 style Battery X 2
- Power Out: Micro-USB 5V @ .5A
- USB: Micro-USB 5V @ .5A
Controls
- Primary Control Interface: Joystick + “Back” button
- Record/Capture: Capture button
- RF Wireless Remote / External Control: Wireless remote
Data I/O

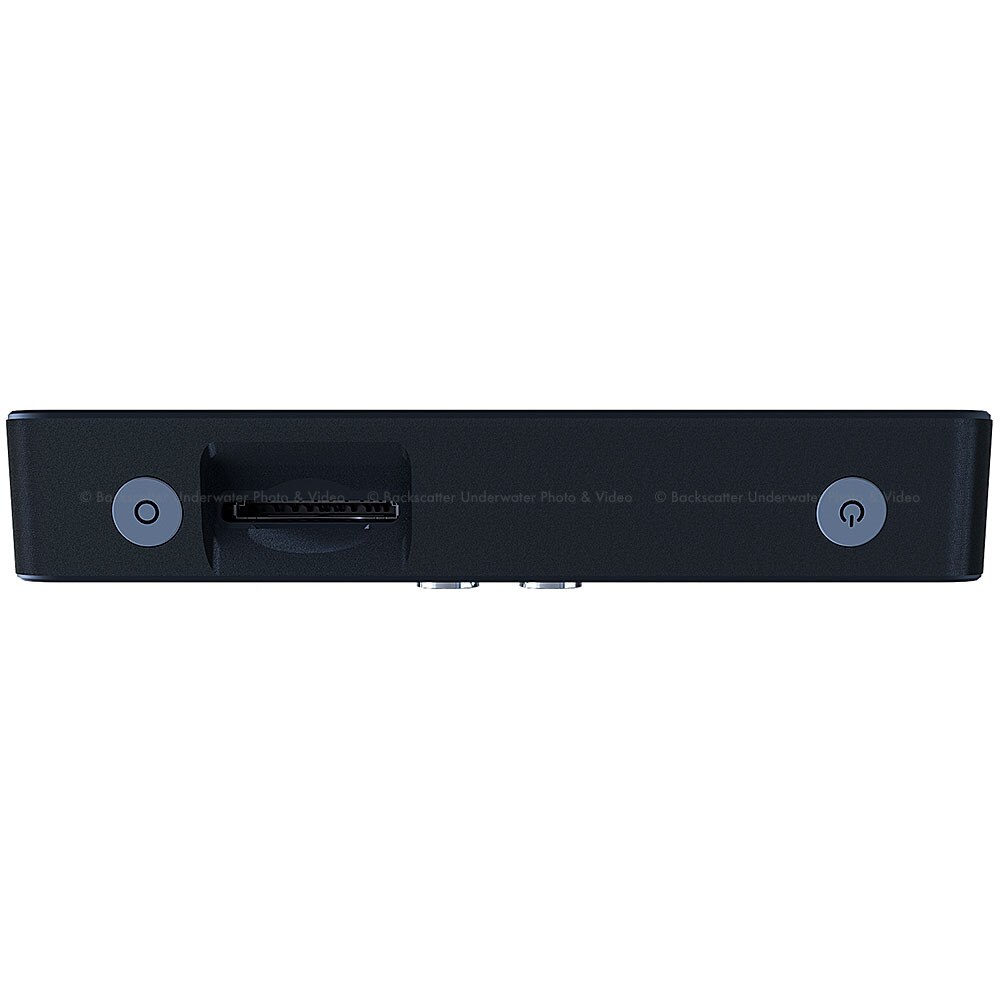

- Storage: SD Card (full-size)
- USB: Self Color Calibration
Power
- Connector Type: LP-E6 Style
- Voltage: 6.0 - 8.4volts
- Power Consumption: 7-9 watts
- Recommended Power Supply: http://store.smallhd.com/store/500-accessories/DCA5-AC-Power
- Overload Protection: Yes
- Battery Types: LP-E6
Environmental
- Compliance: CE, FCC, IC
- Operating Temperature: 30F to 85F
- Storage Temperature: 0F to 120F
- Height: 3.4" (8.64cm)
- Width: 6" (15.24cm)
- Depth/Length: 1.1" (2.79cm)
- Weight (Item Only without battery): 9.4oz (266.49g)
- Weight (Packaged): 16oz (453.59g)

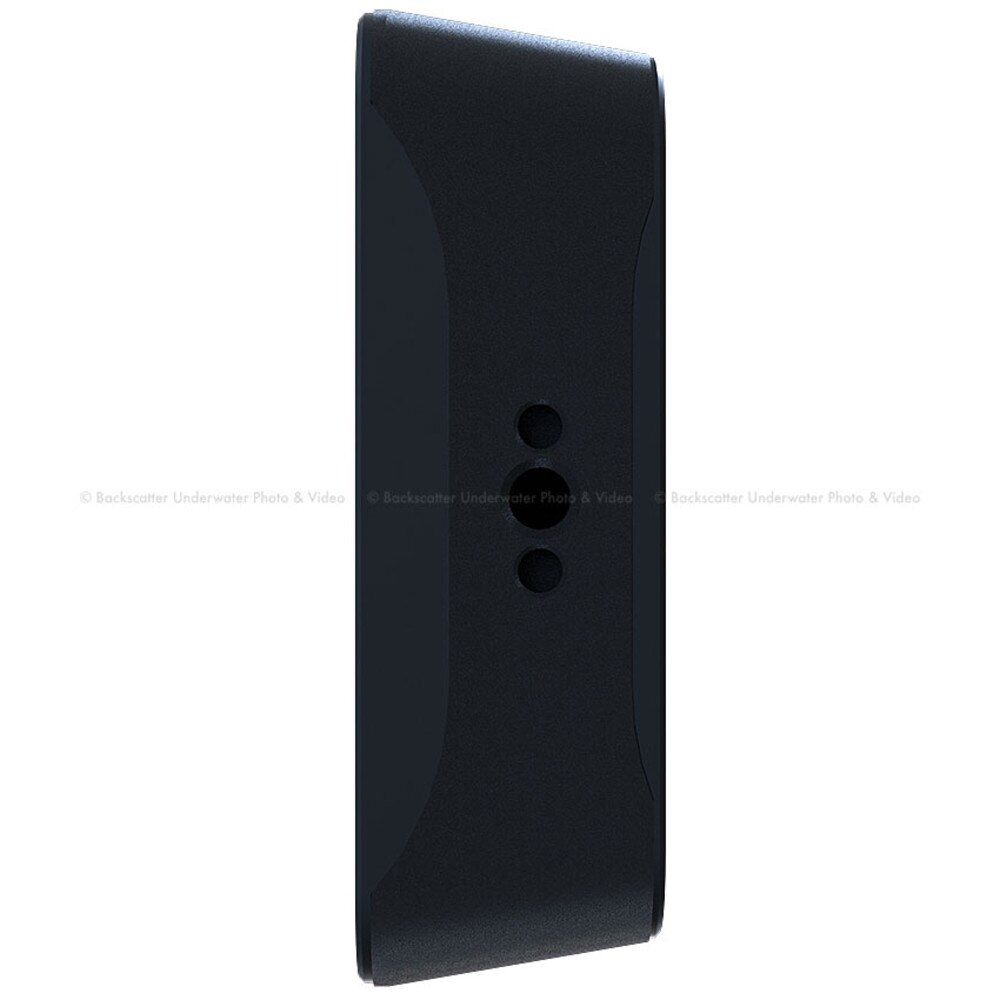

- Mount Points: (3) ¼-20 thread points (bottom, back & right side)
Software
- Pixel Zoom (type): 2x & 4x with smooth pan via joystick
- Frame Guides: Yes
- DSLR Scale: Canon, Nikon
- Custom Scale: Yes
- Anamorphic De-Squeeze: Yes
- Image Rotate(Manual/Automatic): Yes
- Image Flip (Manual/Automatic): Yes
- Cross Conversion: Yes
- Focus Assist (Colors): Yes
- Peaking: Yes
- False Color: Yes: ARRI, Custom
- Zebra: Yes: Multiple
- Waveform: Yes
- Vectorscope: Yes
- PIP: No
- RGB Parade: Yes
- Histogram: Yes
- Horizon Indicator: No
- Image Capture: Yes
- Master Recording: N/A
- Wifi Streaming: N/A
- Custom LUTS: Yes
- LUT Creation: No
- LUT Downstream: Yes
- LUT Import: Yes
- Image Overlay: Yes
- Blue Only: No
- Audio Meters: Yes
