OneUW ONE160X II Underwater Digital Strobe

Project

Careful listening to your needs, OneUW's know-how, and the solution.

A power suitable for wide angle photos, even backlit or the most technical macro, without increasing ISO sensitivity on your digital cameras.

A high-quality light without any compromise, with a wide, uniform coverage and a slightly warm color temperature.

Modern, highly efficient electronics are versatile, with sync cable and fiber-optic cable connections supported by Nikon, Canon, and Sony TTL digital protocols, installed on board and selectable by the user.

The strobe's firmware is upgradable directly by the user via App-Bluetooth to correct, improve or add new functionality.

The high-speed synchronization (HSS) mode is an exciting high-end feature in auto flash digital TTL and manual flash exposure modes.

A strobe simple to use, with ergonomic controls and easy-to-read settings.

A quality product, extremely robust and reliable.

Follow us and you will find out how OneUW has interpreted the needs and requests of you photographers.

Electronics

Power, digital control, advanced functions, and excellent reliability.

• Maximum energy 162 Ws (J)
• Nikon, Canon, Sony TTL digital protocols, and TTL optical fiber are available onboard.
• The user's ability to select camera brand digital protocol and to upgrade strobe firmware
• High-speed sync (HSS) mode is available in auto flash digital TTL and manual flash exposure modes.
• Double CPU for TTL protocols and power circuit

Mechanics

A realization with no compromises, robustness, precision, and finish at levels of excellence.

• High-quality hard anodized anticorodal aluminum strobe body
• Stainless steel control shafts with double sealing o-ring
• Robust construction, maximum operating depth of 200 m

Controls

Ergonomics in the foreground. Essential, large, easy to handle.

• Large-size ergonomic controls, straightforward to operate
• Simple and rational layout, large maneuvering area
• Easily readable wide control display

Functionality

Easy to use, logical and intuitive operation, excellent visibility.

• Shooting modes: Nikon, Canon, Sony digital TTL, s-TTL, film TTL, manual
• Energy control - manual mode - at ½ f-stop increments over a range of - 6
• Exposure compensation - TTL mode - at ⅓ f-stop increments over a range of +/- 2

Lighting

The best light to paint your images.

• Guide Number 20 (ISO100-1m-full power) with coverage angle of 130°
• Circular flash lamp, warm coating, on parabolic reflector with dome port
• LED coaxial pilot light with two power levels and AF assistance mode

Power supply

Excellent efficiency and autonomy, safety without risks.

• Removable NiMH battery pack
• High battery capacity, more than 250 flashes at full power
• Fast recycling times, managed by CPU, from 0.1 to 1.6 seconds

Connections

Full interface, no limitations on use.

• The strobe has an S6-type sync cable socket and a Sea&Sea fiber-optic cable socket.
• The connections arranged in line on the body back make it easier to operate the main controls and protect the cables from the stress of accentuated bending, thanks to their natural orientation.
• An optical receiver is located on the front reflector for slave flash mode.

Sync cables

There is a perfect dialogue between the camera and the strobe.

• To ensure optimum data transmission between the digital cameras and OneUW's strobe, OneUW has commissioned, based on OneUW's technical specifications, a sync electric cable with high-quality multi-wire conductors and special outer coatings that are exceptionally flexible and resistant to use in the marine environment.
• All connector components are designed and manufactured in anticorodal aluminum with hard anodizing treatment or molded with the best technical polymers.
• The connections available in OneUW's system are the classic NikonosV and the very reliable S6.

Accessories

Everything you need for your needs.

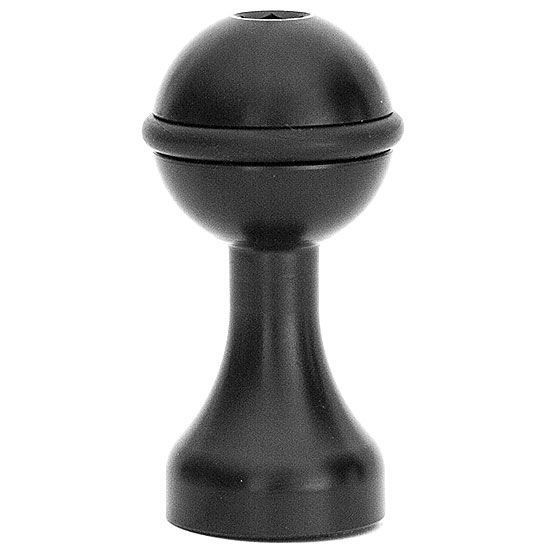

• A pair of spherical adapters with straight and 45° angled versions will allow you to interface with all the strobe arms available on the market.
• The neoprene cover of the body and the dome will ensure the unit's protection and generate good buoyancy to the system in water.
• A series of accessories for light shaping, diffusers, and snoots are currently in production.

Specification

• CNC machined with high-quality anticorodal aluminum and hard anodized
• Shooting modes: Nikon-Canon-Sony digital TTL, s-TTL, film TTL, manual
• Digital protocols Nikon, Canon, and Sony onboard selectable by users
• Firmware upgradable by the user via APP-Bluetooth
• High-speed sync HSS is available in digital TTL and manual by sync cable
• Circular flash lamp, warm color, on parabolic reflector with dome port
• Input by S6 sync cable socket, Sea&Sea fiber-optic cable socket, slave sensor
• Ergonomic controls insensitive to hydrostatic pressure
• Input, operating mode, and power level are shown on digital display

• Max energy: 162 Ws (J)
• Manual mode power control range – steps: Full -6 f-stop - 1/2
• TTL mode EV control range – steps: ± 2 f-stop - 1/3
• Maximum shutter speed in HSS mode, up to 1/8000 s
• GN Guide number ISO100 @ 1m: 20
• GN Guide number ISO100 @ 1m - detection angle: 20-90° | 18-110° | 16-130°
• Beam angle: 130° (circular)
• Number of full power flashes: over 250
• Recycle time: 0.2-1.6 s
• Color temperature: 4,600K
• Pilot light: Led 200 lm 10° 2 steps
• Power supply: interchangeable battery pack
• Battery type and capacity: NiMH 4.8V 3050mAh
• Battery charging time: 90 min
• Flash arm connection: M6 threaded hole
• Dimension Diameter x Length (controls included): 99x200 mm / 3.9x7.9in
• Weight in air battery included: 1.46 kg / 3.2 lbs
• Weight UW battery included (with neoprene cover): ≈-170 g (≈ -50 g) / -6oz (-1.75oz)
