Nikon KeyMission 170 Action Camera

Waterproof, shockproof and freezeproof
170_ first person point of view
Record 4K Ultra HD videos
SnapBridge integration
Compact and lightweight

SKU: # nkl-26514

FREE Standard Shipping to USA / Canada!

Price $399.95

This product has been discontinued. Please scroll down for accessories and other options.

Back

This product has been discontinued. Please scroll down for accessories and other options.

Item

IncomeAccount

TaxCode Mapping

UDF1

UDF2

UPC Code

Pick Up

Tax Amount

Ship From VAT BIN

Ship To VAT BIN

Overview / Product Description

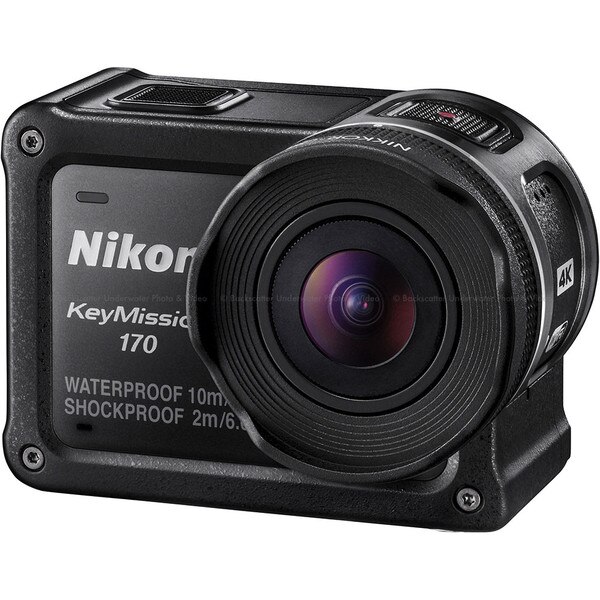

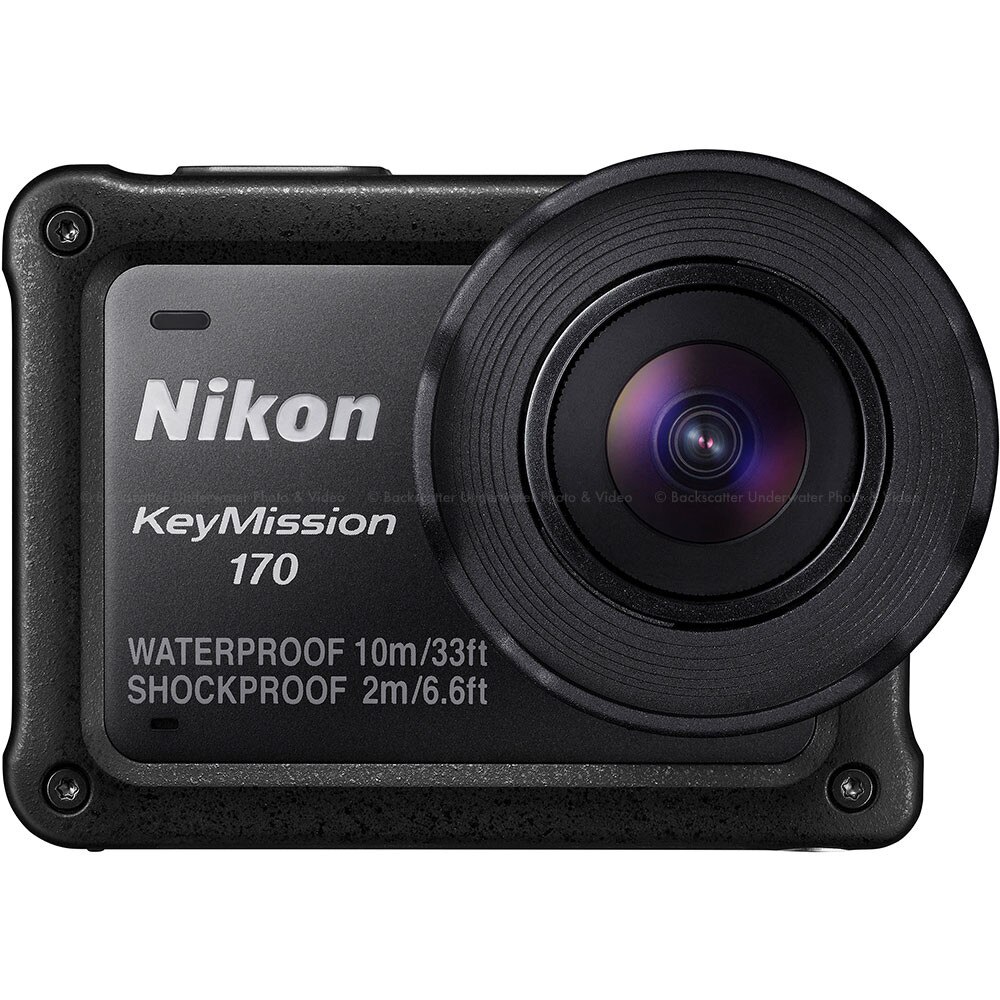

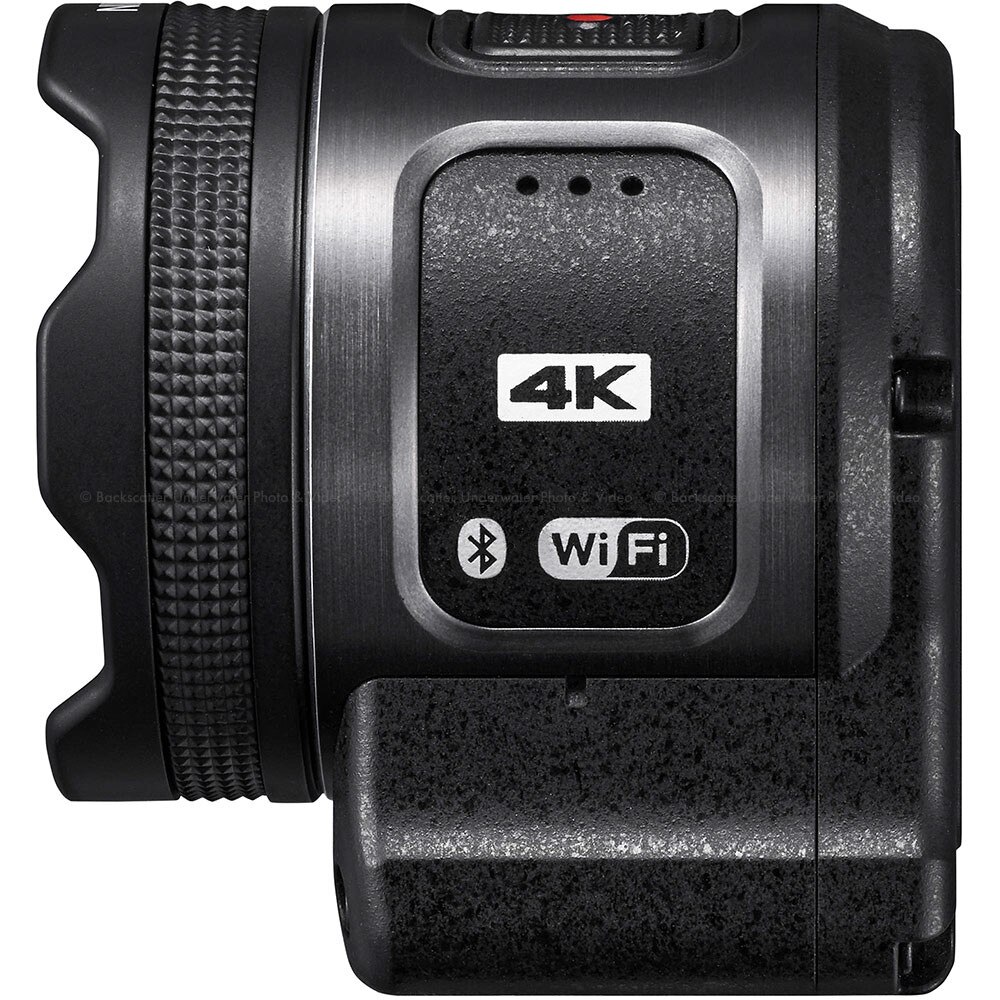

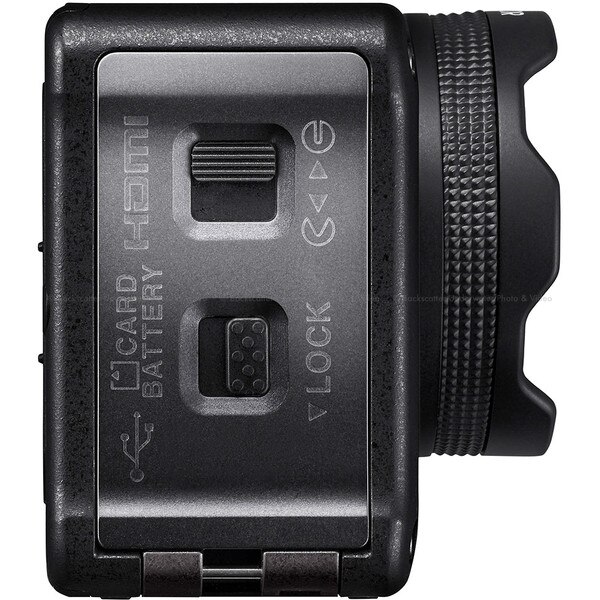

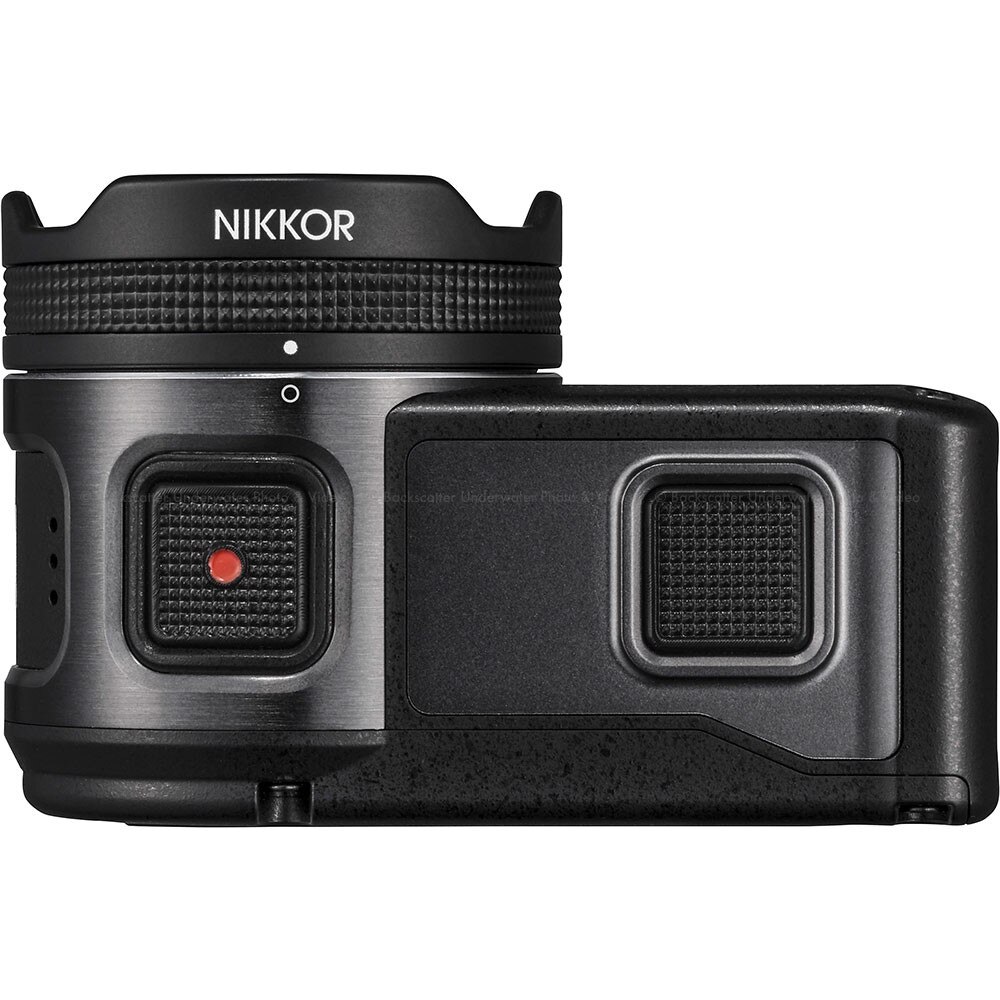

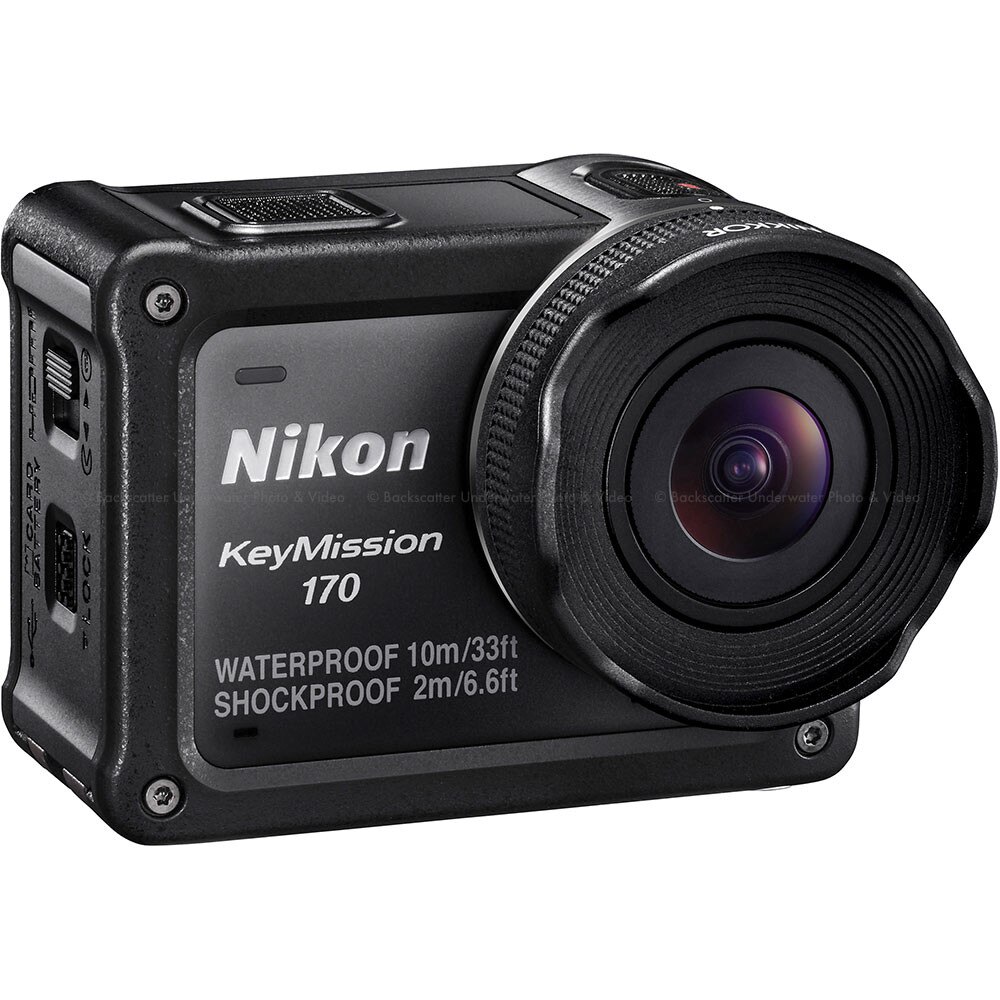

Nikon KeyMission 170 Action Camera

Waterproof, shockproof and freezeproof action camera
Epic 170_ first person point of view with outstanding Nikon image quality
Record 4K Ultra HD videos, striking still images, time-lapse sequences and more
SnapBridge integration for real-time wireless sharing
Compact and lightweight with over 10 mounting accessories available

Share your awesome point of view.
Imagine the fun of capturing a child's first bike ride, a dog's romp through a stream, even just a morning jog, from an epic 170_ first person point of view. KeyMission 170 transforms everyday adventures into thrilling first-person 4K Ultra HD videos that can be shared with a compatible smartphone. Its waterproof, freezeproof and shockproof, has built-in Wi-Fi with Bluetooth, electronic Vibration Reduction, time lapse, loop recording, includes a remote control and has more than 10 mounting accessories. Bring it everywhere, mount it almost anywhere and share awesome views of your life.

Tech Specs

At a Glance

Effective Pixels (Megapixels): 8.3 million
Sensor Size: 1/2.3-in. RGB CMOS

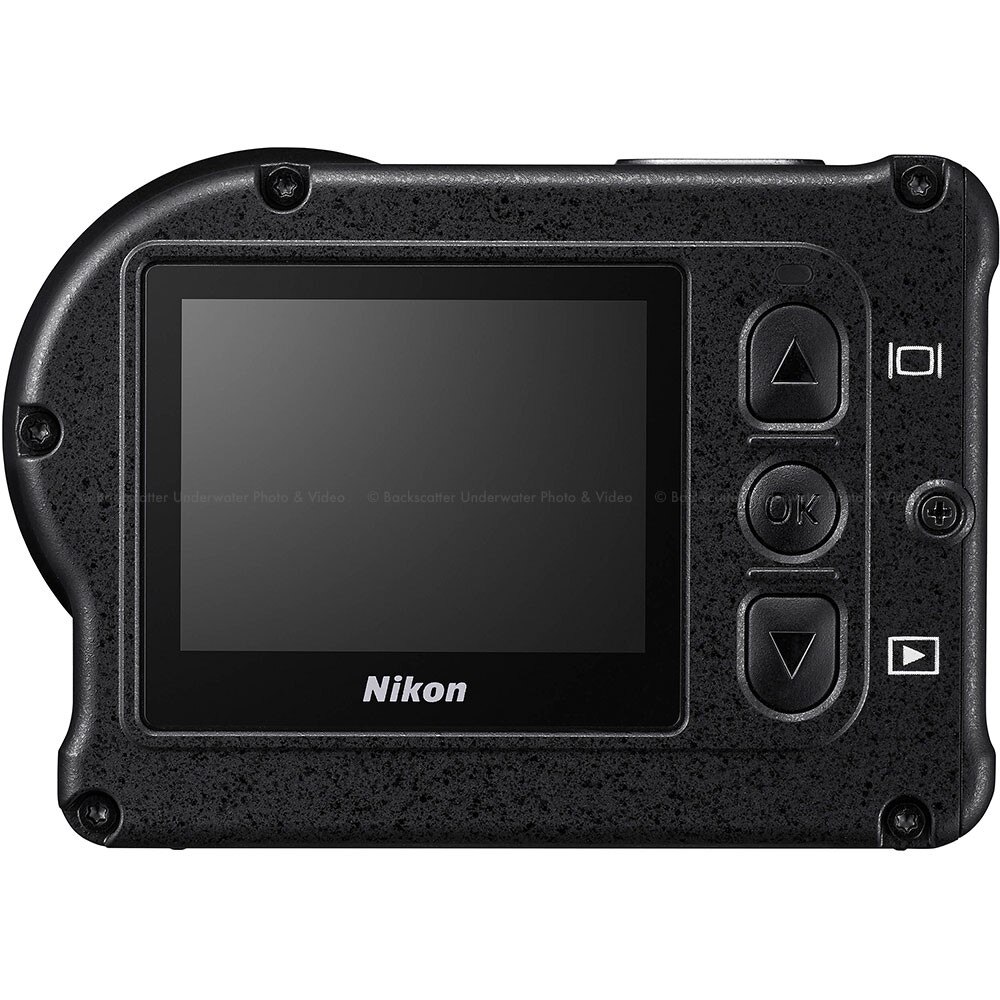

Monitor Size: 1.5 in. diagonal
Monitor Type: 1.5-in. (3.7 cm) TFT LCD monitor, approx. 345,000-dot
Storage Media

MicroSD card
SDHC memory card
SDXC memory card

Movie

When NTSC/PAL is set to NTSC

3840x2160/ 30p
1920x1080/ 120p
1920x1080/ 60p

When NTSC/PAL is set to PAL

3840x2160/ 25p
1920x1080/ 100p
1920x1080/ 50p

High Speed movie options:

HS 1080/ 4x
HS 720/ 8x

ISO Sensitivity: ISO 100 - 1,600
Battery / Batteries: One Rechargeable Li-ion Battery EN-EL12
Approx. Dimensions (Width x Height x Depth): 2.7 in. (66.4 mm) x 1.9 in. (46.8 mm) x 1.7 in. (42.7 mm)
Approx. Weight: 4.8 oz. (134.5g)

Collapse all specsExpand all specs

Collapse Type

Type
Compact Digital Camera

Collapse Image Sensor

Effective Pixels (Megapixels)
8.3 million
Image Sensor
CMOS
Sensor Size
1/2.3-in. RGB CMOS
Total Pixels
12.71 million
Image Size (pixels)
3,840 x 2,160

Collapse Lens

Lens
2.4 mm (angle of view equivalent to that of 15 mm lens in 35mm [135] format
Lens Focal Length
2.4 mm
Lens f/-number
f/2.8
Lens Zoom
Fixed single focal length
Vibration Reduction
Movie: Electronic VR function (4K UHD is not supported)
Aperture
f/2.8

Collapse Autofocus

Focus Range
Approx. 1 ft. 4 in. (40 cm.) to infinity from the center of the front surface of the lens

Collapse Monitor

Monitor Size
1.5 in. diagonal
Monitor Type
1.5-in. (3.7 cm) TFT LCD monitor, approx. 345,000-dot
Monitor Resolution
345,000-dots
Monitor Frame Coverage (shooting mode)
97% horizontal (Approx)
97% vertical (Approx)
compared to actual picture
Monitor Frame Coverage (playback mode)
99% horizontal (Approx)
99% vertical (Approx)
compared to actual picture

Collapse File System

Storage Media
MicroSD card
SDHC memory card
SDXC memory card
Storage File System
DCF
Exif 2.3 compliant
Storage File Formats
Still pictures: JPEG
Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: AAC Stereo)

Collapse Movie

Movie
When NTSC/PAL is set to NTSC
3840x2160/ 30p
1920x1080/ 120p
1920x1080/ 60p
When NTSC/PAL is set to PAL
3840x2160/ 25p
1920x1080/ 100p
1920x1080/ 50p
High Speed movie options:
HS 1080/ 4x
HS 720/ 8x

Collapse Sensitivity

ISO Sensitivity
ISO 100
-1,600
Lowest ISO Sensitivity
100
Highest ISO Sensitivity
1,600

Collapse Exposure

Exposure Metering
Matrix
Center-weighted
Exposure Control
Programmed auto exposure, exposure compensation (-2.0 to +2.0 EV in steps of 1/3 EV)
Exposure Compensation
-2.0 to +2.0 EV in steps of 1/3 EV

Collapse Shutter

Shutter
CMOS electronic shutter
Shutter Speed
1/160001/2 sec.

Collapse Interface

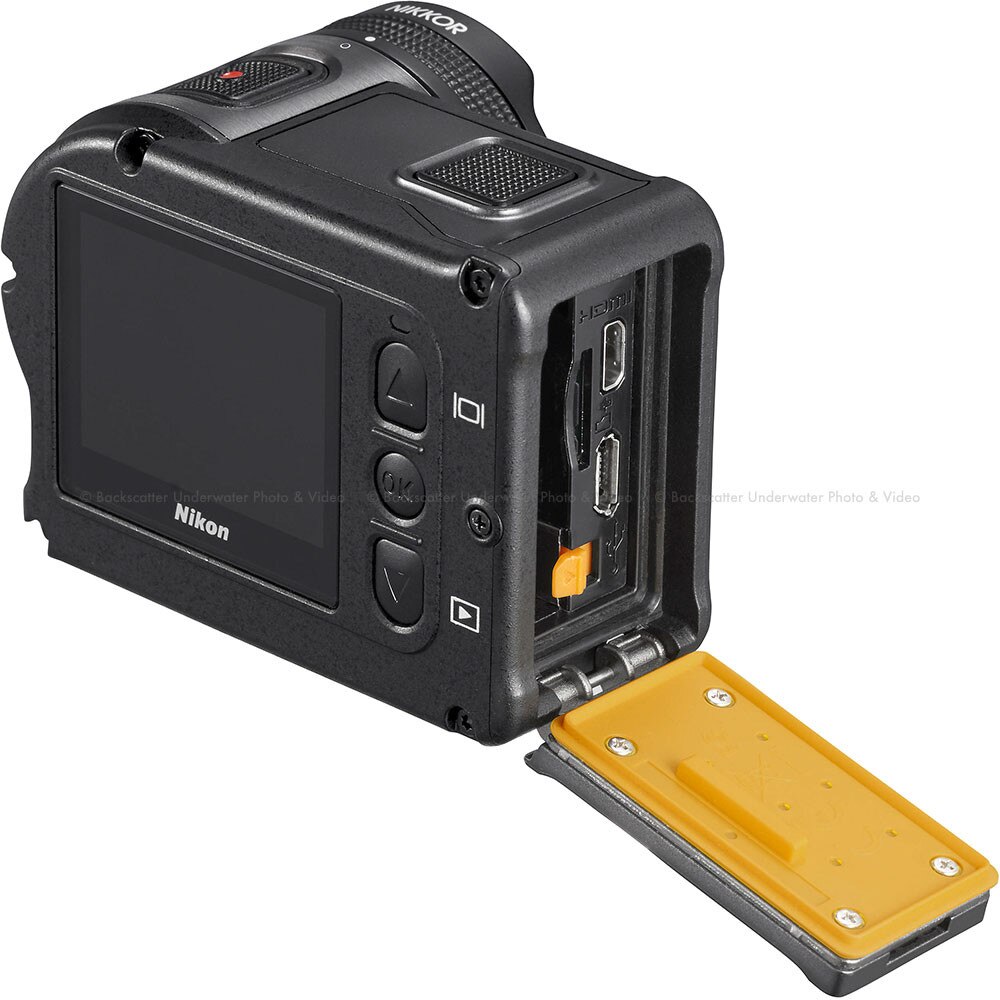

Interface
Hi-speed USB
HDMI
HDMI Output
HDMI micro connector (type D)
I/O Terminal
USB-micro connector (Hi-Speed USB) (Do not use any USB cable other than the included UC-E21 USB Cable)
Wi-Fi Functionality
Yes
Bluetooth
Yes

Collapse Supported Languages

Supported Languages
Chinese (Simplified and Traditional)
Dutch
English
French
German
Italian
Japanese
Korean
Spanish

Collapse Power

Power Sources
One Rechargeable Li-ion Battery EN-EL12 (supplied)
EH-62F AC Adapter (available separately)
Charging Time
Approx. 3 hours (when using EH-73P/EH-73PCH Charging AC Adapter and when no charge remains)
Battery / Batteries
One Rechargeable Li-ion Battery EN-EL12
Battery Life (shots per charge)
250 shots (CIPA)
Movies: Approx. 60 minutes when using EN-EL12 Rechargeable Battery

Collapse Miscellaneous

Approx. Dimensions (Width x Height x Depth)
2.7 in.
(66.4 mm)
x 1.9 in.
(46.8 mm)
x 1.7 in.
(42.7 mm)
including lens protector, excluding projections
Approx. Weight
4.8 oz.
(134.5 g)
including battery, memory card, and lens protector
Operating Environment
Temperature: -10_C to +40_C (14_F to 104_F) for land use
Temperature: 0_C to 40_C (32_F to 104_F) for underwater use
Humidity: 85% or less (no condensation)
Waterproof
JIS/IEC protection class 8 (IPX8) equivalent (under our testing conditions)
Capacity to record images and movies underwater up to a depth of 10 m. (33 ft.) and for 60 minutes
Dustproof
JIS/IEC protection class 6 (IP6X) equivalent (under our testing conditions)
Shockproof
Cleared our testing conditions 3 compliant with MIL-STD 810F Method 516.5-Shock
Unless otherwise stated, all figures assume a fully-charged battery and an ambient temperature of 23 3_C (73.4 5.4_F) as specified by the Camera and Imaging Products Association (CIPA) Communication protocols. Bluetooth Specification Version 4.1 Approx. 10 m. (10 yd.)1. Battery life does not reflect the use of SnapBridge and may vary with the conditions of use, including temperature, the interval between shots, and the length of time that menus and images are displayed.2. The remaining movie recording time (the amount of time that can be recorded for an individual movie) displayed at the top of the shooting screen depends on the remaining amount of space on the memory card. Recording may end before this limit is reached if the camera temperature becomes elevated.3. Dropped from a height of 200 cm. (6 ft 6 in.) onto a surface of 5 cm. (2 in.) thick plywood (changes in appearance, such as paint peeling off and deformation of the drop shock portion and waterproof performance are not subject to the test).These tests do not guarantee that the camera will be free from damage or trouble under all conditions.
