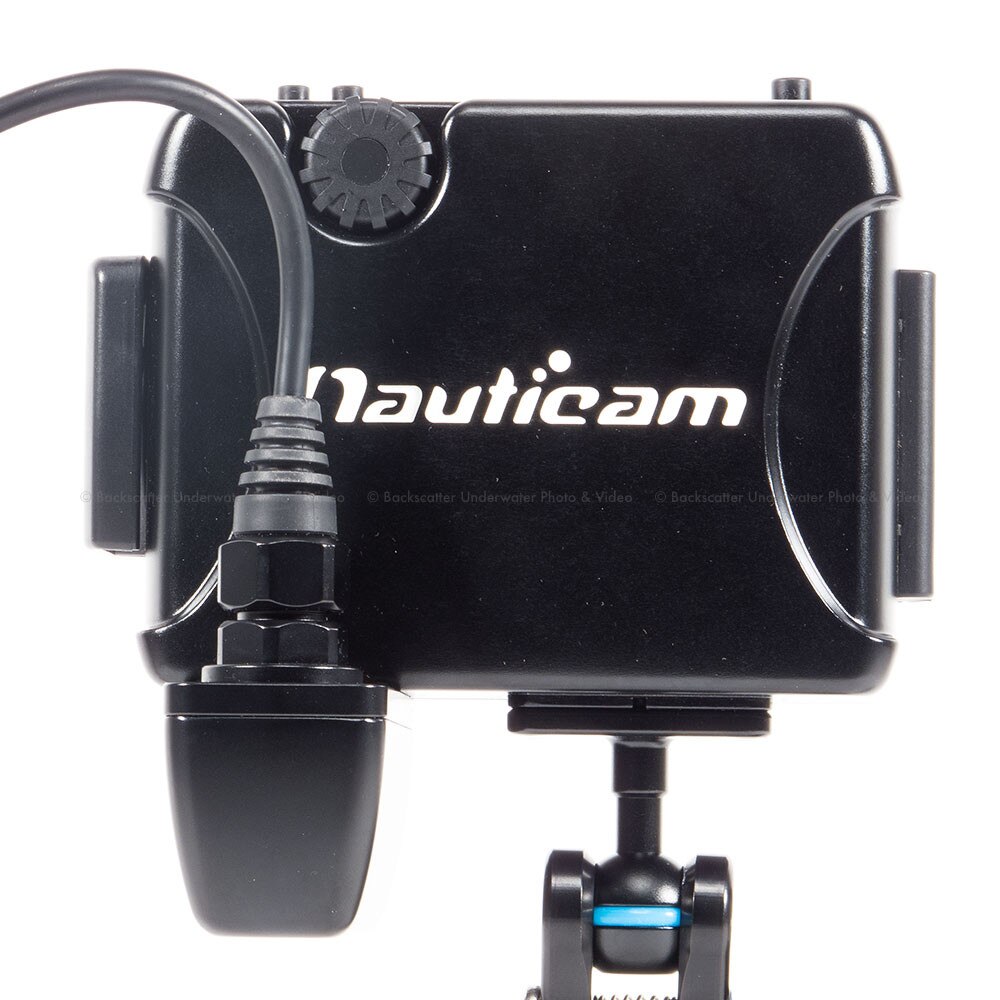

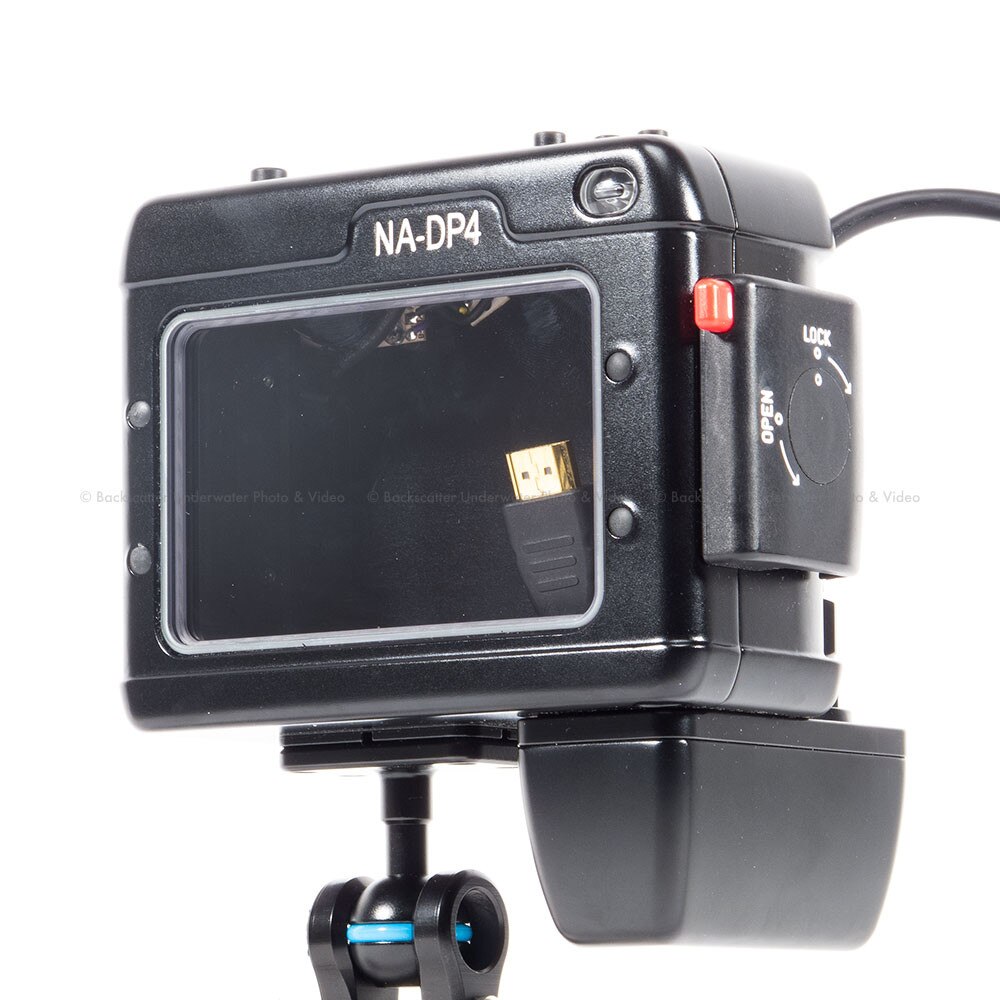

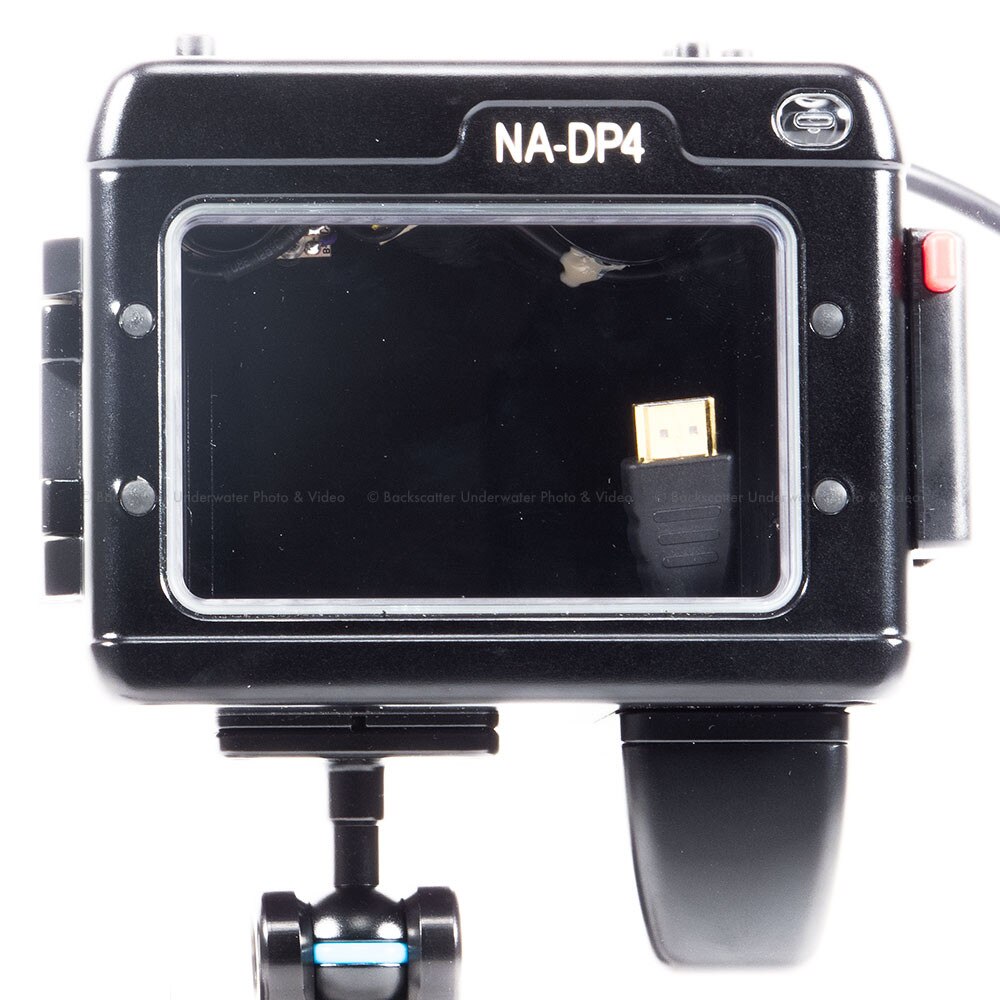

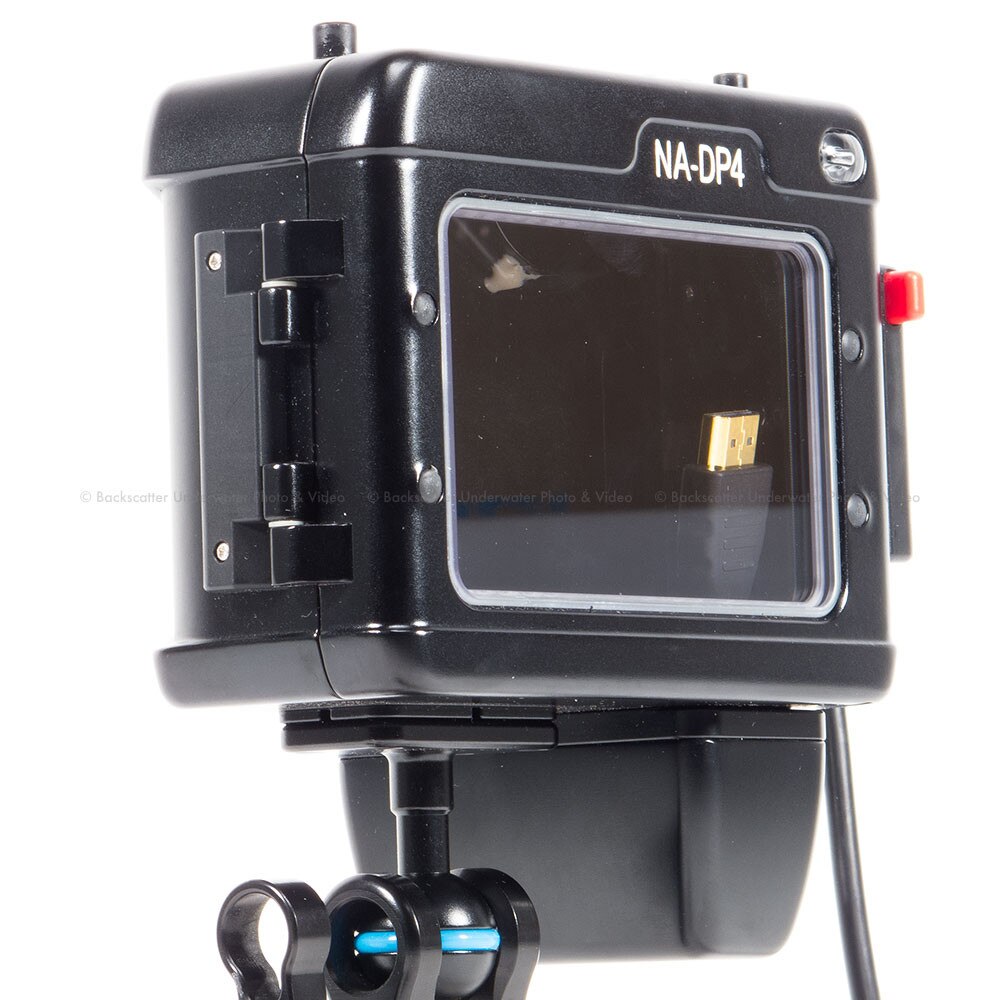

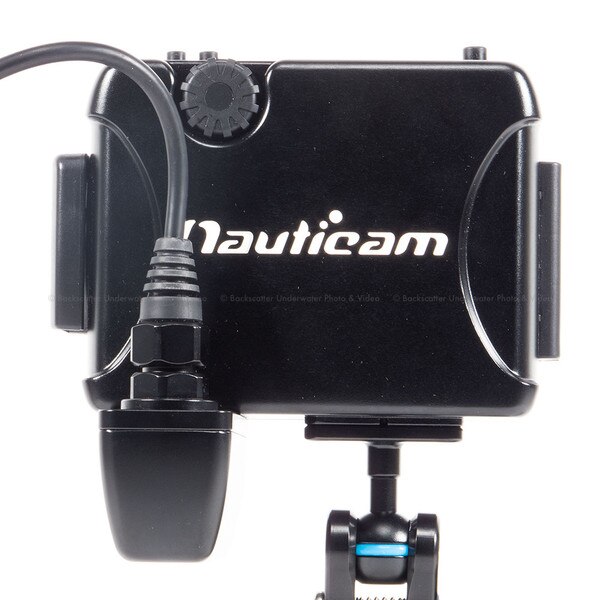

Nauticam NA-DP4 Underwater Housing for SmallHD 4.3 inch Monitor

Nauticam NA-DP4 Underwater Housing for SmallHD 4.3 inch Monitor

Design

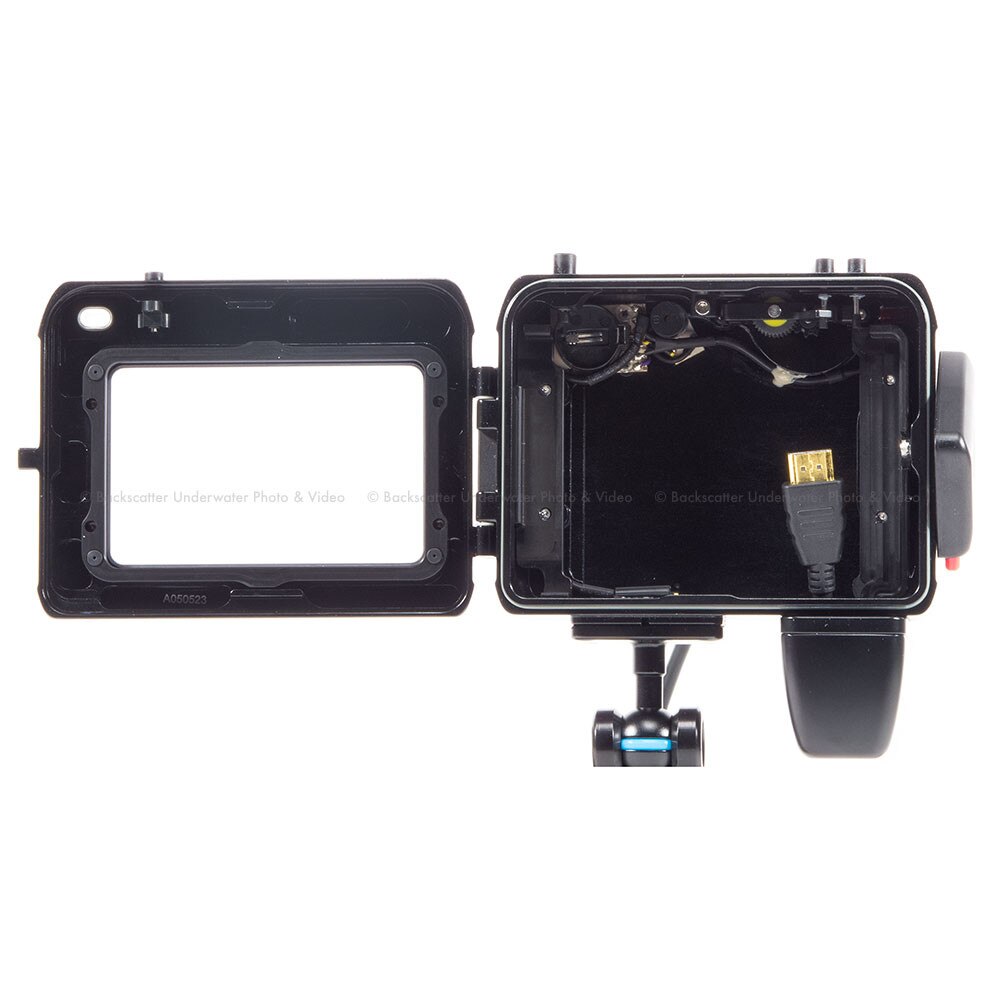

Nauticam NA-DP4 Housing includes access to all controls on the SmallHD LCD monitor. The housing accommodates the SmallHD monitor with one or two Canon LP-E6 batteries or Nikon EN-EL15 batteries. It also incorporates the trusted and fast acting Nauticam leak detector with visual and audible alarm. NA-DP4 housing can be attached to the camera housing by the ball joint at the bottom.

Bulkhead connection
The installation of the NA-DP4 and the HDMI cable is stress-free thanks to the bulkhead style connections; this also means they can be easily detached from the housing even between dives or for travelling. Caps for bulkhead and HDMI cable are included for waterproof sealing when it is temporary disconnected from the camera housing.

Box Contains

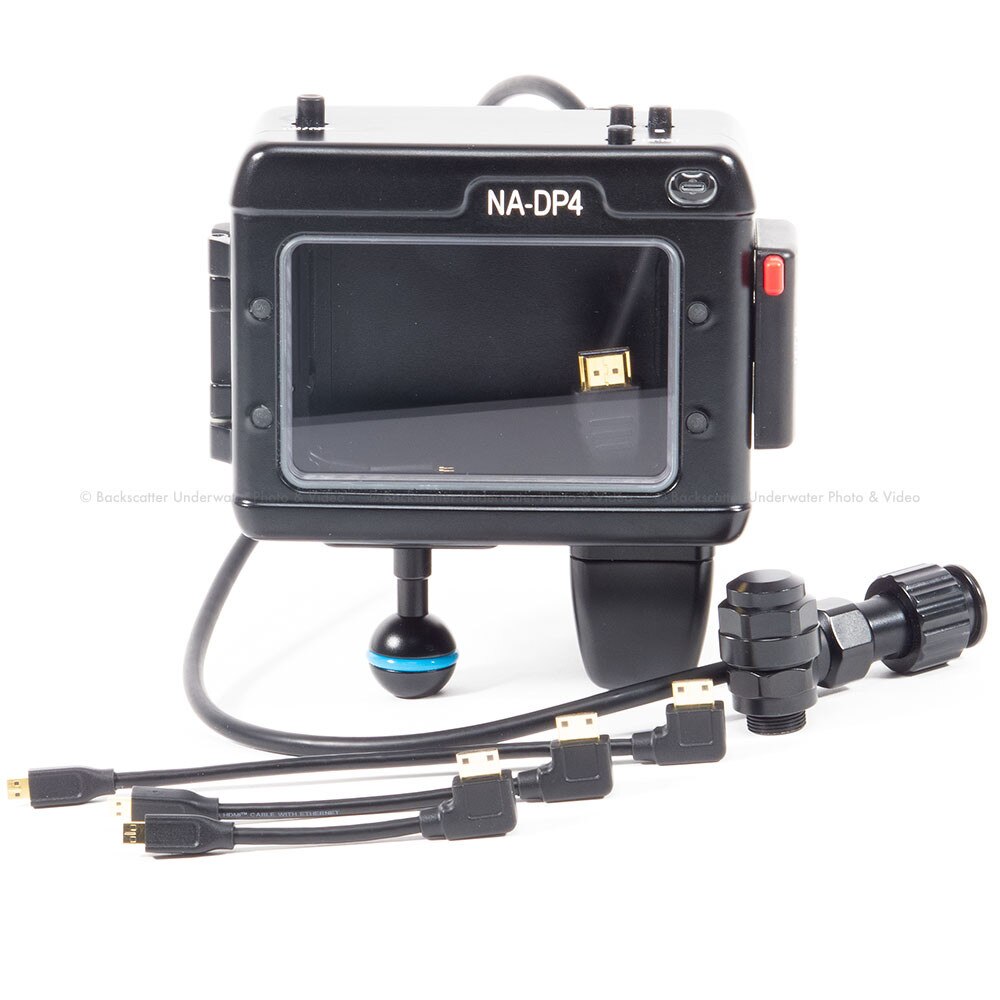

Each NA-DP4 housing is shipped with:

• 1x NA-DP4 Housing (with waterproof protective cap for HDMI cable)
• 1x HDMI Bulkhead with M16 thread (with waterproof protective cap)
• 3x HDMI cables (lengths 190mm, 130mm and 110mm

Compatibility:
All Nauticam housings with M16 accessory port are compatible with the NA-DP4. For camera housings with M14 or 1/2inch thread size of accessory ports, specific socket extensions and HDMI bulkhead are also available. Each set of NA-DP4 Housing is supplied with three different lengths of HDMI cables for camera output.
