Nauticam 7-inch T7 HD HDMI UltraBright Underwater Monitor
Nauticam 7-inch T7 HD HDMI UltraBright Underwater Monitor
SKU: # na-16612
Price $4,100.00
Add the Batteries & Chargers
Add the HDMI Monitor Cable
Add an HDMI Bulkhead
Overview / Product Description

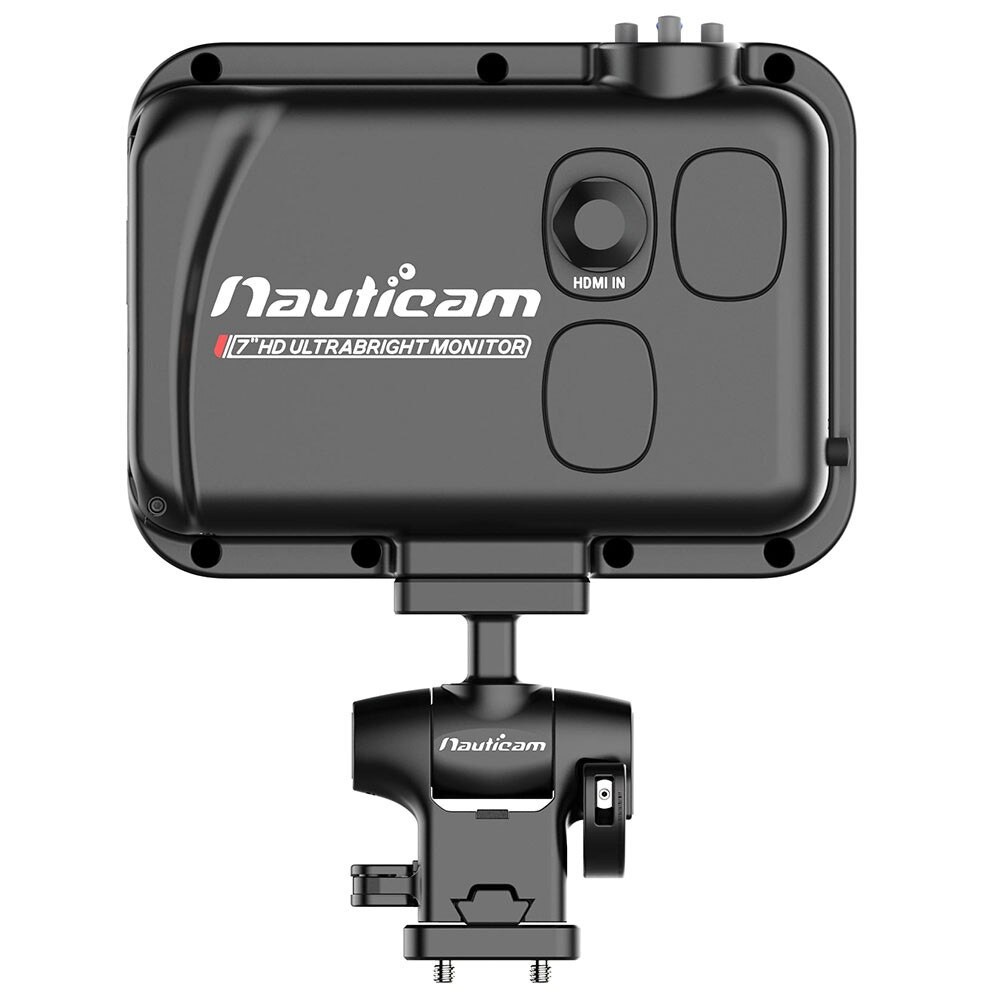

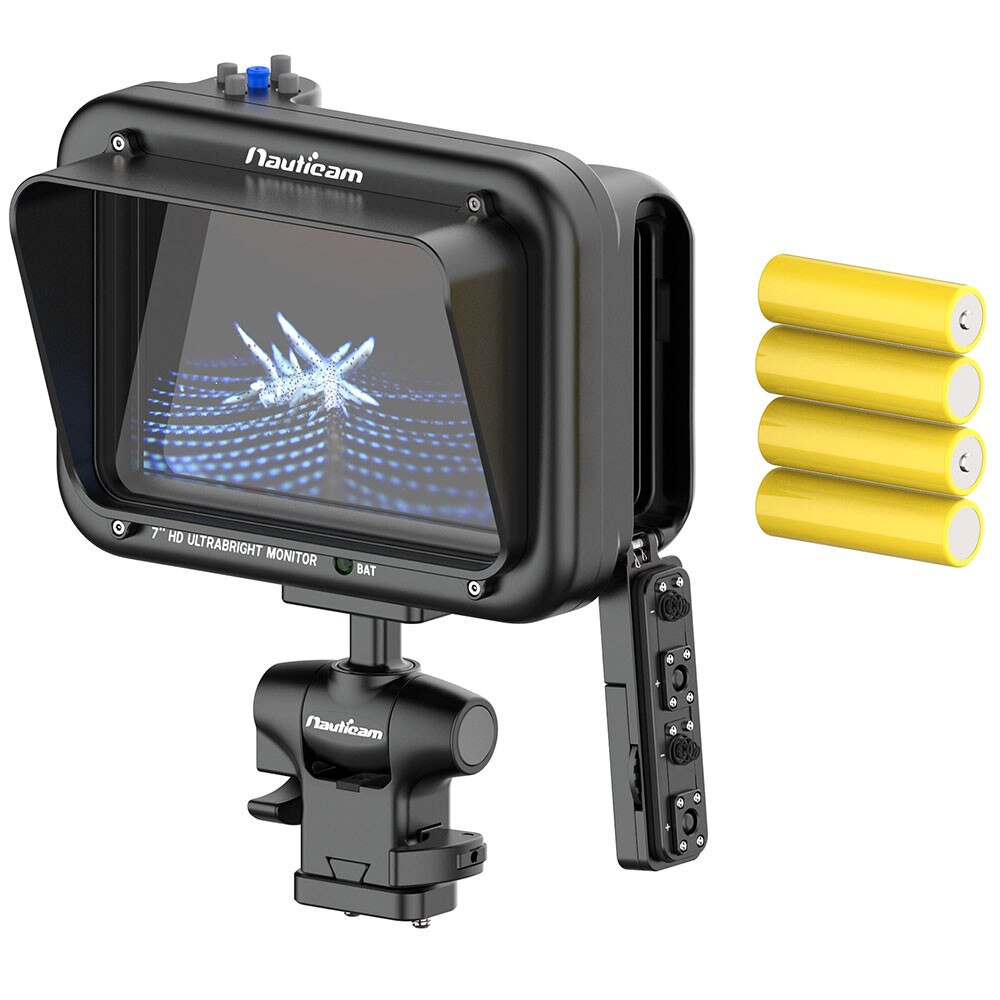

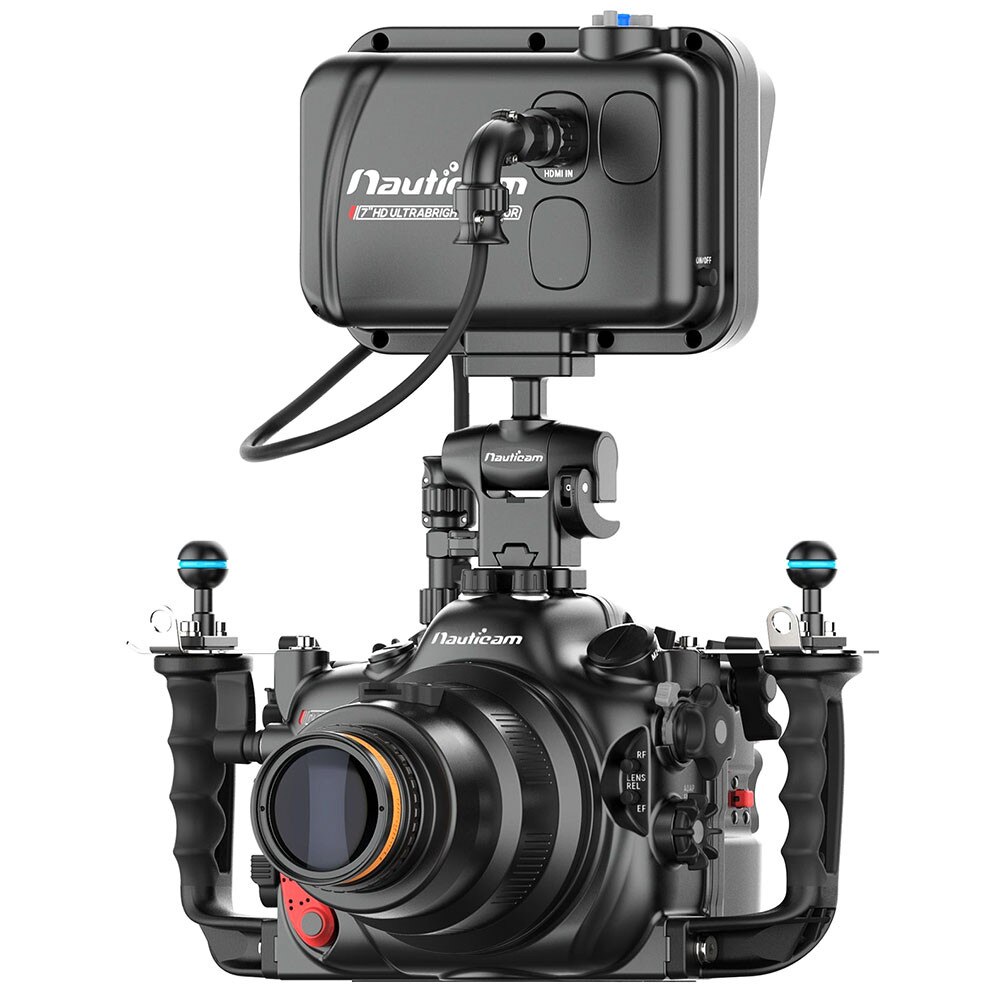

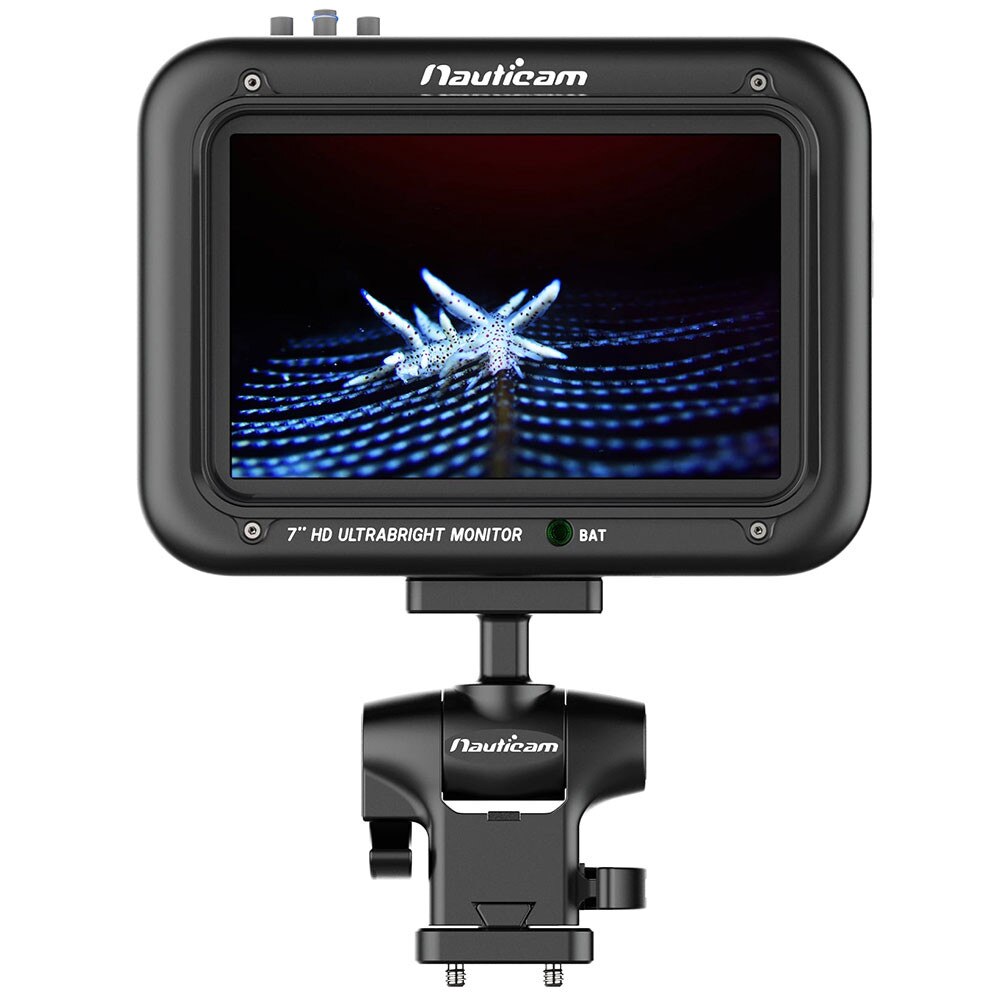

Nauticam 7-inch T7 HD UltraBright Underwater Monitor
Introducing the Nauticam 7" T7 HD UltraBright Monitor. Crafted for professional videographers and photographers, this advanced monitor delivers an incredibly bright 3000-nit display, ensuring optimal visibility even in challenging lighting conditions. With up to 6 hours of battery life, you can count on it for extended shoots, providing consistent, reliable performance throughout your dive. Equipped with essential tools such as Focus Peaking, False Color, Histogram, and many more, the Nauticam 7" T7 HD UltraBright Monitor offers you the ultimate monitoring tool for any project.
The Nauticam 7" T7 HD UltraBright Monitor
Key Features:
- Exceptional Brightness & Clarity: With an impressive 3000-nit brightness, the monitor provides clear, vibrant images even in direct sunlight so you won't miss a detail.
- Advanced Image Control Tools: Easily access the following tools at your fingertips. Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Vector scope, Waveform, Zebra
- Swivel and Tilt Adjustable Monitor Mount System: This newly designed mount ensures smooth adjustments at any angle, making this monitor invaluable for underwater image makers.
What's In The Box:
- 16611 Nauticam 7" T7 HD UltraBright Monitor
- Monitor Hood
- Swivel and Tilt Adjustable Monitor Mount System (attached to camera/Cine Housing with 2x ¼’’-20 UNC screws)
- Spare O-ring for the battery door, O-ring remover, and lubricant
- Padded Travel Case
Required Accessories to use with HDMI 1.4 input:
- 25033 Standard HDMI bulkhead with M16 thread
- 25081 M24-M16 Step Down Adaptor may be required for a certain camera
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
- 25047 HDMI (D-D) 1.4 cable in 800mm length (for connection between HDMI bulkheads)
Technical Specifications
- Dimensions: 204mm(W) x 150mm(H) x 67mm(D) / 8.0in(W) x 5.9in(H) x 2.6in(D)
- Brightness: 3000nit
- Resolution: 1920 x 1200
- Input Signal Formats: 4KP30 with HDMI input
- HDMI/SDI Support: HDMI in only
- Recommended Batteries (Not included): 4x Nitecore NL2160/2160HP 6000mah or 4x NL2153/2153HP 5300mah batteries
- Recommended Battery Charger (Not included): Nitecore UMS4 Intelligent USB Four-Slot Superb Battery Charger
- Run time: Up to 6h at default backlight level 5 (with 4x new NL2160HP 6000mah batteries) *1
- Included accessories: Monitor Hood, Swivel, and Tilt Adjustable Monitor Mount System
- Weight in Air: 2.5kg / 5.5lbs (incl. Swivel and Tilt Adjustable Monitor Mount System)
- Buoyancy in Water: Negative 0.83kg / 1.8lbs (incl. Swivel and Tilt Adjustable Monitor Mount System)
- Depth Rating: 100m / 330ft
- Compatible Monitor: SmallHD Ultra 5
- *1. Please make sure the 4 protected batteries are fully charged before use.
