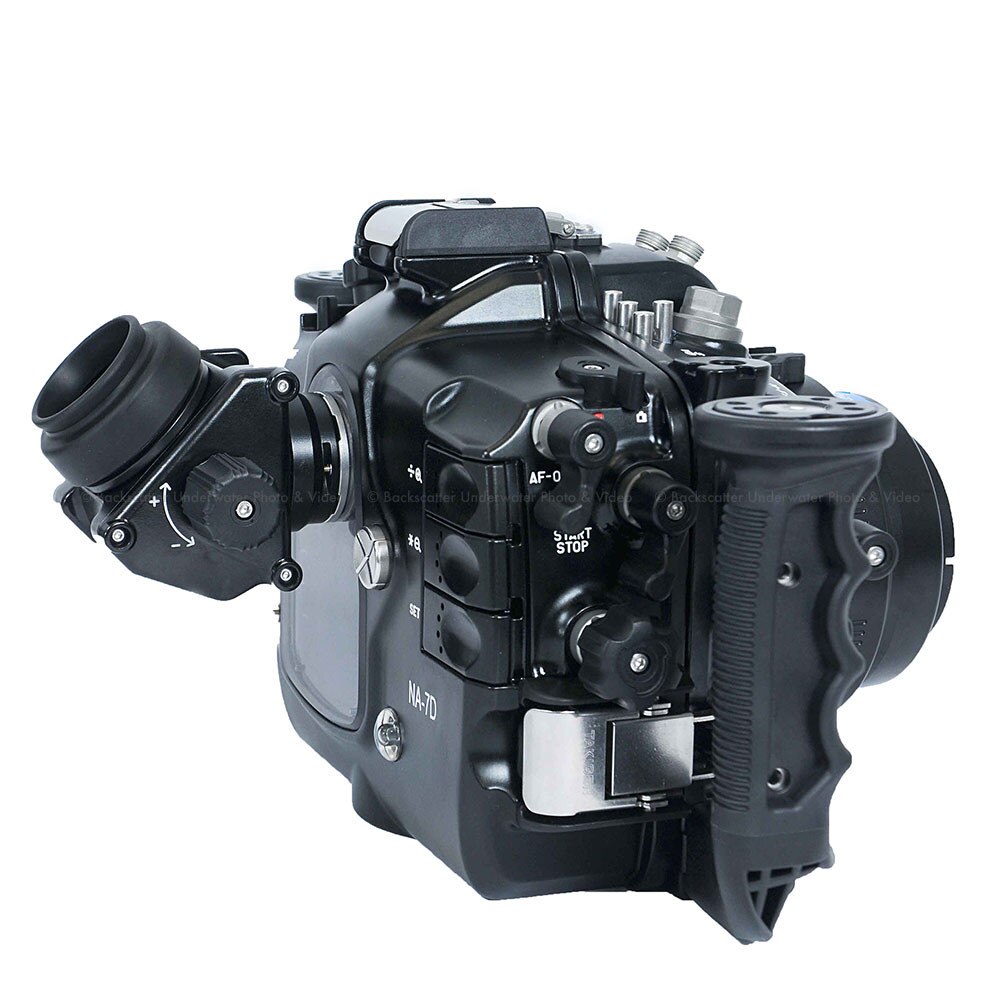

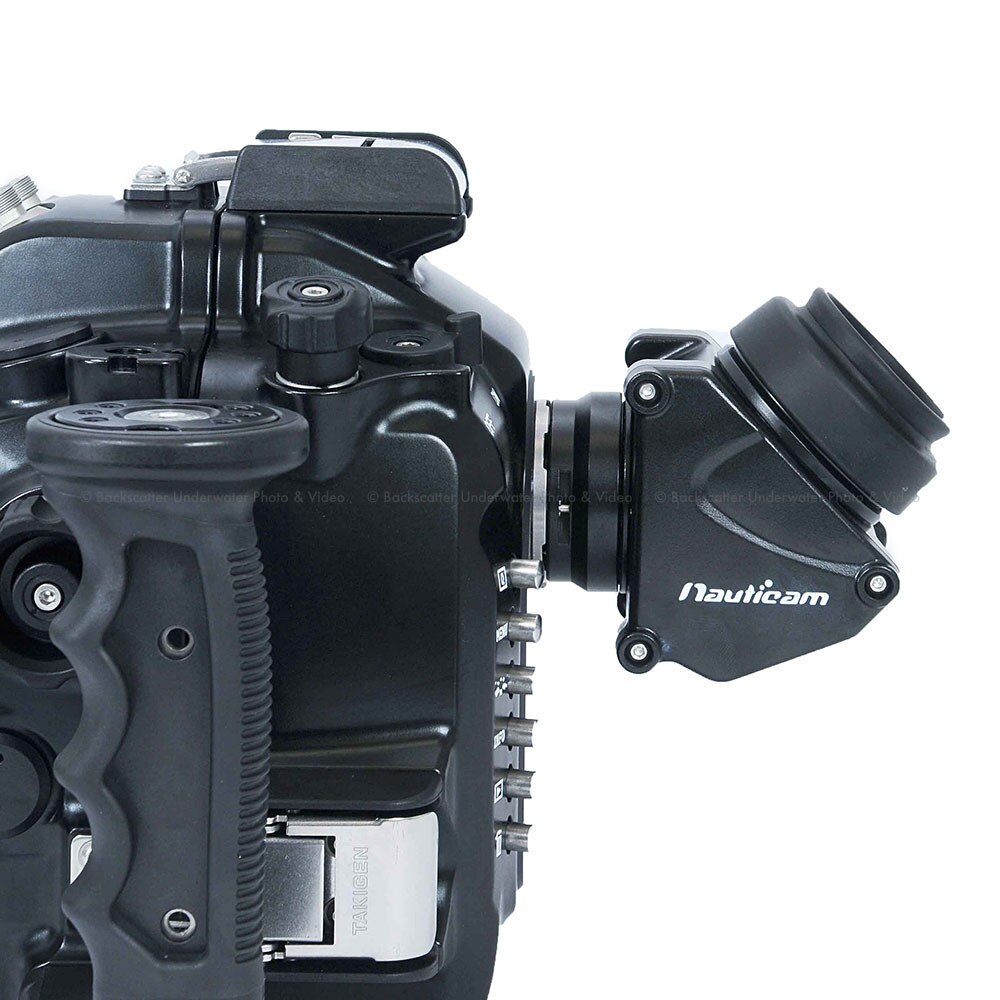

Nauticam 45° Viewfinder for DSLR & Full-Frame Mirrorless Underwater Housings
The Nauticam enhanced 45° angled viewfinder is the perfect addition to your housing as it provides a bright, clear, and undistorted 1:1 image of the camera’s viewfinder as well as a 45º viewing angle.
The viewfinder can rotate to any angle, essential when shooting vertical orientation images.
The 45º viewfinder also provides more clearance for your regulator allowing for a more comfortable viewing position.
LONG SIGHTED OR SHORT SIGHTED?

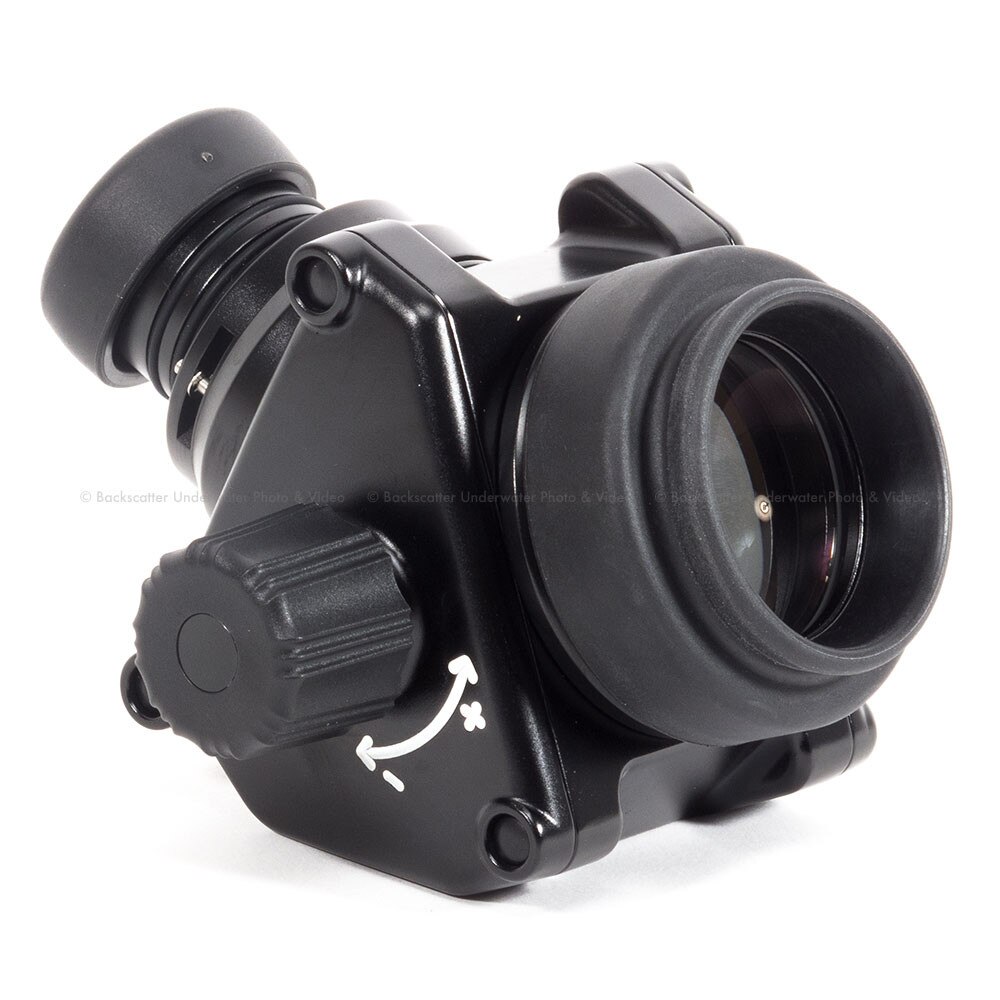

The viewfinder features an external knob for eyesight compensation; hassle-free dioptric adjustment can now be easily performed even when you are underwater, no disassembly of the viewfinder is necessary.
The casing is made of anodized aluminum and all lens elements and prisms in the viewfinder are precisely ground and multi-layer coated to ensure optimum light transmission and no distortion.
INSTALLING THE VIEWFINDER

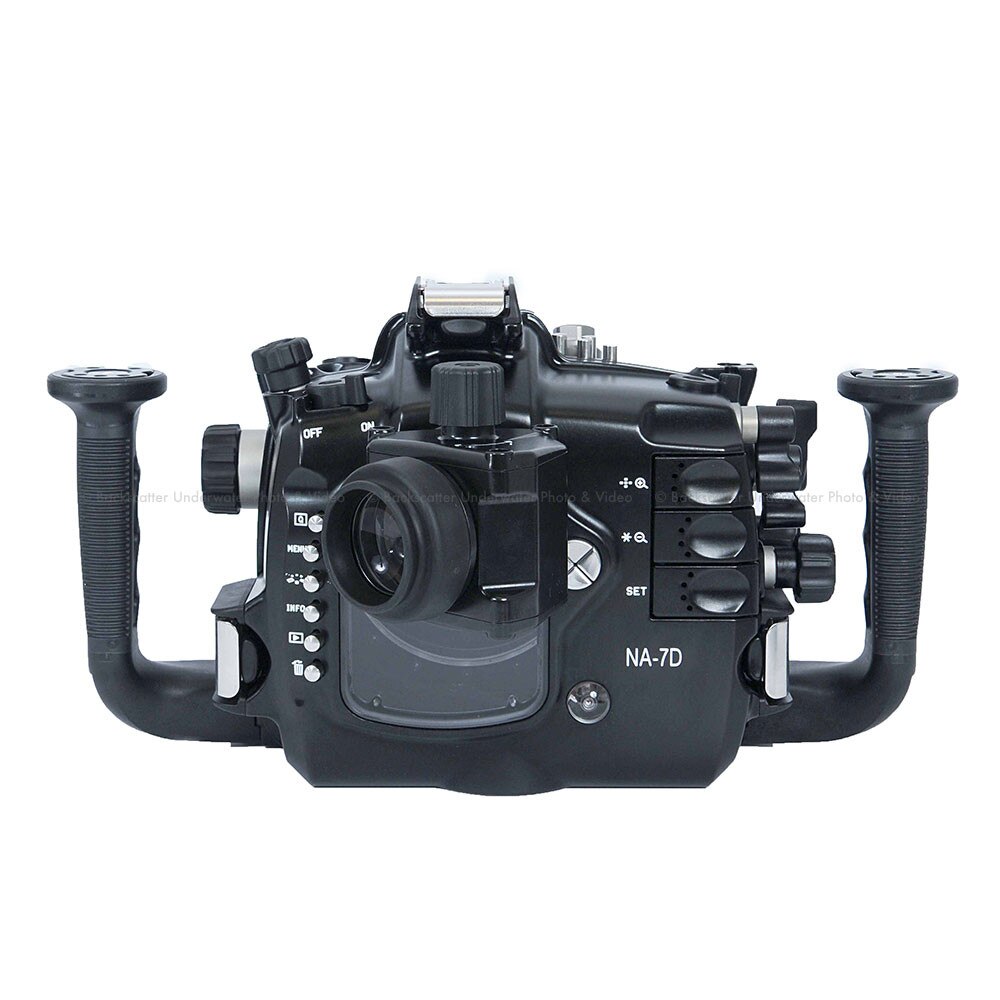

With Nauticam housings, it is simple to switch between the standard 0.66x and the Enhanced 45° viewfinder, in most cases with no tools or adapter necessary.
It can also be adapted to be used with Ikelite, Aquatica, Sea & Sea, and Nexus housings with optional adapter kits. Note:
as some newer camera models feature higher magnifications and a decreasing eyepoint there may be a slight decrease in full edge-to-edge visibility when using a Nauticam magnifying viewfinder. The amount varies yet the benefits of the magnifying viewfinder still hold true.
- Depth Rating: 150m/492ft
- Weight: 0.48kg
- Dimensions: 124mm (W) × 86mm (H) × 85mm (D)
- Body Construction: Anodized Aluminum
- Glass Elements & Prism: F4/K9 with Enhanced Multi-layer Anti-reflective Coating
