MacroMate Flip Lens for Aquatica Flat Port

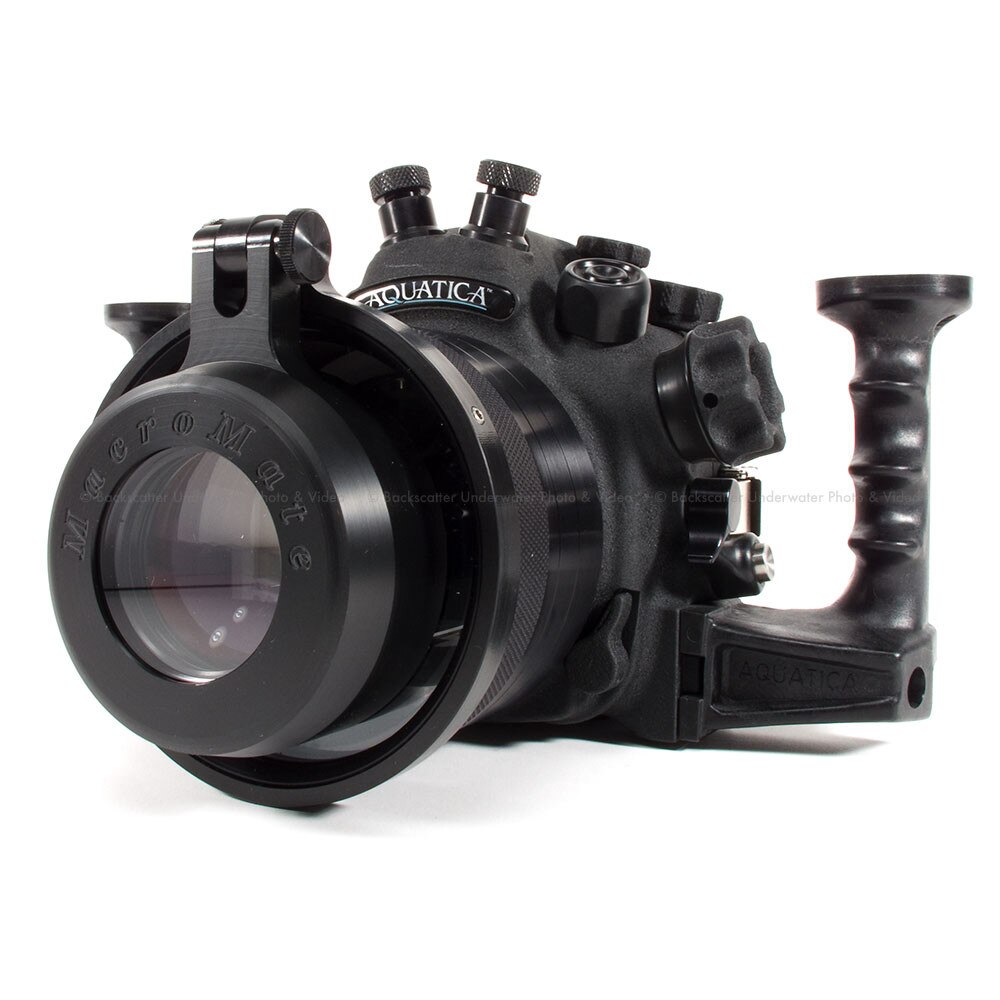

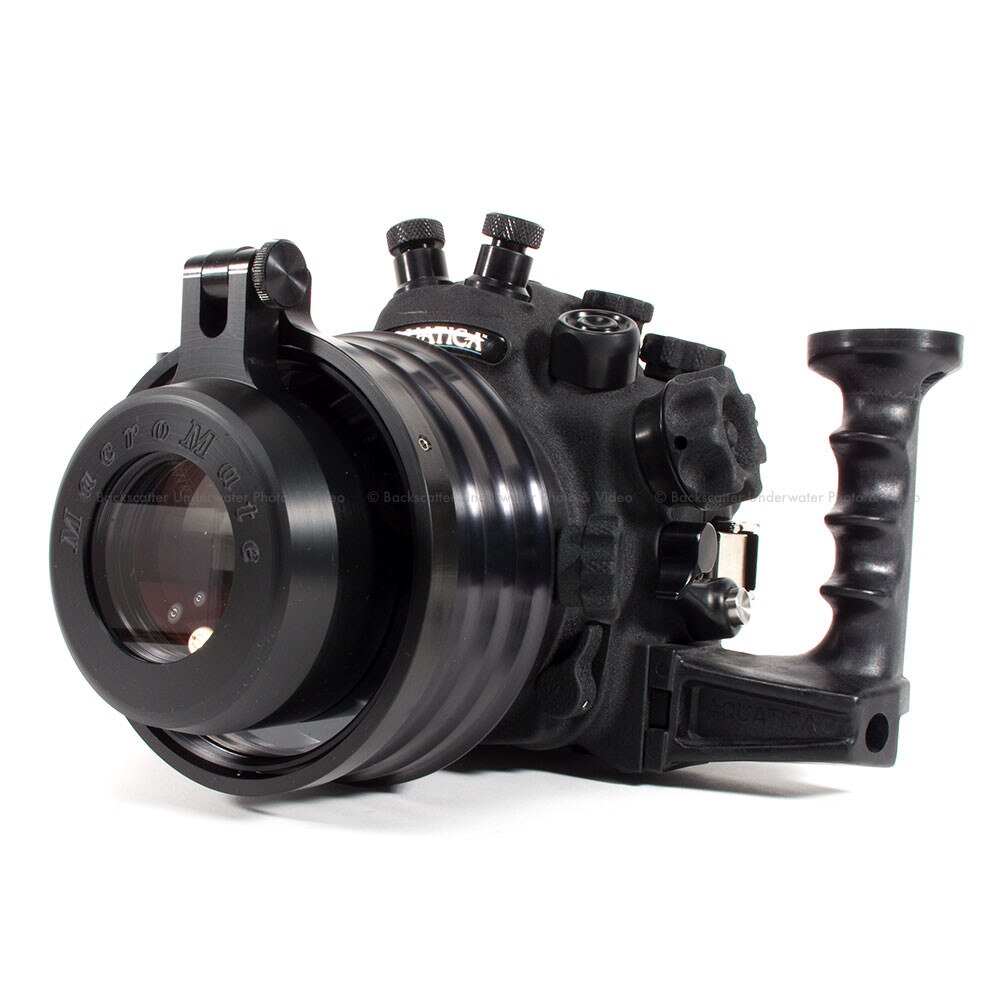

Custom made for Aquatica flat ports. Simply slip the MacroMate onto your macro port to explore the world of extreme macro. The MacroMate will give you a 2:1 ratio on an underwater SLR camera housing. Flip the lens up to return to normal shooting. The MacroMate will give you a 2:1 ratio on an underwater SLR camera housing.<br><br>Please <a href="http://www.backscatter.com/learn/gallery/gallery_template.php?fieldname1=lens_access&searchterm1=MacroMate&asc_desc=DESC">click here</a> to see actual images taken with the Macromate.
FREE Standard Shipping to USA / Canada!
Base Price $
Price as Configured $
Overview / Product Description
Get incredibly sharp 2:1 (twice life-size) macro images with the underwater removable MacroMate lens for underwater SLR housings. The MacroMate doubles your 100mm or 105mm image size by allowing you to get closer to the subject.
Sealed Achromatic Glass Optics
Custom achromatic lenses are sealed in a glass optical housing and provide extreme magnification with incredibly sharp edges. This unique design produces much tighter and sharper images than simple close-up lenses that are exposed to water. The air sealed chamber maximizes the optical properties of the close-up lens without distortion or soft edges.

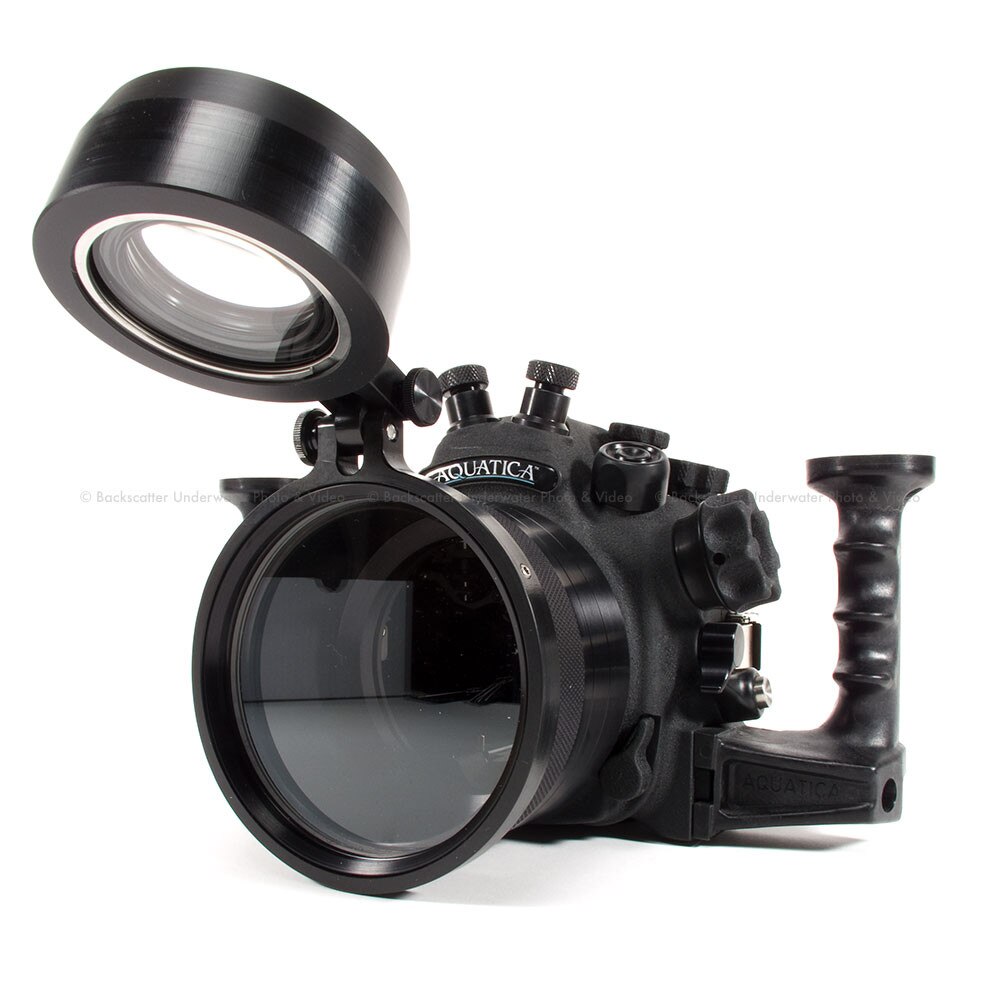

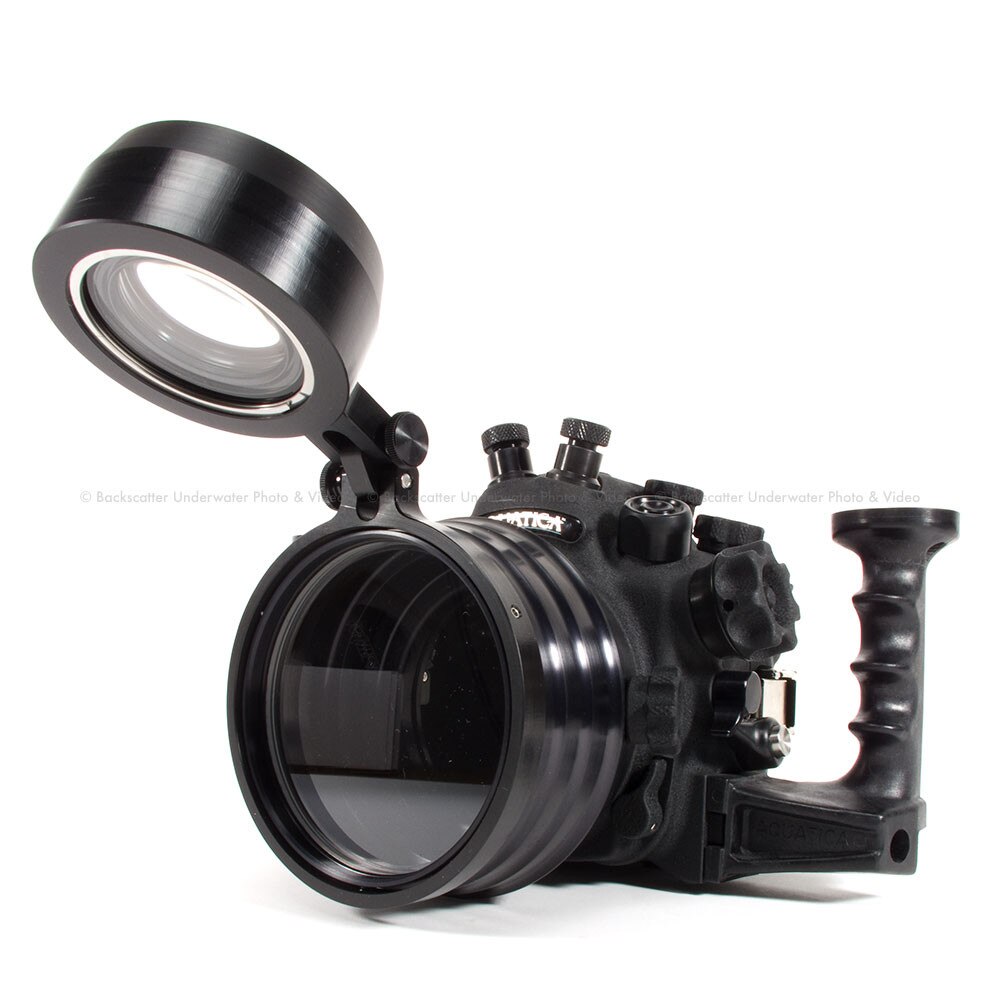

The MacroMate is designed for a snug fit on the lens and when not in use, the photographer can quickly flip the lens up and out of the way.
We regularly stock Flip-Up MacroMates for Subal, Sea & Sea, Ikelite and Aquatica ports. Allow 1-2 weeks for Seacam, Nexus, Hugyphot and Light & Motion. We regularly manufacturer custom versions for special applications usually at no additional charge.
Optics: Multi-coated acromatic lenses sealed in an optical glass housing
Magnification: 2:1 (2x lifesize)
Hardware: Custom machined delrin adapter with stainless fasteners
Weight in Air: 1.55 lb / 24.8 oz (most designs)
Weight in Fresh Water: 0.56 lb / 9 oz (most designs)
Installing your Flip-Up MacroMate

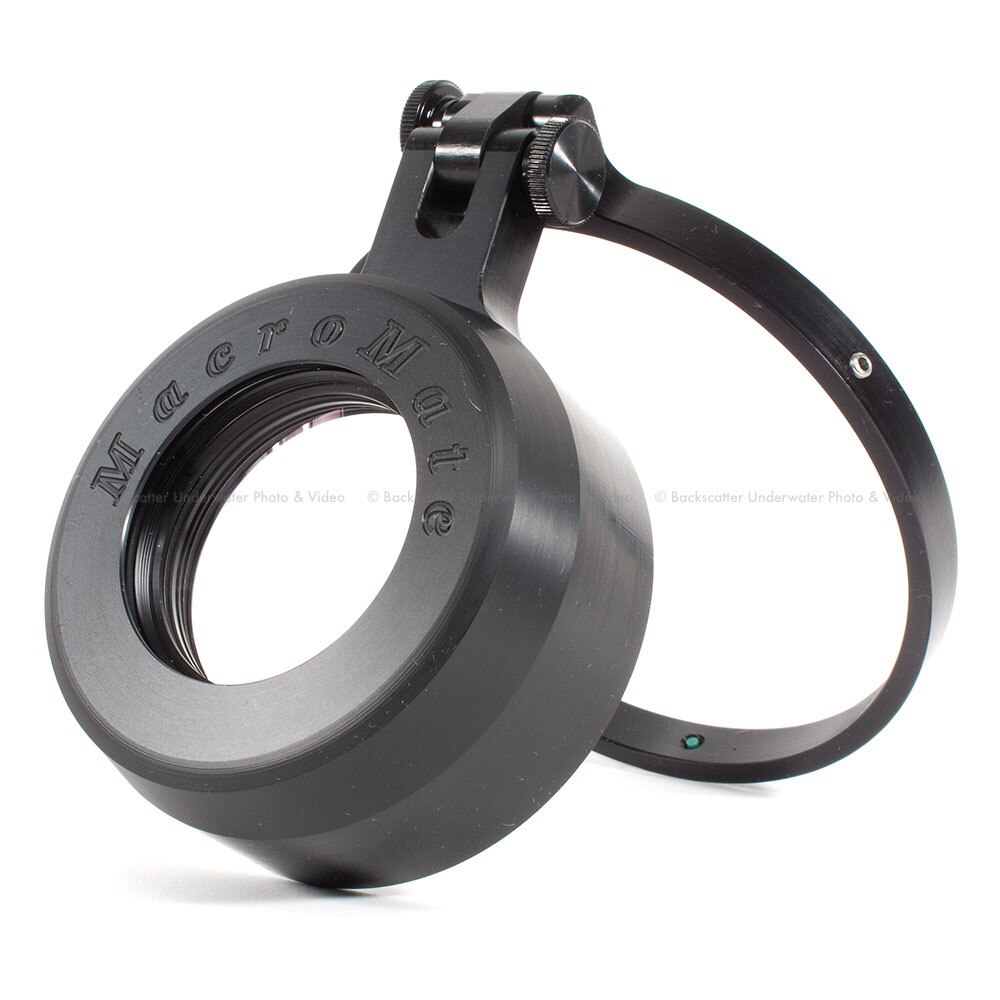

Most MacroMate flip-up designs allow you position the hinge in any position. While most new users install the hinge on top (12:00 position), we prefer to install the hinge at the 10:30 position. In this position, the lens will flip toward the shutter release and thus keep the weight of the lens closer to your shooting hand when not in use. Once you use the MacroMate you'll likely never make a dive without it. However, if you know you're not going to use it, simply unscrew the hinge bolt for a quick release without the need for tools. NOTE: The Titan design is fixed in the 12:00 position due to the angled design of the port. Custom options are available.
Click the zoom image above for a detailed view and check out the sample images in our gallery.
