Kraken 7-inch Ultra Bright Underwater Monitor KRM07-2200

7-inch Monitor
1920 x 1200 HD Monitor
4K Signal Supported
Histogram, False Colors, Zebra Exposure, Focus Assist
Dimensions: 220mm x 147mm x 90mm / in x in x in (LxHxD)
Depth Rating: 80m / 266ft

SKU: # kr-krm07-2200

FREE Standard Shipping to USA / Canada!

Regular Price $1,999.00

Sale Price $1,899.00

You Save $100.00

This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.

Back

This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.

Item

IncomeAccount

TaxCode Mapping

UDF1

UDF2

UPC Code

Pick Up

Tax Amount

Ship From VAT BIN

Ship To VAT BIN

Custom Options

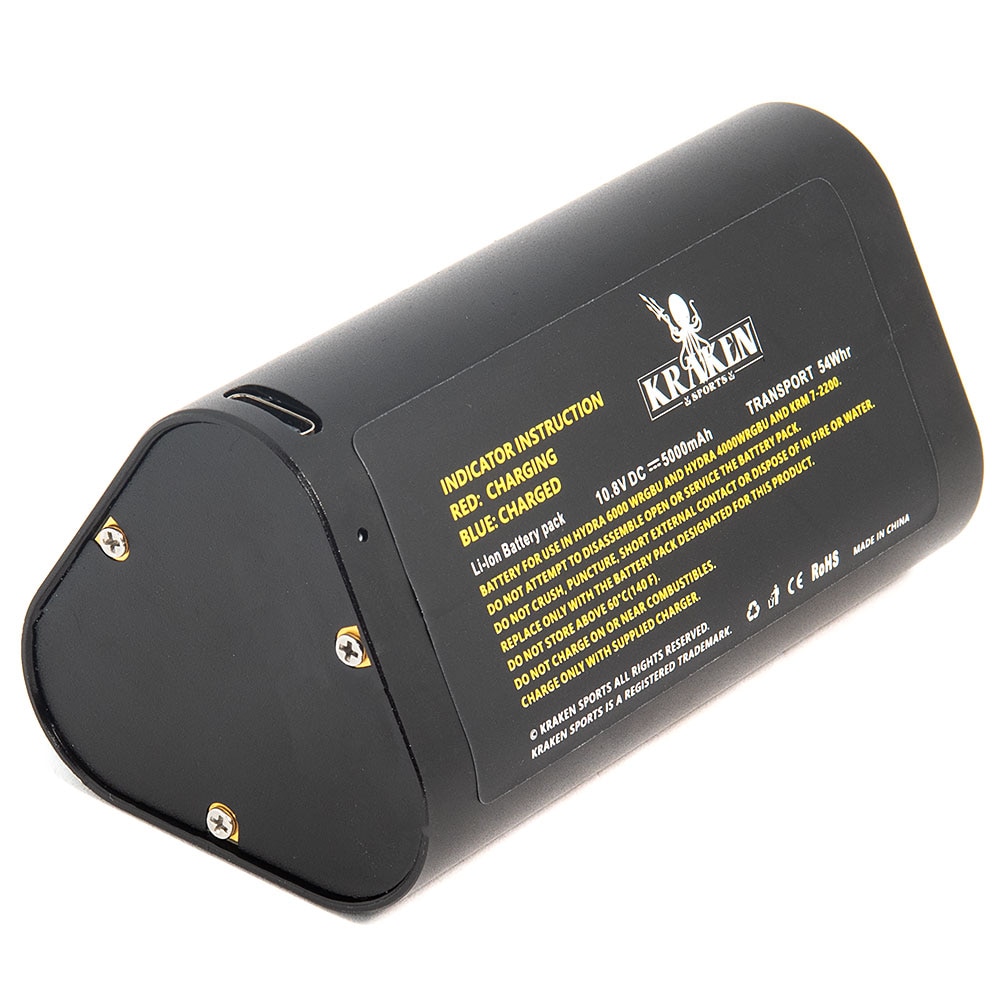

Add Spare Battery

Overview / Product Description

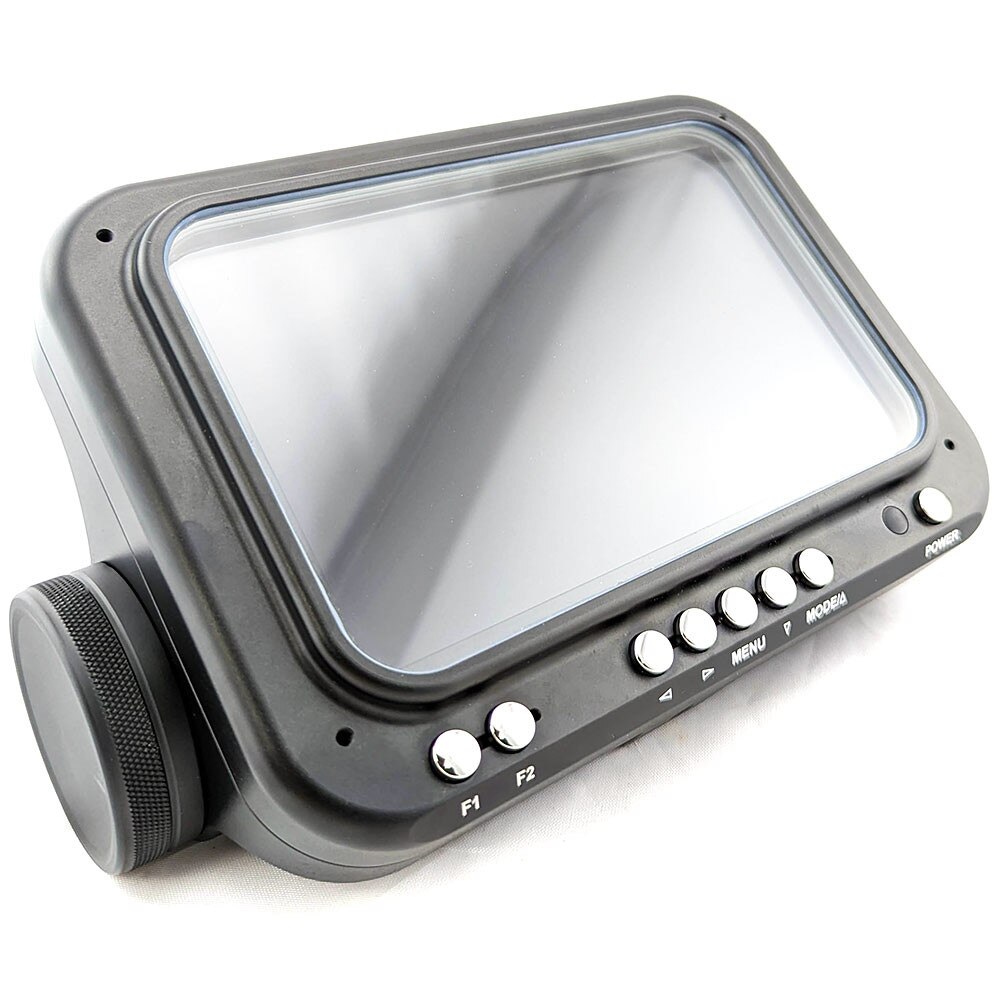

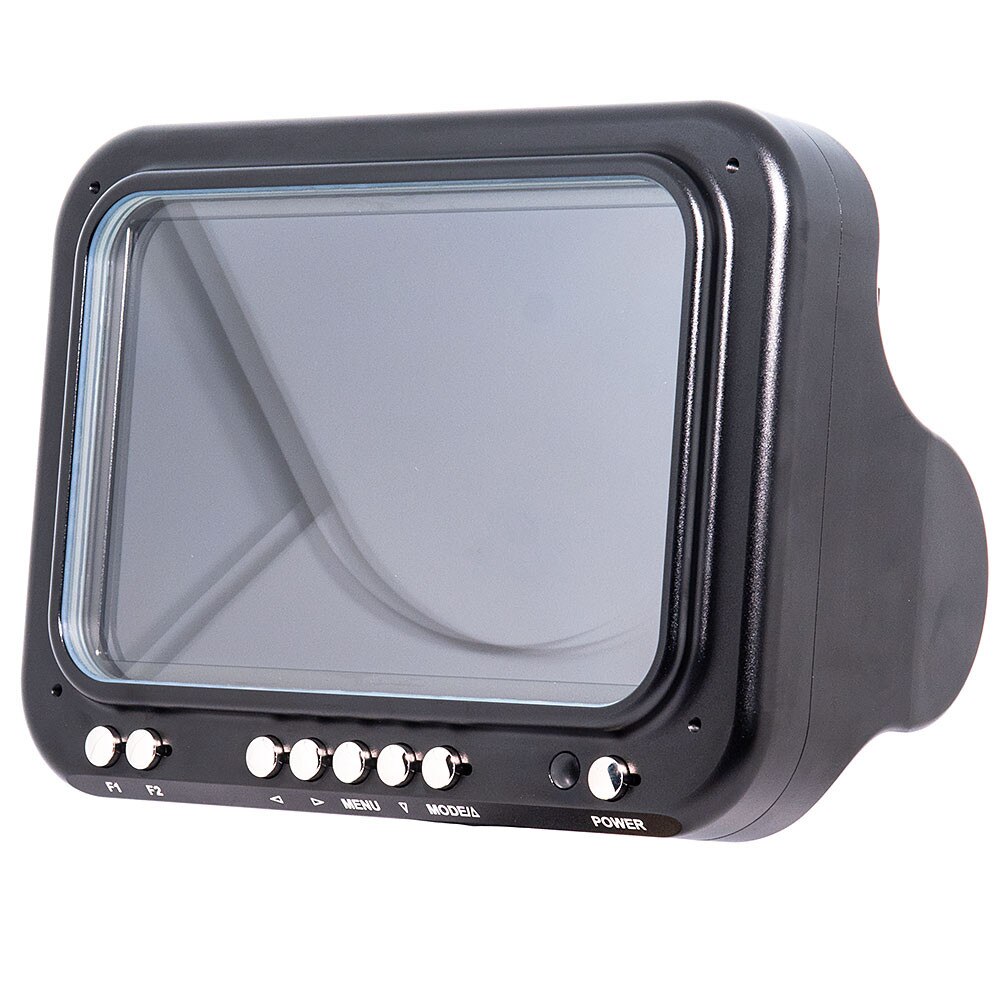

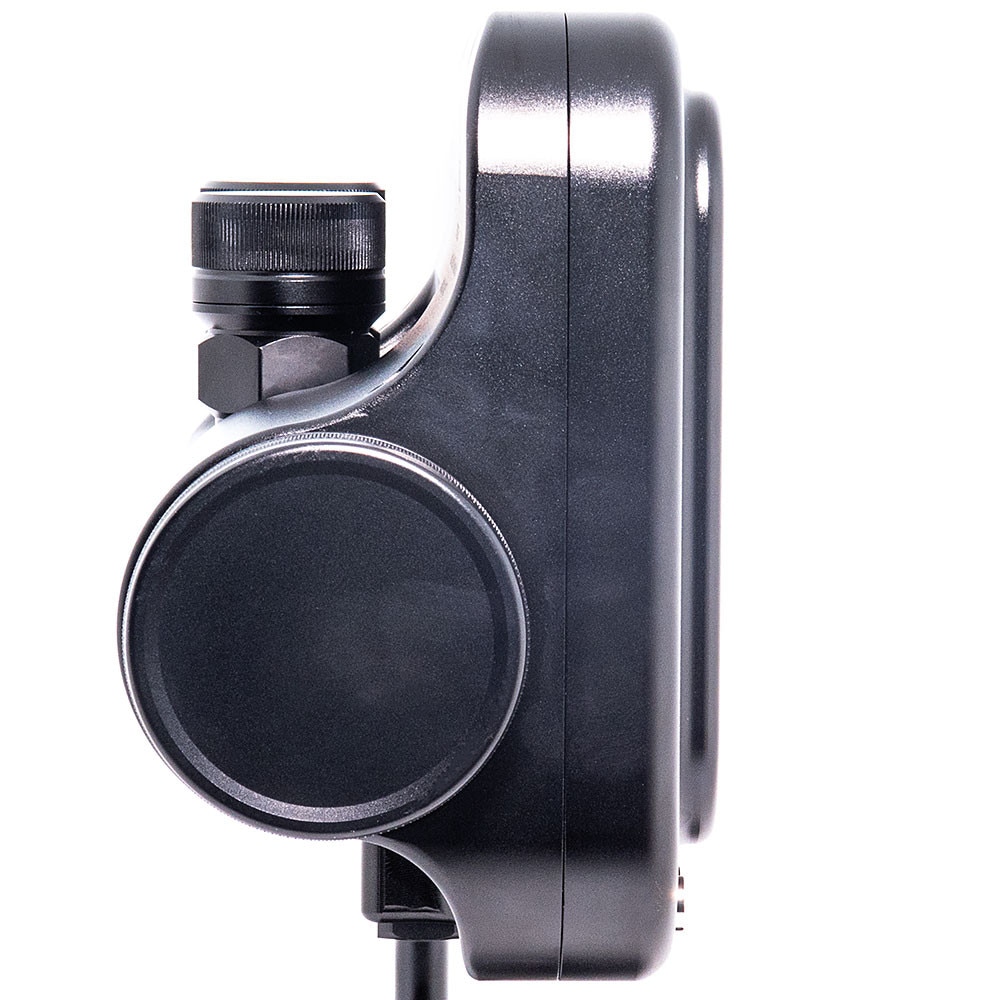

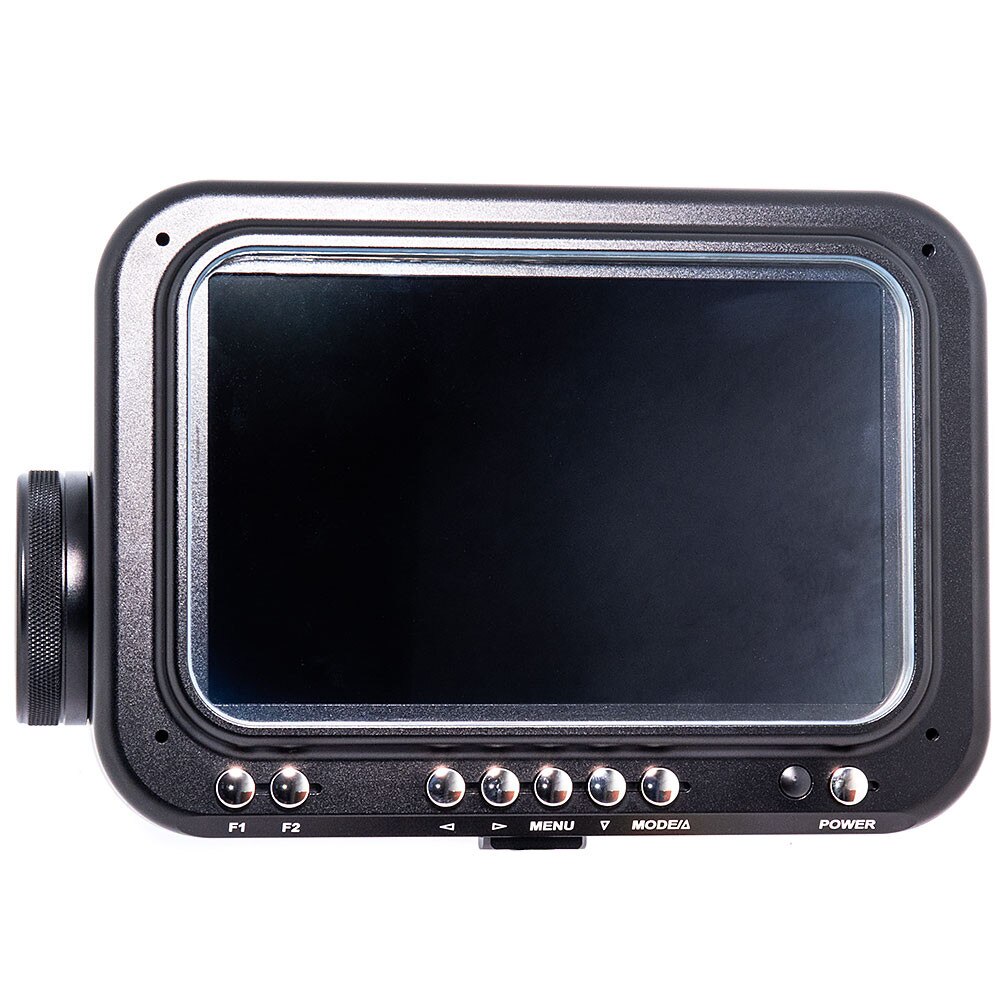

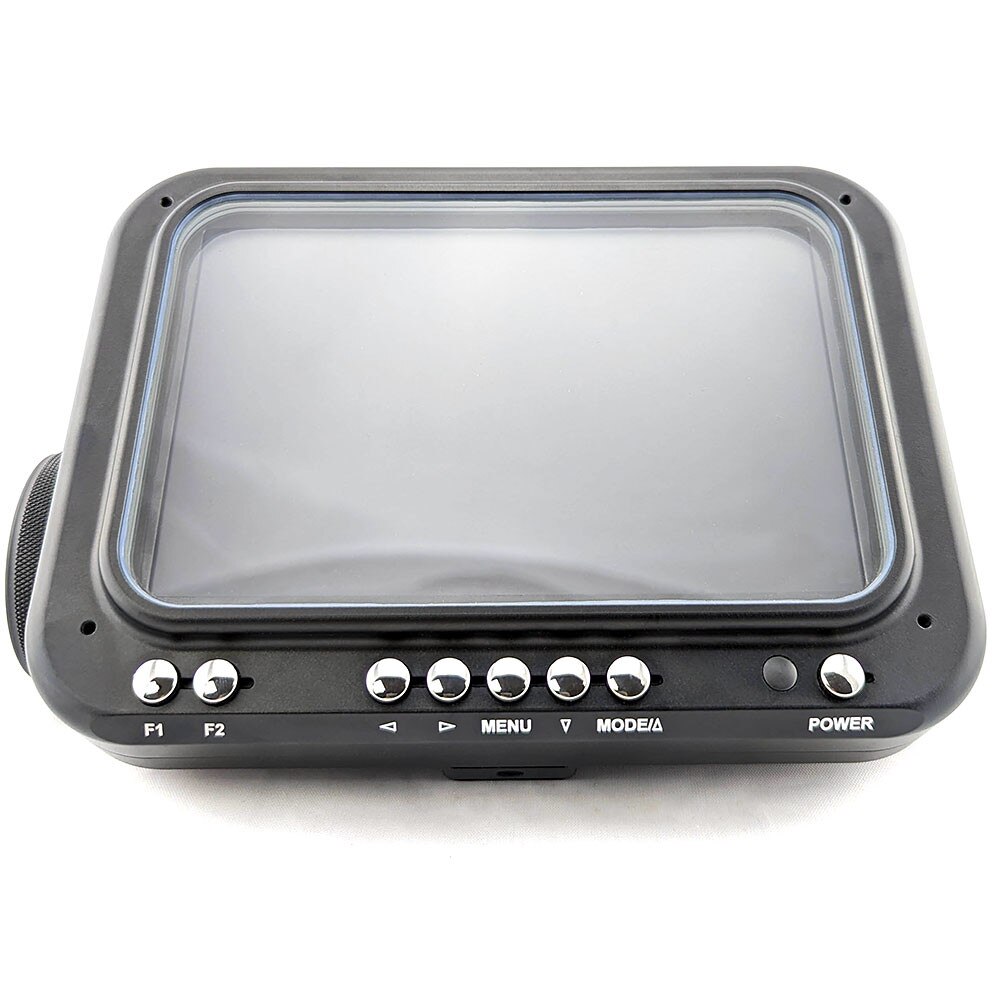

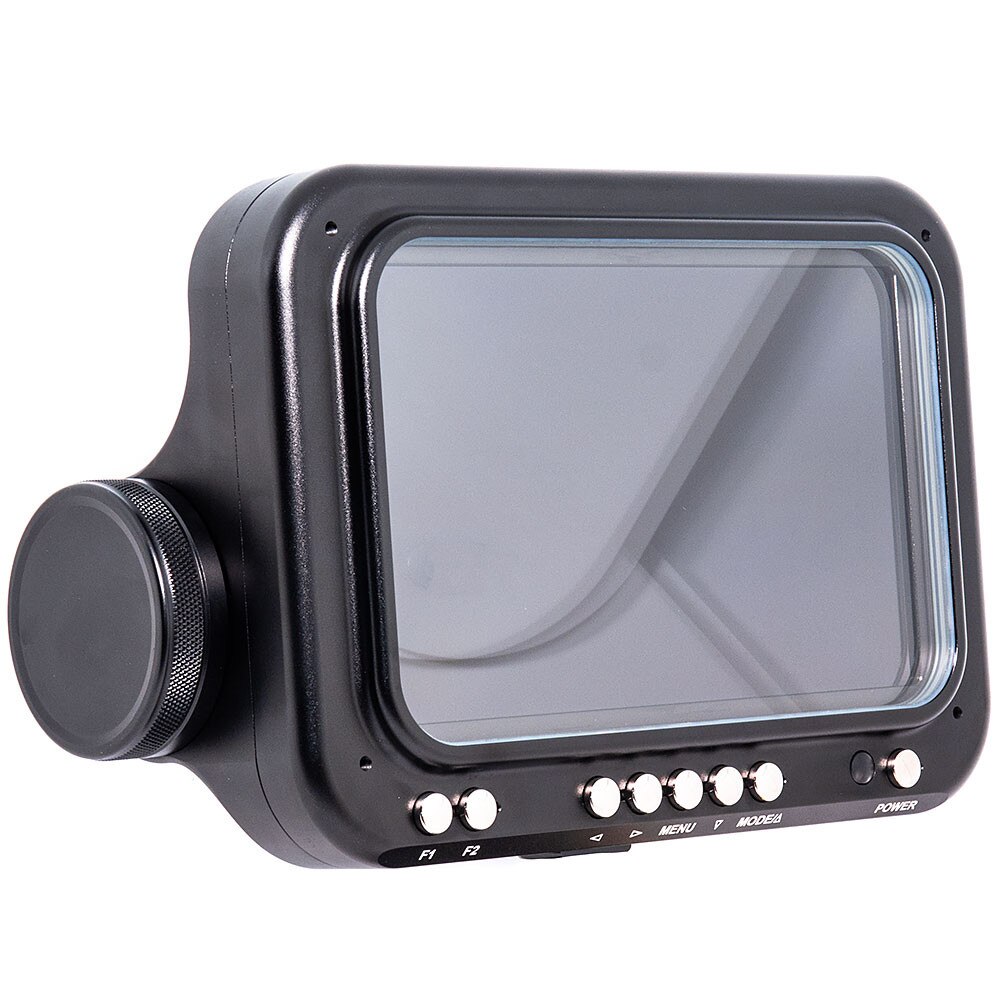

Kraken 7-inch 2200 Nit Ultra Bright Underwater Monitor KRM07-2200

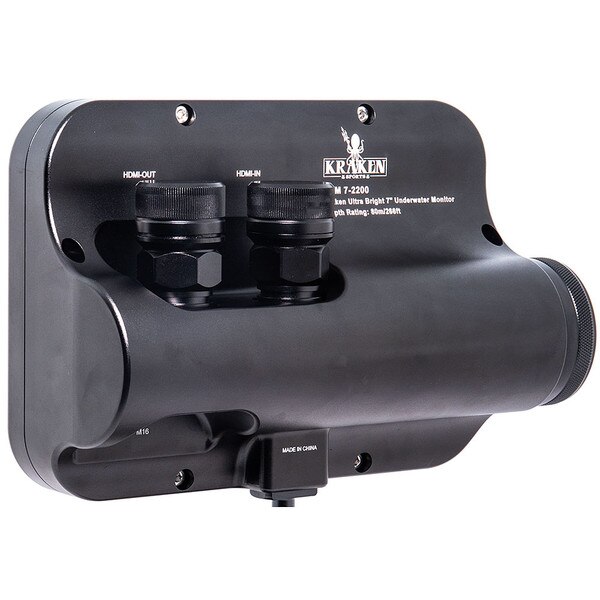

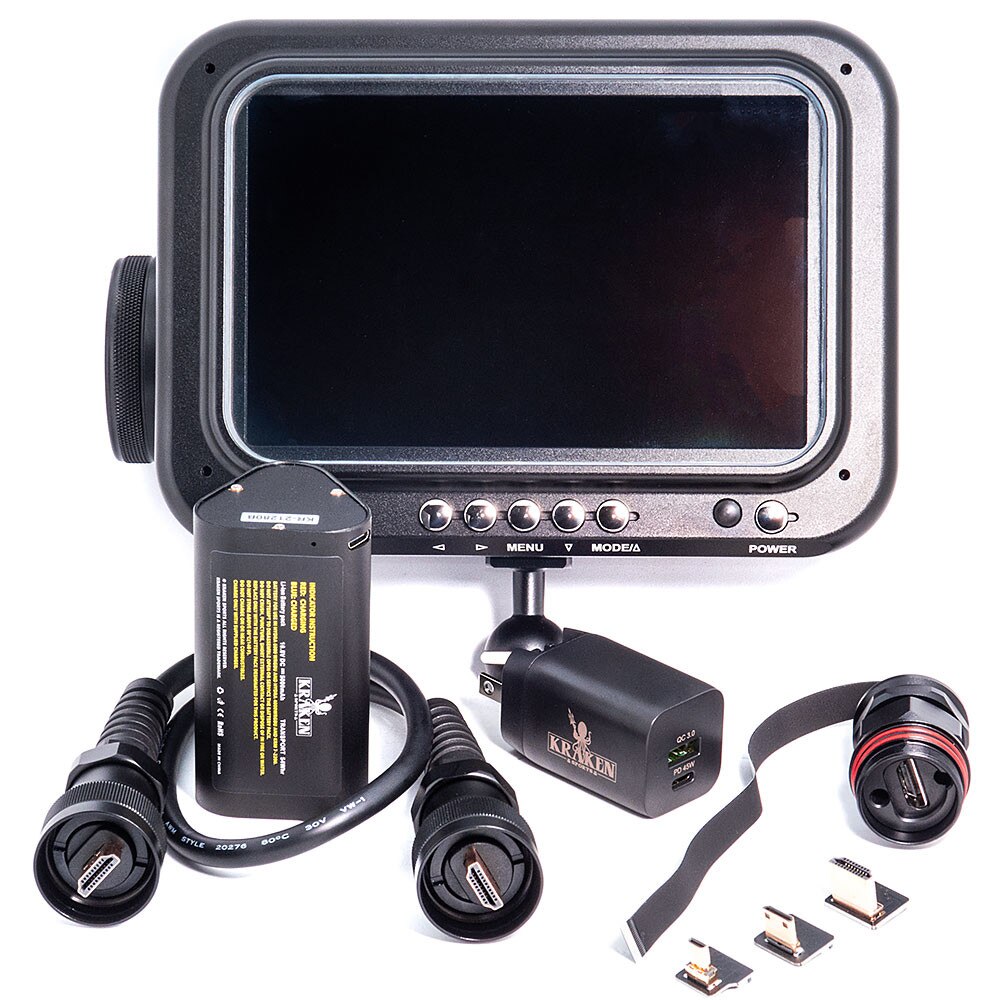

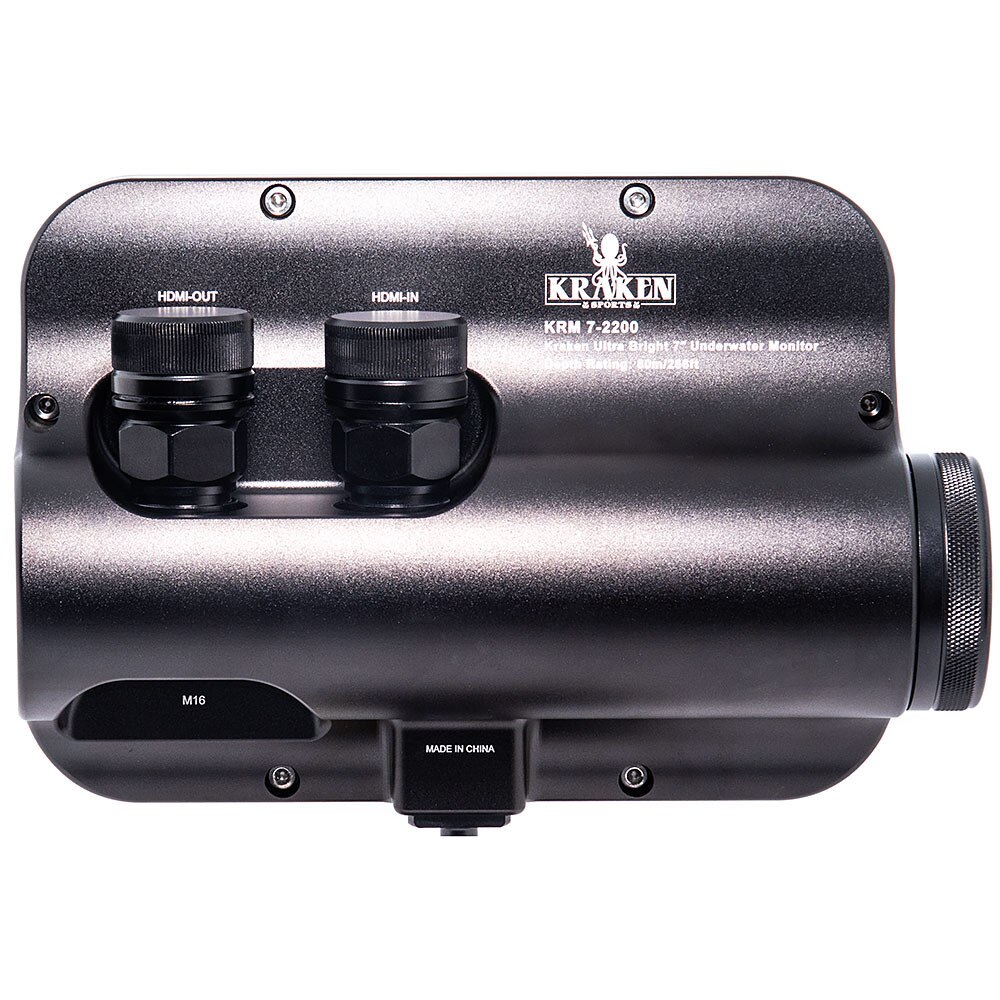

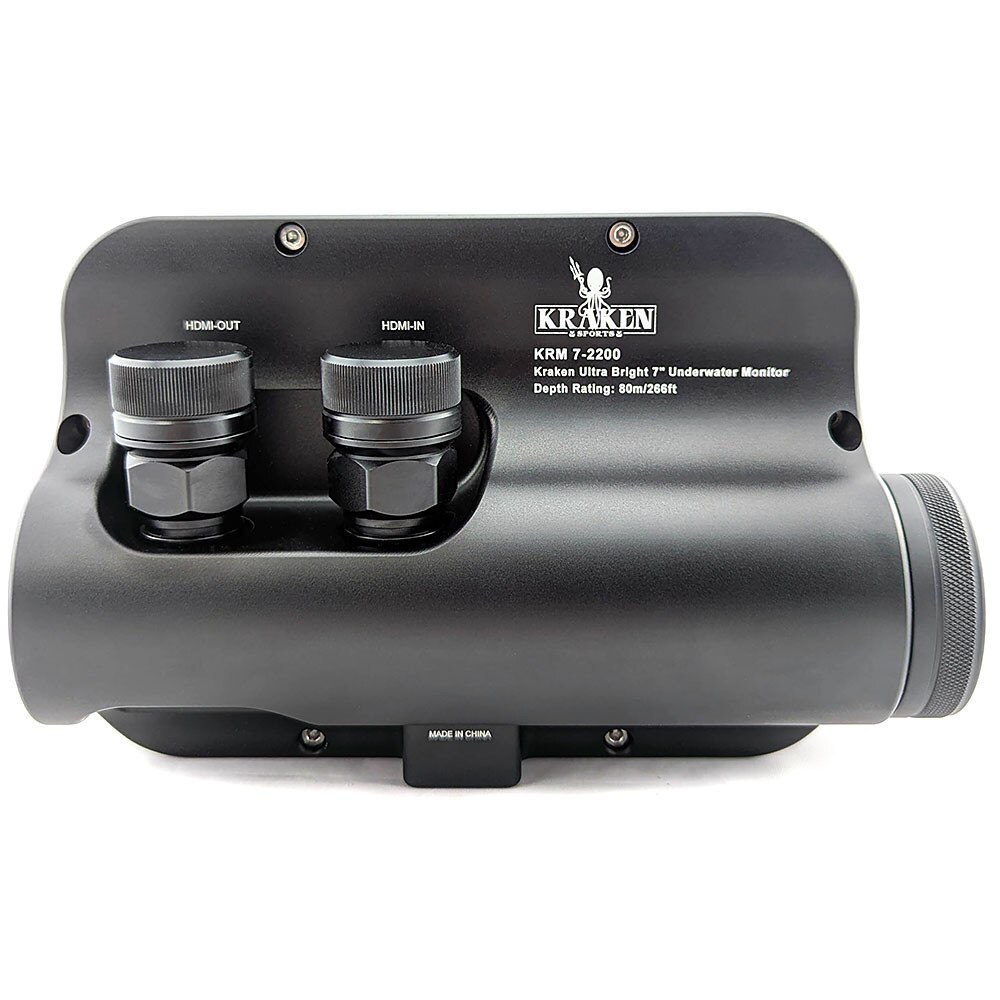

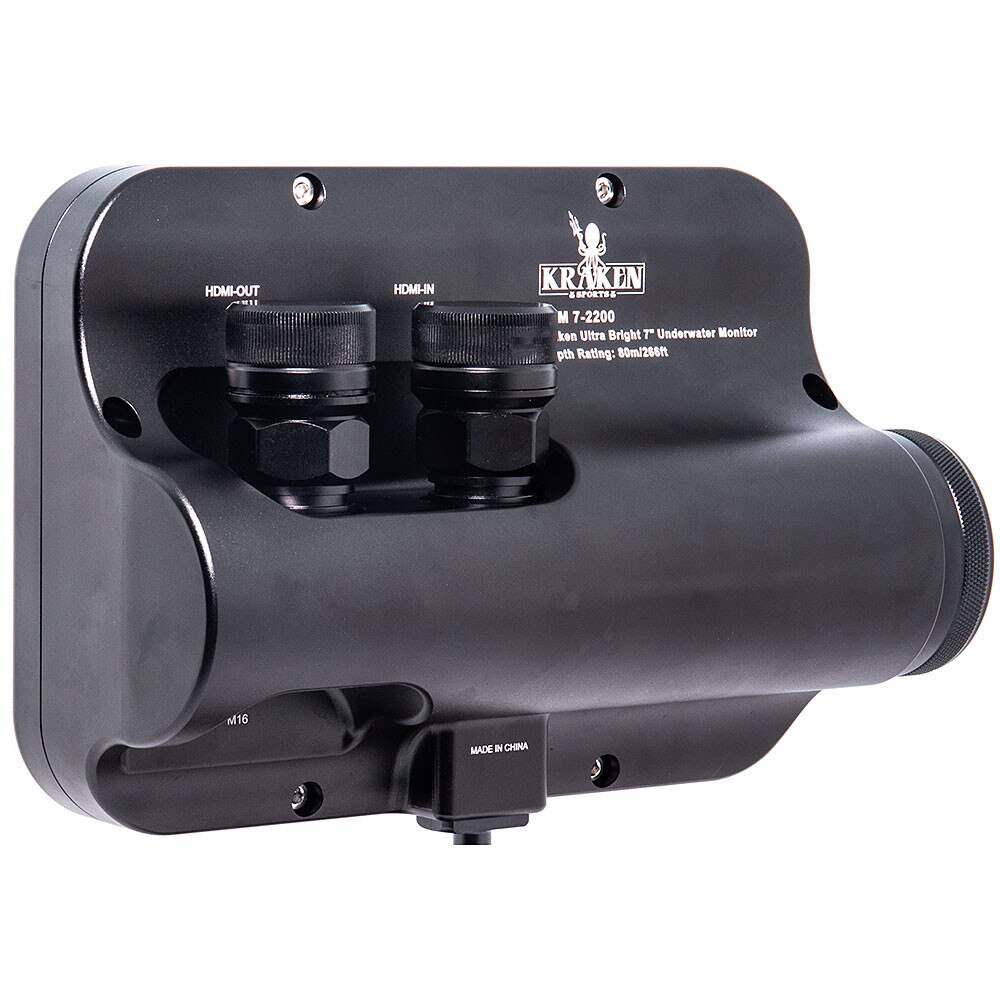

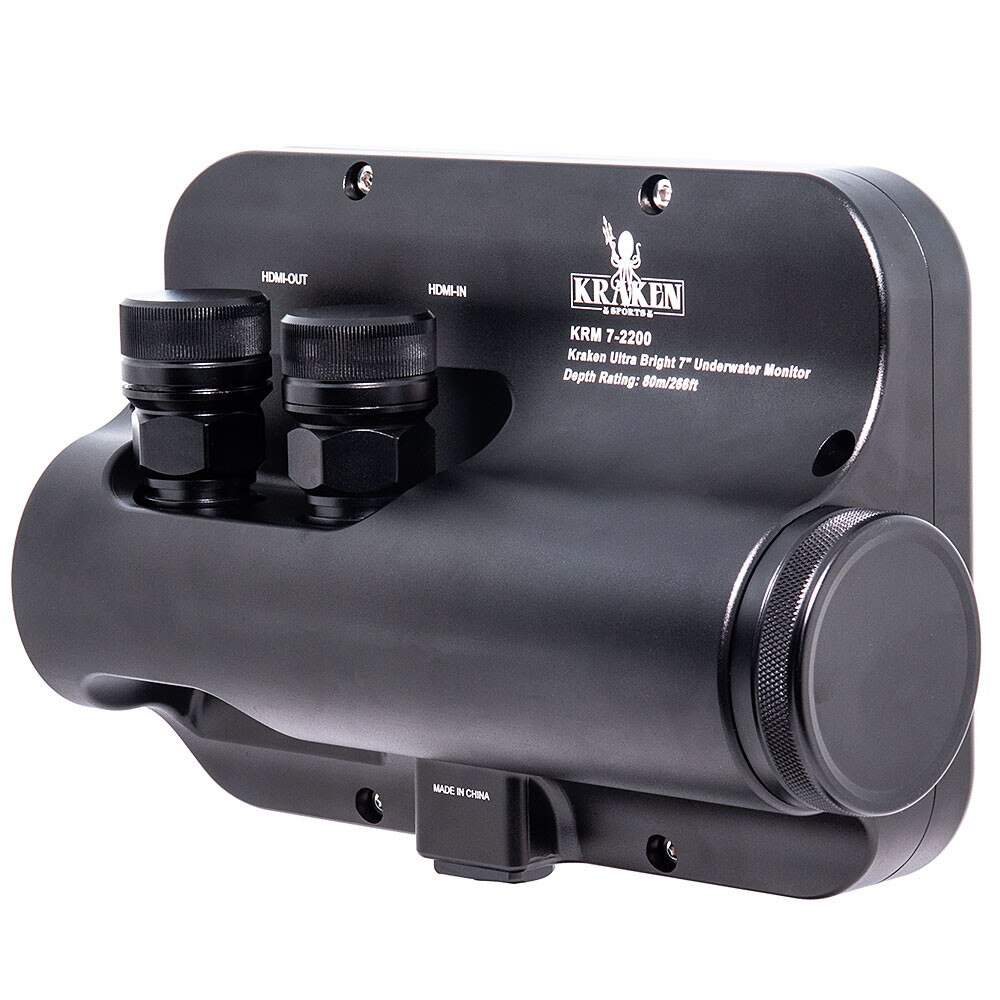

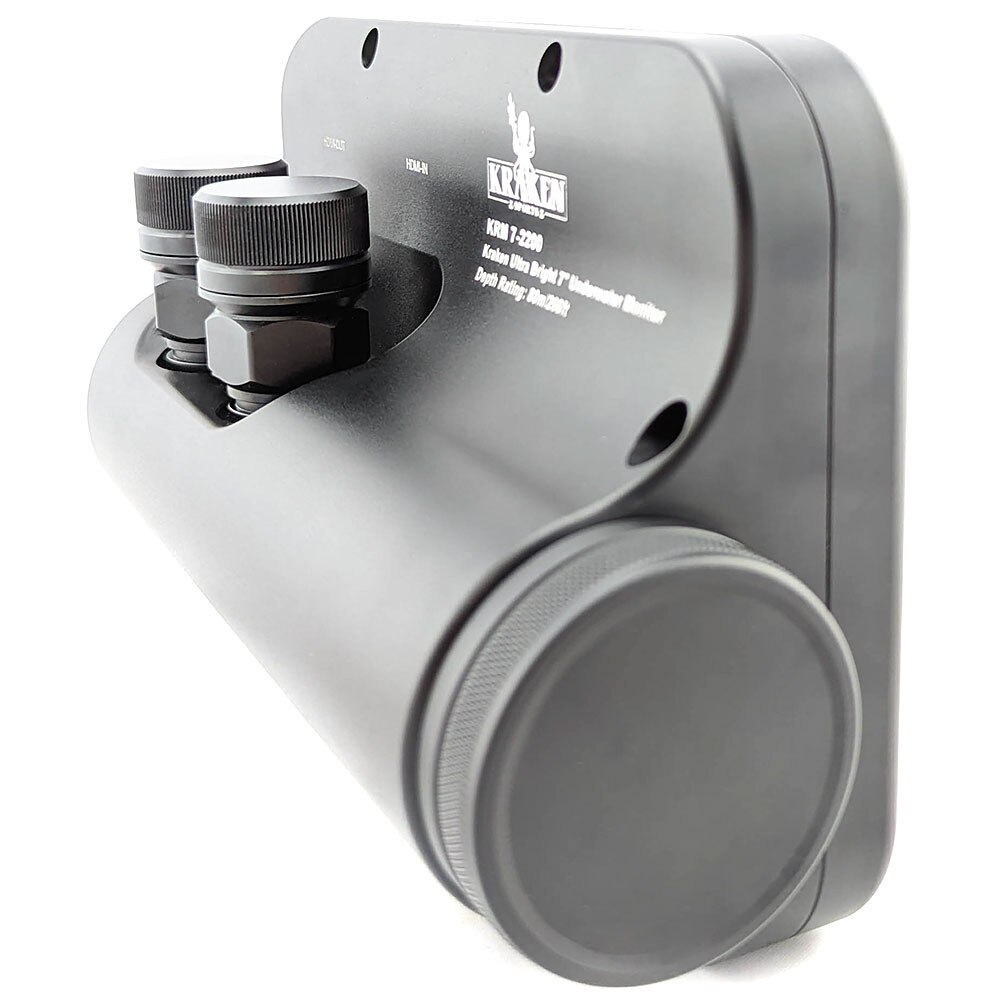

Introducing the KRM07-2200 7″ Ultra Bright Monitor, Kraken Sports’ self-contained 7″ waterproof monitor. Boasting a whopping 2200 nits of brightness, you can easily see the screen even in full sunlight! Kraken has paired it with Kraken's 3×21700 lithium-ion battery (same battery as Hydra 4000\6000) with USB C charging to give you a long 3-hour run time. When it does come time to charge though, a simple open of the sealed battery compartment allows for easy removal or swap, no need to open the entire monitor housing! USB C port is built directly into the battery, making charging a breeze, and no need for separate battery cradles. The monitor can take up to a full 4K input signal. M16 and M24 bulkheads are required to pass HDMI cable through. Full-sized, mini, and micro HDMI adapters are included depending on your camera needs. A ball mount is also included for easy mounting on your camera system.

Monitor Software Features:

Histogram
False colors
Zebra Exposure
Focus Assist
Nine grid
Embedded audio
Center marker
Safe frames
Color temperature
Picture settings
Colour settings

Monitor Specifications:

Panel Size 7″ IPS
Resolution 1920×1200 pixels
Dot Pitch 0.07875(W) x 0.07875 (H)mm
Aspect Ratio 16:10
Brightness 2200cd/m2
Contrast 1200: 1
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Backlight LED
Input SDI (Optional), HDMI
Output SDI (Optional), HDMI

Supported Signals:

480i/576i/480p/576p
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz) 4096×2160p (24Hz)

Underwater Specifications:

Consumption ≦18W
Unit Size 220Lx147Hx90D (mm)
Unit Weight 2214g on land/560g underwater (With battery)
Mount Points 1/4"-20 Thread Point (For mounting ball )
Working Temperature -20℃~55℃
Storage Temperature -30℃~65℃
Depth Rating 80 meters/266ft
