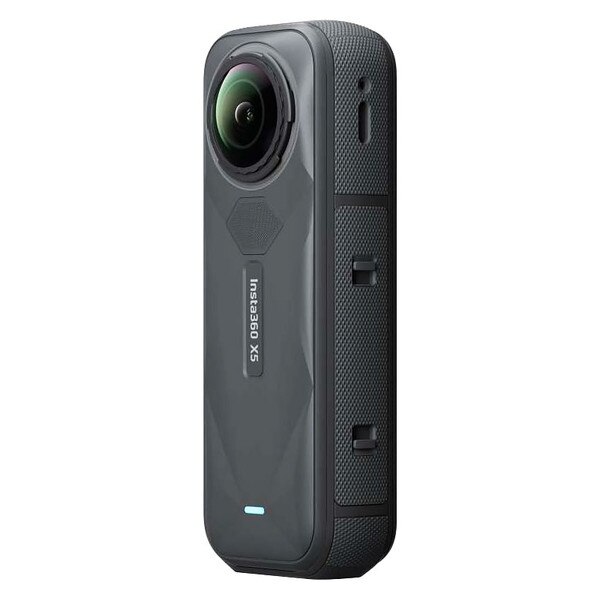

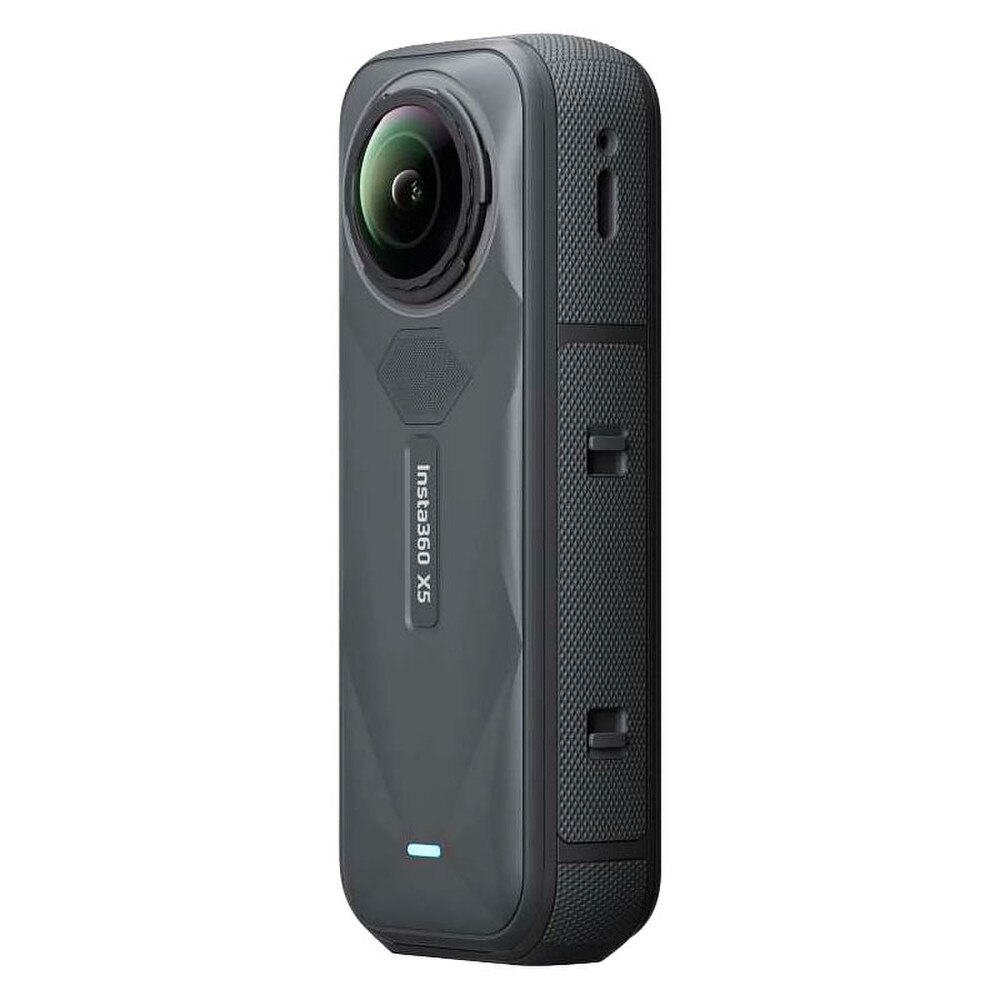

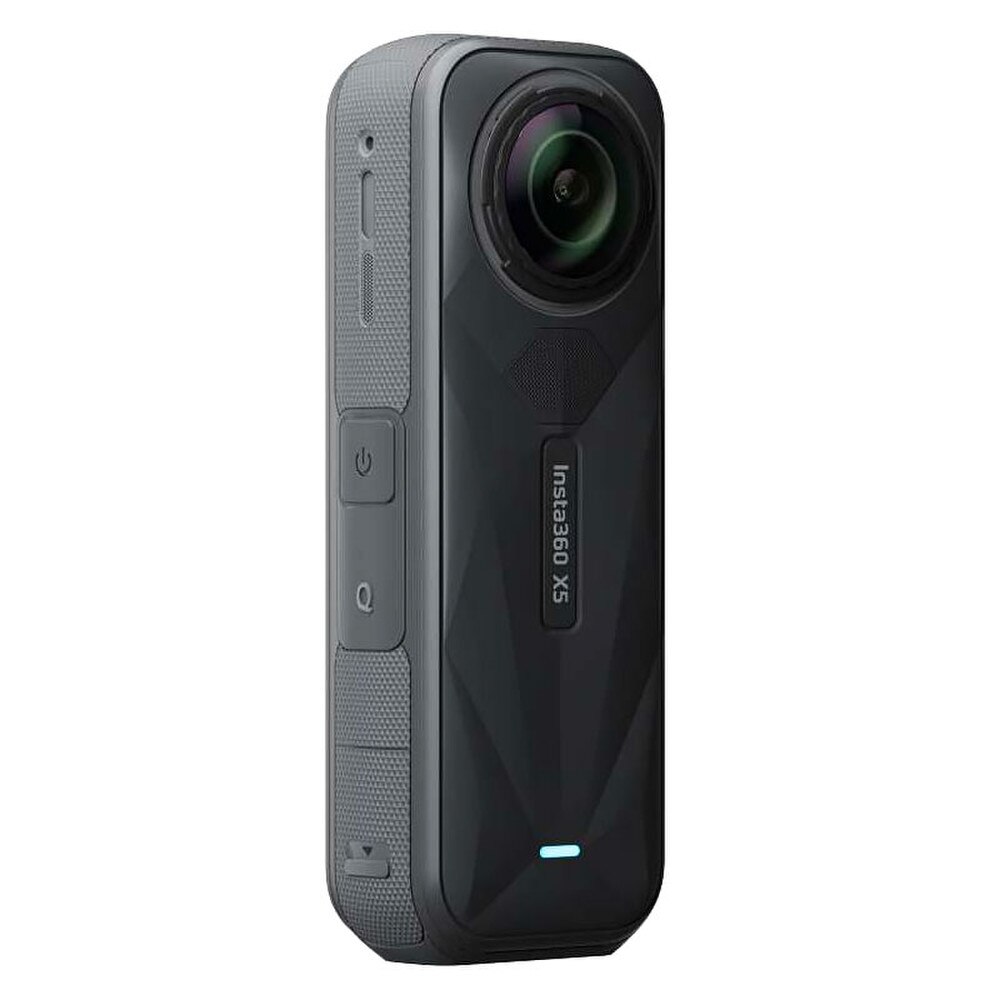

Insta360 X5 360° Action Camera

FLAGSHIP IMAGING, FLAGSHIP EVERYTHING

Larger 1/1.28" sensors and a lightning-fast Triple AI Chip system set a new benchmark for 360º capture. This powerful hardware combination delivers true-to-life colors, stunning clarity, and brighter, more vivid visuals.

• 144% Sensor Size
• 13.5 Stops Max. Dynamic Range
• 2.44μm Max. Equivalent Pixel Size
• 140% Computing Power

8K 360° VIDEO - SEE IT HOW YOU SAW IT

Capture your world with astonishingly true-to-life image quality. X5 uses supersampling from 11K to 8K, making it far more detailed and clearer and delivering truly immersive clips.

MAGIC AT ALL HOURS

Shooting at night or in low light? Advanced AI noise reduction and dynamic range optimization deliver clear, vivid footage, no matter the situation.

FULLY REPLACEABLE, RUGGED LENSES

SNAP, SWAP, SEND IT AGAIN

Crashed out? X5's new replaceable lens design lets you pop out the damaged lenses and snap in fresh ones. No stress, no downtime.

SERIOUSLY DURABLE

Say goodbye to scratches, cracks, and heartache. X5 features an ultra-hard optical film and boasts a 100% improvement in drop resistance compared to X4, effectively resisting scratches from keys, coins, and other metals.

*Using the camera outdoors may increase the risk of scratches. It's recommended to use suitable lens protection and avoid bumps or drops.

5.7K60FPS ACTIVE HDR - SMOOTHER, SHARPER ACTION

Now upgraded to 60fps, this innovative mode captures stunning details and colors in highlights and shadows and delivers superb stabilization even in action-packed moments.

ONE CAMERA, ANY PERSPECTIVE - EVERYTHING, EVERYWHERE, ALL AT ONCE

A multi-cam setup in one device. X5 packs every possible angle into a single shot—no extra gear, no retakes, no missed moments.

REFRAMING - AIM AFTER FILMING

With 360º video capturing everything around you, hit record, focus on life, and pick the best angles later with AI-powered reframing tools in the Insta360 app.

INSTAFRAME MODE - TWO-IN-ONE FILMING

SMART FLAT VIDEO

Do you find editing tiresome, or don't have the time? Get perfectly framed videos with zero editing! Choose a Selfie View or Fixed View before filming, and get an instantly sharable flat video—perfect for activities like cycling and skiing.

SHOOT 360° AT THE SAME TIME

Here's the kicker! You'll simultaneously capture a full 360° video, ready to create additional edits or capture unexpected moments.

4K60FPS SINGLE-LENS MODE - ULTRA-WIDE POVS

Use X5 like a traditional action camera and shoot crispy 4K60fps first-person videos. Go even wider with MaxView in FreeFrame Video, featuring a 170° FOV in 4K30fps.

JAW-ON-THE-FLOOR SNAPS

More details, more "woah". Savor unforgettable moments with eye-popping 72-megapixel 360º photos.

SIMPLY CLEARER AUDIO - ALL-NEW WIND GUARD

Wind? What wind? Whether you're shredding trails or riding waves, your audio stays crystal clear. The new multi-layer Wind Guard with steel mesh silences gusts like they never happened.

LONGER LASTING BATTERY

• 185 mins Battery life*
• 37% Longer than X4

Push further, shoot longer, and leave battery anxiety behind. A new 2400mAh battery powers up to 185 minutes of recording—37% longer than before.

*Tested in 77°F (25°C) lab environment, 5.7K24fps, 360° Video Mode, with Endurance Mode on. Battery life may vary under different conditions.

HYPER CHARGING

Only 20 mins to 80%*

Life doesn't wait, neither should you. X5's fast charging gets you back in the game in just 20 minutes. Less waiting, more creating.

*Tested in 77°F (25°C) lab environment, camera powered off with a PD3.0 PPS certified 30W USB-C charger. Charging time may vary under different conditions.

ROCK STEADY, ALWAYS READY - FLOWSTATE STABILIZATION

Whether skiing down a mountain or blazing a trail off-road, FlowState removes the shakes and bumps to keep your footage silky smooth. Go all out—X5 handles the rest.

ROCK STEADY, ALWAYS READY - 360° HORIZON LOCK

From taking tight turns with your motorbike to flips in a paraglider, experience all the angles while X5 keeps your videos anchored to the skyline.

WATERPROOF TO 49FT (15M) - DESIGNED FOR THE WET AND WILD

X5 is waterproof to 49ft (15m), a 50% improvement over X4, and with the Invisible Dive Case*, you can capture crystal-clear 360° underwater footage down to 197ft (60m).

*The Invisible Dive Case is recommended for shooting 360° videos underwater as it eliminates light refraction, warping, and stitching issues.

MAGNETIC MOUNTING - SNAP-ON AND SHOOT

Switch setup in a flash with the all-new magnetic mounting system. Awesome for activities like cycling when you want shots from multiple positions. Even batteries can be swapped in and out easily, making sure you always stay powered up.

Specs

Photo & Video

• Sensor Size: 1/1.28"
• Lens Aperture: F2.0
• Focal Length: 6mm
• 360º Video Resolution
• Video Mode:
• 8K: 7680x3840@30/25/24fps
• 5.7K+: 5760x2880@30/25/24fps
• 5.7K: 5760x2880@60/50/48/30/25/24fps
• 4K: 3840x1920@120/100/60/50/48/30/25/24fps
• InstaFrame Mode:
• 5.7K+: 30/25/24
• 5.7K: 30/25/24
• 1080p: 30/25/24
• PureVideo:
• 8K: 7680x3840@30/25/24fps
• 5.7K: 30/25/24
• 4K: 30/25/24
• Single-Lens Video Resolution
• Video Mode:
• 4K: 3840x2160@60/50/30/25/24fps
• 2.7K: 2720x1536@60/50/30/25/24fps
• 1080p: 1920x1080@120/100/60/50/30/25/24fps
• FreeFrame Video:
• 4K: 3840x3840@30/25/24fps
• 2.7K: 2720x2720@60/50/30/25/24fps
• 1080p: 1920x1080@60/50/30/25/24fps
• Me Mode:
• 4K: 3840x2160@30/25/24fps
• 2.7K: 2720x1536@120/100/60/50/30/25/24fps
• 1080p: 1920x1080@120/100/60/50/30/25/24fps
• Photo Resolution: Approx. 72MP (11904x5952) / Approx. 18MP (5888x2944)
• Video Format: 360°: INSV / Single-Lens: MP4
• Photo Format: INSP (can export via mobile app or Studio desktop software) / DNG
• Video Modes:
• 360°: Video (built-in Active HDR), PureVideo, InstaFrame, Timelapse, TimeShift, Bullet Time, Loop Recording, Road Mode
• Single-Lens: Video, Freeframe Video, Me Mode, Loop Recording
• Photo Modes: Photo (optional HDR), Interval, Starlapse, Burst
• Color Profiles: Vivid, Standard, Flat
• I-Log: ✓
• Video Coding: H.264, H.265
• Max. Video Bitrate: 180Mbps
• Exposure Value: ±4EV
• ISO Range: 100–6400
• Shutter Speed: Photo: 1/8000 - 120s / Video: 1/8000 - to the limit of frames per second
• White Balance: 2000K-10000K
• Audio Modes
• Auto Wind Noise Reduction (two strengths)
• Voice Enhancement
• Stereo
• 360° Audio
• Audio Format: 48 kHz, 16bit, AAC

Hardware

• Weight: 200g
• Dimensions (W x H x D): 46×124.5×38.2mm
• MicroSD Card: UHS-I V30 speed class or higher
• Battery Capacity: 2400mAh
• Charging Time: 80% in 20 mins (9V 3A) / 100% in 35 mins (9V 3A) *Tested in 77°F (25°C) lab environment, camera powered off with a PD3.0 PPS certified 30W USB-C charger. Charging time may vary under different conditions.
• Run Time:
• 8K30fps: 88 mins
• 5.7K30fps: 135 mins
• 5.7K24fps Endurance Mode: 185 mins
• *Tested in a lab environment.
• Operating Temperature: -4°F to 104°F (-20℃ to 40℃)
• Waterproof: 49ft (15m)
• Bluetooth: BLE 5.2
• Wi-Fi: 802.11a/n/ac
• USB: USB-C 3.0
• Gyroscope: 6-axis gyroscope
• Mounting Point: 1/4" / Quick Release
• Color: Black

Compatible Devices

• Mobile Phones/Tablets
• iOS:
• Compatible with iOS mobile devices with A12 chips or above and iOS version 13.0 or above, including iPhone XS, iPhone XS Max, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 mini, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPad Air (2020), iPad Pro and newer iPad models.
• Android:
• Compatible with Android mobile devices that meet the following capabilities:
• Kirin 990 chips and above, including Huawei Mate 30, P40, or newer models.
• Snapdragon 855 chips and above, including Samsung Galaxy S10, Xiaomi Mi 9, or newer models.
• Exynos 2200 chips and above, including Samsung Galaxy S22, S22 Ultra, or newer models. (the system should be Android 10.0 or above or HarmonyOS 2.0.0 or above)
• Note:
• 1. Devices that do not meet the above requirements may still be able to use the app to control the camera. However, the performance of some processor-intensive and AI-powered features may be sub-optimal.
• 2. After testing, phones with Qualcomm SDM765 5G chips have poor hardware decoding capabilities. They are not supported for use, such as OPPO Reno 3 5G.
• 3. App installation requires a mobile phone with a 64-bit system. A 32-bit system does not support app installation.
• Bluetooth Devices
• Motorcycle Bluetooth Headsets:
• SENA: C30, ST1, 60S, 50S, 10S
• Cardo: Siprit, Packtalk Edge, NEO, 2X, 4X
• Airide: G7+
• ASMAX: F1, Z1
• Lexin Moto: G4
• Vimoto: V10X, V10S, V9X, V9S
• Other Bluetooth Devices:
• DJI: Mic Mini, Mic 2
• Apple: AirPods Pro 2, AirPods 2
• Huawei: FreeBuds Pro 2
• Samsung: Galaxy Buds2
• One Plus: Buds Ace
• Dual-track audio is supported on all devices.

Insta360 X5 Invisible Dive Case Underwater Housing

• Completely invisible when shooting 360° video.
• Seamless underwater stitching.
• Waterproof down to 60m (197ft).
• Capture crystal-clear 360° video with zero distortion.
• Use the Invisible Selfie Stick for epic third-person views.
• The new quick-dry Storage Bag is usable both on land and underwater, protects your Dive Case from bumps and scratches, and can be attached to a Buoyancy Control Device (BCD).

Truly invisible 360° underwater footage.

Insta360's class-leading invisible Dive Case is back! Get perfect 360° shots underwater with no blind spots.

Seamless perfection.

Snap in your X5, dive in, and capture crystal-clear 360° footage. The custom dome design eliminates distortion no matter how deep you go.

Go deeper than ever.

Improved design and IPX9K rated—keep recording as deep as 197ft (60m).

It comes standard with the new underwater Storage Bag.

The new quick-dry Storage Bag is usable on land and underwater, protects your Dive Case from bumps and scratches, and can be attached to a Buoyancy Control Device (BCD).

Built by Insta360. Tested for the deep.

Rigorously tested for optical clarity and durability so you can dive confidently.

SPECS:

• Material: Plastic, silicone, stainless steel
• Weight: 200g / 7.05oz
• Dimensions: 171.1 x 97.4 x 98.7mm / 6.7 x 3.8 x 3.9in
• Max Depth: 60m / 197ft
