Inon Dome Lens Unit II for UWL-H100 Wide Lens

Inon Dome Lens Unit II for UWL-H100 Wide Lens

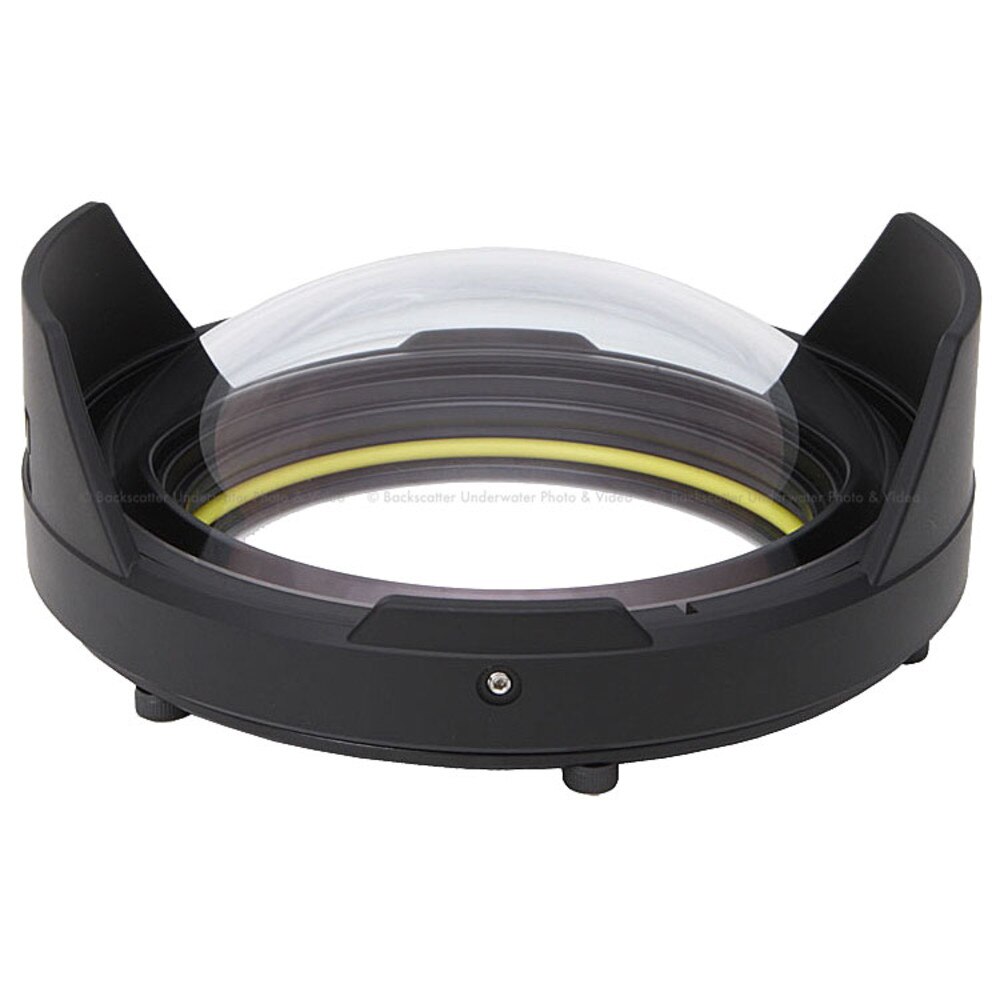

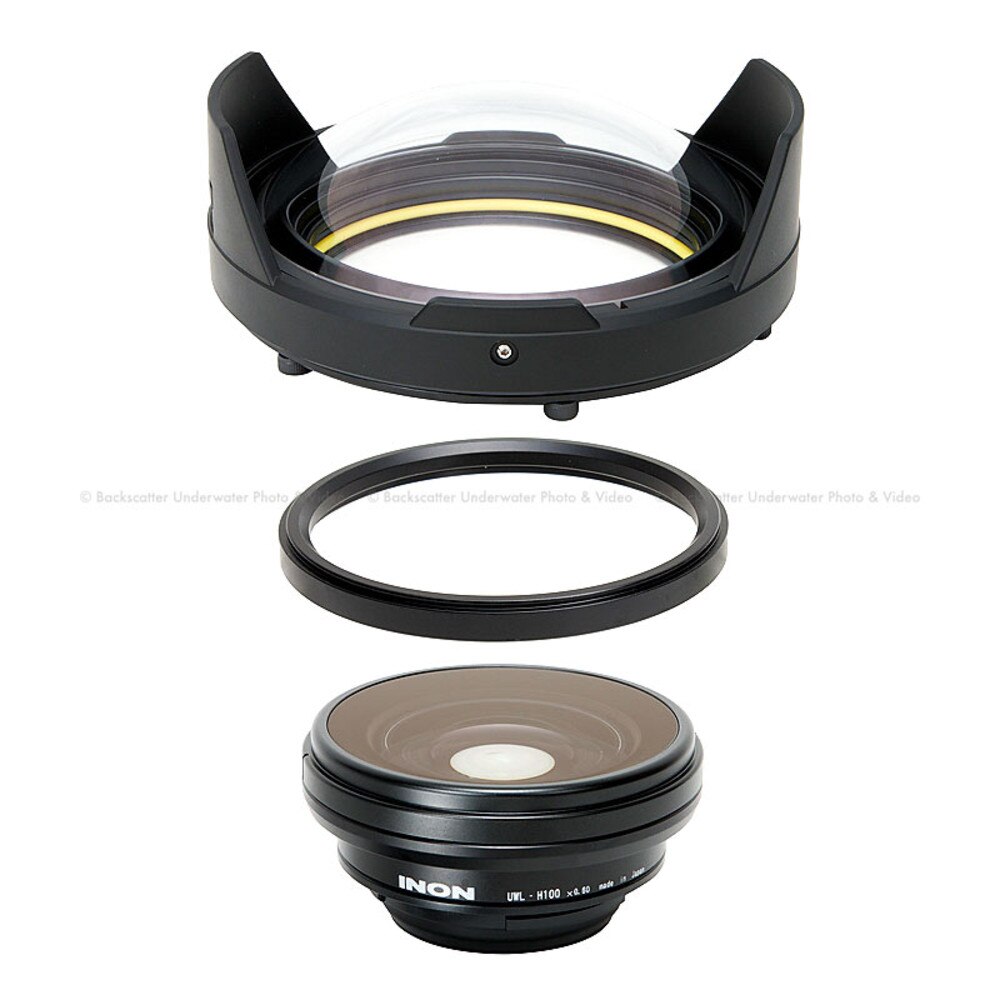

The Inon Dome Lens Unit II is a dedicated superdome option for UWL-H100 series wide conversion lenses. This dome unit will increase your angle of coverage underwater up to 144.8_. Simply attach the dome on the UWL-H100 wide conversion lens to provide a 33% wider image.

The maximum underwater angle of coverage is 144.8_ with UWL-H100 28LD or UWL-H100 28M67 Type1/Type2 wide conversion lens.

The unique optical design allows the camera to shorten its minimum focus distance with a super wide angle view, thus giving you ultra wide and clear images, even in poor visibility condition.

The Dome Lens Unit II is made of optical glass with inner, anti-reflection, multi-coating to minimize flare and ghosting in backlit conditions.

Using of the Dome Lens Unit

• This product cannot be used by itself and must be used with compatible INON wide conversion lens.
• Set the camera zoom position to 28mm (35mm film equivalent). If you observe vignetting, crop the image when editing or zoom forward just enough to eliminate the vignetting. The Dome Lens Unit II is designed to obtain best image quality and results when the zoom is set at the 28mm equivalent setting.
• Generally, set Macro Mode to [ON]. However, for some cameras, depending on the particular focus range and aperture capabilities, some subjects at farther distances may not be in focus. In such cases, set Macro Mode to [OFF].

Product Specification

• Outer diameter / Length: 132.4mm / 48.2mm (5.2in / 1.9in)
• Weight (air): 470 (16.5oz)
• Maximum incident view angle: 144.8_
• Body Material / Finishing: Corrosion resistant aluminum alloy/Rigid black alumite, Polycarbonate etc.
• Glass material / Finishing: Optical glass/Inner anti-reflection multi-coating
• Depth rating: 60m / 197ft

Compatibility

Mfr.	Camera	Housing	Compatible UWL-H100			Focus range [at wide end]
			28M67 Type1	28M67 Type2	28LD	without lens		UWL-H100 + Dome Lens Unit
						Normal mode	Macro mode	Normal mode	Macro mode
Olympus	TG-4	PT-056	-	2*	-
	TG-3	PT-056	-	2*	-
	TG-835 TG-830	PT-055	-	2*	-
	TG-2	PT-053	-	2*	-
	XZ-2	PT-054	1*	-	-
	TG-1	PT-053	-	2*	-
	TG-820	PT-052	-	2*	-
	TG-810 TG-610	PT-051	-	2*	-
	XZ-1	PT-050	1*	-	-	infinity - 60cm	infinity - 10cm	infinity - 136.3cm	infinity - 0cm
Canon	PowerShot S120	WP-DC51	-	-	3*	infinity - 3cm	50cm - 3cm	infinity - 0cm	51.6cm - 0cm
	PowerShot S110	WP-DC47	-	-	3	infinity - 3cm	50cm - 3cm	infinity - 0cm	51.6cm - 0cm
	PowerShot D20	WP-DC45	-	-	3*
	PowerShot S100	WP-DC43	-	-	3*	infinity - 3cm	50cm - 3cm	infinity - 0cm	51.6cm - 0cm
	PowerShot S95	WP-DC38	-	-	3*	infinity - 5cm	50cm - 5cm	infinity - 0cm	51.6cm - 0cm
Panasonic	LUMIX FT5	MCFT5	-	-	3*	infinity - 30cm	infinity - 5cm	infinity - 10.8cm	infinity - 0cm
	LUMIX FT4	MCFT3	-	-	3*	infinity - 30cm	infinity - 5cm	infinity - 10.8cm	infinity - 0cm
	LUMIX FT3	MCFT3	-	-	3*	infinity - 30cm	infinity - 5cm	infinity - 10.8cm	infinity - 0cm
FUJIFILM	FUJIFILM XQ2	WP-XQ1	-	-	3*
	FUJIFILM XQ1	WP-XQ1	-	-	3*
Ikelite	Sony DSC-RX100	#6116.10	1*	-	-

Mounting

• 1*: Directly mounted.
• 2*: INON "Step-up Ring 52-67" or Olympus step up ring "PSUR-03" is required to attach the Dome Lens Unit II for UWL-H100 + UWL-H100 28M67 on the housing.
• 3*: Compatible 28LD Mount Base is required to attach the Dome Lens Unit II for UWL-H100 + UWL-H100 28LD on the housing.
• -: Not compatible.
