Inon Underwater UW Tripod Hub

Make Your Own Underwater Tripod

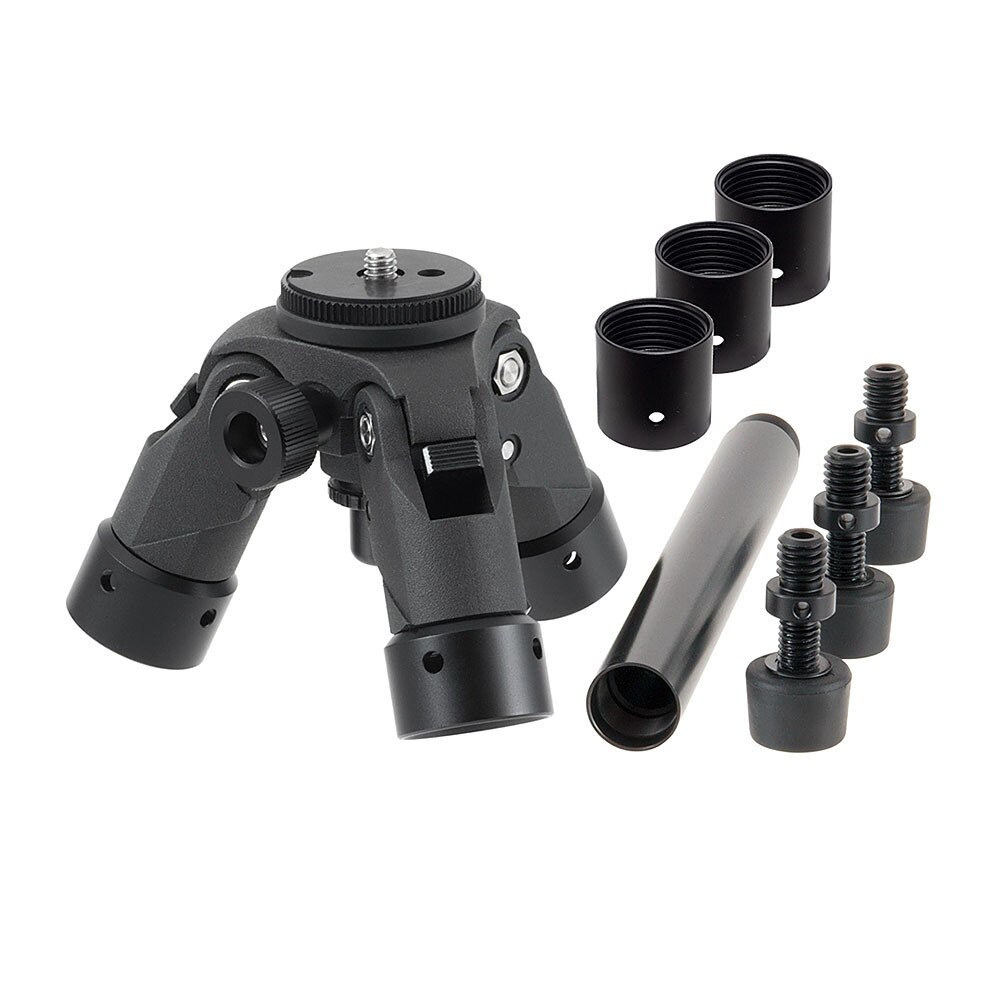

The UW Tripod Hub is designed to use INON ”Carbon Telescopic Arm SS/S/M/L” or ”Stick Arm XS-T/SS-T/S-T/M-T” as tripod legs supporting a wide range of tripod applications.

The UW Tripod Hub is equipped with a 1/4-20 tripod screw to add "UW 3-Way Panhead" or head part of a variety of Shoe Base products. Usable as a simple tripod by attaching underwater housing directly.

Compatible Shoe Base products are "Shoe Base 1/4-20UNC" and "Shoe Base M6" as their head part can be separated. Those head parts are available in the market.

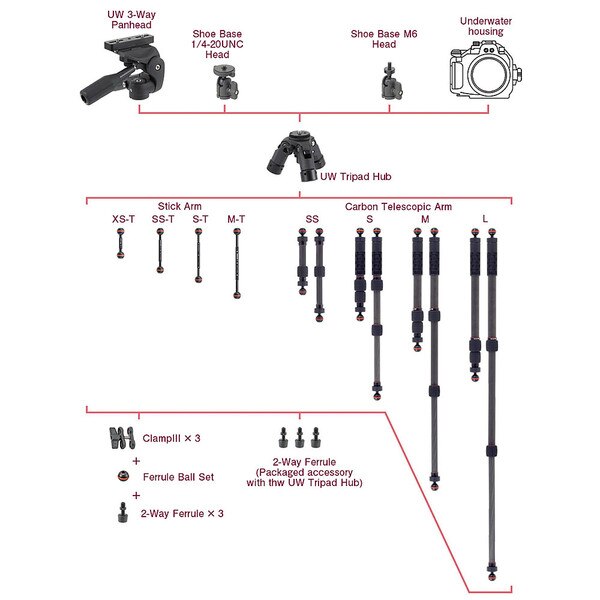

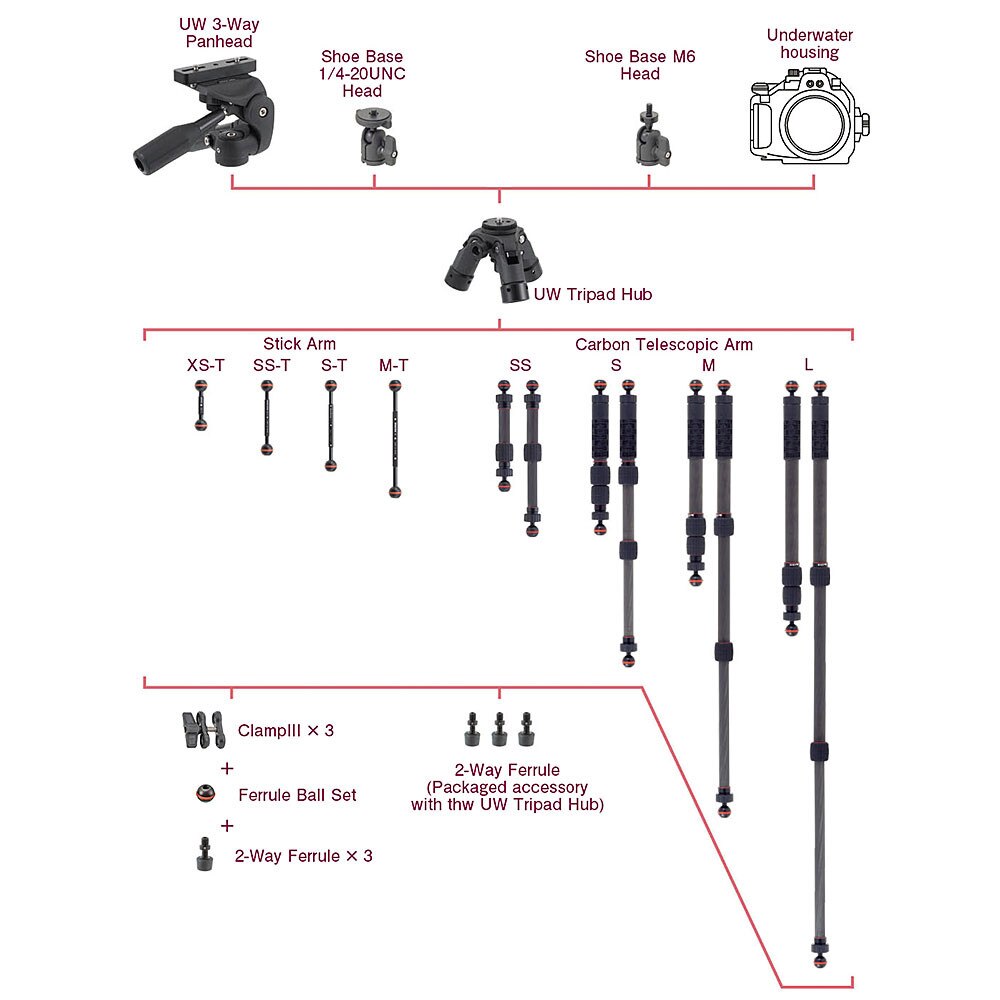

UW Tripod Hub [Leg mount] Compatibility

• Stick Arm XS-T/SS-T/S-T/M-T
• Carbon Telescopic Arm SS/S/M/L

UW Tripod Hub [Screw mount] Compatibility (1/4-20UNC screw)

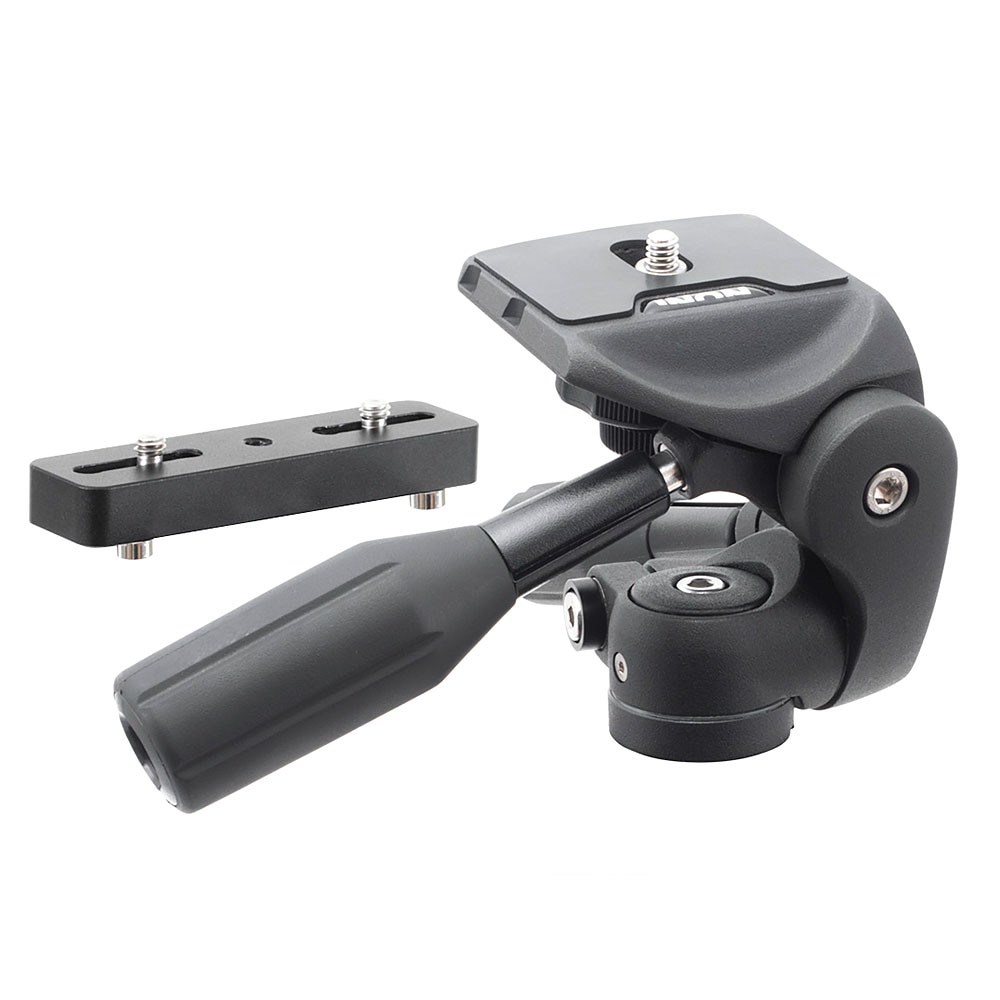

• UW 3-Way Panhead
• Tripod Adapter for D Holder
• Shoe Base 1/4-20UNC Head
• Shoe Base M6 Head
• Single Light Holder LF for Tripod
• Single Light Holder LE for Tripod
• Tripod Adapter
• SD Mount Cage for HERO3/3+/4
• SD Front Mask STD (with packaged "Mount Adapter")
• SD Front Mask for HERO5/6/7 (with packaged "Mount Adapter ")
• SD Mount Base for TG-Tracker (with packaged "Mount Adapter")
• SD Mount Base UWH1 (with packaged "Mount Adapter")
• An underwater housing equipped with a "1/4-20 UNC" tripod screw hole (screw hole depth 5mm or deeper).

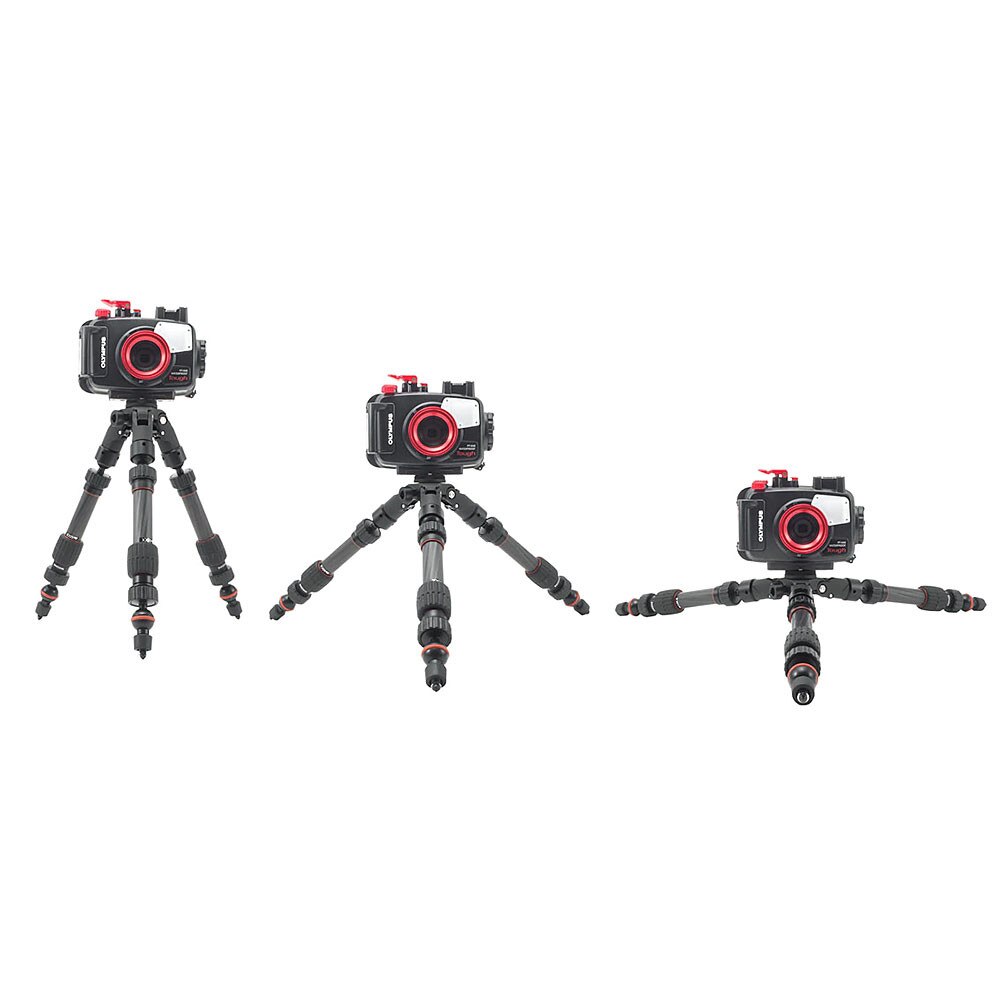

Three Opening Angles

Each leg mount is equipped with a "Lock Lever" to lock leg position at either of [high], [middle], or [low] positions. Each leg can be set to different opening angles to make an elevator column vertical even in uneven or rough sea ground.

Friction when opening/closing legs can be adjusted by tightening/loosening fixing bolts on joints.

Center Column Type Elevator

The center column type elevator consists of two parts. Removing the lower elevator enables to put combined camera position down close to the ground when the opening angle is set to a low position.

Remove the Lower Elevator Column, you can get a lower height. Extra "Lower Elevator" can be jointed on the original Lower Elevator to extend total height at 145mm/5.7in.

It is also possible to hang down a camera system by attaching the elevator upside-down for extremely low angle shooting or shooting a subject just underneath the tripod.

2-Way Ferrule (rubber/spike)

Bundled "2-Way Ferrule" offers two configurations either rubber or spike tip. Ferrules are to be screwed on ball-joints on tripod leg edges. Turning rubber parts upwards will have spike tips to accommodate different circumstances.

More Stability with Weight

There are several options to enhance the stability of the tripod system including hanging a dive weight from the strap hole or jointing a dive weight by using a ball-joint on a tripod leg besides using a stone bag.
