Dual use (land/underwater) wide conversion lens specially designed for 28mm wide camera (35mm film equivalent). The maximum view angle is 100.8° underwater for wide imaging and 179° on land for fish-eye imaging.
Together with newly designed optical construction, using highly refractive optical elements provides larger effective diameter of the rear optical element in compact size to accommodate with latest camera model carrying larger image sensor and brighter master lens.
Unique optical design allows to shorten minimum focal distance with ultra wide view angle thus effective for wide macro shot.
Optional Dome Lens Unit II for UWL-H100 further increases maximum view angle to 144.8° underwater for semi-fisheye imaging.
Optical construction consists of 4 elements in 4 groups with coated optical glasses which effectively suppress optical aberrations and elicits master lens performance.
Lens mount is highly versatile screw type M67 Mount.

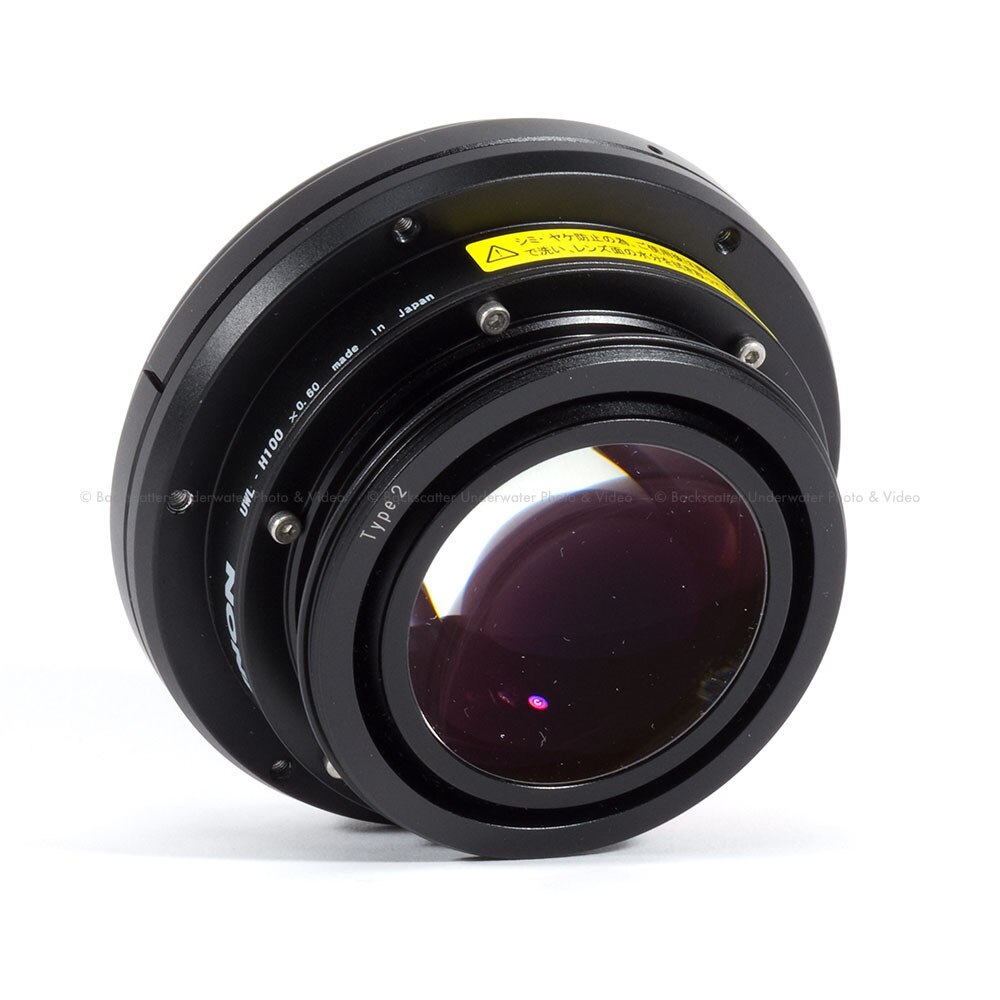

Two options (Type1/Type2) for various camera type to bring out optimum performance of master lens.
Directly screwed on a housing which has M67 lens ring.
Custom Option: Add a Dome Unit to the Lens:
Inon Dome Lens Unit II for UWL-H100 Wide Lens includes these products:
