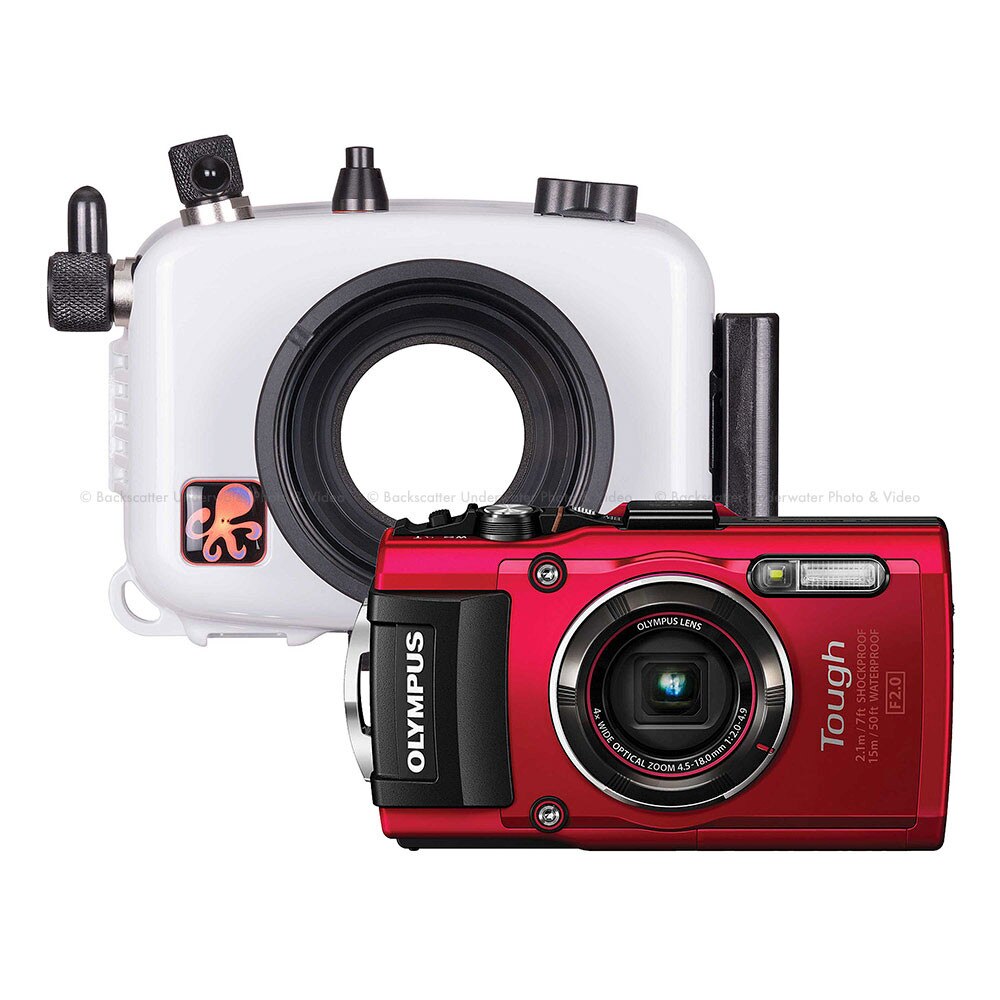

Ikelite Underwater Housing and Olympus Tough TG-4 Camera Kit

Ikelite Underwater Housing and Olympus Tough TG-4 Camera Kit

The TG-4 has a fast 25-100mm mid-range zoom lens with a macro mode that betters almost every other compact out there right now. This model introduces RAW image capture to the Tough series, which is a powerful tool for post-dive color corrections using either Adobe Lightroom or the included software. The TG-4 is waterproofed to 50' (15.2m) even without a housing, making it the ideal outdoor companion.

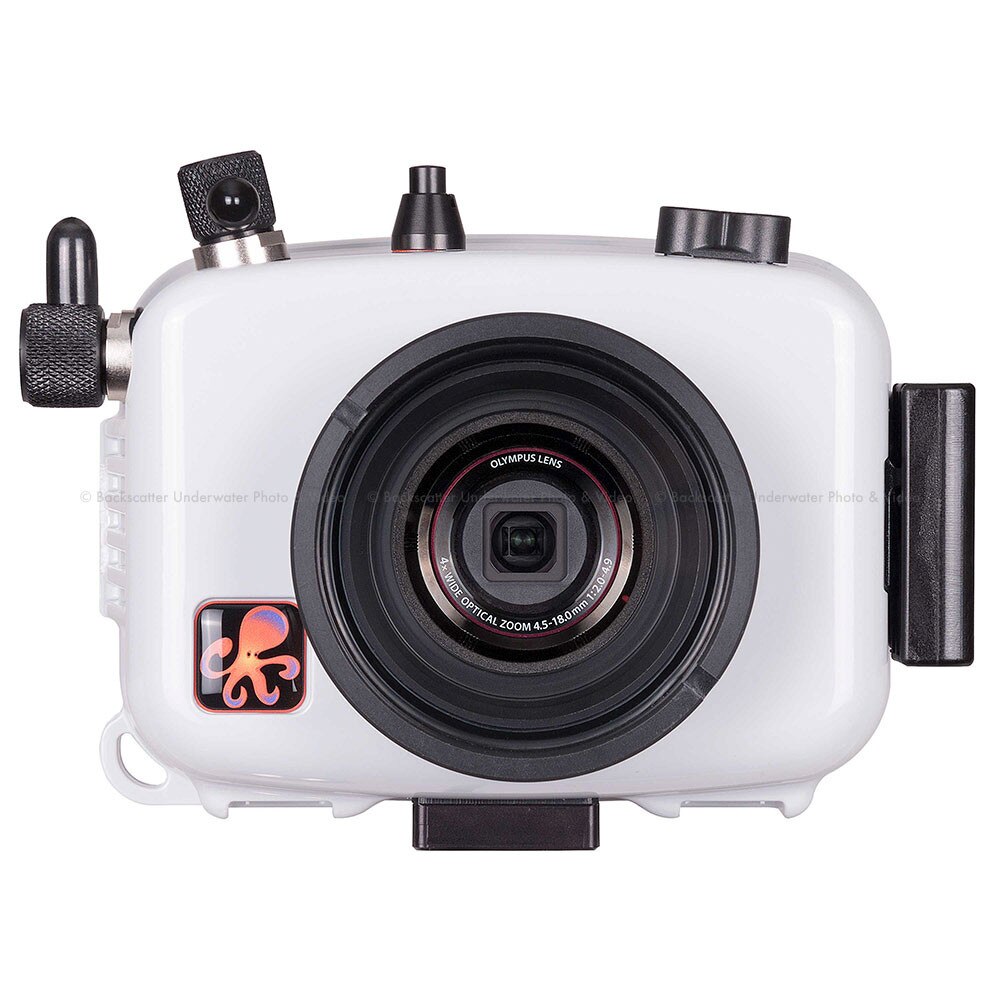

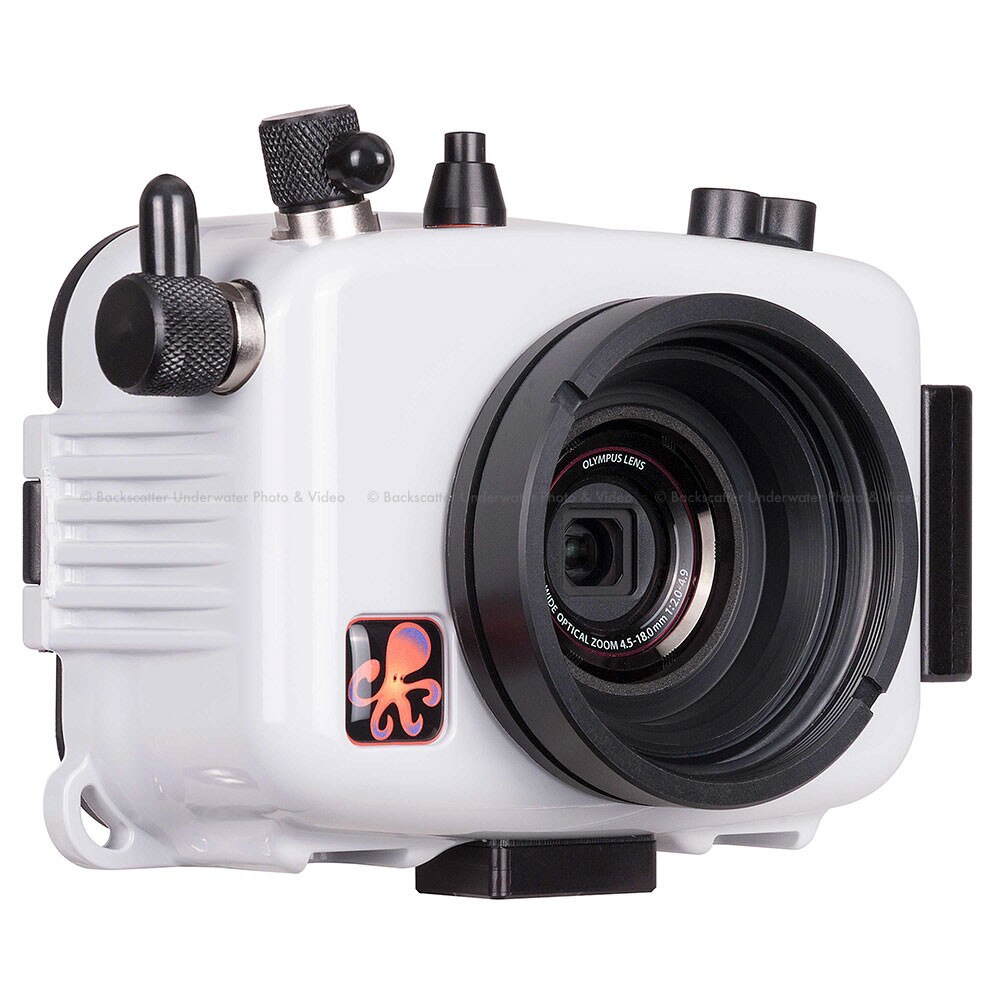

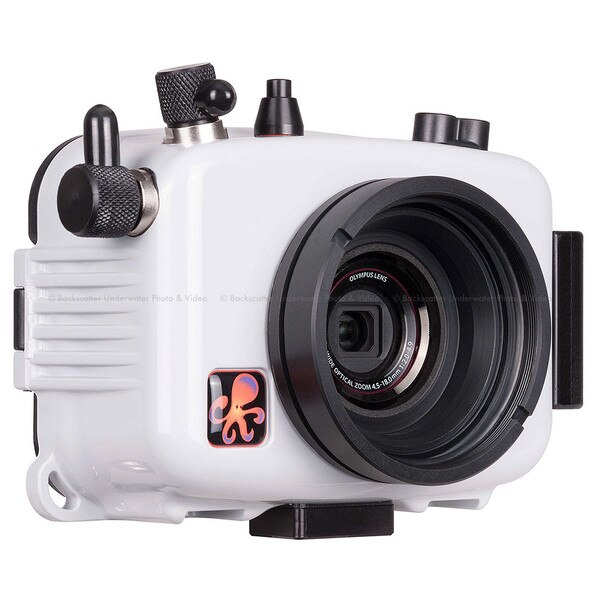

This housing is designed for a deeper depth rating and more robust handling than the comparable Olympus brand model. The front of the lens port has a standard 67mm thread for the direct attachment of most popular wide angle and macro wet lenses.

Strobe Compatibility

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

• Fiber optic cord compatibility
• Ikelite Fiber Optic Coiled Cord # 4501
• INON Optical D Cable "Non-wireless type" L-Connector
• Sea & Sea Fiber Optic Cable (L-type) # 50107
• Sea & Sea Fiber Optic Cable II # 50128
• Olympus UW Fiber Optic Cable PTCB-E02
• Nauticam Optical Fiber Cable # 26211 Nauticam to INON
• Nauticam Optical Fiber Cable # 26212 Nauticam to Sea & Sea

What's Included

• Underwater Housing # 6233.04
• Olympus Stylus TOUGH TG-4 Digital Camera (Red)
• LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh)
• CB-USB8 Cable (26")
• F-2AC AC Adapter
• Wrist Strap
• Software CD-ROM
• Limited 1-Year Warranty

Specifications

• 200 ft (60m) depth rating

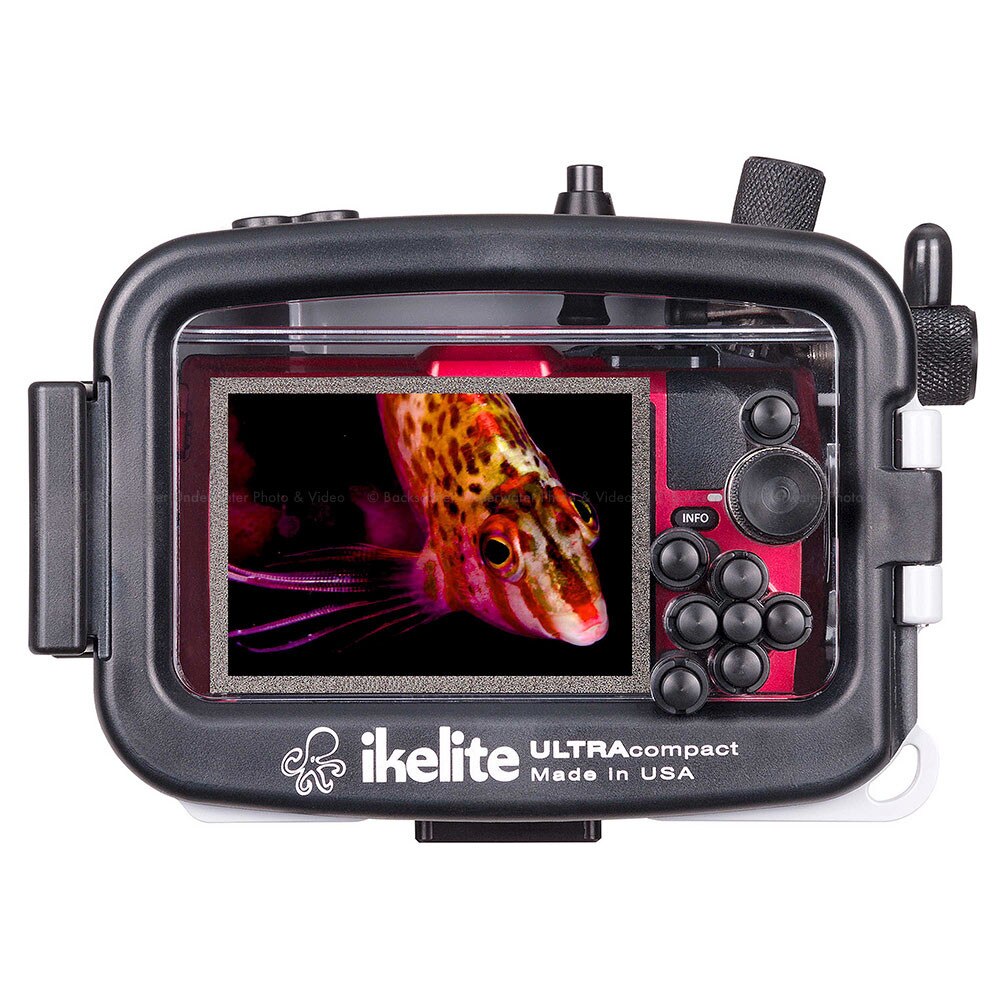

• Controls for all camera functions except INFO button
• Slightly positive buoyancy in fresh water
• Central 1/4-20 thread tray mounting
• Weight 1.1 lb (500 g)
• Dimensions 6.2 x 5.5 x 3.6 in (158 x 141 x 85 mm) including projections
• 3.0" diameter glass lens port with 67mm thread

Spare Parts

• 0132.45 - Main o-ring
• 0200 - Port cover
• 0184.2 - Silicone lubricant resealable 2cc tube
