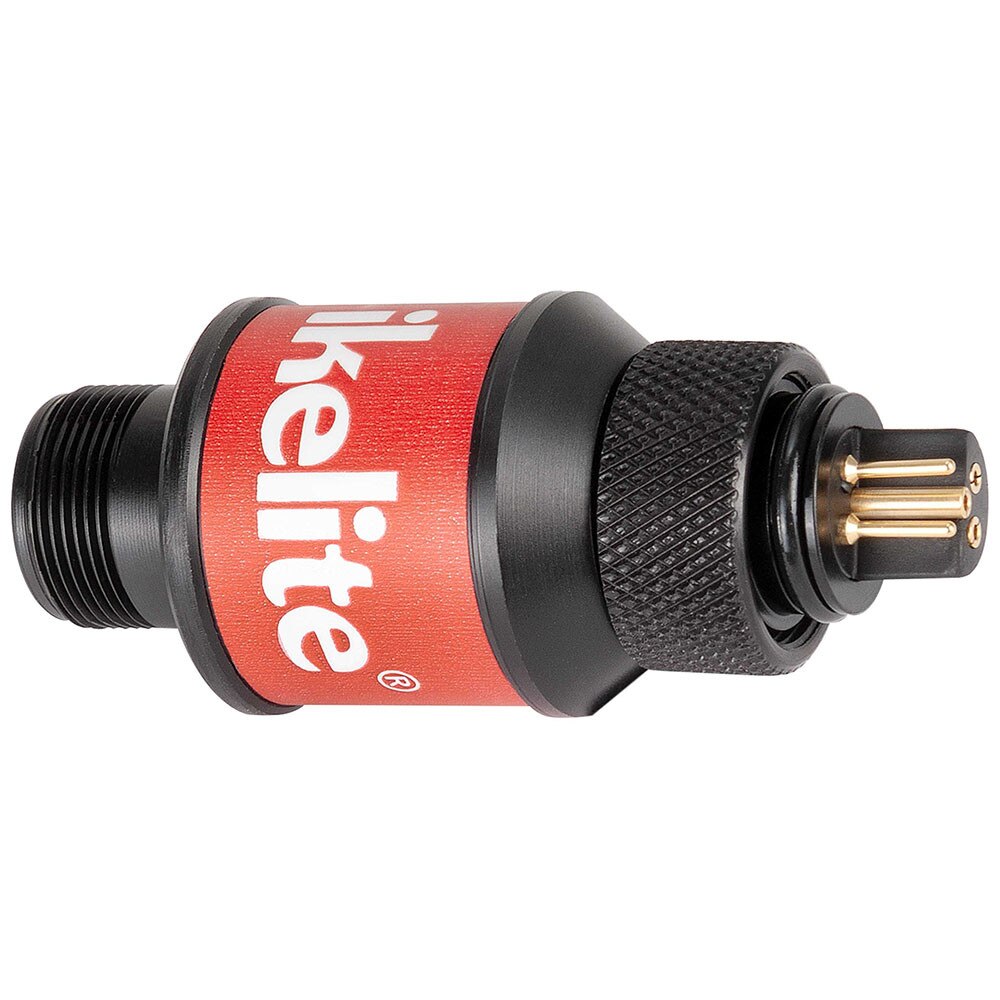

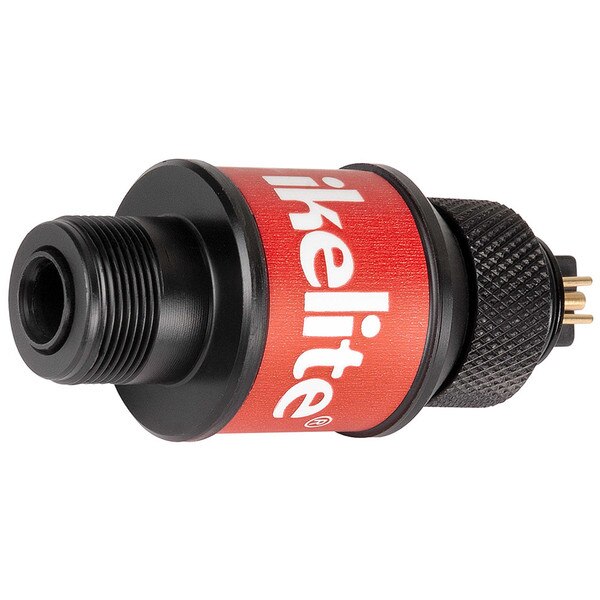

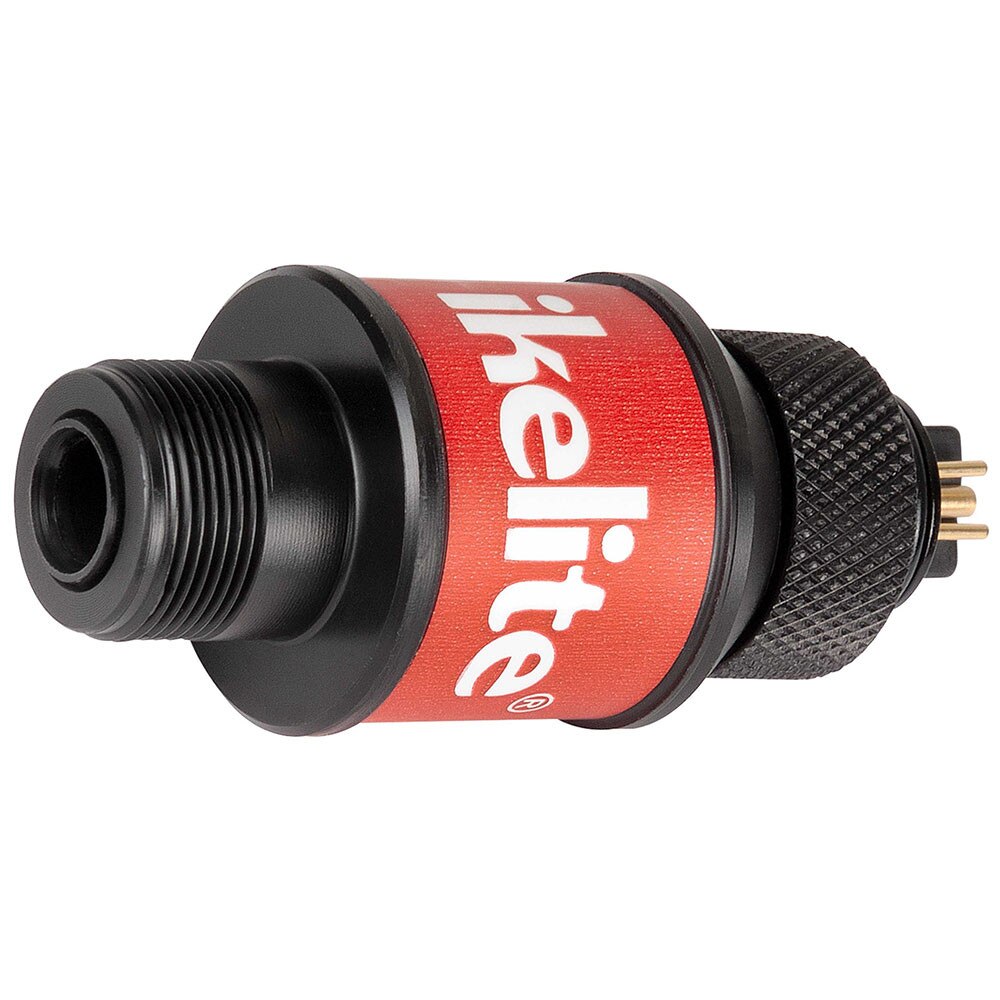

Ikelite RC1 Olympus & Panasonic TTL Receiver for DS Strobes

Enjoy true Olympus or Panasonic LUMIX TTL strobe exposure via fiber optic connection with your compatible Ikelite DS strobe. With the RC1 TTL Receiver and a compatible camera with RC flash mode, actual exposure data is calibrated and communicated directly by the camera. This is far more accurate and consistent than "slave TTL" modes built into underwater strobes that watch the camera's built-in flash and react.

An individual RC1 TTL Receiver and compatible fiber optic cord is needed for each strobe. The use of two strobes requires two receivers. This product attaches to an Ikelite DS strobe. It is not intended to be connected to a housing and will provide no functionality if attached to a housing bulkhead. This receiver is not compatible with non-Ikelite strobes or non-digital Ikelite strobes.

RC Mode TTL Strobe Exposure

The Sensor makes DS Strobes compatible with the Olympus and Panasonic LUMIX RC flash mode, providing automatic TTL exposure. For accurate performance, set the DS strobe to "TTL" and the camera's flash mode to "RC". You can use the camera's flash exposure compensation controls to make fine-tuned adjustments to the strobe's intensity.

Manual Strobe Exposure

The strobe's output may be adjusted using the manual power settings built into the strobe (varies by model). Make sure the camera's flash mode is set to manual. Choose the minimum flash output necessary in the camera to trigger the DS strobe. This will conserve the camera's battery power.

Strobe & Cord Compatibility

Fiber Optic Cord Compatibility:

• Backscatter Universal Fiber Optic Cable
• Ikelite Fiber Optic Coiled Cord # 4501
• INON Optical D Cable "Non-wireless type" L-Connector
• SEA&SEA Fiber Optic Cable (L-type) # 50107
• SEA&SEA Fiber Optic Cable II # 50128
• Olympus UW Fiber Optic Cable PTCB-E02
• Nauticam Optical Fiber Cable # 26211 Nauticam to INON
• Nauticam Optical Fiber Cable # 26212 Nauticam to Sea&Sea

Consult with your housing manufacturer for information on what type of fitting is provided at the housing end. The fiber optic ports on Ikelite housings are made to the same standard as SEA&SEA and Olympus brands.

Strobe Compatibility:

• Ikelite DS50 above serial # 70000
• Ikelite D51
• Ikelite DS125 above serial # 5000
• Ikelite DS160, DS161
• Ikelite DS200 above serial # 7163

This product is not compatible with non-digital Ikelite strobes, SEA&SEA, INON, or other non-Ikelite strobes.

In The Box:

• TTL receiver
• Connector protector
• Silicone lubricant 1cc tube

SPECS:

• Depth Rating: 330 feet (100 meters)
• Weight: 3 oz (85g)
