Ikelite DL1 DS Link Nikon TTL Converter Ikelite NT3 Hotshoe Kit

Ikelite has pioneered underwater TTL flash exposure for DSLR and mirrorless cameras and this is the next iteration of Ikelite's world-renowned Nikon TTL flash circuitry.

Key Advantages

• Faster, more accurate, and more reliable than fiber optic TTL triggers
• Always ready when you are - no batteries required
• Switch between TTL and manual exposure with the press of a button
• Supports flash exposure (EV) compensation set in the camera
• Supports rear curtain sync
• Improves strobe battery life and recycle time
• One TTL converter supports a wide selection of camera models
• Independently waterproof sealed

About Nikon TTL

TTL or "Thru-the-Lens" flash metering means the camera evaluates the scene and communicates exposure information directly to the compatible flash. The camera automatically adjusts the power output of the external flash so you don't have to.

TTL exposure is faster and often more accurate than setting the flash output manually. TTL can be the difference between getting a properly exposed image or not, especially when shooting fast-moving subjects and subjects that are moving towards or away from you. TTL is by far the easiest way to shoot perfectly exposed macro photography and allows you to concentrate on focus and framing. When shooting wide angle or close focus wide angle (CFWA), set your camera to properly expose the background and let the DL1 adjust your strobe intensity for proper exposure of the foreground.

Ikelite was the first company to introduce TTL for underwater strobes with Nikon digital cameras and continues to set the standard for accuracy of Nikon TTL flash protocol.

Electrical flash triggering

Connecting an electrical sync cord is as quick and easy as screwing in a light bulb. Electrical triggering supports greater accuracy, faster rapid firing, and less missed flashes as compared to fiber optic triggering. Use of electrical TTL also dramatically increases strobe battery life.

A compatible Nikon TTL hotshoe is necessary for TTL operation. Ikelite TTL hotshoes are designated by a yellow band at the connector end.

The ultimate flexibility

Switch between TTL and manual flash exposure modes with the simple push of a button. A super bright LED indicator light shows you which mode you are in with a quick glance. When in TTL mode, flash exposure (EV) compensation can be accessed quickly and easily through the camera's menus. The DL1 DS Link fully supports rear curtain sync flash modes.

The DL1 DS Link is independently waterproof sealed and can be used with a wide array of camera models. Simply use a dual sync cord to fire two strobes in TTL from a single DL1 DS Link converter.

Housing Compatibility

Ikelite housings for Nikon DSLR or mirrorless cameras featuring a TTL flash hotshoe and Ikelite ICS-5 bulkhead

Non-Ikelite housings for Nikon DSLR or mirrorless cameras featuring a TTL flash hotshoe and Ikelite ICS-5 bulkhead; If you are unsure whether your housing meets these requirements, please contact the manufacturer.

Strobe Compatibility

• DS50 strobes: above serial number 75510 with the update
• DS51 strobes: above serial number 78700
• DS125 strobes: above serial number 7928
• DS160, DS161 strobes: all
• DS200 strobes: above serial number 7163
• Not compatible with non-digital Ikelite strobes including but not limited to SS50, SS200, SS400, Ai, 100/A
• Not compatible with SEA&SEA, INON, or other non-Ikelite strobes

Sync Cord Compatibility

• Ikelite Housing to Ikelite Strobes # 45151
• Ikelite Housing to Two Ikelite Strobes # 45152
• Ikelite Housing to Ikelite Strobe # 4103.51 (out of production)
• Ikelite Housing to Two Ikelite Strobes # 4103.52 (out of production)

Specifications

• 2.9 ounces (82g)

In the Box

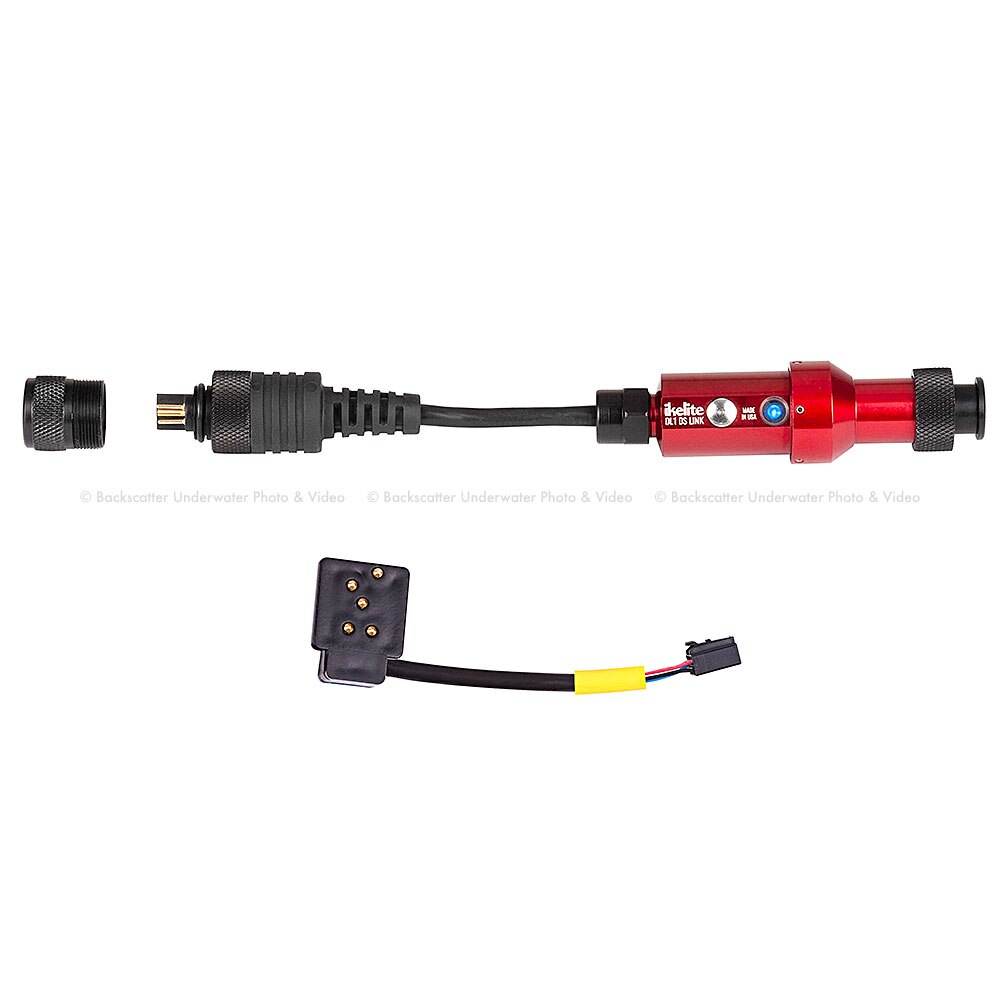

• DL1 DS Link TTL converter
• Plug O-ring # 0136.13 (installed)
• Connector protector for plug # 0301.12 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• NT3 Nikon TTL Hotshoe # 46066
• Silicone lubricant 1cc tube
