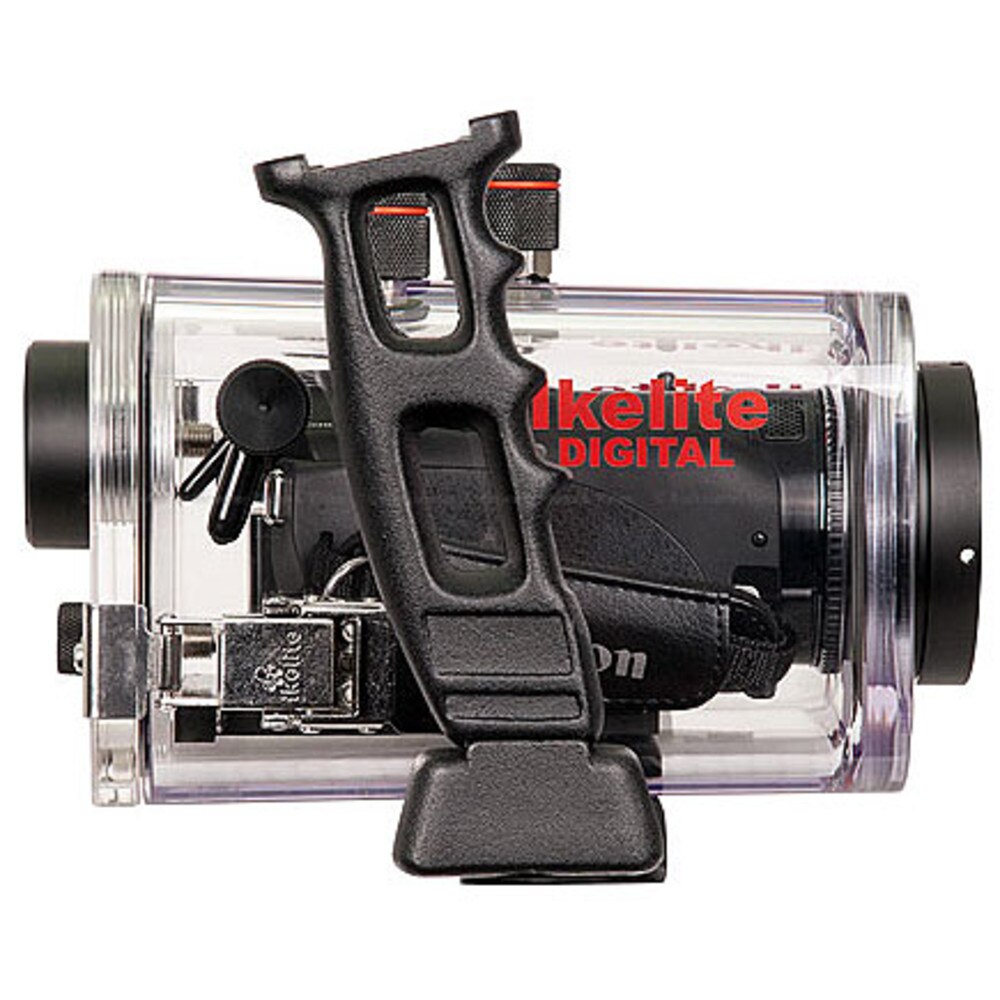

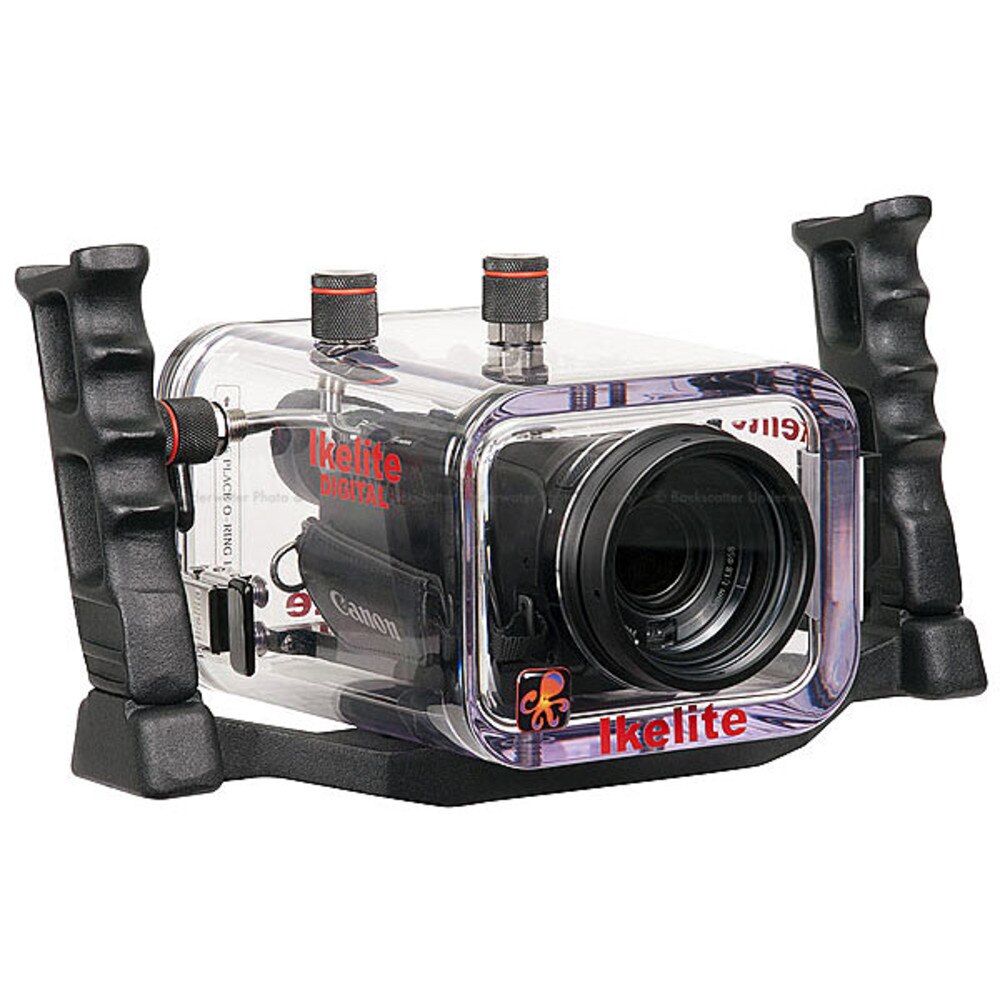

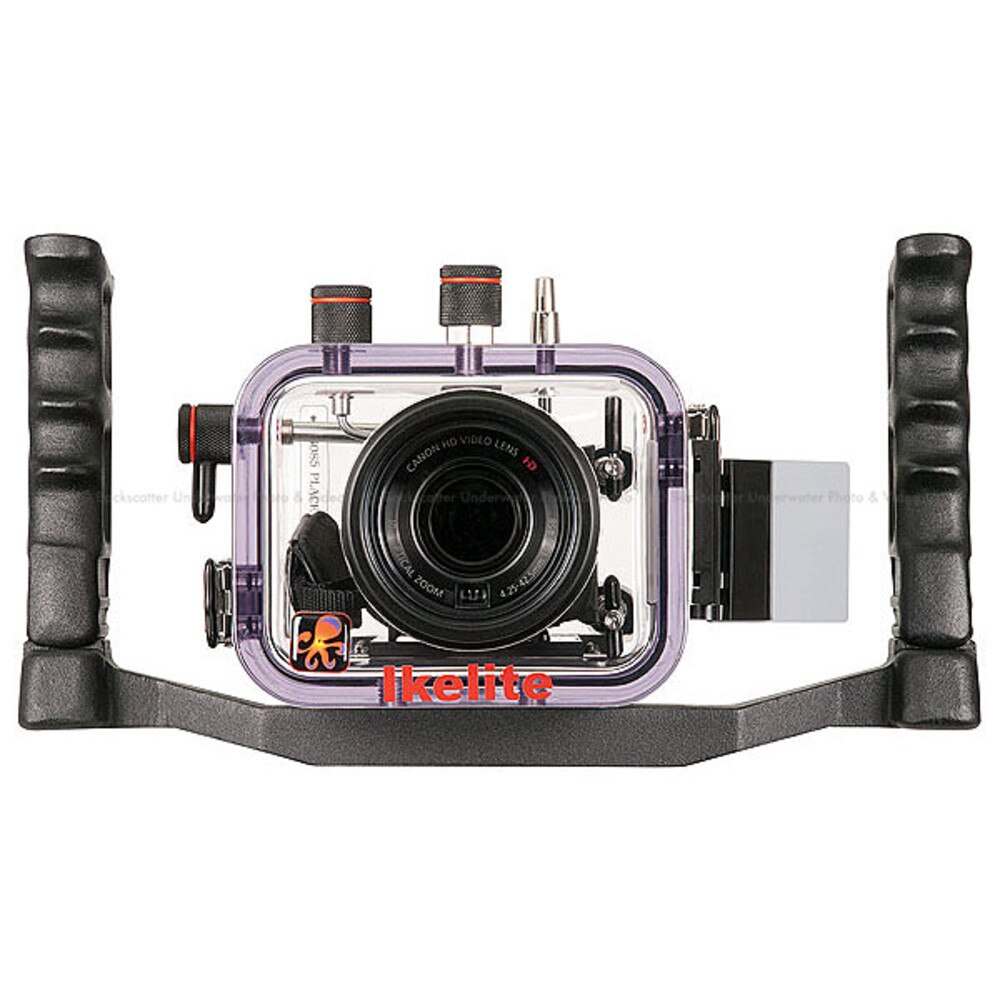

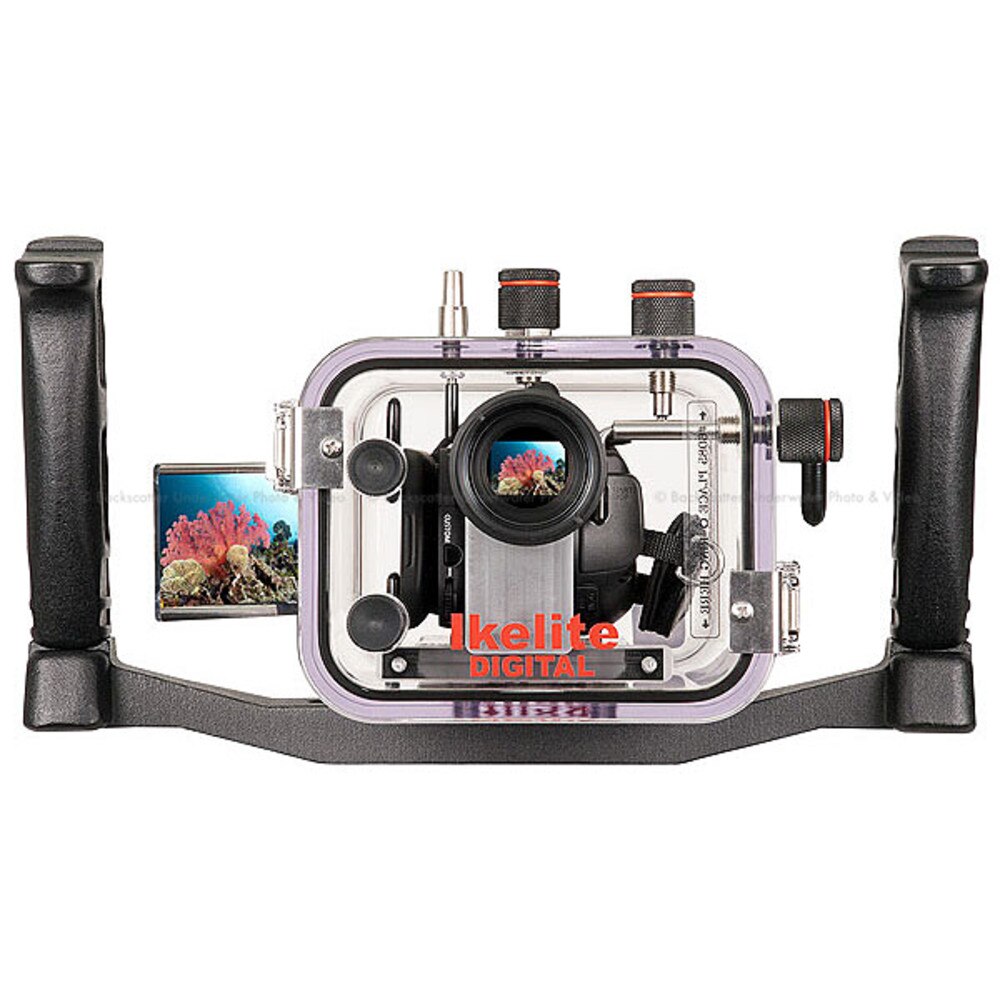

Ikelite Underwater Video Housing for Canon HF G10Molded of clear polycarbonate to provide seamless construction and corrosion proof performance. This "Clearly Superior" design provides full view of the camcorder, control functions, and assurance the system is safe. The camera's large viewing screen can be seen easily using the External Mirror on the side of the housing. Just open the camera's LCD monitor, rotate 180_ and fold back against the side of the camera. Actual image will be reversed when viewed through the mirror.
A magnified Super-Eye Viewfinder is provided for enhanced viewing of the camera's optical viewfinder.
Fail-safe mechanical controls are provided for important camera functions. Access to the camera's touchscreen menu functions including white balance and manual focus is provided via two controls.
The tray and handles remove with just two nuts for packing. Includes two 3/8-16 threaded stud mounts with wing-nuts for attachment of PRO-2800, PRO-V8 or Pro Video mounting arms. Optional weighted bases are available for additional stability above and below water.
Specifications:Controls | Power on/off, Record start/stop, Zoom, LCD touchscreen (2 controls), Snapshot, Auto/Manual switch |
---|
Size | 7.3in wide x 6.3in high x 8.5in deep 185 x 260 x 216mm Size with controls and port; without tray and handles. |
---|
Weight | 6.5lb (2950g) |
---|
Buoyancy | Slightly negative in freshwater |
---|
Depth Rating | 200ft (60m) |
---|
What's Included | Housing body Aluminum tray and handles (2) 3/8-16 threaded handle mounts with wing-nuts Vinyl port cover Silicone lubricant, 1cc tube 6441.41 color correcting filter, blue water |
---|
Port Size | 3.0" flat glass; 67mm external thread |
---|
Main O-Ring | 0109 |
---|
Optional Filter | 6441.81 Green water filter for 3" ports |
---|
Optional Weighted Bases | 9360.1* Base with 4.9oz weight 9360.2* Base with 1lb weight * Requires 9360 toggle assembly, sold separately |
---|
Batteries Accommodated | Canon BP-809, BP-819, BP-827 |
---|
Color Correcting FiltersThe included UR/Pro Color Filter provides color correction in tropical blue water with available sunlight up to 80 feet (24 meters). The optional filter 6441.81 is also available to achieve more natural tones in green water settings.
Lighting OptionsLight is essential to bringing out the vibrancy and colors of underwater life in your video. Several options are available to add a video light to this system:
The Pro-V8 LED light is a compact and affordable 500 lumen video light. It easily doubles as a focus light and is compatible with any still or video system.
The PRO-2800 LED is the ultimate in output and angle of coverage. The compact light head produces an incredible 2800 lumens with a natural, daylight balanced color temperature. The 100_ flood light is free of hot spots. A detachable, rechargeable NiMH battery pack allows you to quickly change to a spare and keep shooting all day long.
External Macro Lenses and Wide Angle Lenses.The housing port is threaded allowing the use of optional 67mm threaded wide-angle and macro lenses available from other manufacturers. Due to the wide angle of the camera's native lens, external wide angle lenses provide no advantage when used with this system.
Internal Wide Angle Lens Option.Special ports are available for use with Raynox DCR-730/DCR-731 high resolution wide-angle lens. Optional ports sold separately as dome port #9306 or flat lens port #9306.1. A 58-52mm step down ring is required for the attachment of the Raynox lens to the Canon camera. Raynox lens and step down ring not included. Lens and step down ring not available for purchase through Ikelite.
