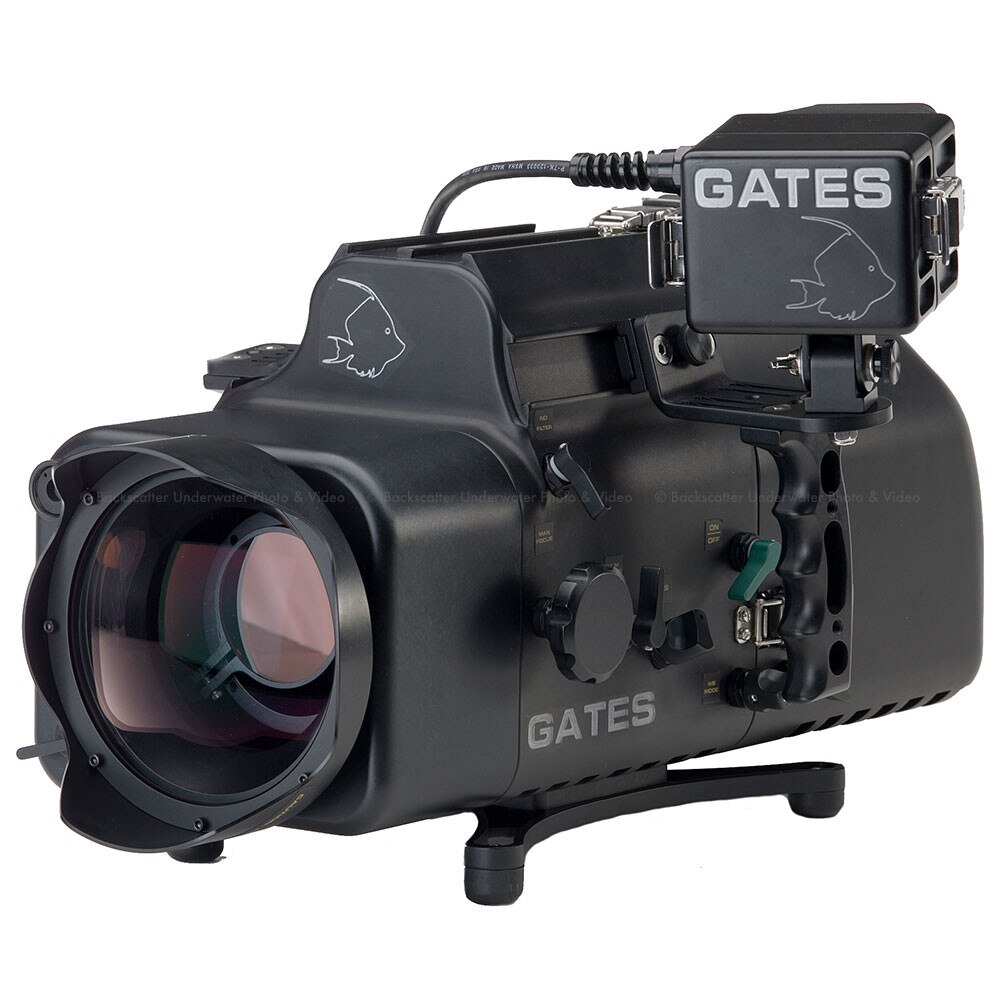

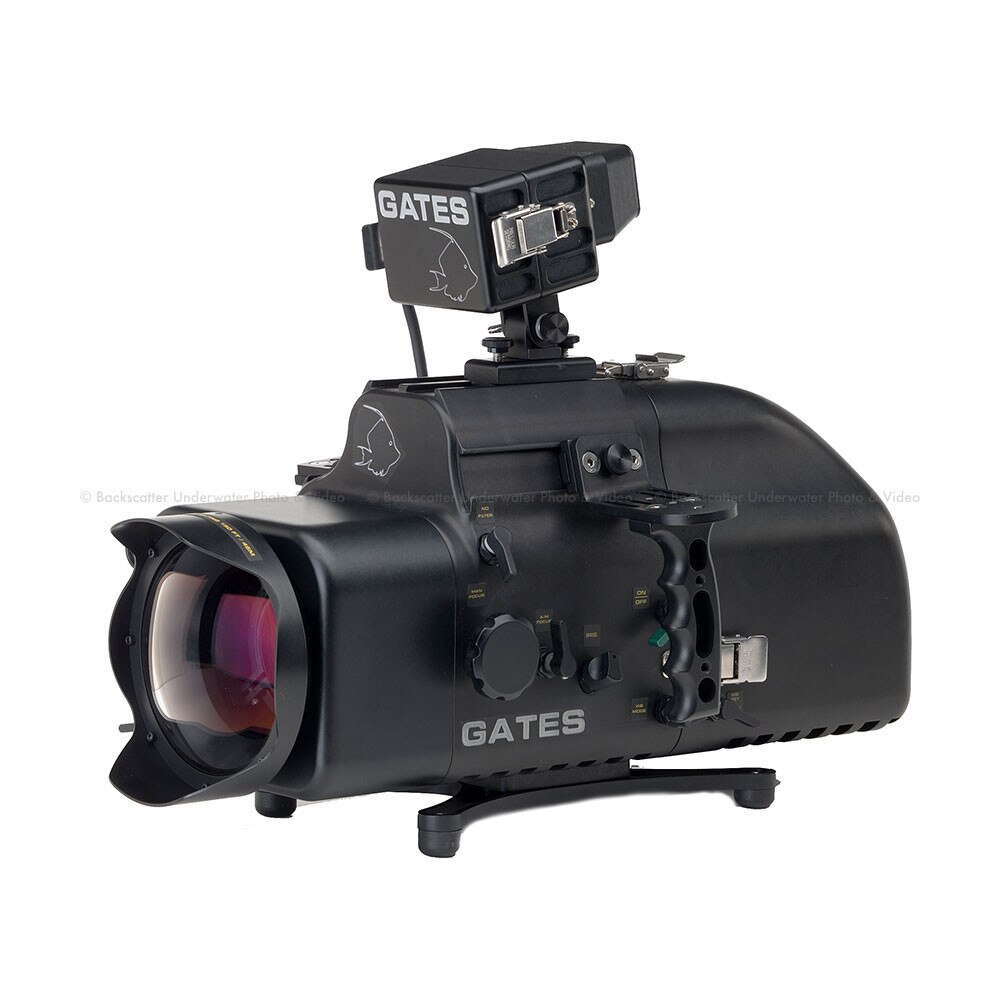

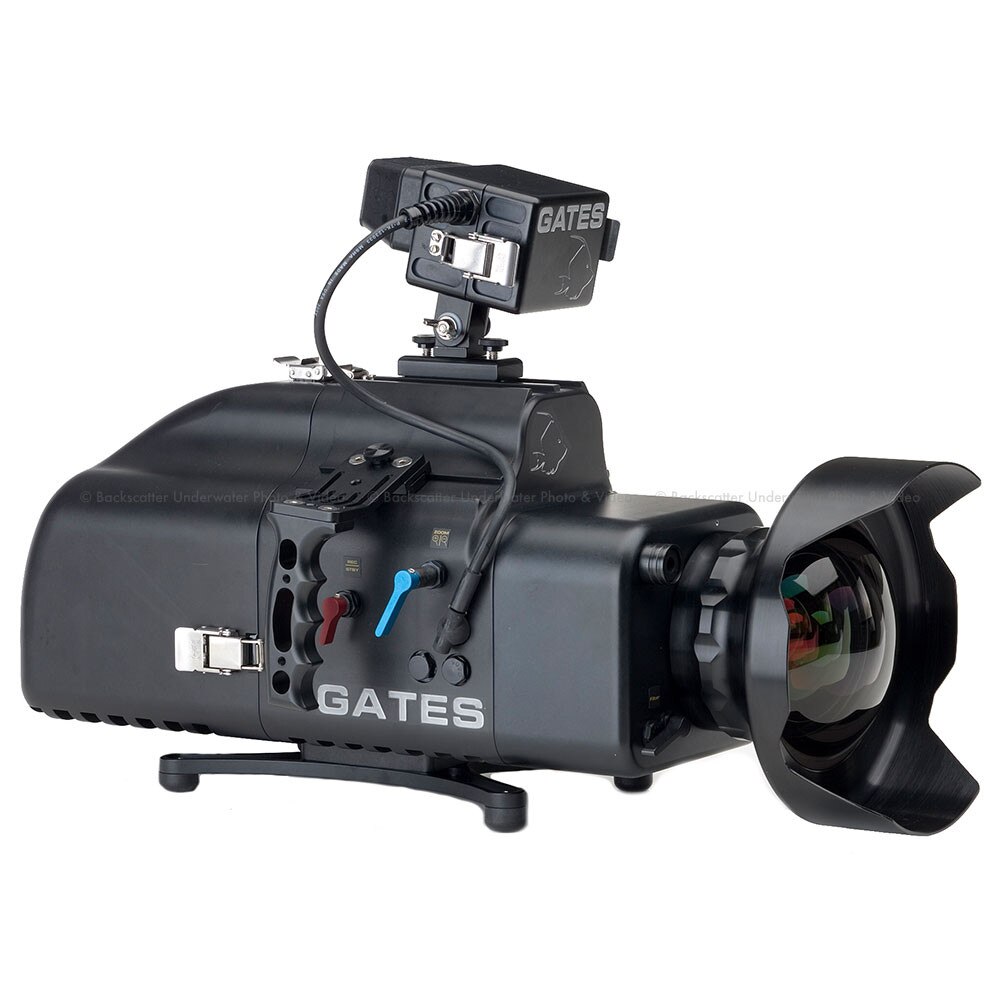

The Gates XLH1 Housing is designed for the discriminating diver. Legendary Canon optics paired with Gates reliability return underwater images of unmatched caliber. Iris, focus, white balance, custom key and custom preset controls, adjustable handle grips, and Gates premium ports are available in this feature-rich design.
The XLH1 is also classically Gates: tough, bulletproof construction, reliable fingertip mechanical controls and a two year renewable warranty. Reliability, durability, dependability--the Gates hallmark for over 38 years. Don't take a chance...Take a Gates!
Key FeaturesDurable, Bulletproof machined aluminum, black type III hard anodize finish, and sealed with a nickel-acetate process.
External Color MonitorWith the EM43 hi-res monitor, HD framing and focus are easy. (Optional)
Pro Controls such as manual focus, iris and white balance are standard.
Internal Flip Filter provides quick, effortless use of the color correction filter. Blue or Green water versions available.
Interchangeable Ports for easy switch amongst Flat, Wide, and Super Wide Angle
Reliable Fingertip Controls are 100% Mechanical -- no sticky buttons, faulty electronics or dead batteries!
Adjustable Handle Grips let you find the perfect position for comfort and control.
2-Year Warranty. Gates offers a 2-year renewable warranty on all housings.
Travel Lighter. By leaving the ballast weight behind. A standard 4lb/1.8kg scuba weight can be used at your dive destination.
Quality Optics means clarity, sharpness and no vignetting (cutoff dark corners) to spoil your images.
SpecsControls (All Mechanical)
- Power (Auto/Tv/Av/M)
- Zoom
- Internal 'Flip' Color Filter
- Auto/ Manual Focus
- Custom Key 2 / WB Set
- Neutral Density Filter
- Shutter
- Internal 'Flip' Macro (optional)
- Record/Standby
- Manual Focus
- Iris
- Exp Lock
- Magnify / Peaking
- Gain / WB Presets
- Custom Presets
Dimensions
- 16.3" L x 9.1" H x 6.8" W (12" w/handles)
- 41 cm L x 23 cm H x 18 cm W (31 cm w/handles)
Warranty
Construction
- Machined Aluminum, Type III 'Hard' Anodize finish. Stainless steel hardware.
Weight
- 24 lbs / 10.8 kg
- 19.5 lbs / 8.8 kg w/o travel weight
Weight in water
Depth Rating
Batteries
- Accepts all Canon batteries
