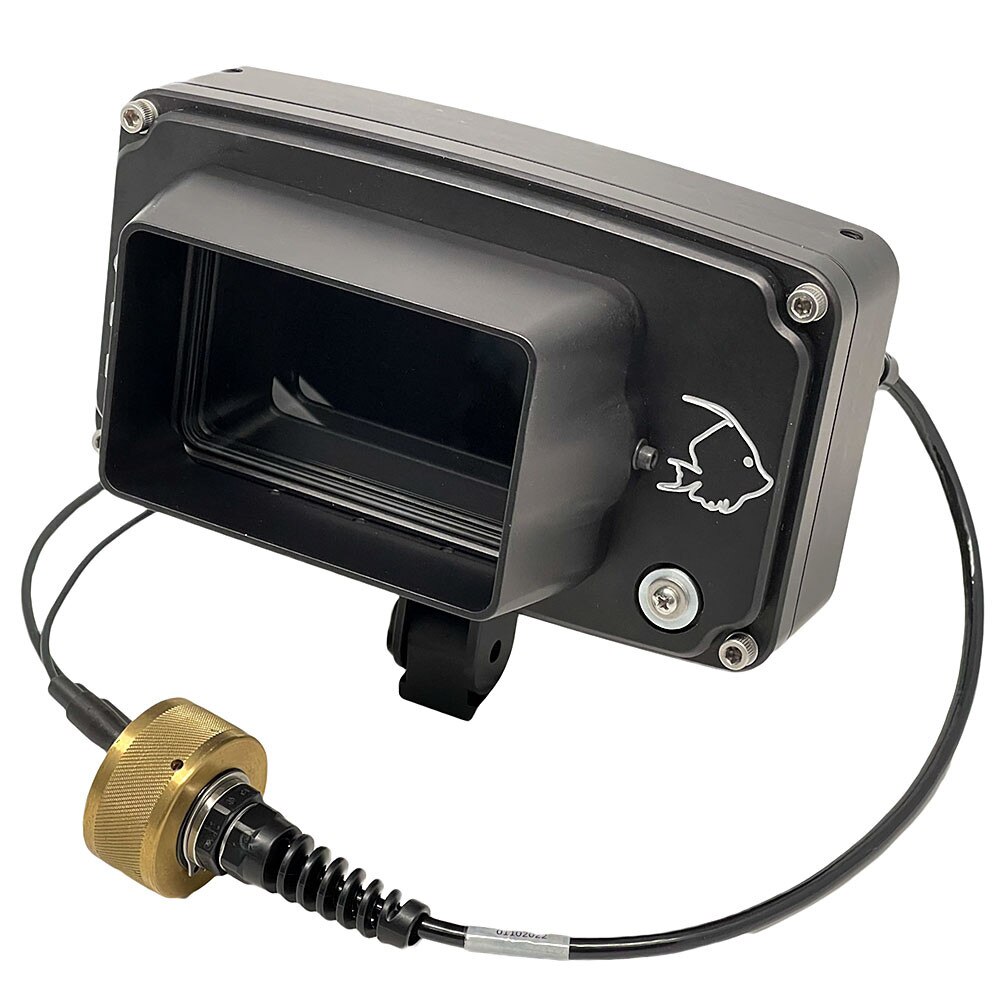

Gates SmallHD 503 EM503 External Monitor Underwater Housing for RED Raptor

Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt/swivel to any position for the perfect viewing angle. SDI means a simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'!

Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction, a 2-year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.


KEY FEATURES:

• UPER BRIGHT, WIDESCREEN DISPLAY: 5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination.
• RUGGED, WATER BLOCKED CABLE: with a tough polyurethane jacket is "bulletproof".

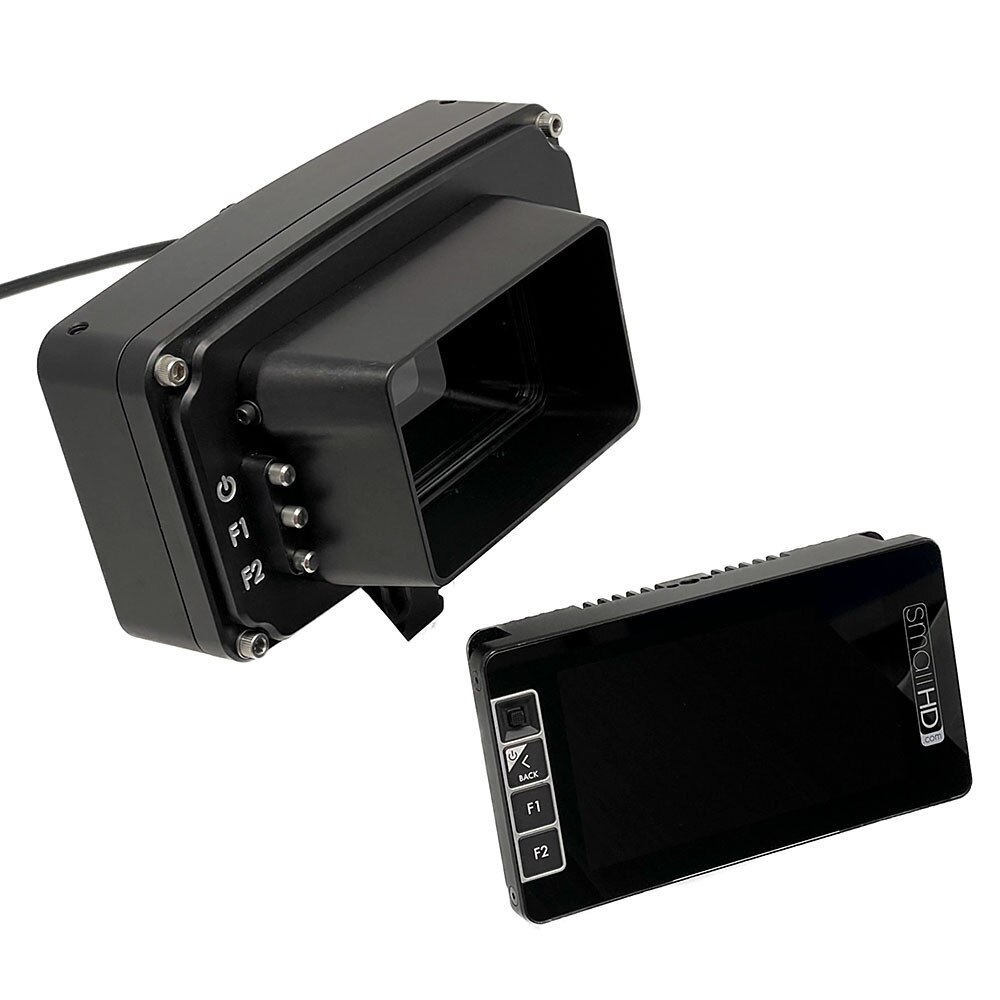

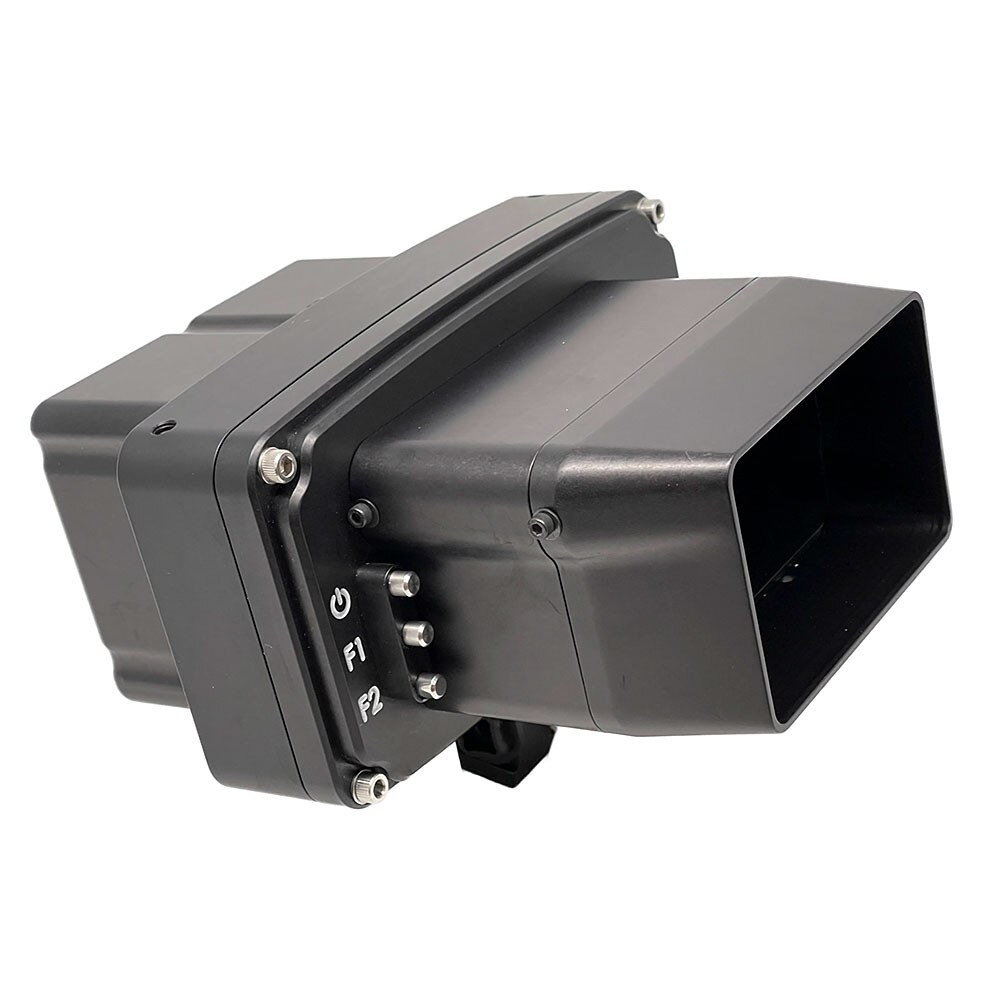

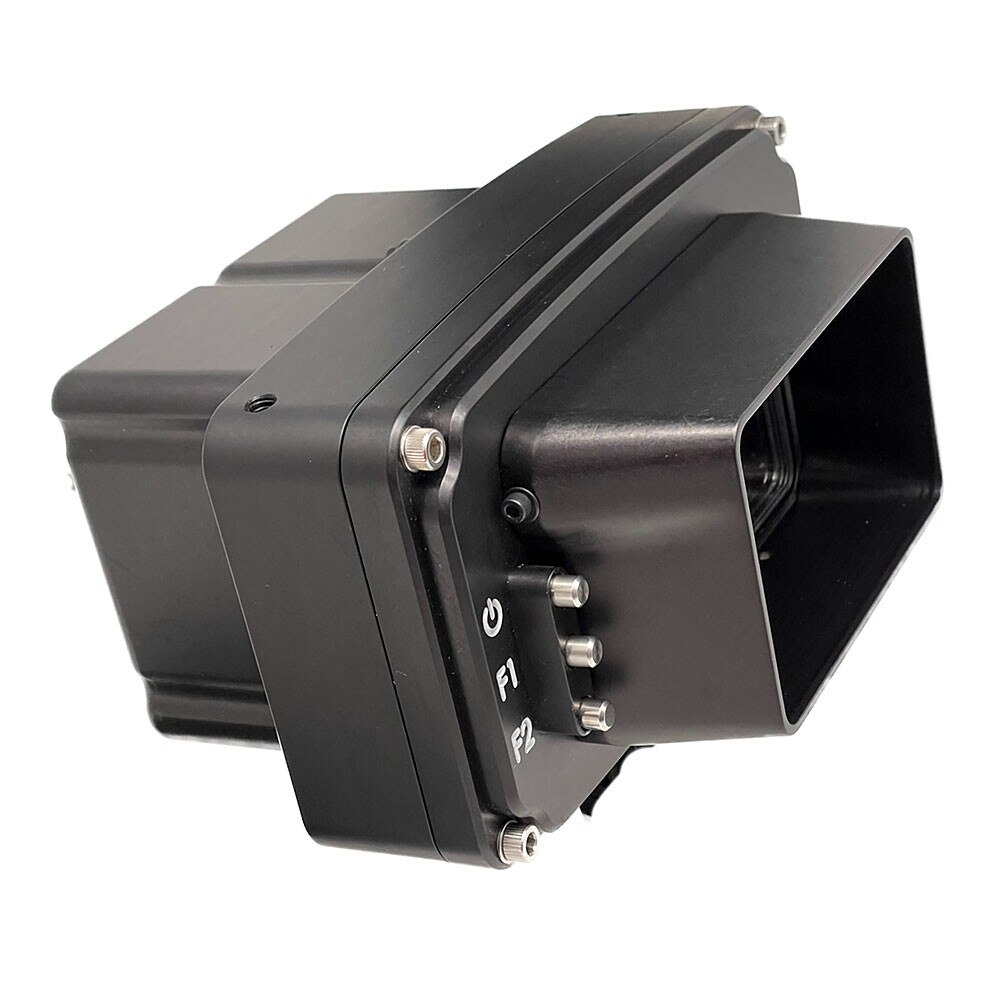

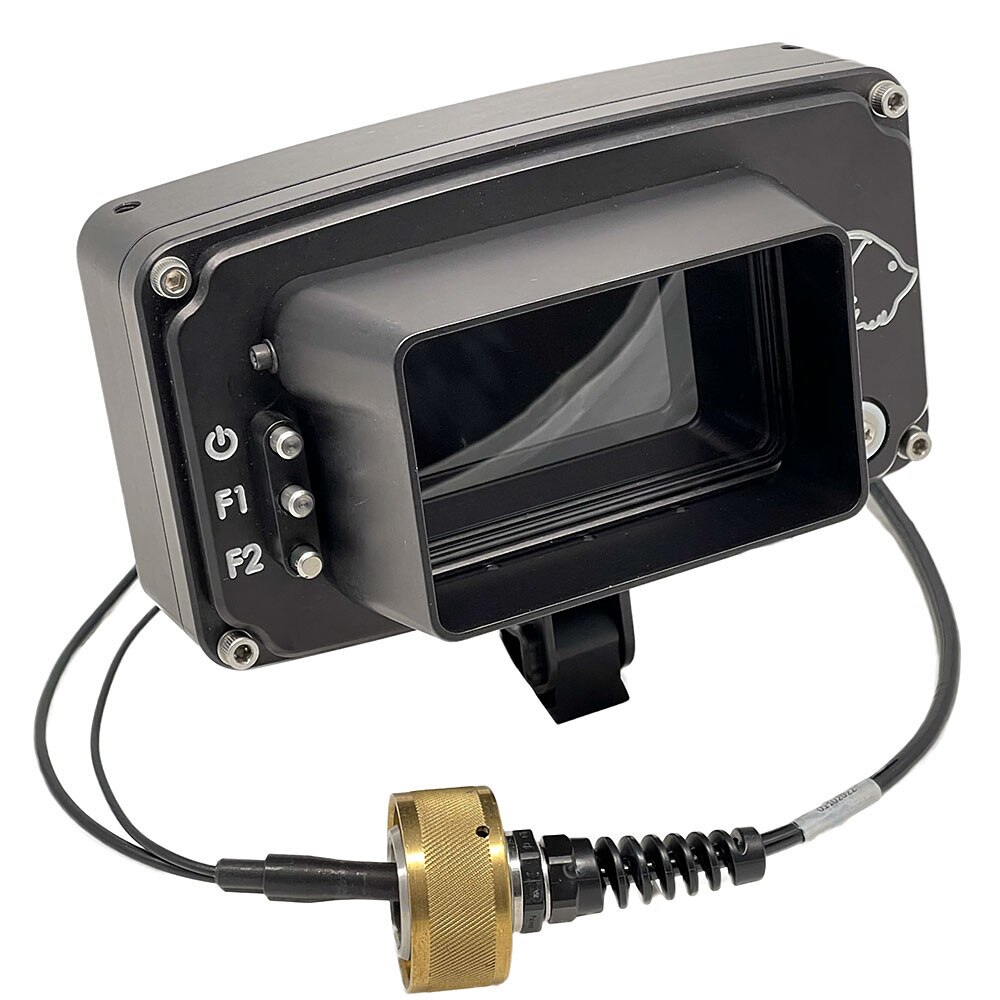

• POWER / F1 / F2 CONTROLS: Are easibly accessible next to the shaded LCD.
• 2-YEAR WARRANTY: Only Gates offers a professional 2-year renewable warranty on all housings.
• TILT / SWIVEL BASE MOUNT: Adjust EM503 for the perfect viewing angle. A true professional touch.
• NO 'TURTLING': Neutrally buoyant design means no fighting a rig that wants to flip over.

SPECIFICATIONS:

DISPLAY

• SmallHD 503 Ultrabright LCD
• Illumination: 2200 nits
• Widescreen 5 .0 inch / 125 mm color LCD
• 1920x1080 resolution

CONTROLS

• Power
• F1 and F2 assignable

INPUT FORMAT

• SDI

MATERIAL

• Machined Aluminum, Type III 'Hard' Anodized finish
• Stainless steel hardware

WEIGHT

• Dry: 3.7 lbs / 1.7 kg (no LCD, base configuraiton)
• In Water: Neutral (w/included trim float)

DEPTH RATING

• 200 feet / 61 meters

WARRANTY

• 2-Years Renewable

CABLE / CONNECTORS

• Marine-grade multi-conductor cable
• Gates Pass Through type or MultiConn type

POWER SOURCE / RUN TIME

• Powered by camera battery: run time variable depending on battery size.

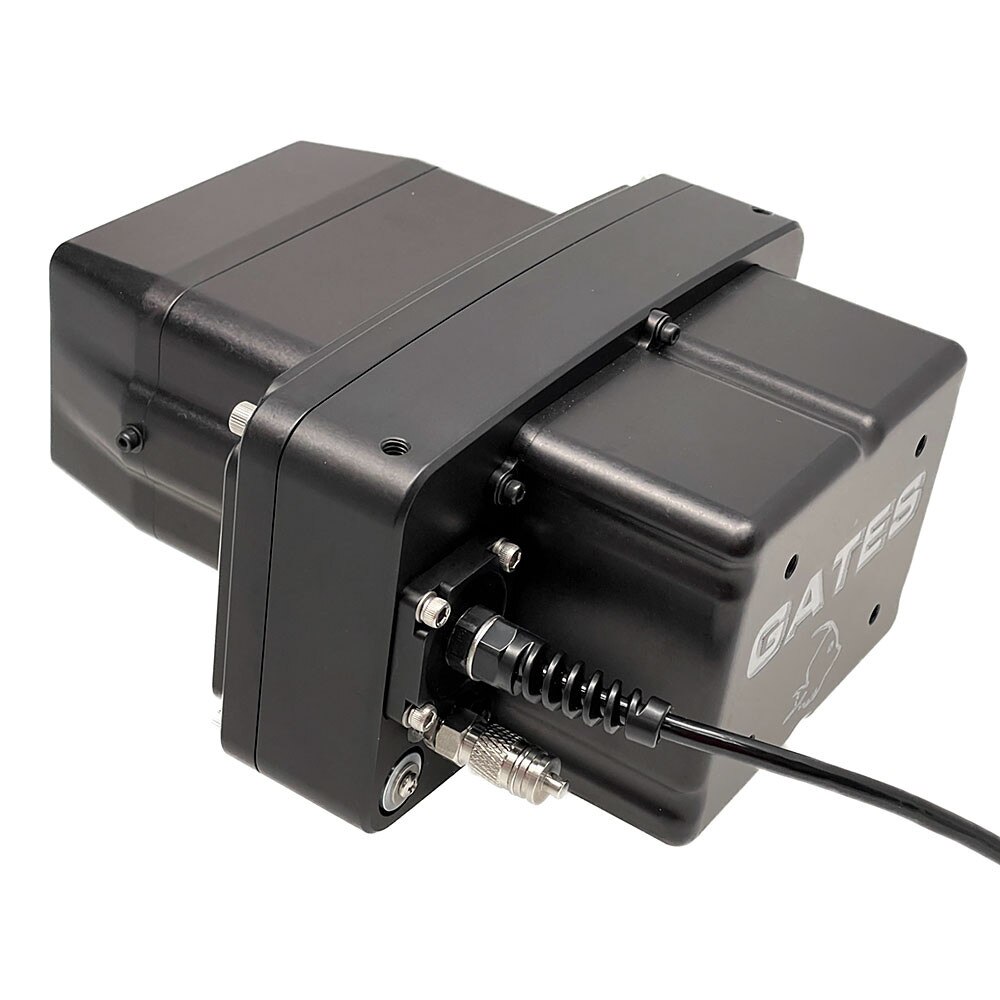

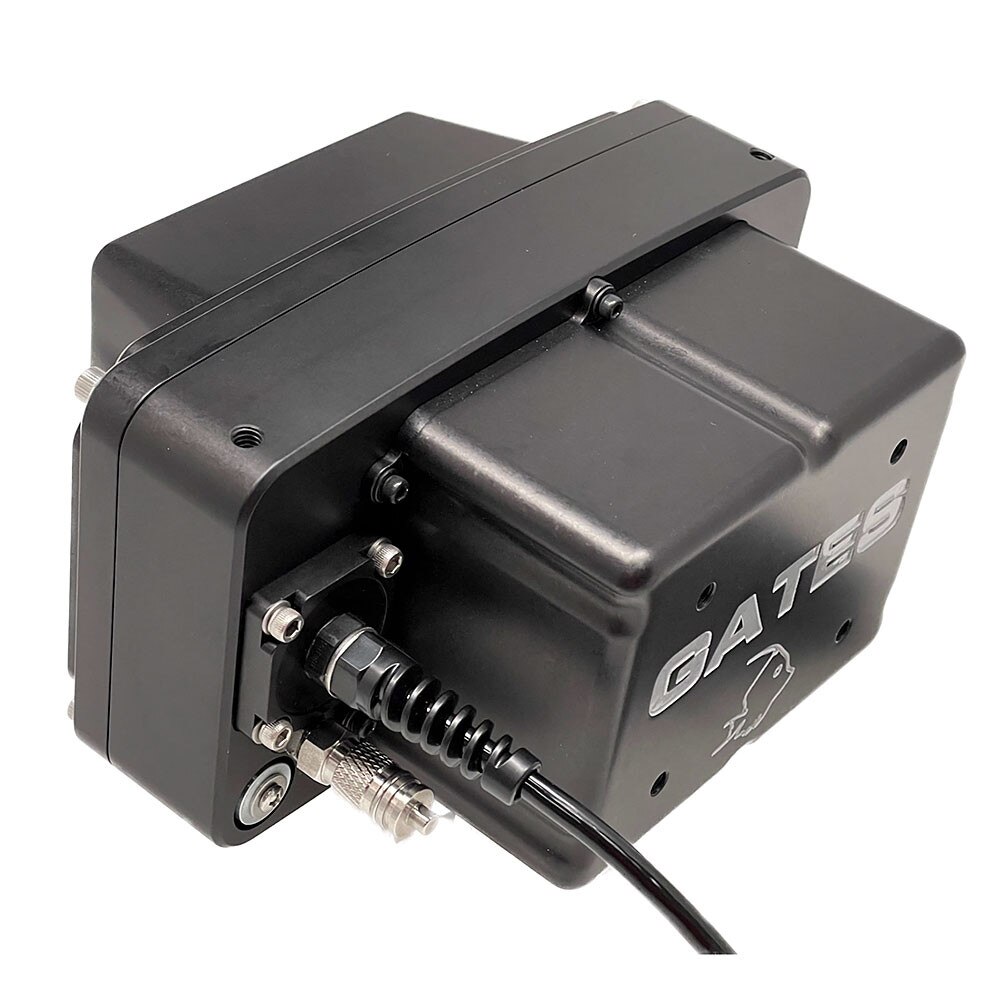

• Optional: Powered by 2x SONY NP-F970 batteries or equivalent size (max 2.25 x 2.88 x 1.5" / 57 x 73 x 38 mm)
• Run time more than 4 hours.

EM503 Compatibility & Replacement Cables

MINI/ MINI LF / ALEXA / FLEX4K HOUSINGS

• Gates EM503 Small Pass-Thru type. Specify 5000-94-297 BCP ASSY, EM503 SM PASS THRU TYPE
• Standard cable length (housing to monitor): : 12in / 30 cm. Custom lengths available.
• Power Source(s)
• Camera / Camera battery via D-Tap (Standard) or
• LCD battery 2X SONY NP-F970 or equivalent max size (optional).

DEEP WEAPON / DEEP RAPTOR HOUSING

• Gates EM503 Large Pass-Thru type. Specify 5000-94-296 BCP ASSY, EM503 LG PASS THRU TYPE
• Standard cable length (housing to monitor): : 17in / 43 cm. Custom lengths available.
• Power Source(s)
• Camera / Camera battery via D-Tap (Standard) or
• LCD battery 2X SONY NP-F970 or equivalent max size (optional).

HOUSINGS USING GATES MULTICONN (GMC) BULKHEAD CONNECTOR SYSTEM

• Gates EM503 GMC type. Specify 5000-94-299 GMC ASSY, EM503 MON and 5000-94-300 GMC ASSY, BLKHD, EM503
• Standard cable length (housing to monitor): 17in / 43cm
• Power Source(s)
• Camera / Camera battery via D-Tap (Standard) or
• LCD battery 2X SONY NP-F970 or equivalent max size (optional).
