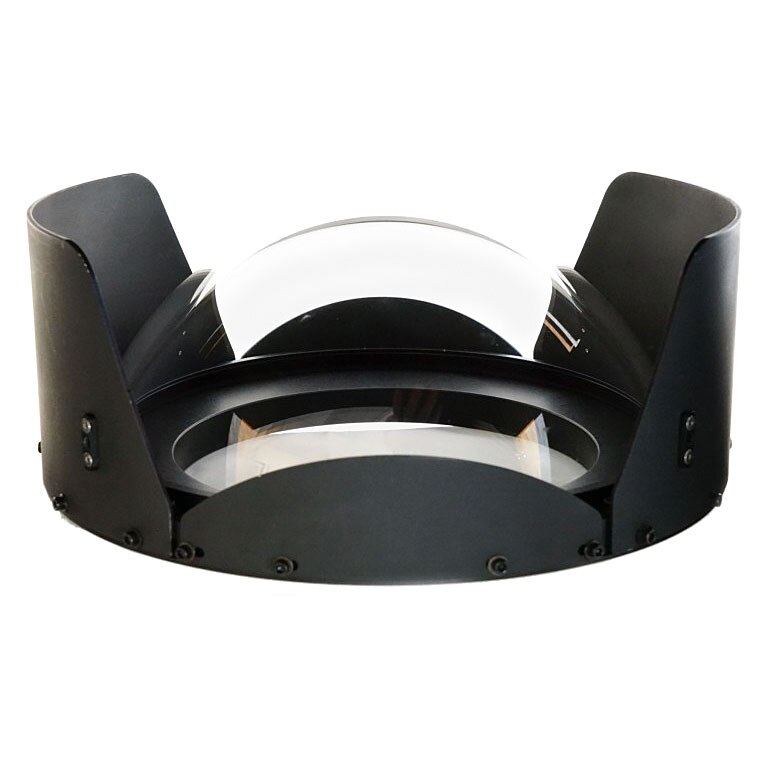

Gates SP80-10 10-inch Glass Dome Port

The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging.  The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general.  This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes.

The SP80-10 is available in Anti-Reflective (AR) coated glass only.

• SUPERIOR RECTILINEAR COMPATIBILITY: For medium to wide and fisheye imaging, the SP80-10 excels at rectilinear imaging, particularly with PL mount cinema lenses.
• AR COATED GLASS: The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes.
•  VERSATILE: The SP80-10 is compatible with hundreds of lenses.

Specifications

• MATERIAL OPTIONS: Anti-Reflective (AR) coated BK7 glass
• ELEMENT DIAMETER / CLEAR APERTURE: 7.5in / 190mm
• DOME SPHERICAL DIAMETER: 10in / 254mm
• DEPTH RATING: 450ft / 137m
