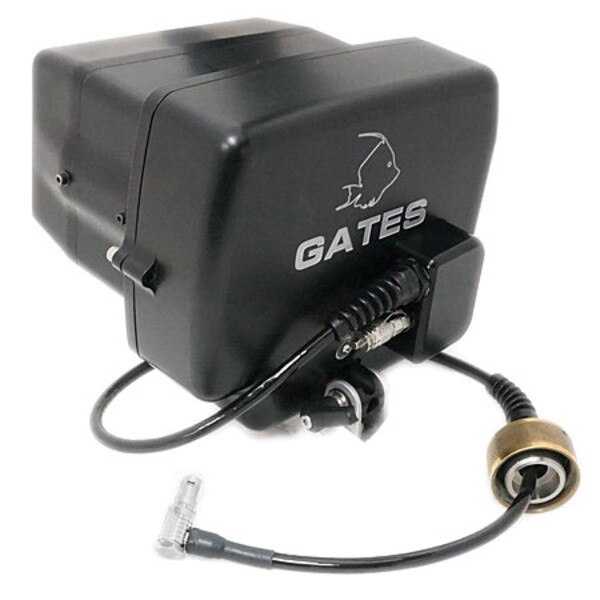

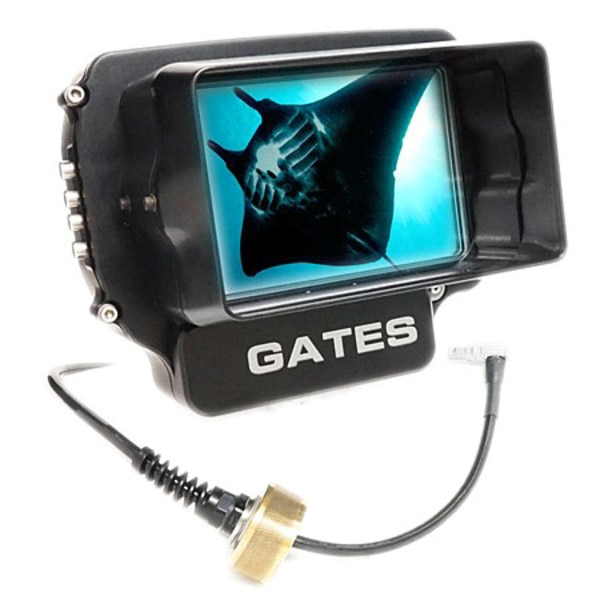

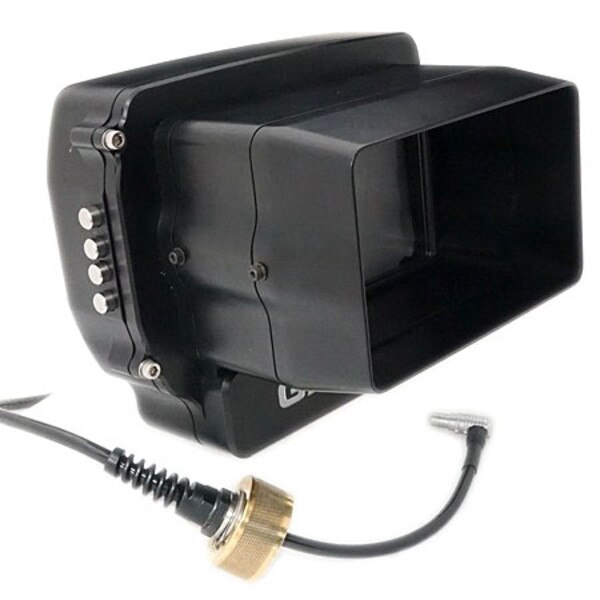

Gates RT7 LCD Underwater Monitor Housing PA PX only

Framing, focus and exposure control are mastered with the RT7 External Monitor. Designed specifically for the RED TOUCH 7" LCD (not included), the RT7 External Monitor provides access to all monitor functions including four side assignable buttons. Under license from RED Digital Cinema, the interface cable between Epic Dragon and RED TOUCH 7 is unbroken, utilizing a Gates original bulkhead 'pass through' design. Further, the cable has been adapted with a tough polyurethane jacket and internal water blocking materials.

Key Features

• DESIGNED FOR RED TOUCH 7" LCD with access to all 4 assignable keys.
• WATER BLOCKED CABLE has a tough polyurethane jacket. A Gates original design.
• POWERED BY EPIC No additional batteries are needed with the RED PRO External Monitor, keeping it small and light.
• 2-YEAR WARRANTY Only Gates offers a 2-year renewable warranty on all housings.

Specifications

• COMPATIBILITY: RED TOUCH 7" LCD (not included)(RED SKU 730-0007)
• CONTROLS: Assignable x 4
• DIMENSIONS
• 9.1"W x 8.1"H x 5.1"D
• 20.5cm W x 23cm H x 13cm D
• CONNECTIONS: Gates Pass-Through bulkhead connector
• POWER: Via connection to EPIC, Scarlet or Dragon camera
• CONSTRUCTION:
• Machined Aluminum, Type III 'Hard' Anodized finish
• Stainless steel hardware
• Marine grade cable with polyurethane jacket and water block
• WEIGHT
• Dry: 4.5 lbs / 2.0 kg
• In Water: ~-0.5 lbs / -.23 kg
• DEPTH RATING: 300 feet / 92 meters
• WARRANTY: 2-Years Renewable
