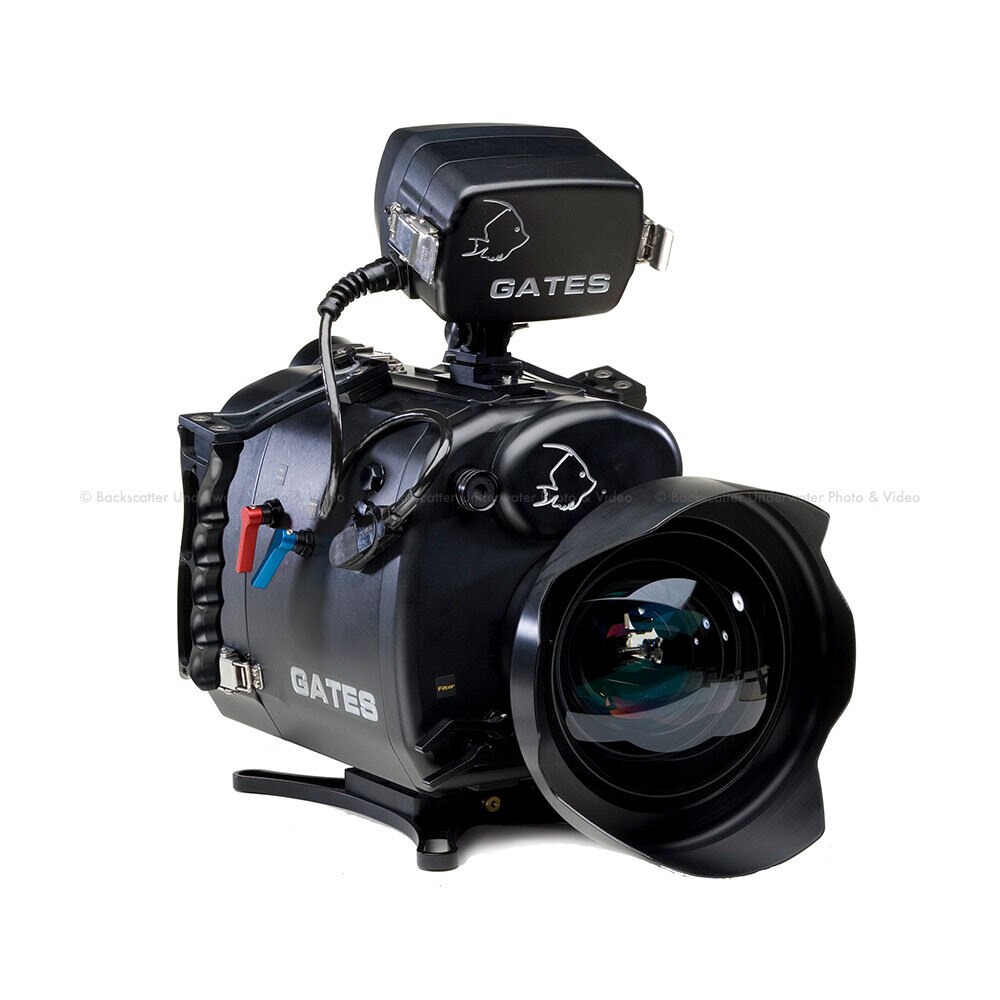

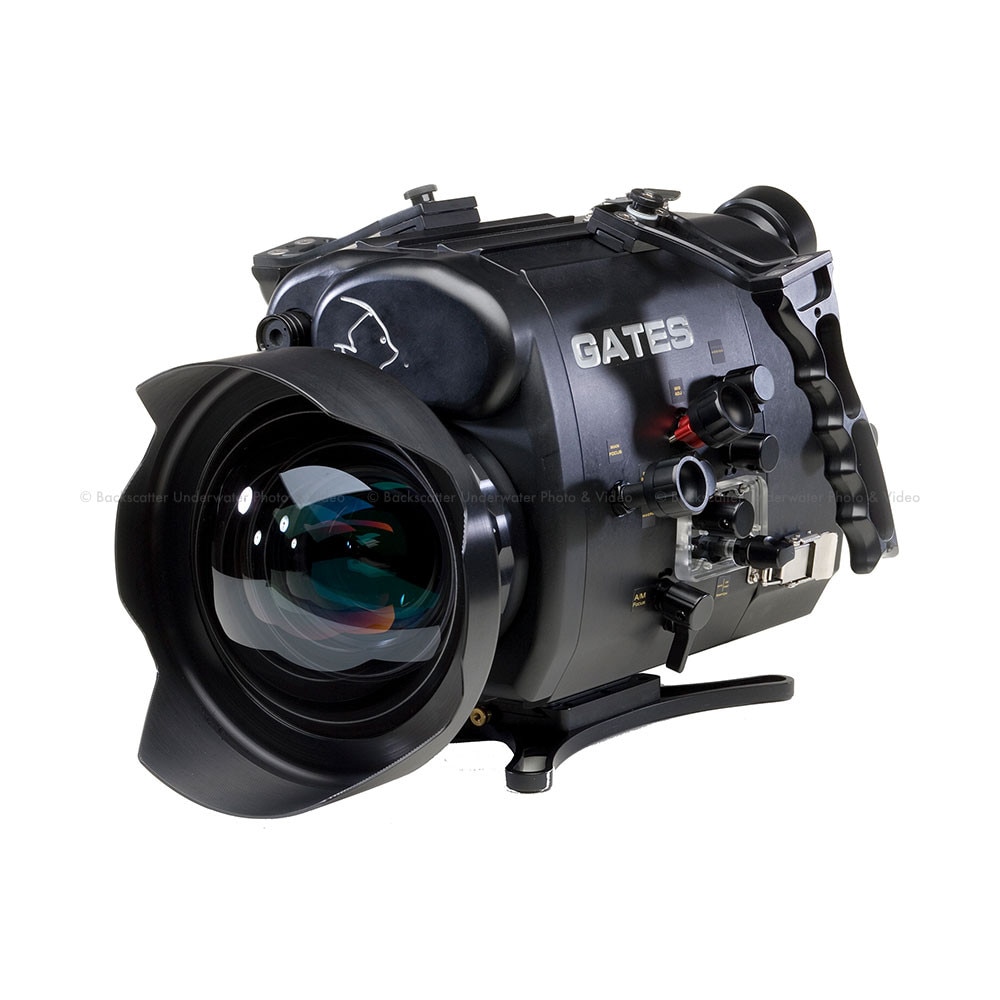

Gates EX1R Underwater Housing for Sony EX1R
Gates EX1R Underwater Housing for Sony EX1R
Gates EX1R Underwater Housing for Sony EX1R
SKU: # gt-75-10-402
Price $6,860.00
This product has been discontinued. Please scroll down for accessories and other options.
Custom Options
Select Port Option
Select Optional Flip Diopter
Select Moisture Alarm
Select Optional Lighting System
Purchase a complete package with lights and Gates includes a free travel case, O-ring kit, and port cleaner
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
The new Gates EX1R housing allows access to the following controls:
Gates EX1R Housing Controls
More about the new XDCAM format:
XDCAM is the new family name for compact professional Sony tapeless camcorders and decks. The Panasonic HVX-200 video camera was a favorite of independent film makers due to it's P2 card recording and minimally compressed 1080i. Sony's new EX1 camera offers 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P, 29.97P, 23.98P.
To browse the Sony XDCAM professional camera website click here.
Gates EX1R Housing Controls
- Power On/Off/Media
- Menu
- A/M Iris / Macro On/Off
- Internal Flip Color Correction Filter
- Neutral Density Filter
- A/M Focus
- Gain / WB Presets
- Picture Profile
- Assign 1 / 3
- Record/Standby
- Manual Iris
- Zoom
- Manual Focus
- WB Set
- Sel/Set Roller
- Zebra / Full Auto
- Internal Flip Diotper
- 16.5" L x 11.8" H x 10.5" W (16" w/handles)
- 42 cm L x 30 cm H x 27 cm W (40 cm w/handles)
- 23 lbs / 10.5 kg (without camera) in air
- Slightly negative and adjustable in water
- 450 feet / 137 meters
- Accepts all Sony batteries sizes
- 2 Years Renewable
- Standard Port SP44: Optical acrylic dome is field replaceable. A/R coated glass dome optional. (Glass dome depth rated to 150 feet / 46m.)
- Flat Port FP44: A simple flat element good for macro work with diopters. Element is field replaceable.
- Precision Super Wide SWP44C: Hi Resolution, distortion-free 120 degree FOV with full zoom capability.
More about the new XDCAM format:
XDCAM is the new family name for compact professional Sony tapeless camcorders and decks. The Panasonic HVX-200 video camera was a favorite of independent film makers due to it's P2 card recording and minimally compressed 1080i. Sony's new EX1 camera offers 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P, 29.97P, 23.98P.
To browse the Sony XDCAM professional camera website click here.
