Gates EM5 Ultra Underwater Monitor Housing

TILT, PIVOT AND SWIVEL FOR THE PERFECT, COMFORTABLE VIEWING POSITION.

Ask any seasoned professional "What makes underwater imaging easy and painless?" The list is short: reliability, perfect balance / trim, simple user-friendly controls, and a bright underwater monitor rich with focus / exposure tools. That's the Gates family of Underwater Monitors.

High resolution displays, access to focus and exposure tools, shades and shade extensions, and of course a low profile tilt / swivel base mount for perfect viewing position. Reliability is inherent: Seal Check fittings are standard to verify integrity *before* entering the water. And nearly all cables are custom made to Gates specifications with a tough outer jacket and internal water-block material. Should the cable accidentally be cut, water is restricted from travel to your LCD or precious camera.

Reaching the far corners of the world, Gates housings are tasked with the most demanding projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance…. they take a Gates!

COMPATIBLE HOUSINGS:

• ARRI ALEXA MINI / MINI LF
• ALEXA 35
• ARRI ALEXA
• DEEP WEAPON - RAPTOR
• FLEX4K

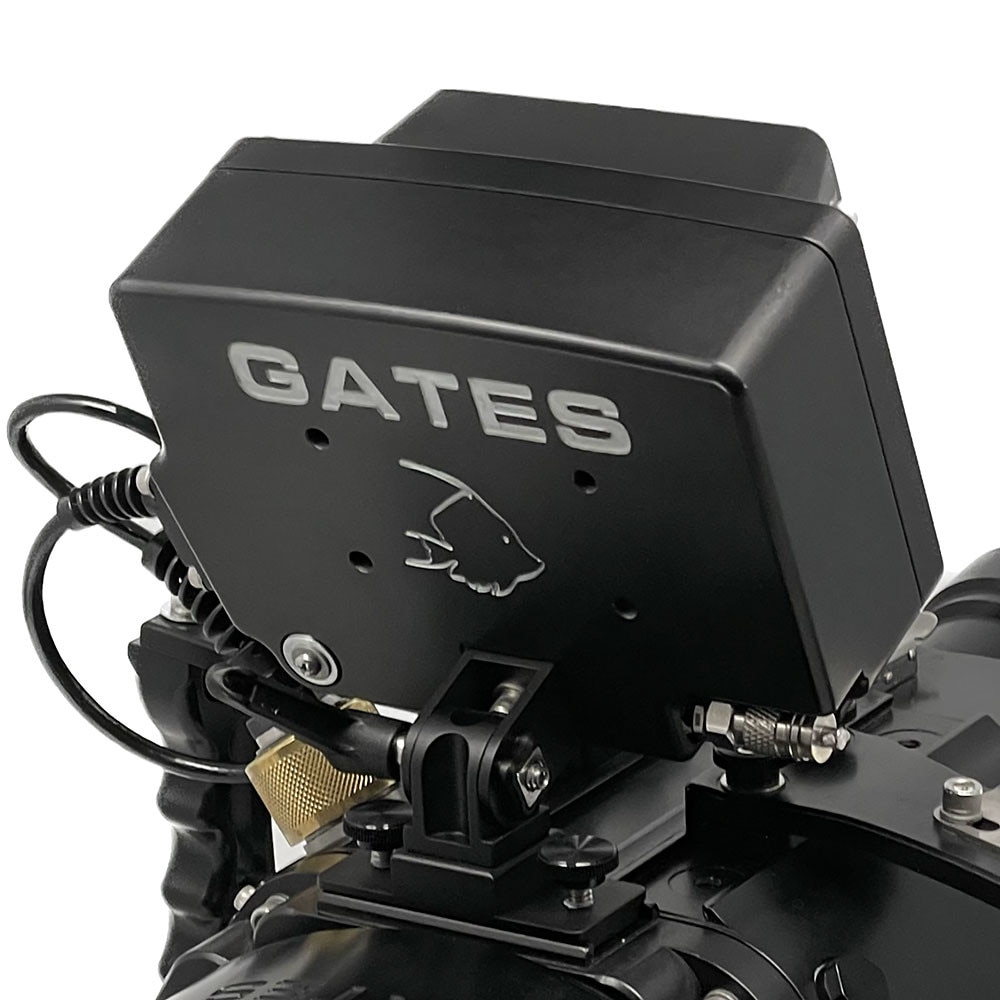

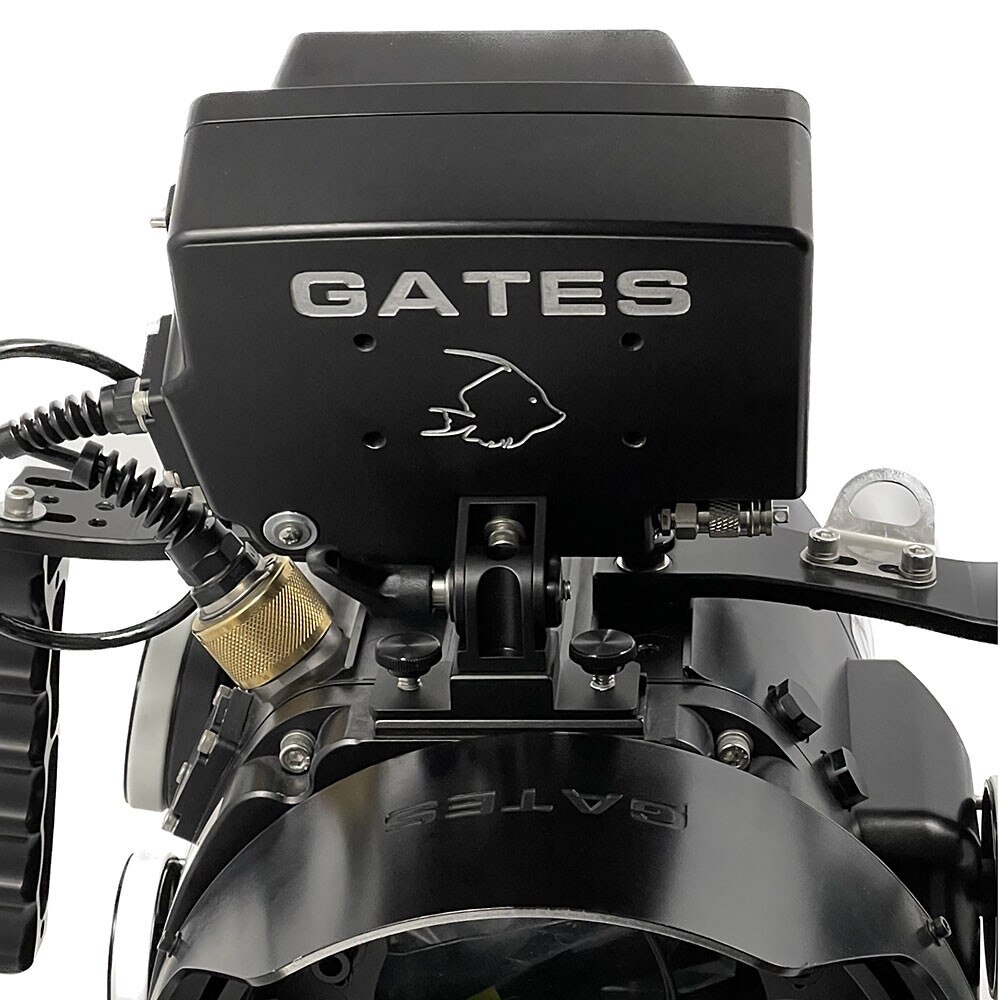

Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight. The adjustable base can tilt / swivel to any position for the perfect viewing angle. An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI. Power is driven by the camera power source inside the main housing shell for long run time. And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'!

Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features

• SUPER BRIGHT 3000 NIT WIDESCREEN HD DISPLAY 5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination.
• RUGGED, WATER BLOCKED CABLE with a tough polyurethane jacket is "bulletproof".

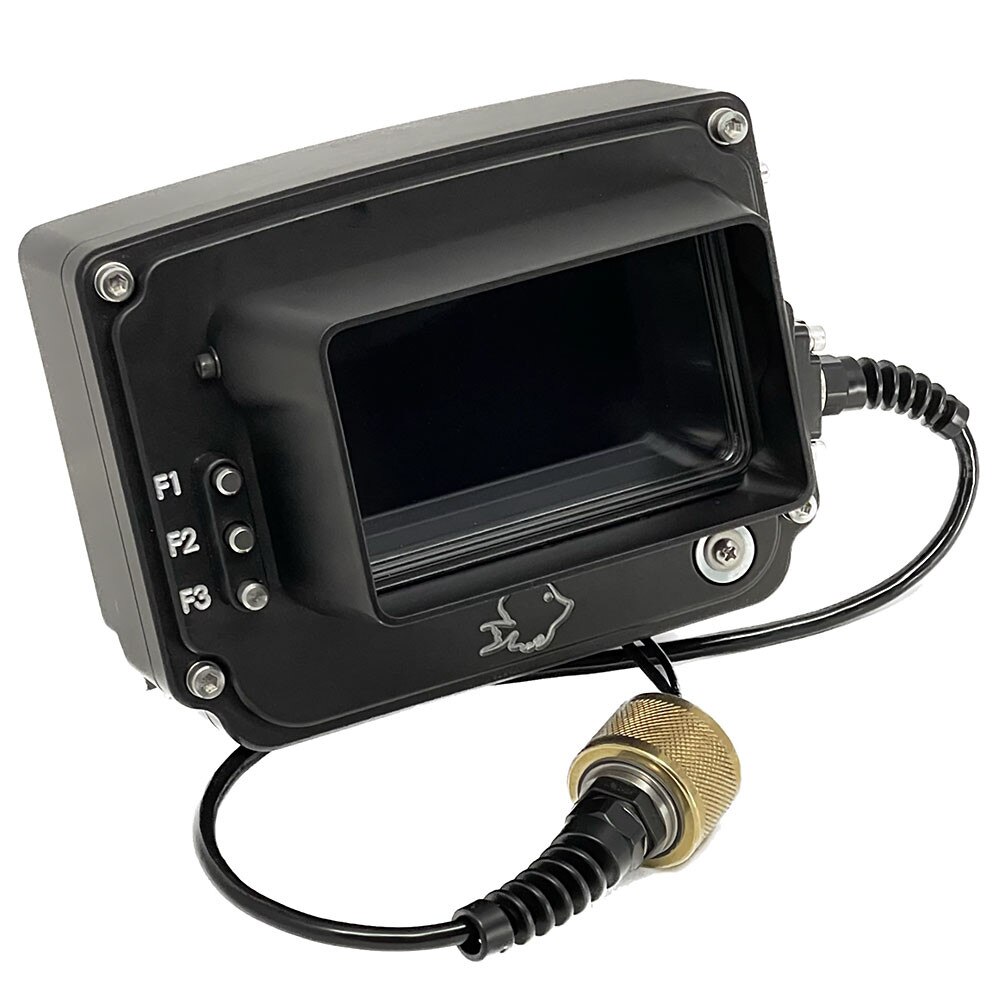

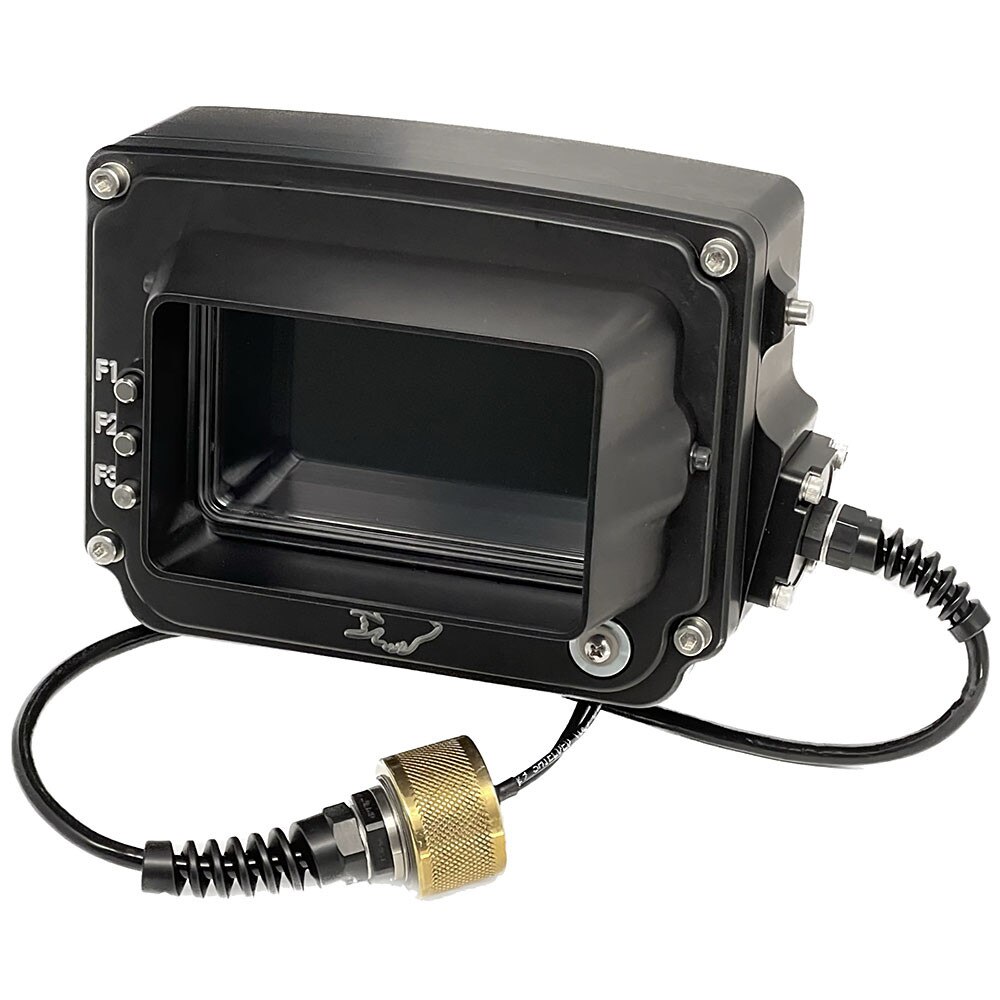

• F1 / F2 / F3 CONTROLS are programmable, and easily accessible next to the shaded LCD.
• 2-YEAR WARRANTY Only Gates offers a professional 2-year renewable warranty on all housings.

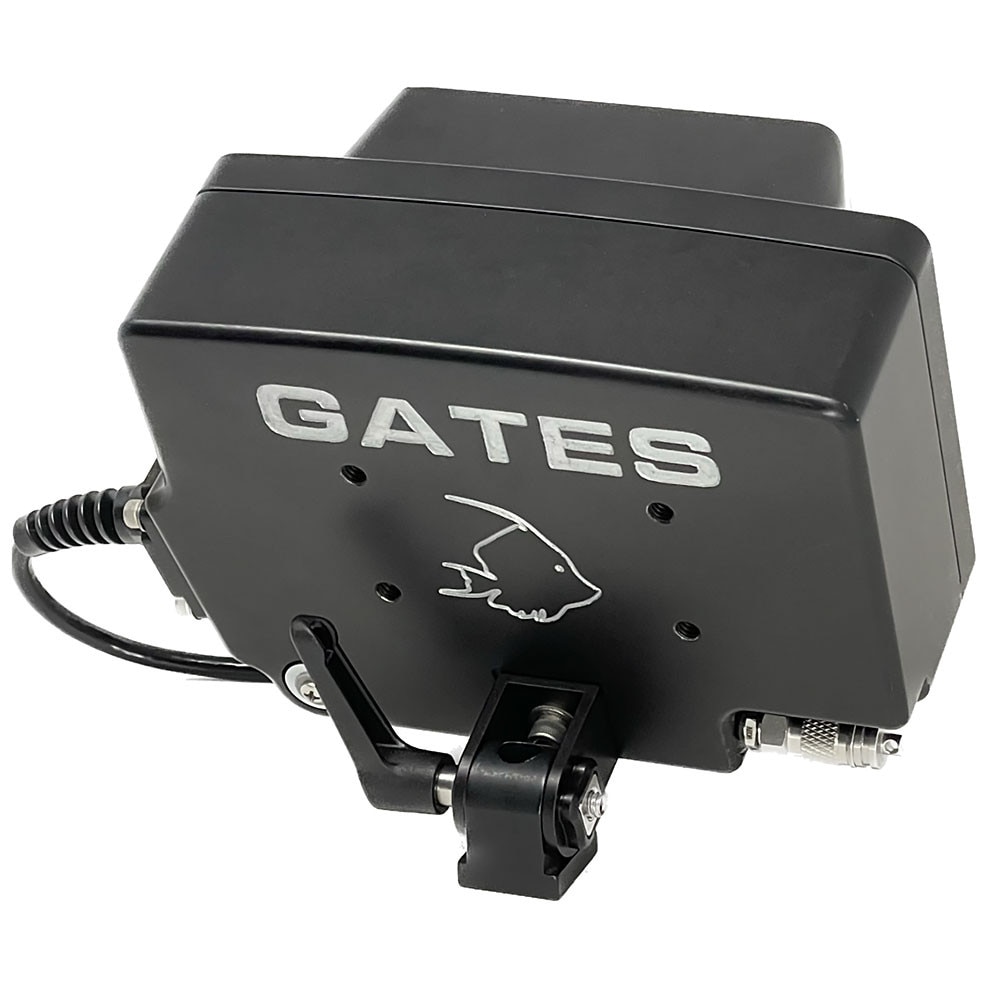

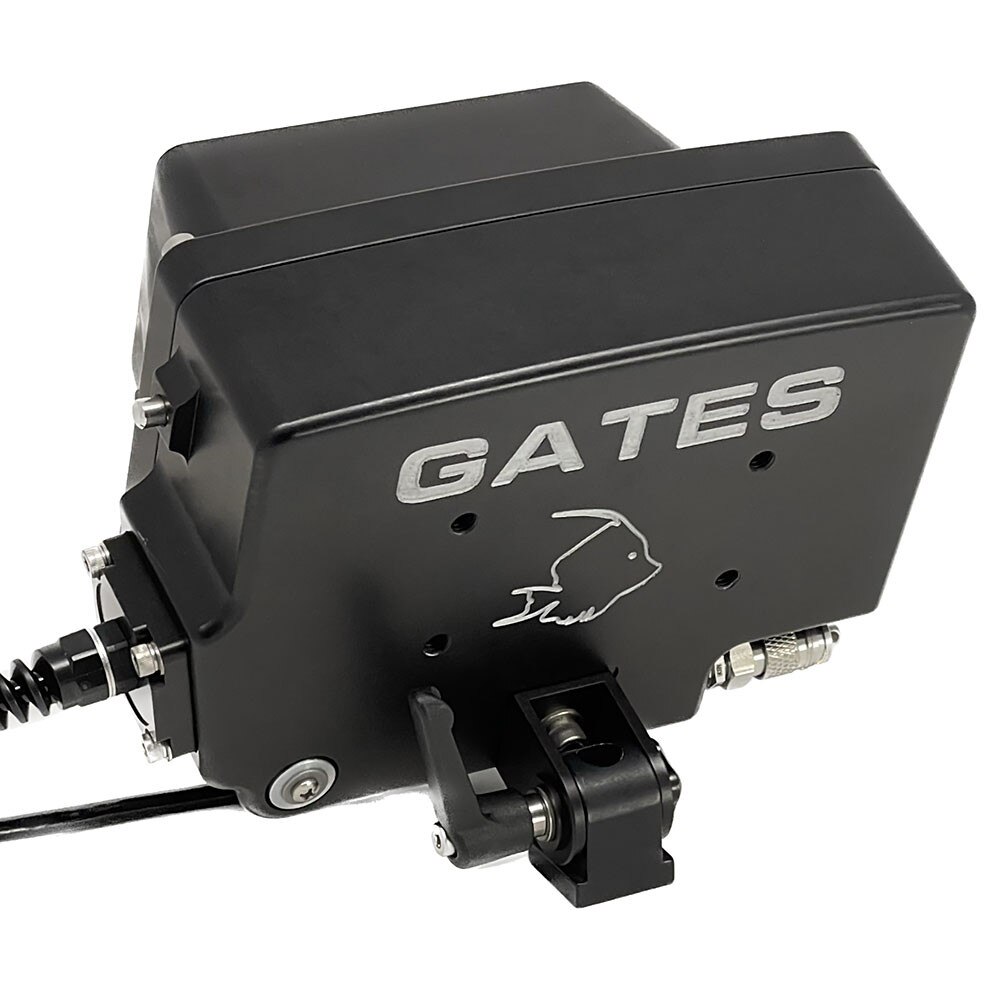

• TILT / SWIVEL BASE MOUNT Adjust EM5 ULTRA for the perfect viewing angle. A true professional touch.
• NO 'TURTLING' Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications

• DISPLAY:
• SmallHD ULTRA 5 Ultrabright LCD
• Illumination: 3000 nits
• Widescreen 5 .0 inch / 125 mm color LCD
• 1920x1080 Resolution
• CONTROLS: F1 / F2 / F3 assignable
• DIMENSIONS: EM5 ULTRA Dimensional Drawing (to be released)
• INPUT FORMAT: SDI
• MATERIAL: Machined Aluminum, Type III 'Hard' Anodized finish - Stainless steel hardware
• WEIGHT:
• Dry: 3.53 lbs / 1.6 kg (no LCD, base configuration)
• In Water: Neutral (w/included trim float)
• DEPTH RATING: 200 feet / 61 meters
• WARRANTY: 2-Years Renewable
• CABLE / CONNECTORS:
• Marine-grade multi conductor cable
• Gates Pass-Thru type or MultiConn bulkhead connector type
• POWER SOURCE / RUN TIME: Powered by camera battery: run time variable depending on battery size.

EM5 ULTRA Compatibility & Replacement Cables

• MINI/ MINI LF / ALEXA 35 / ALEXA / FLEX4K HOUSINGS
• Gates EM5 ULTRA Small Pass-Thru type. Specify 5000-94-319 BCP ASSY, EM5 ULTRA SM PASS THRU TYPE
• Standard cable length (housing to monitor): : 24 in / 61 cm. Custom lengths available.
• Power Source: Camera / Camera battery via D-Tap
• DEEP WEAPON / DEEP RAPTOR HOUSING
• Gates EM5 ULTRA Large Pass-Thru type. Specify 5000-94-321 BCP ASSY, EM5 ULTRA LG PASS THRU TYPE
• Standard cable length (housing to monitor): : 18in / 46 cm. Custom lengths available.
• Power Source: Camera / Camera battery via D-Tap
• HOUSINGS USING GATES MULTICONN (GMC) BULKHEAD CONNECTOR SYSTEM
• Gates EM5 ULTRA GMC type. Specify
• 5000-94-342 GMC ASSY, EM5 ULTRA MON
• 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
• Standard cable length (housing to monitor): Approx 18in / 46 cm. Custom lengths available.
• Power Source: Camera / Camera battery via D-Tap
