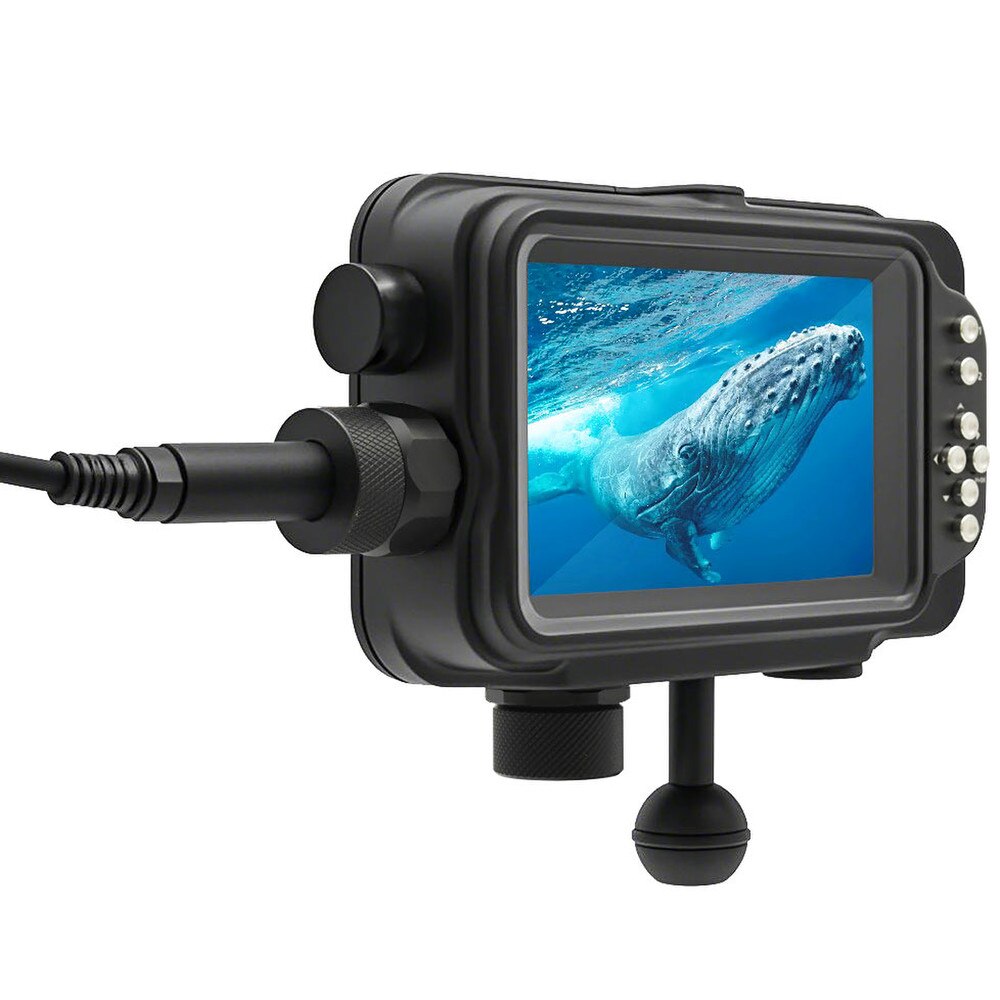

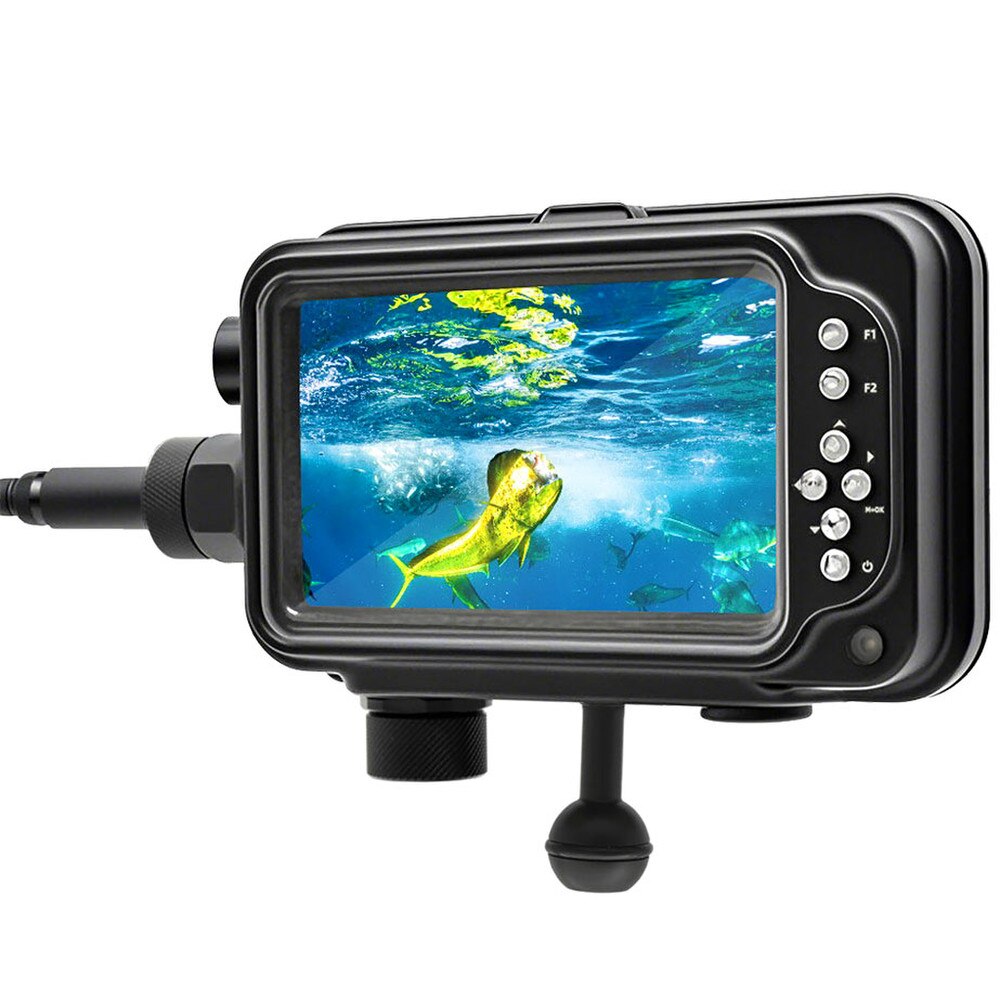

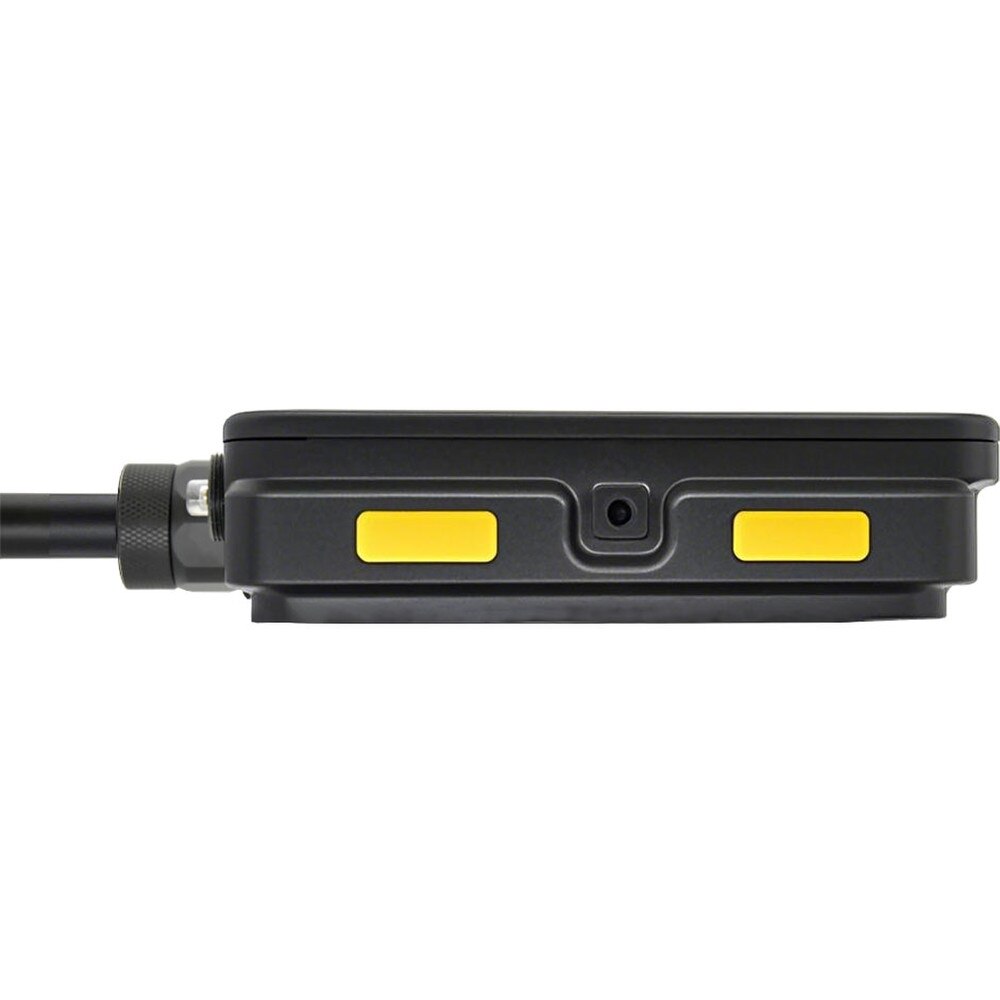

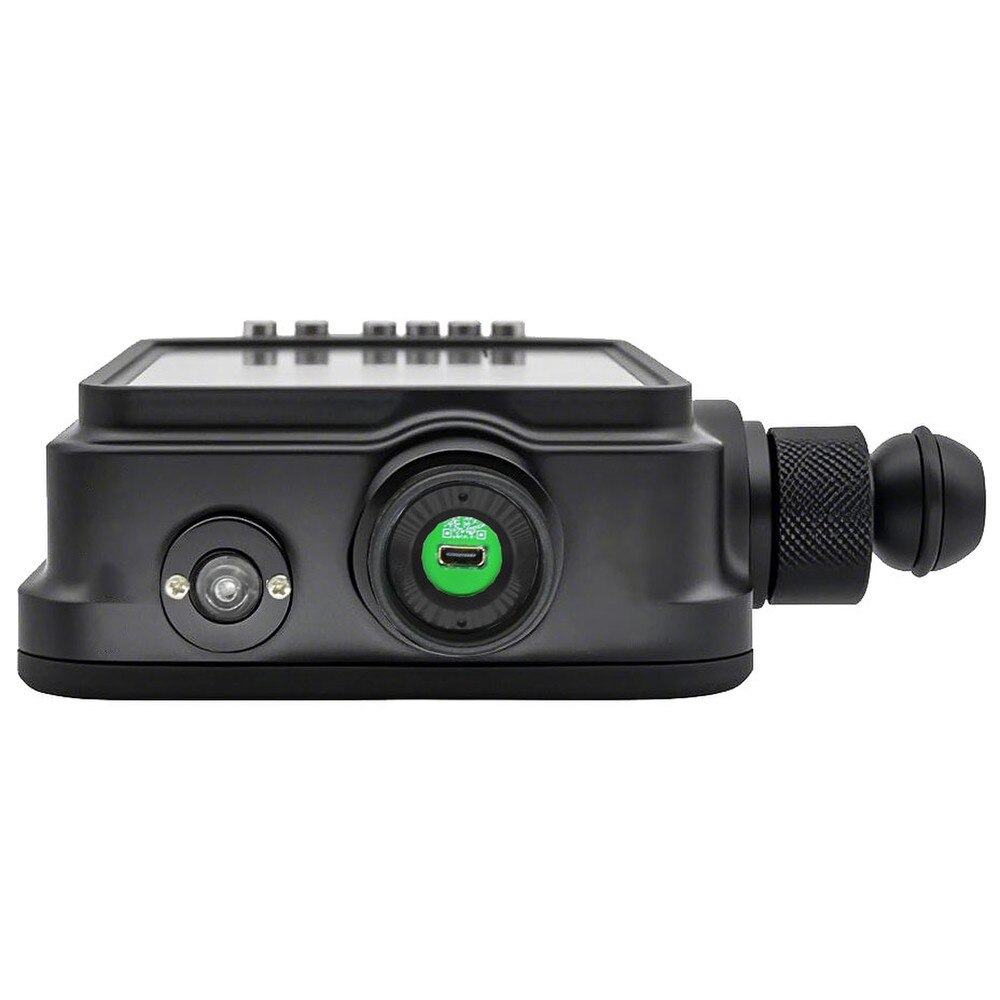

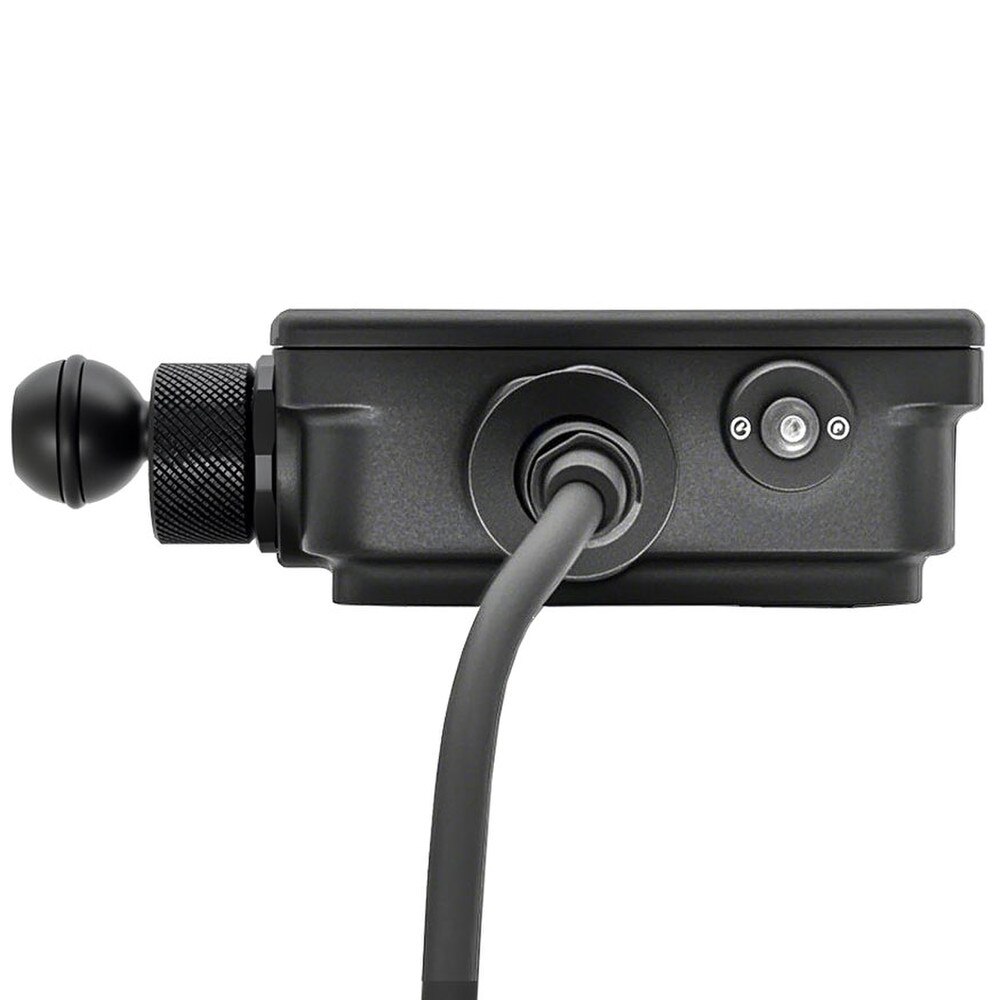

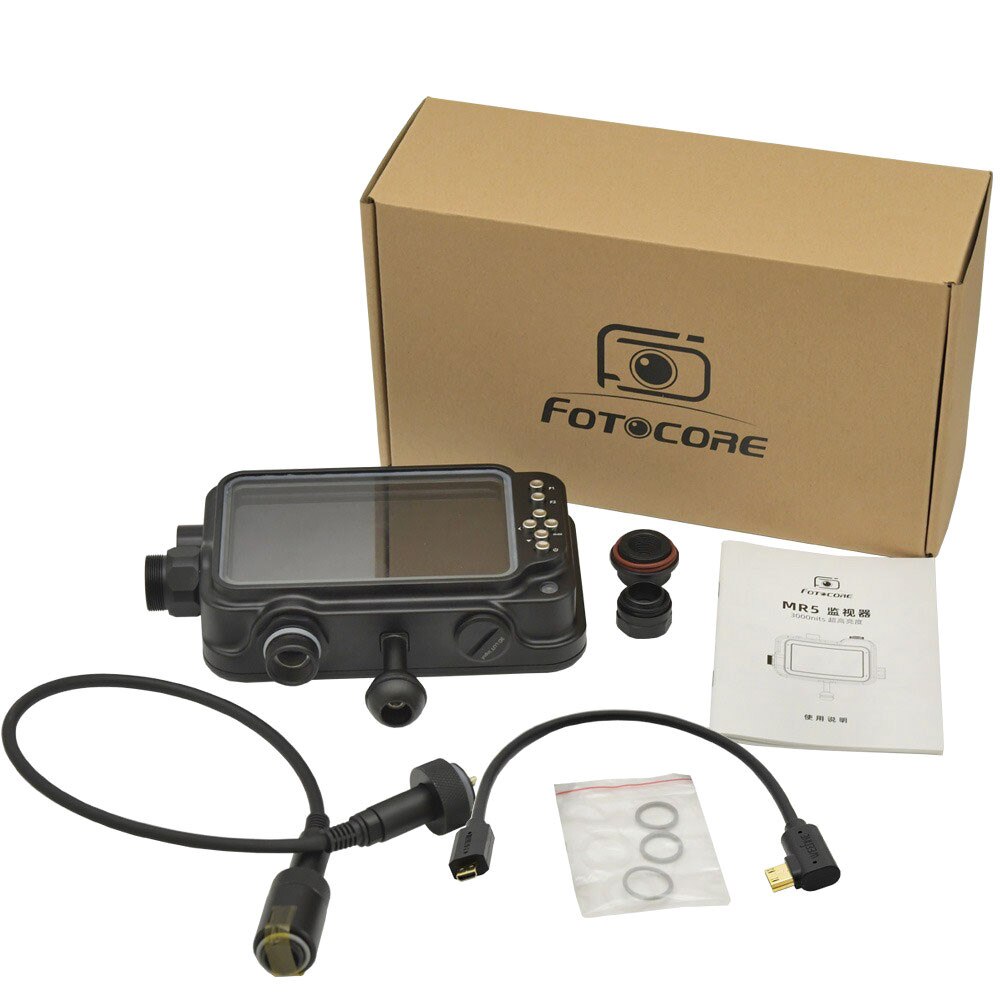

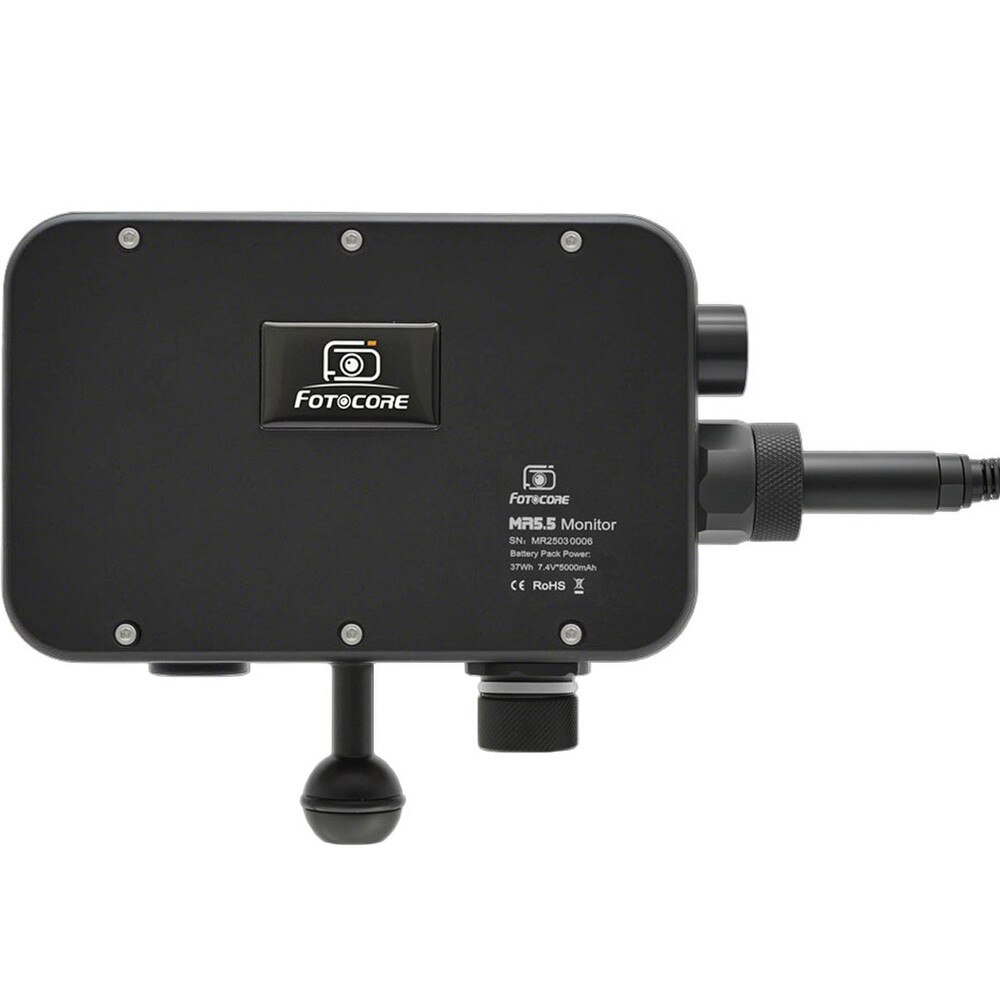

FotoCore MR5.5 Underwater Monitor & Housing

  • 2000 nits - Clearly Visible Under the Sun
  • 5.5-inch LCD Screen
  • Built-In Rechargeable Battery
  • Slim Profile
  • Compatible with M16 in the housing.
  • M16 to M24 adaptor is optional (Need to buy separately)

SKU: # sp-mr5.5

This product has been discontinued and is no longer in stock. Contact us for more information.

This product has been discontinued and is no longer in stock. Contact us for more information.

Overview / Product Description


FotoCore MR5.5 Underwater Monitor & Housing



2000 nits - Clearly Visible under the sun/5.5" LCD Screen

Technical Parameters

  • Panel Size:5.5” touch screen
  • Resolution:1920 x 1080 pixels
  • Dot Pitch:0.069(L)x0.069(W)(mm)
  • Aspect Ratio:16:9
  • Brightness:2000cd/m²
  • Contrast:1000:1
  • Viewing Angle:80°/80°(L/R)80°/80°(U/D)
  • Backlight:LED
  • Input:HDMI
  • Output:HDMI
  • Power Input: Built-in battery pack
  • Battery capacity: 37Wh(7.4V*5.0Ah) Depends on environment light,
  • Working time: 4-8hours,
  • Operating voltage: 5.4-8.4V.
  • Input Voltage:7~24V
  • Power Consumption:≤9W
  • Unit Size:171L*111Hx46.5D(mm)
  • Unit Weight:1140g(on land with battery)
  • Mount Points:2 M6 standard quick-release screw holes(bottom, top).
  • Working Temperature:-20℃~70℃
  • Storage Temperature:-30℃~80℃
