Dive and See DNC-7A (S2) 7-inch Monitor & Housing with 3G-SDI Loop Through Input & Output

<ul> <li>Screen Size: Diagonal 7" (16:9)</li> <li>Display panel: IPS LED</li> <li>Video signal input: HD-SDI</li> <li>Video signal Output: HD-SDI Live Video</li> <li>Brightness: 400 cd/m2, sunlight readable</li> <li>Depth Rating: 270 ft / 82 m, can use above water as well</li> <li>Battery Life: One charge - 4 hours of continuous use</li> </ul>

SKU: # dnc-7a-s2

FREE Standard Shipping to USA / CANADA!

Price $3,598.00

Base Price $

Price as Configured $

Price $3,598.00
Price $3,598.00

Custom Options


Overview / Product Description


Dive & See DNC-7A 7-inch HDMI Underwater Monitor





  • Screen Size: Diagonal 7" (16:9)
  • Set of the monitor includes: Sealed monitor, Battery charger, Monitor Hood,Hot shoe Ball Mount, Bulkhead connector per your choice
  • Display panel: IPS LED
  • Video signal input: HD-SDI
  • Video signal Output: HD-SDI Live Video
  • Video Formats: 1080p@60Hz/59.94Hz -3G; 1080p@50Hz-3G; 1080i@60Hz/59.94Hz -HD; 1080i@50Hz-HD; 1080p@30Hz/29.97Hz-HD; 1080p@25Hz-HD; 1080p@24Hz-HD
  • Brightness: 400 cd/m2, sunlight readable
  • Depth Rating: 270 ft / 82 m, can use above water as well
  • Weight: 3.54 lbs. / 1.6 kg
  • Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
  • Battery Life: One charge - 4 hours of continuous use




DNC-7A - underwater broadcast quality SDI monitor, with 3G HD-SDI input, works seamlessly with Blackmagic Cinema Camera, Sony PXW-Z100. Neutrally buoyant.

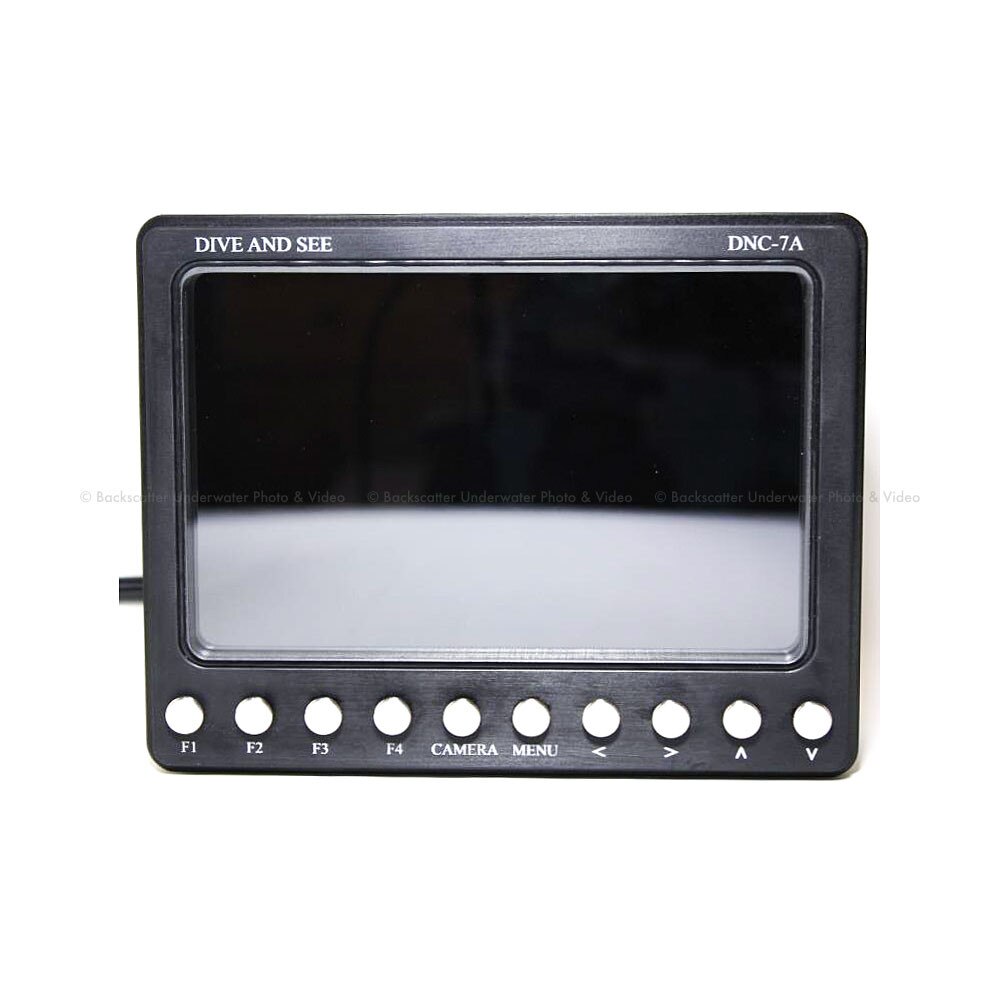

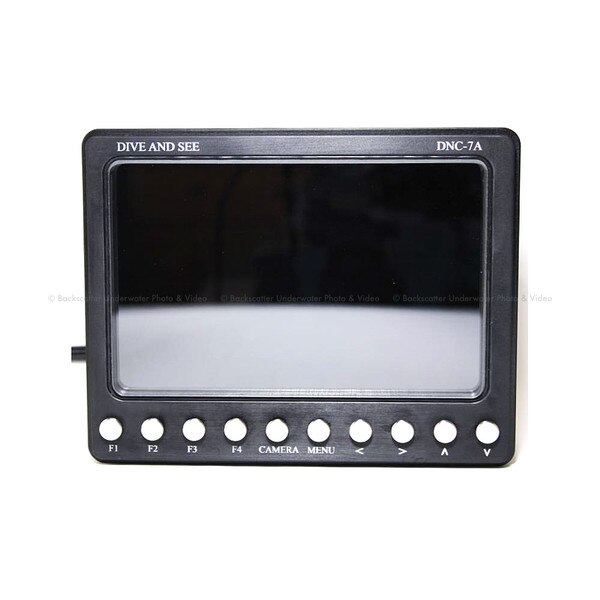

Wide view angle allowed to see the color-critical picture without color distortion. The monitor has full menu access, battery status indicator and 4 user configurable push buttons, allowed user for quick access without scrolling through the menu. A large, bright external monitor gives you the ability to frame your shots and focus with great precision, the flexibility to swivel and tilt to any angle, and fits practically any housing, underwater camera.



The set includes:

  • Monitor
  • Appropriate bulkhead connector M16 (custom bulkhead available)
  • 1 metal and 1 plastic protective cap
  • Cold shoe ball mount
  • Quick charger

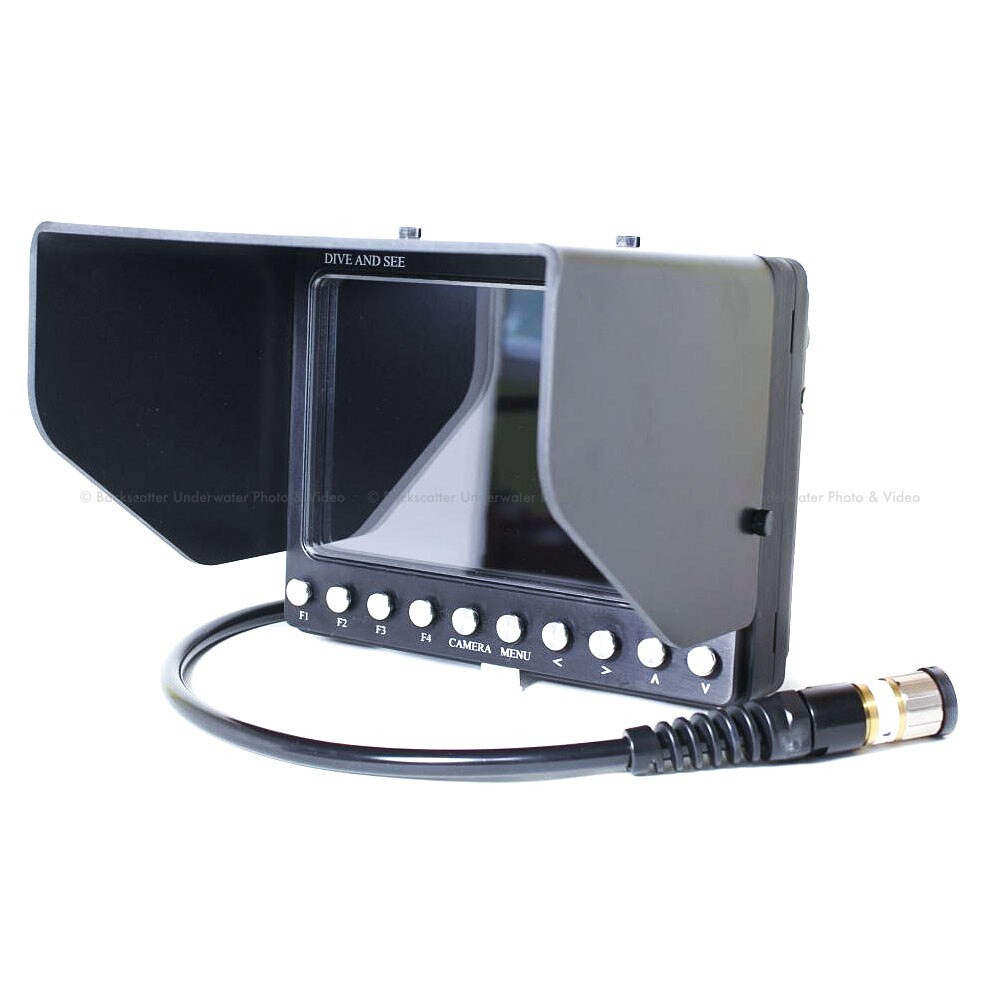

  • Sunshade




COMPATIBILITY

  • Aquatica
  • Amphibico
  • Equinox
  • Hugyfot
  • Ikelite
  • Isotta
  • Light & Motion
  • Nauticam
  • Nexus
  • Sea & Sea
  • Seacam
  • Sealux
  • Subal




DURABLE & SEALED

Compact, rugged, safe design. The monitor guarantees NEMA 6 (IP 68). Strong and lightweight aluminum shell, over hard anodized coating, two layers of the special paint, resistant to salt water, a perfect tool for professional underwater photography. The monitor is sealed and cannot be taken apart or opened. You will never get water or sand inside, or have to worry about properly sealing the monitor after charging it.



MOUNTING CAPABILITY

The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with 1" ball on the end.



Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms. It is useful for lighting or an external microphone

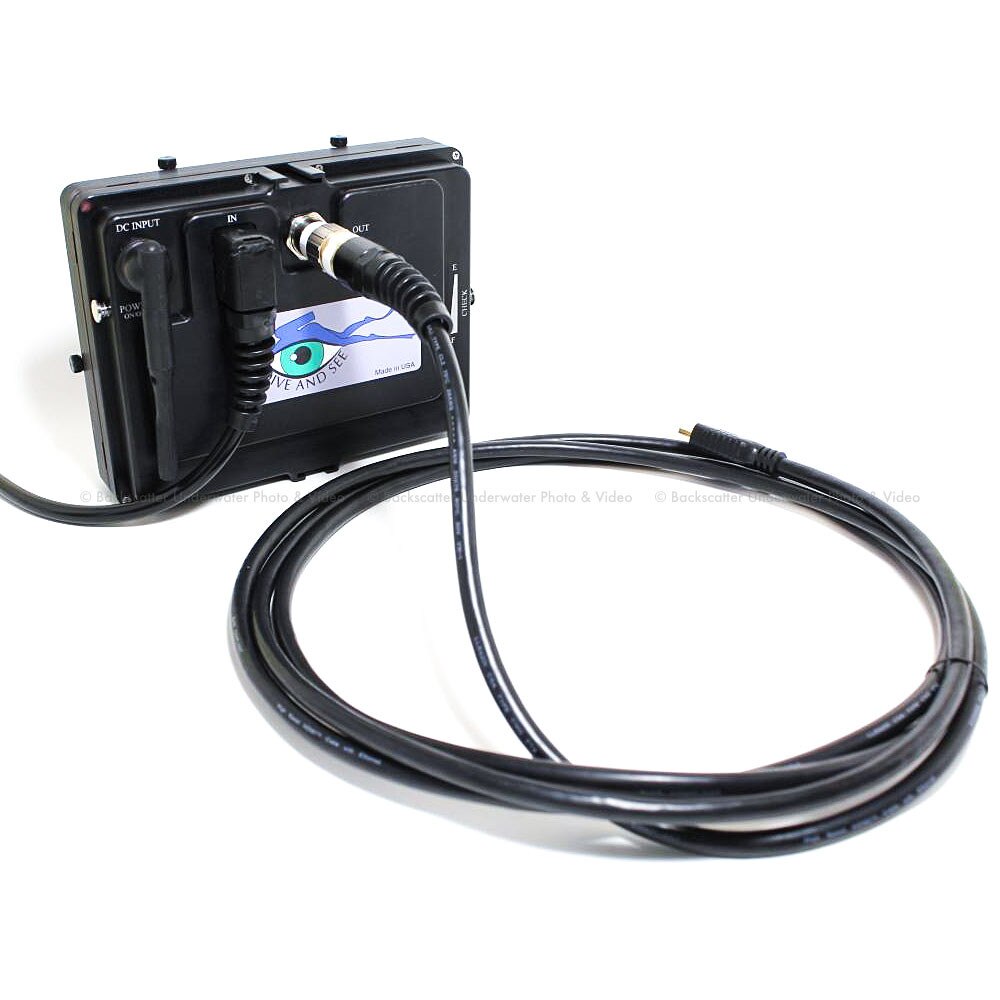

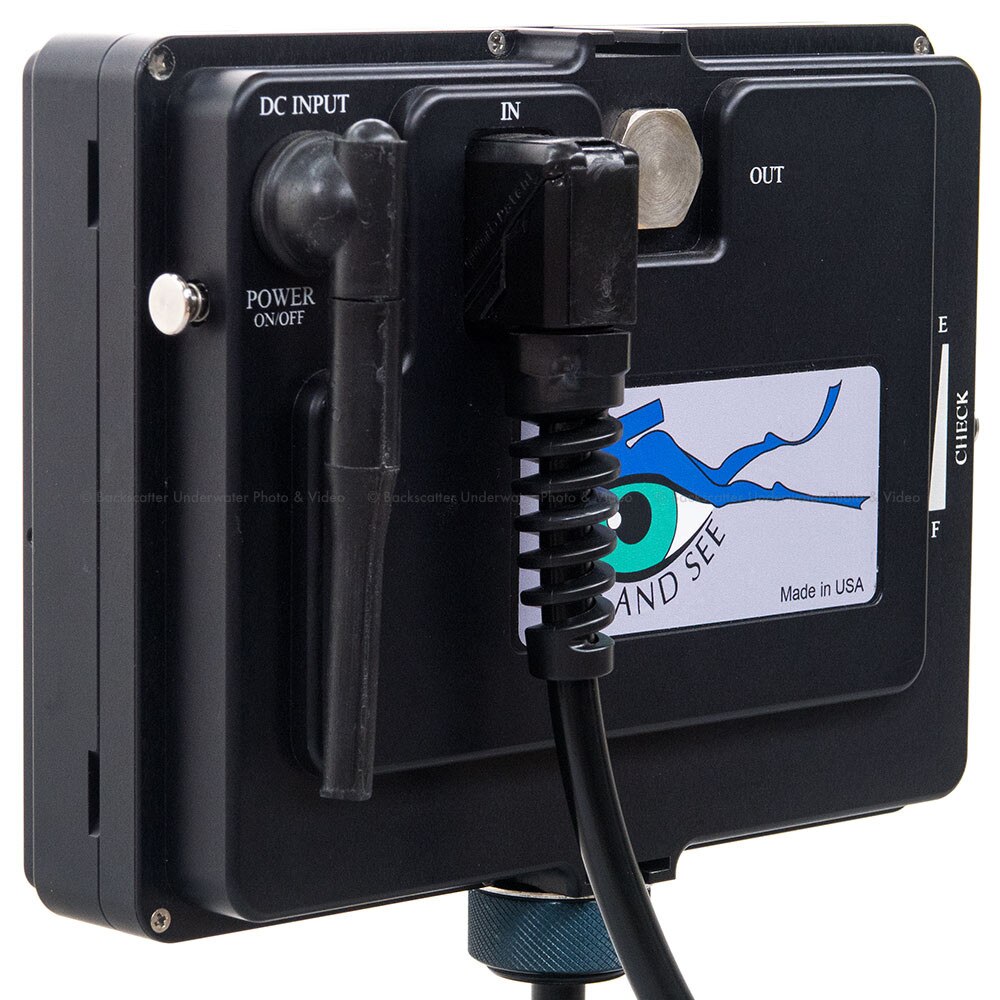

BULKHEAD CONNECTOR

Dive & See has bulkhead connectors (fittings) for all brands of the housings such an Amphibico Phenom, Nauticam BMCC. To chose your Bulkhead, see our Connectors production line. Custom length and other HDMI connector types are available. All of our bulkhead connectors have water blocks and are open face pressure rated to 150 PSI (100 meters)



POWER AND CHARGING CONFIGURATION

Option 1 (standard)

Built-in rechargeable Li-Ion battery with Battery Status Indicator shows the power level of the battery. The flashing mode tells you when the battery needs charging. The charger is capable of 110V-240V input, allowing it to be plugged into power outlets in a number of countries.

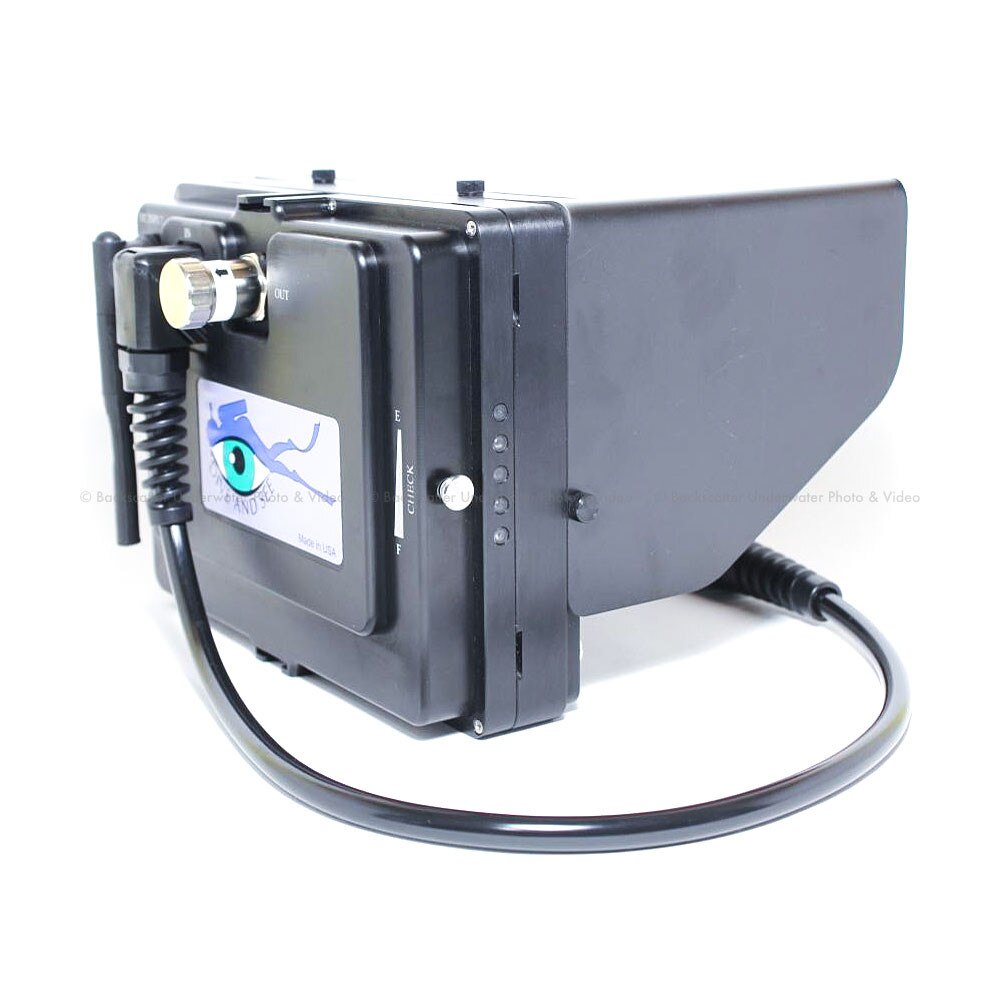

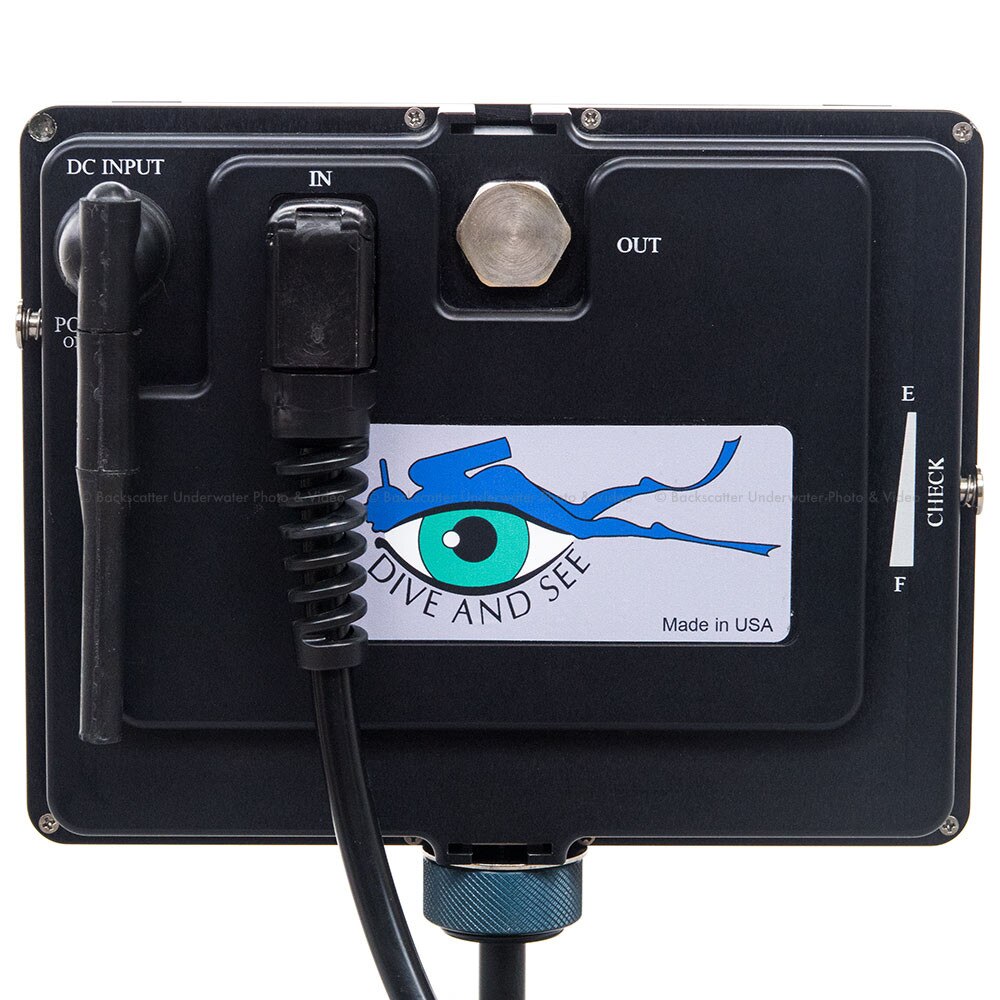

The Check button on the monitor turns on a LED display showing the battery charge level. Continuous run time of HDMI version - 5 hours. Recharging time of the battery - 3.5 hours.



Option 2

No battery inside. Power for the monitor is going through the separate cable from your own power source (DC 7.5 ~ 18V).



Power consumption of the monitor: ≦7.3W



Option 3

Custom power configuration.

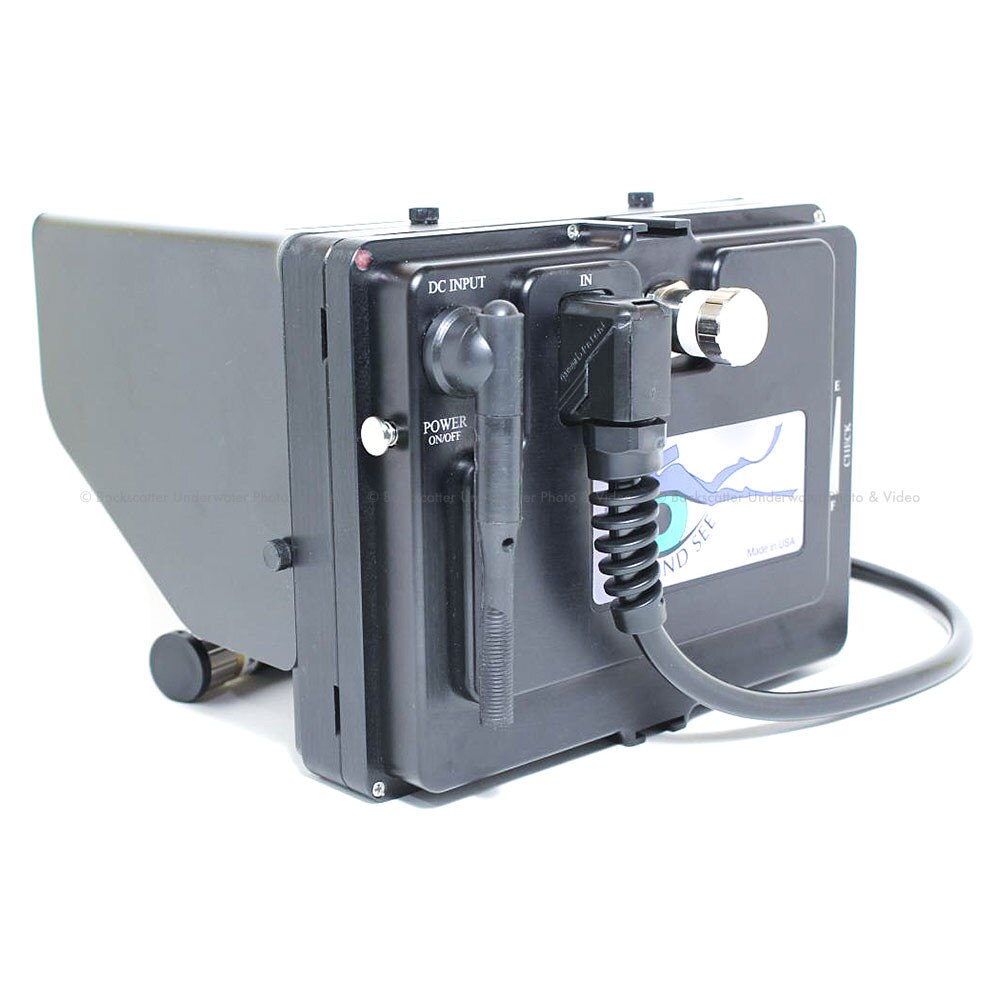

SWITCH PROTECTOR

The Switch Guard design of the power button protects the monitor from self-activation during transportation.



All pushbuttons made are of non-corrosive steel



SPECIFICATION

  • Screen Size: Diagonal 7" (16:9)
  • Display panel: IPS LED
  • Physical Resolution: 1280 x 800
  • Video formats: SDI
  • Video Formats: 1080p@60Hz/59.94Hz -3G; 1080p@50Hz-3G; 1080i@60Hz/59.94Hz -HD; 1080i@50Hz-HD; 1080p@30Hz/29.97Hz-HD; 1080p@25Hz-HD; 1080p@24Hz-HD
  • View Angle: 178(H) 178(V)
  • Brightness: 400 cd/m2
  • Contrast Ratio: 800:1
  • Depth Rating: 197 ft / 60 m
  • Weight: 3.54 lbs. / 1.6 kg
  • Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
  • Voltage: DC12V±10%, 8.5W
  • Buoyancy: neutral in fresh water
  • Battery Life: 4 hours - continuous.
  • Battery recharge time: 3h 30min
