Dive & See DNC-7 7 inch Underwater Monitor with HDMI Input and Focus Assist
Dive & See DNC-7 7 inch Underwater Monitor with HDMI Input and Focus Assist
The Dive & Sea 7" monitor is a powerful tool for any video shooter. The large 7" screen is compatible with just about any camera that has an HDMI connection on it. The self-contained housing means that you have less O-rings to worry about. With customizable length cables, focus assist and wet charging, the DNC-7 is a must have for the video shooter who is ready to get serious.
MSRP $2498
SAVE $499
SKU: # Dnc-dnc7
Price $1,999.00
This product has been discontinued. Please scroll down for accessories and other options.
Custom Options
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
This monitor works seamlessly with RED Epic/Scarlet. Forget having to look through the viewfinder or using your camera's small display. A large, bright external monitor gives you the ability to frame your shots and focus with great precision, the flexibility to swivel and tilt to any angle, and fits practically any housing.
- Screen Size Diagonal 7" (16:9)
- Focus Assist
- Mode for Canon 5D Mark : DSLR Ratio Adjustment
- Check Field: Red,Green,Blue
- Center Marker; Screen Marker
- Supports Resolution 1920 1080
- Brightness 450 cd/m2
- Depth Rating 197 ft / 60 m
- Size 7.3 x 5.4 x 2.1 inch / 185 x 138 x 53 mm
- Monitor
- Bulkhead connector (1/2x20; M12; M14; M15; M16)
- Mini HDMI right-angle connector
- 1 metal and 1 plastic protective cap
- Cold shoe ball mount
- Quick charger
DURABLE & SEALED
Compact, rugged, safe design. The monitor guarantees NEMA 6 (IP 68) Strong and lightweight anodized aluminum shell resistant to salt water The monitor is sealed and cannot be taken apart or opened. You will never get water or sand inside, or have to worry about properly sealing the monitor
MOUNTING CAPABILITY
The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with 1" ball on the end. Binding V-slots on the top and bottom allow convenient connection with underwater housings and arms, manufactured by Ultralight and Beneath the Surface. It is useful for lighting or an external microphone. There is 1/4-20 threaded hole on the top and bottom for accessories.
QUICK DETACHABLE CONNECTORS
Being a manufacturer allows us to provide custom variations (1/2x20; M12; M14; M15; M16; etc) of the underwater bulkhead connectors for HDMI signal. The are compatible with many video and DSLR housings (see the chart). All of our bulkhead connectors have water blocks and are open face pressure rated to 85 PSI. Our bulkhead connectors fit into existing free ports in your housing and are easy to install. The DNC-7 has a detachable HDMI cable for a quick connection with a bulkhead connector on the housing. The unpluggable cable is convenient for transportation. The bulkhead connector is compatible with DNC-N and DNC-5. A dual o-ring seals the bulkhead HDMI connector and increases the reliability of the connection. The first o-ring works as an axial seal and the second as a radial seal to assure continued sealing. Custom bulkhead connector, length and other connector types are available.
SWITCH PROTECTOR
The Switch Guard design of the power button protects the monitor from self-activation during transportation. All push buttons made are from non-corrosive steel.
POWER AND CHARGING

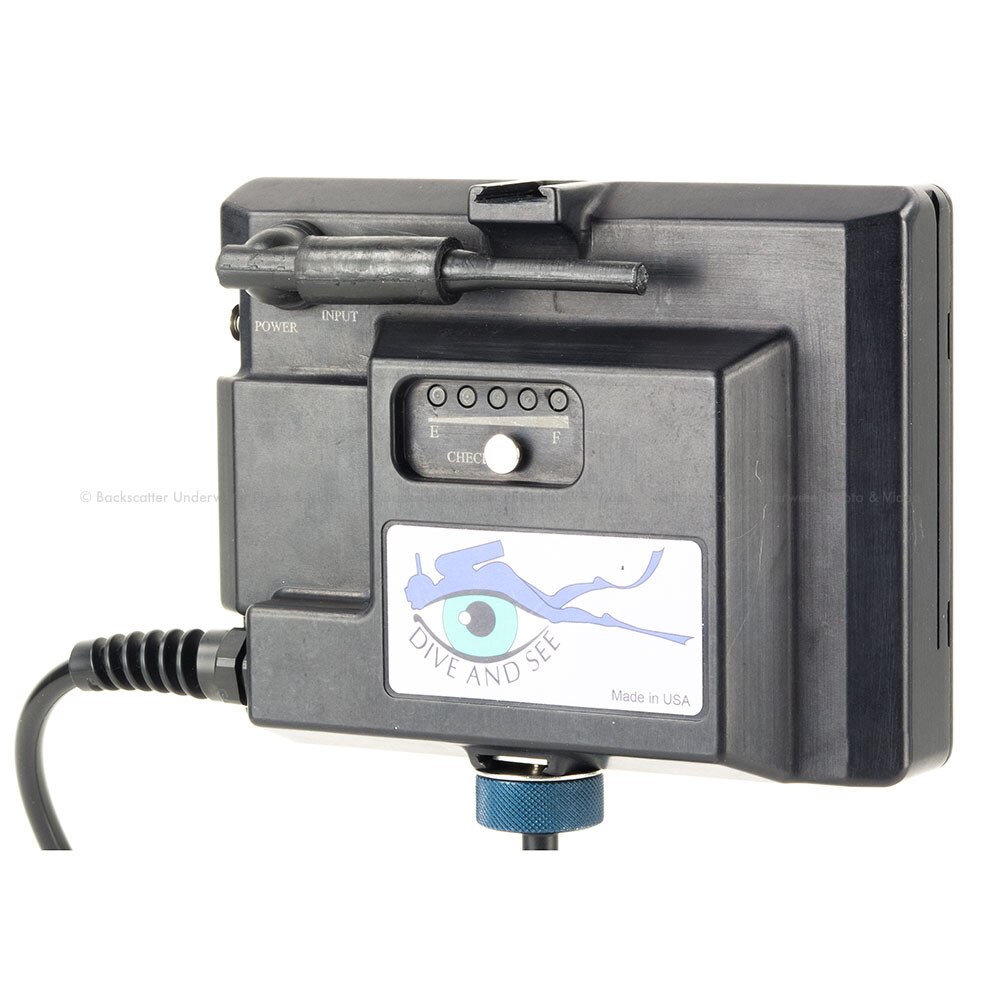

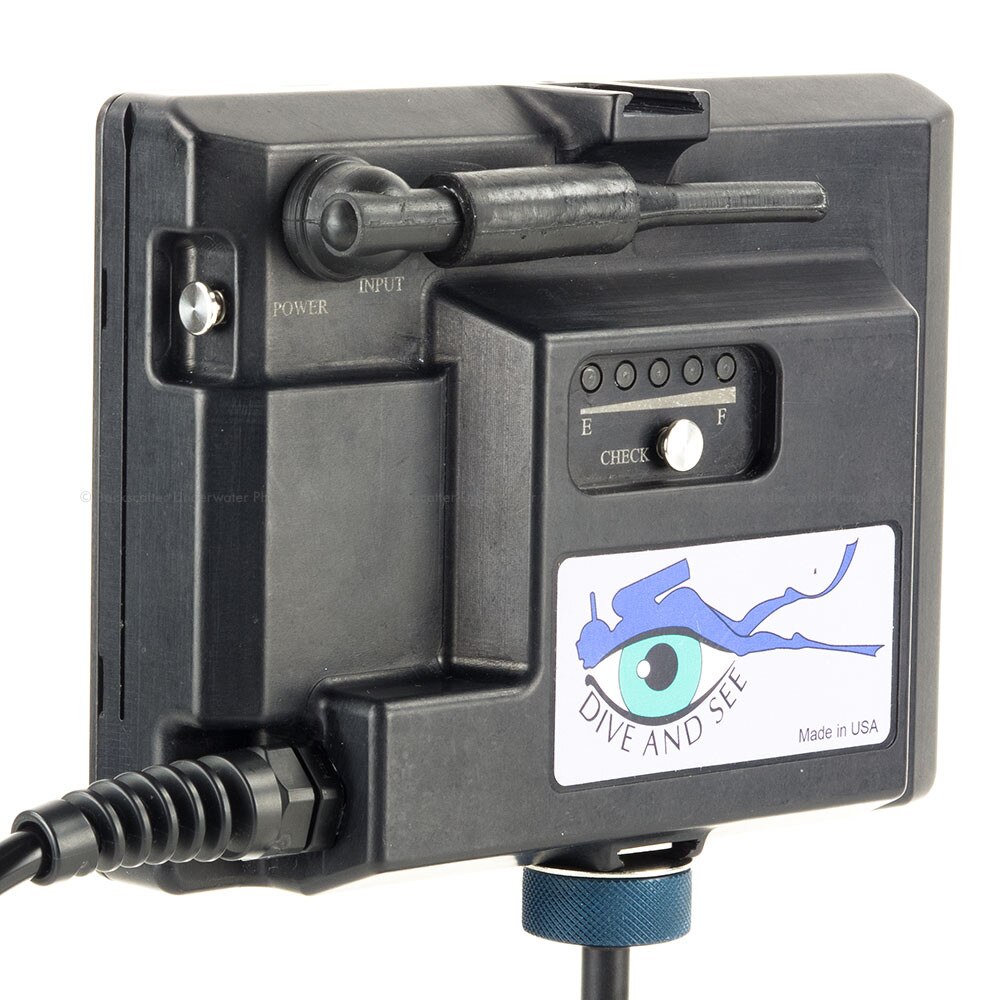

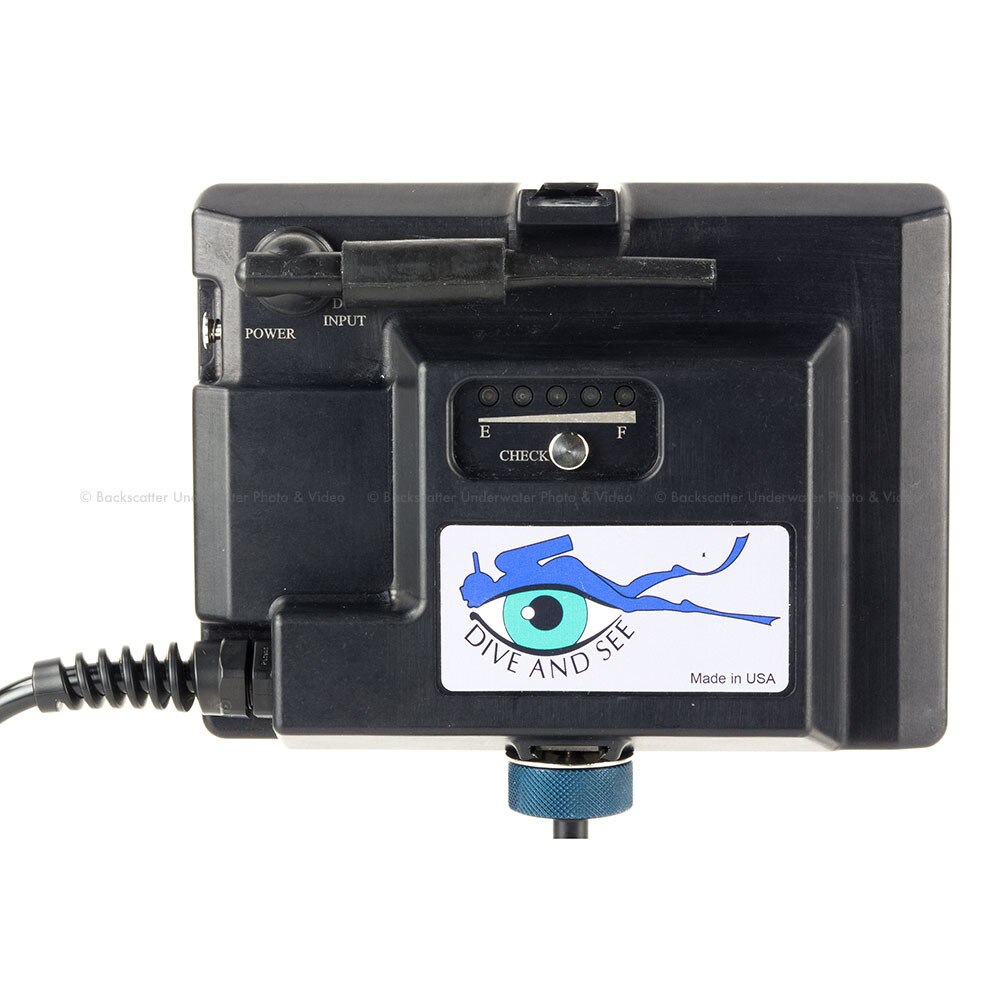

Built-in rechargeable Li-Ion battery with Battery Status Indicator shows the power level of the battery. The flashing mode tells you when the battery needs charging. The charger is capable with 110V-240V input, allowing it to be plugged into power outlets in a number of countries.The Check button on the monitor turns on an LED display showing the battery charge level.
FUNCTION BUTTONS
Easily navigable, all the functions are accessible through the body of the monitor.
MINI HDMI RIGHT ANGLE CONNECTOR
Our unique right-angle connector allows our monitors to easily fit with existing photo and video housings.
Features
- INPUT:
- HDMI
- DVI (for Canon 5D Mark II, creates no delay in video recording mode)
- FUNCTION:
- Focus Assist
- Mode for Canon 5D Mark : DSLR Ratio Adjustment
- Check Field: Red,Green,Blue
- Center Marker
- Screen Marker
- Reset: (revert back to factory settings)
- Display Ratio: 16:9/4:3
- Left/right Rotation
- Up/down Rotation: To change the picture
- OSD:
- 10 languages
- Horizontal Position
- Vertical Position
- OSD Timeout
- Level of transparency
- COLOR:
- CONTRAST
- BRIGHTNESS
- All Dive and See monitors are developed, manufactured, and assembled in the USA.
- Size: 7.3 x 5.4 x 2.1 inch / 185 x 138 x 53 mm
- Depth Rating : 197 ft / 60 m
- Battery: built-in rechargeable Li-Ion with Battery Status Indicator for 4 hours of continuous use
- Battery recharge time : 1h 30 min
- Screen Size: Diagonal 7" (16:9)
- Display Panel: LED
- Aspect Ratio: 16:9 / 4:3
- Signal Input : 480p 576p 720p 1080i/p
- View Angle : 150(H) 130(V)
- Brightness : 450 cd /m2
- Contrast Ratio: 500:1
- Input: HDMI
