Strength: Maximum recommended pulling tension - 400 N
Material of cable construction: PVC jacket, OD-6.5 mm
Material of connector: Nickel plated Marine grade brass

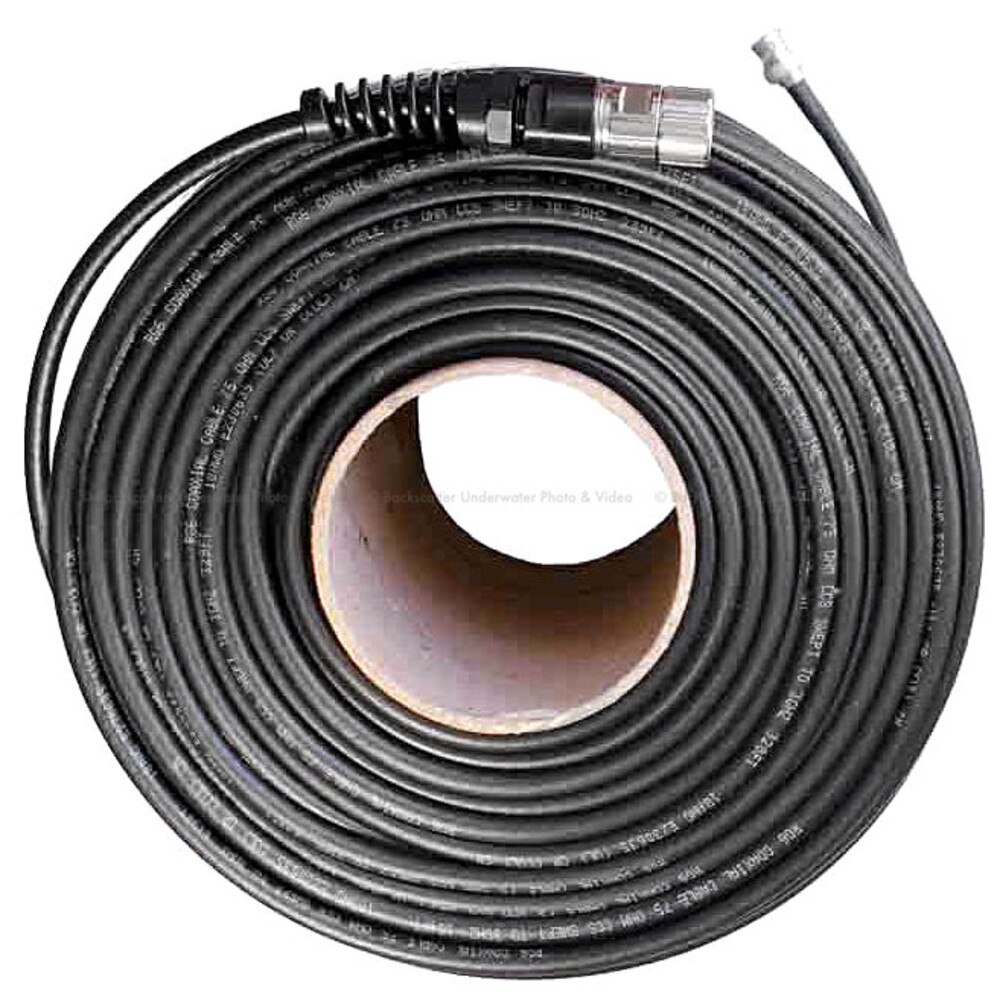

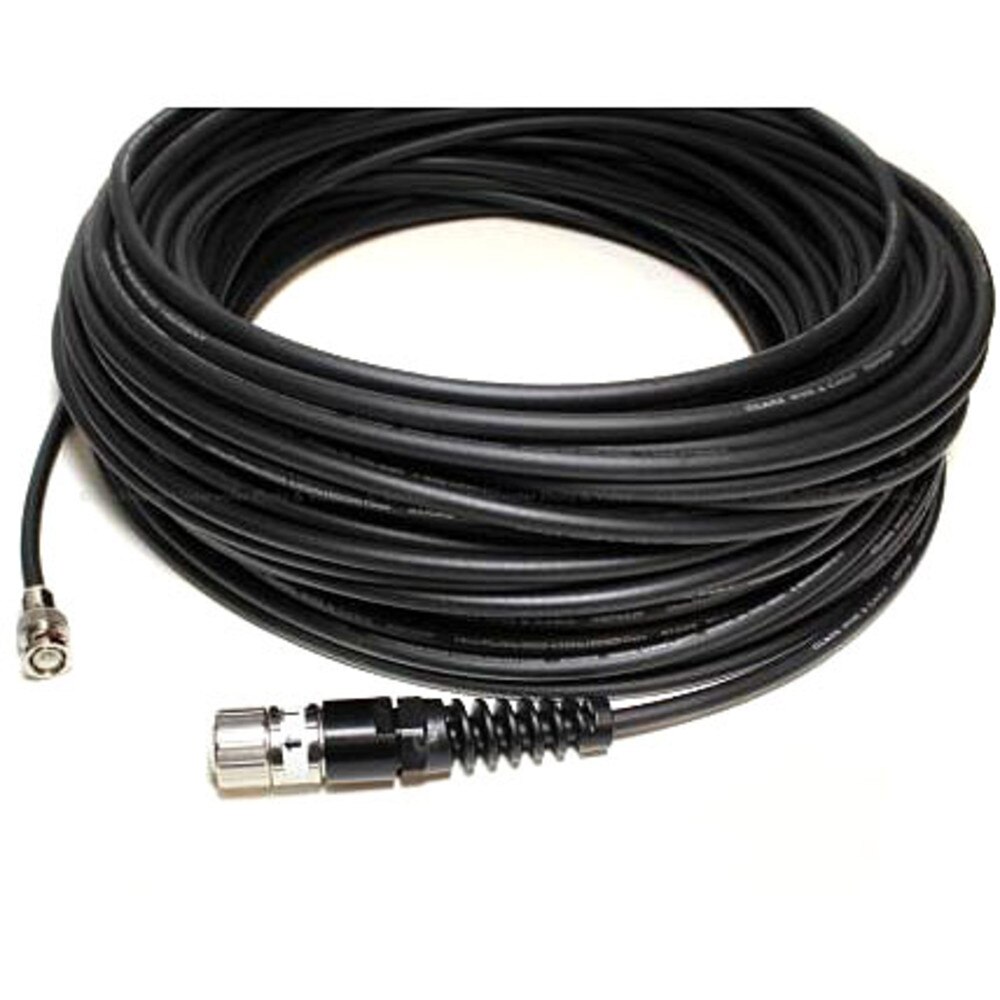

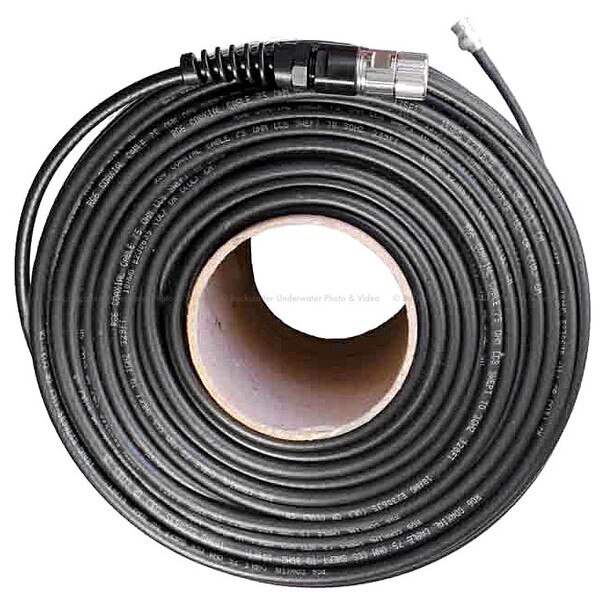

Underwater DNC-1061, HD-SDI high quality, an ultra-flexible water resistance, Dual Braid Shields, precision RG59 coax for HD/SDI, standard SDI or high-resolution video applications, with custom Dive And See waterproof connectors on both ends. Cable designed to ensure a perfect transfer of HD-SDI signal. Impedance - 75 ohm.
The strain relief allows the cables to move without cracking and breaking. Custom length, 50-ohm impedance, or other connector types (BNC, TNC) are available.Depth Rating: 80 meters

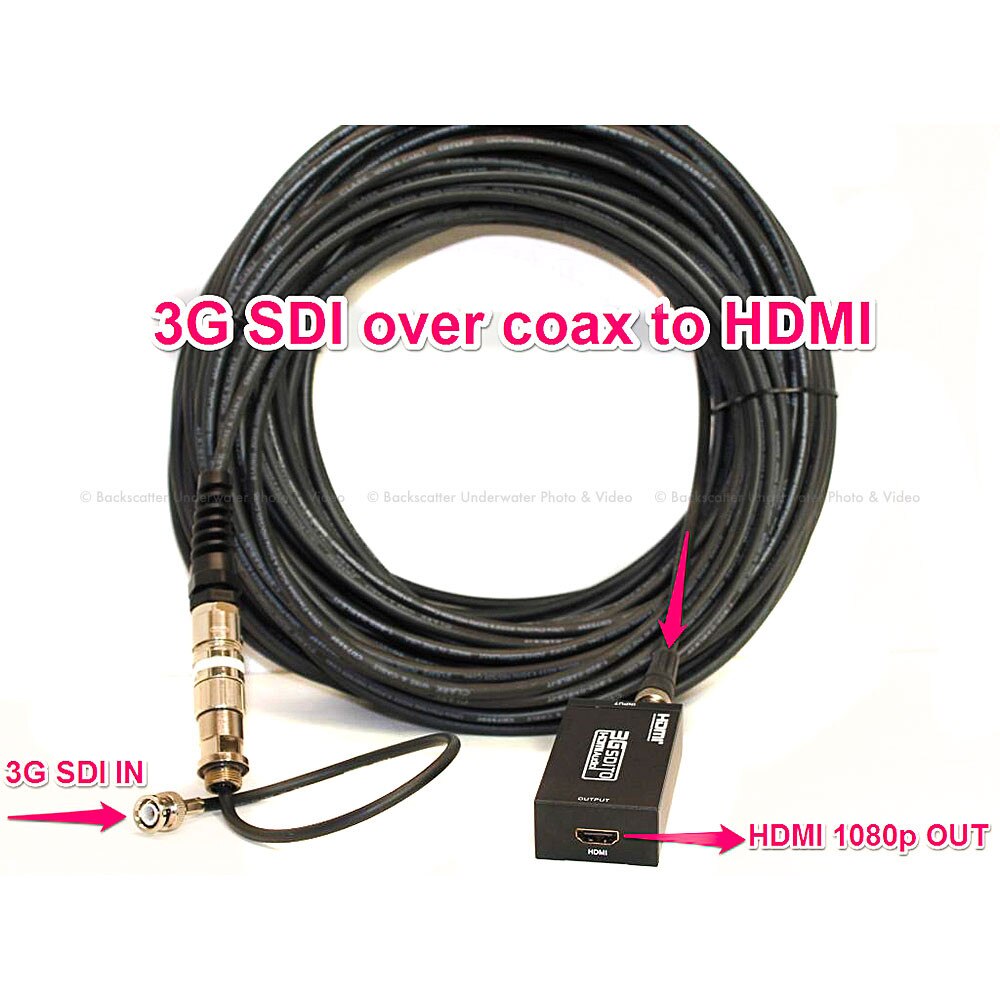

If you need to monitoring SDI signal on the surface, but you have only standard HDMI Monitor, Dive & See offers the option "SDI to HDMI converter" This device will convert an SDI signal on the surface end of the underwater coaxial cable to full HDMI 1080p signal, which is acceptable by any consumer TV or monitors with HDMI input.
Converter Support the industry's high-end 3G SDI signal and 1.485G SDI HD signal; Support PAL and NTSC.
Auto recognizes resolution of HD-SDI, SD-SDI and 3G-SDI for input.
Full HDMI supported with embedded audio
Synchronized output audio video and audio
Powered by AC adapter directly 5V to 12V, or battery source in that voltage range. 5V AC adapter is included.
Supported Video Resolution: SD 525i, 625i; HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ, HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ
