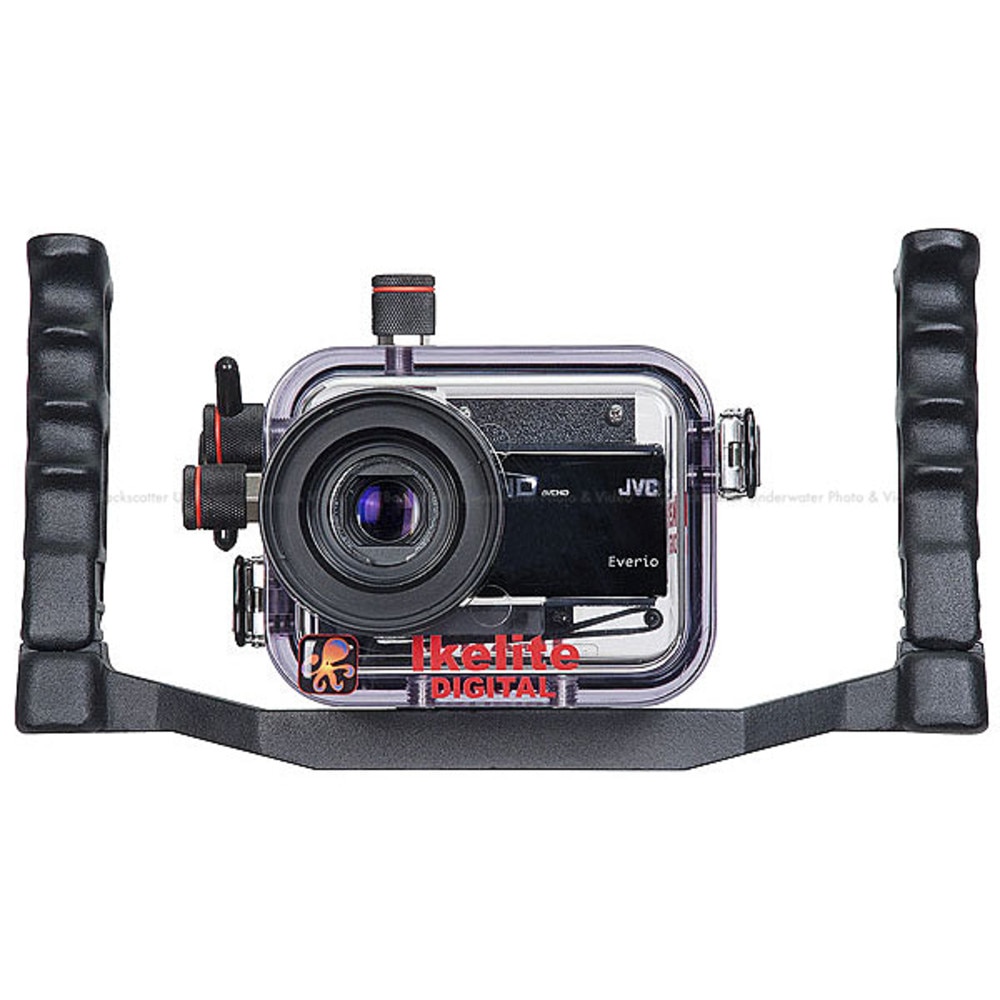

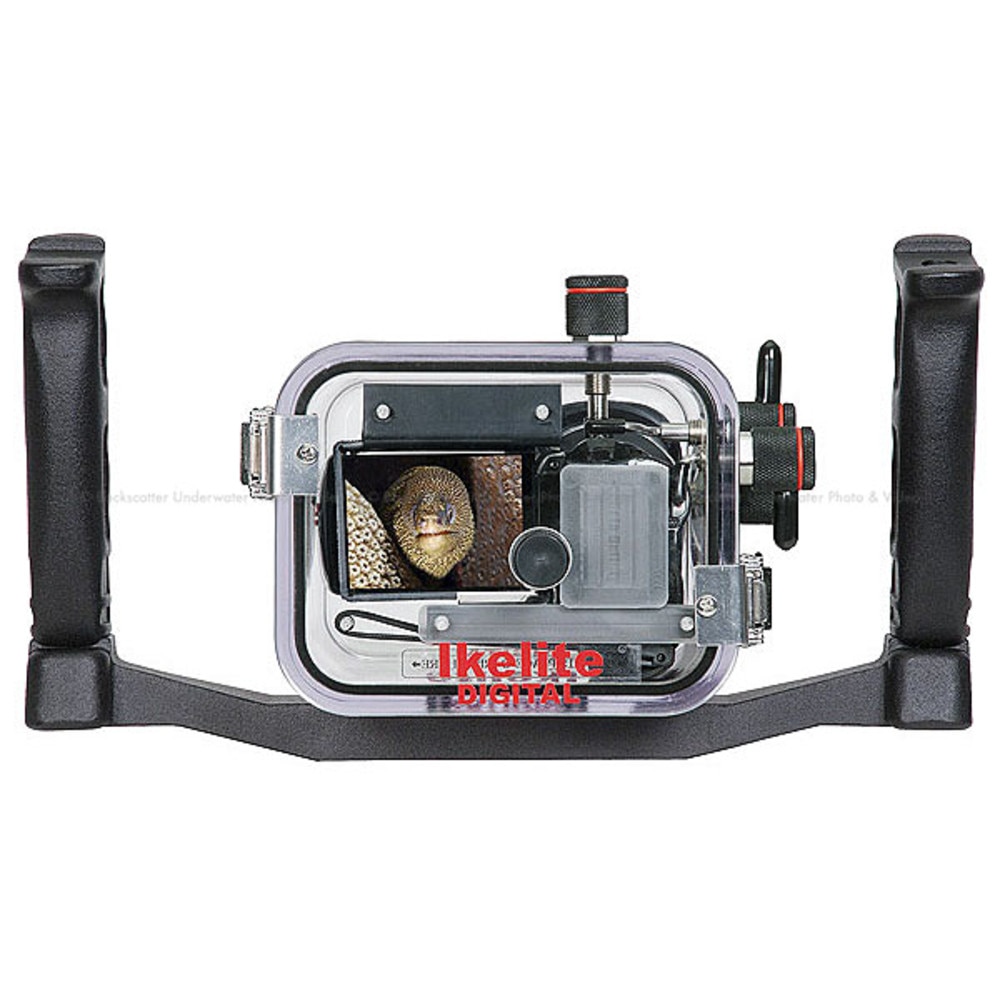

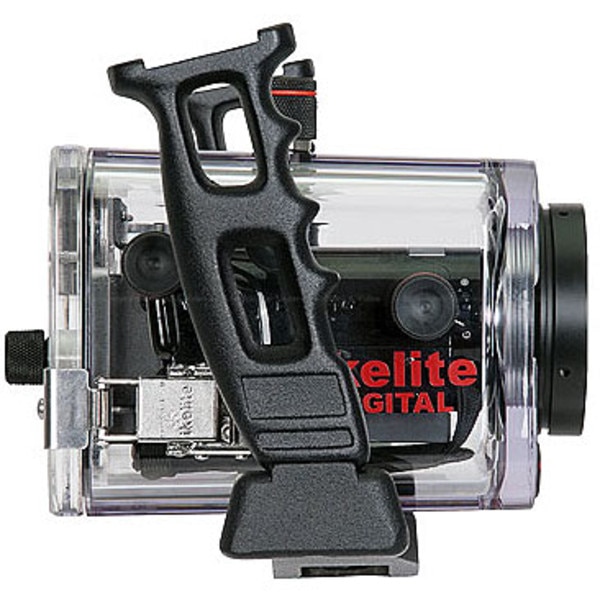

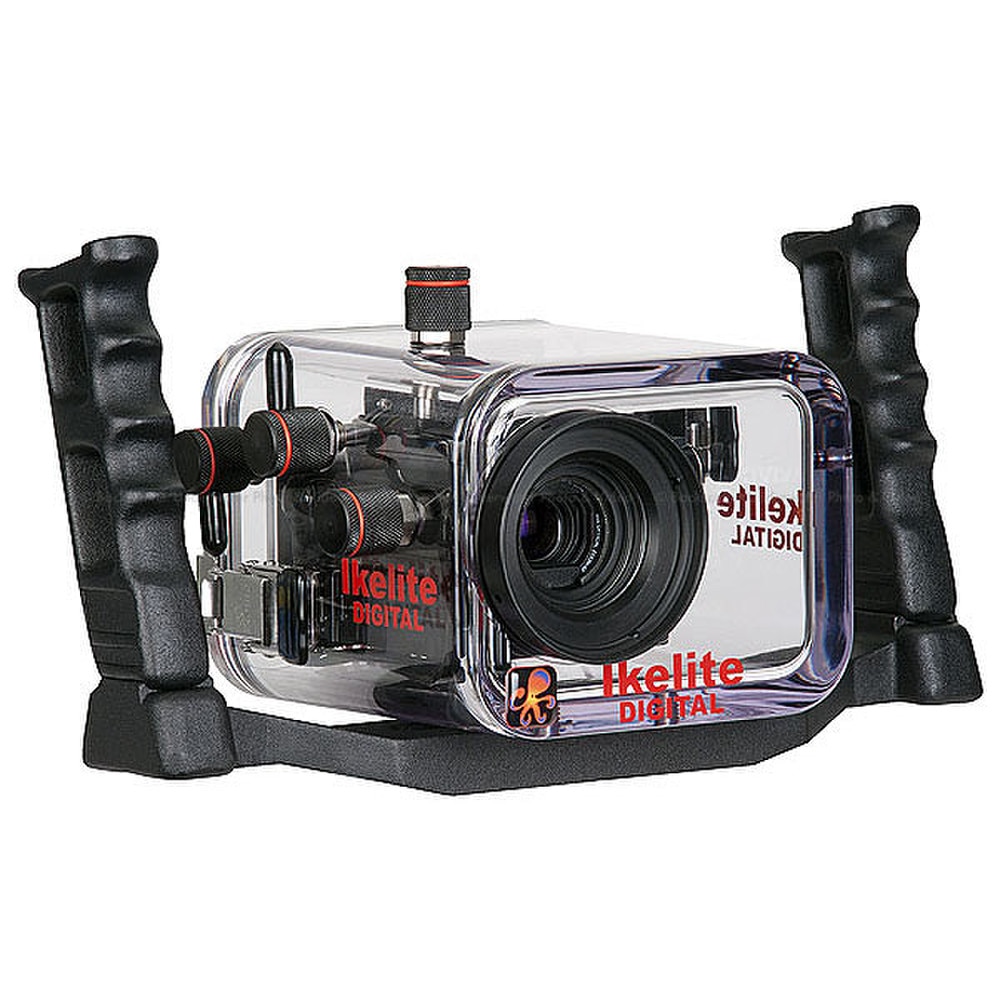

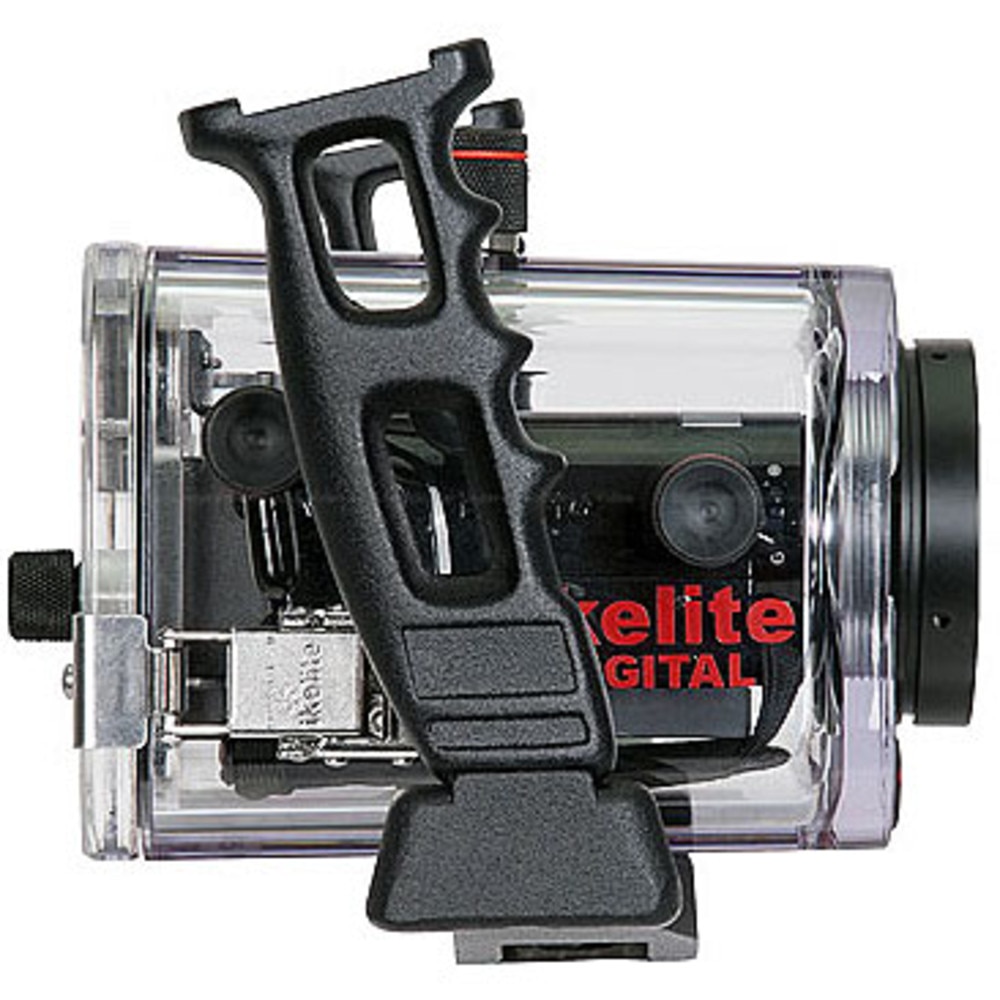

Ikelite Underwater Video Housing for JVC GZ-HM30, HM50, HM301, HM430, HM435, HM440, HM445, HM446, HM450, HM650, HM655, HM670 & HM690 Video CameraMolded of clear polycarbonate to provide seamless construction and corrosion proof performance. This "Clearly Superior" design provides full view of the camcorder, control functions, and assurance the system is safe. The camera's large viewing screen can be seen easily through the housing back.
Fail-safe mechanical controls are provided for important camera functions. The laser touch control on the side of the camera's LCD screen cannot be operated through the housing. Menu functions controlled by the laser touch controls are not accessible in this installation.
The tray and handles remove with just two nuts for packing. Includes two 3/8-16 threaded stud mounts with wing-nuts for attachment of PRO-2800, Pro-V8 or Pro Video mounting arms. Optional weighted bases are available for additional stability above and below water.
Specifications| Controls | Power on/off/mode, Record start/stop, Zoom, Snapshot |
|---|
| Size | 7in wide x 5.5in high x 8in deep
180 x 140 x 200mm
Size with controls and port; without tray and handles. |
|---|
| Weight | 5.9lb (2680g) |
|---|
| Buoyancy | Slightly negative in freshwater |
|---|
| Depth Rating | 200ft (60m) |
|---|
| What's Included | Housing body
Aluminum tray and handles
(2) 3/8-16 threaded handle mounts with wing-nuts
Vinyl port cover
Silicone lubricant, 1cc tube
6441.41 color correcting filter, blue water |
|---|
| Port Size | 3.0" flat glass; 67mm external thread |
|---|
| Main O-Ring | 0109 |
|---|
| Optional Filter | 6441.81 Green water filter for 3" ports |
|---|
| Optional Weighted Bases | 9360.1* Base with 4.9oz weight
9360.2* Base with 1lb weight
* Requires 9360 toggle assembly, sold separately |
|---|
| Batteries Accommodated | JVC VG-114U, VG-121U |
|---|
Color Correcting FiltersThe included UR/Pro Color Filter provides color correction in tropical blue water with available sunlight up to 80 feet (24 meters). The optional filter 6441.81 is also available to achieve more natural tones in green water settings.
Lighting OptionsLight is essential to bringing out the vibrancy and colors of underwater life in your video. Several options are available to add a video light to this system:
The Pro-V8 LED light is a compact and affordable 500 lumen video light. It easily doubles as a focus light and is compatible with any still or video system.
The PRO-2800 LED is the ultimate in output and angle of coverage. The compact light head produces an incredible 2800 lumens with a natural, daylight balanced color temperature. The 100_ flood light is free of hot spots. A detachable, rechargeable NiMH battery pack allows you to quickly change to a spare and keep shooting all day long.
External Wide Angle and Macro LensesThe housing port is threaded allowing the use of the optional #6420 Ikelite lens or 67mm threaded wide-angle and macro lenses available from other manufacturers. The W-20 is a 0.56x wide angle conversion "wet lens" which can be removed and replaced underwater.
