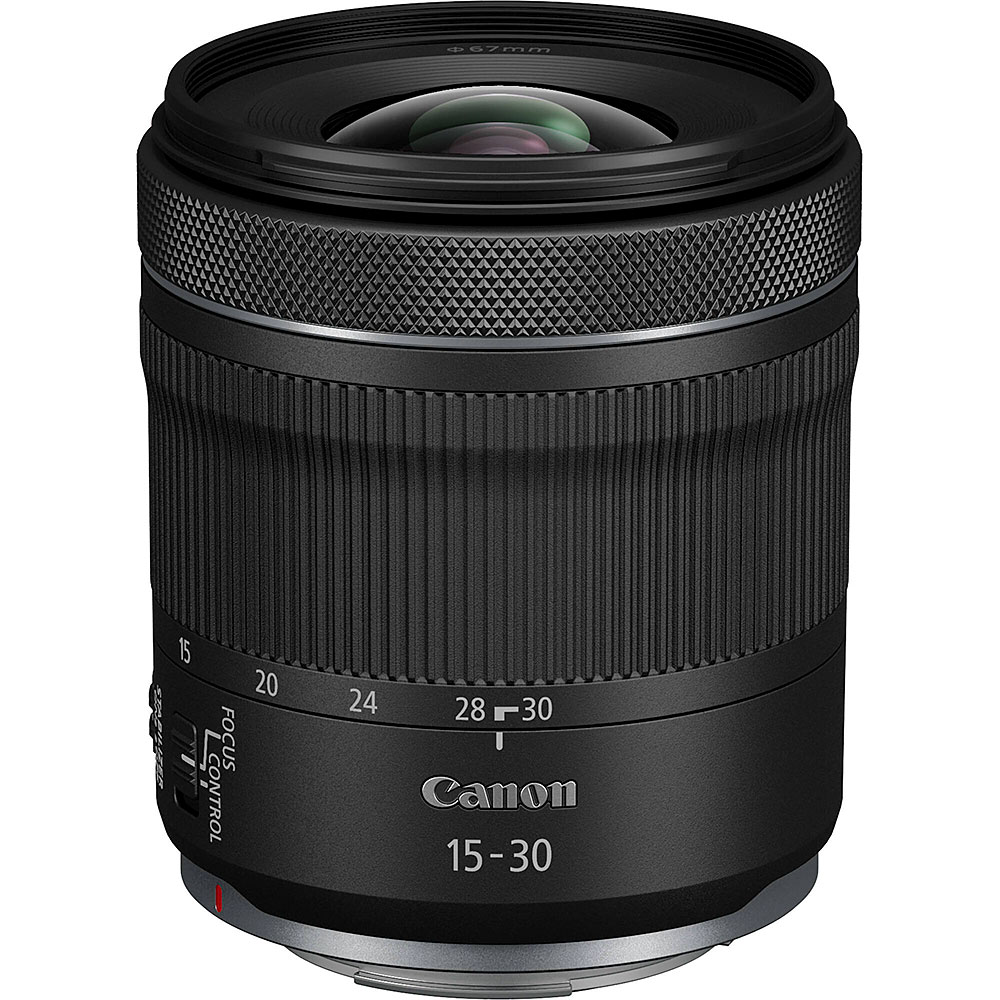

Canon RF 15-30mm f/4.5-6.3 IS STM Lens

The RF15-30mm F4.5-6.3 IS STM ultra wide-angle zoom lens is a superb choice for video content creation and still image shooting, with features that help enhance both! On full-frame cameras, the 15mm ultra-wide focal length creates an incredible super-wide look, and the coverage all the way up to 30mm lets you take images of tight interior spaces all the way to broad landscapes. This lens works great on APS-C sensor cameras too, like the EOS R7 and R10, giving you the full-frame equivalent focal range of 24-48mm. Even though this lens is lightweight at only 0.9 lbs, it feels solid in your hands and has great optical performance with two Ultra-low Dispersion glass elements and one Aspherical element for sharp images, and crisp video. If you switch over to manual focusing The RF15-30mm F4.5-6.3 IS STM also has a unique close focusing feature that lets you focus almost to the surface of the lens at the 15mm zoom setting for creating some really unique images.

The RF15-30mm F4.5-6.3 IS STM also comes with built-in Optical Image Stabilization to enhance your low-light shooting abilities by providing up to 5.5 stops of shake correction, and up to 7 stops with coordinated IS. This lens is a great combination of portability, usability, price point, and exciting visual potential. Whether you are shooting stills or video, and are attaching it to a full-frame camera, or an APS-C camera, this lens deserves your attention and a spot in your camera bag.


Specifications

Lens

• Focal Length: 15-30mm
• Maximum and Minimum Aperture:
• f/4.5 - F22 (at 15mm zoom position)
• f/6.3 - F32 (at 30mm zoom position)
• Lens Mount Type: RF Mount
• Compatible Cameras: Canon EOS R-series, full-frame and APS-C
• Minimum Focusing Distance:
• 0.28m (11.0in) throughout zoom range, using AF
• 0.13m (5.1in) manual focus at 15mm zoom position
• Maximum Magnification:
• 0.16x (at 30mm zoom position)
• 0.52x (manual focus at 15mm zoom position)
• Field of View, at Minimum Focus Distance:
• At 15mm - Approx. 421 x 281mm (16.5 x 11.0”)
• At 30mm - Approx. 229 x 153 mm (9.0” x 6.0”)
• Angle of View (Diagonal):
• Approx. 110° 30'(15mm)
• Approx. 71° 35'(30mm)



Optical Design

• Lens Construction: 13 elements in 11 groups
• Special Elements: (Two) UD-glass elements, (One) Aspherical element
• Lens Coating: Canon SSC (Super Spectra Coating)
• Filter Size Diameter: ø67mm
• Aperture Blades: 7
• Image Stabilization: 5.0 stops correction with In-lens Optical Image Stabilization (7.0 stops correction with EOS R3/R5 in-body coordinated Image stabilization)



Focusing

• Focusing Drive System: Canon STM (Leadscrew type STM)
• Full-time Manual Focusing: Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
• Dual Pixel CMOS AF Coverage (Horizontal x Vertical):
• EOS R/RP - Approx. 100% x 88%
• EOS R5/R6 - Approx. 100% x 100%
• EOS R7/R10 - Approx. 100% x 100%



Exterior Design

• Control Ring: Combination Control Ring/Manual Focus Ring Selectable via switch on lens barrel No clicks, when used as Control Ring Manual Manual Focus Ring: Combined MF/Control Ring on lens AF/MF Switch: None - selected via camera menu, or AF/MF switch on compatible EOS R-series cameras MF/Control Ring Switch: Yes, on lens barrel Distance Scale: Yes - Available in EVF or Live View LCD screen of compatible EOS R-series cameras Distance Limiter Switch: None Dust / Weather Resistant Construction: None



Dimensions, Weight

• • Maximum Outer Diameter x Length: Approx. ø3.0 in. x 3.5 in. (ø76.6mm x 88.4mm) Weight: Approx. 13.6 oz. / 0.9 lb. / 390g


  Accessories

  • Lens hood: Canon EW-73E
  • Bayonet-mount, petal-shaped hood: Optional accessory, sold separately
  • Lens Cap: (Front) Canon E-67 II (Bundled)
  • Dust Cap: (Rear) Canon Lens Dust Cap RF (Bundled)
  • Lens Case: Canon Lens Case LP1116 - Optional accessory, sold separately
  • Extension Tubes: None (No Canon RF mount extension tubes)
  • Close-up Lenses 250D / 500D: Not Compatible (ø67mm size close-up lenses)
  • Canon RF Extender 1.4x/2x: Not compatible
