Overview / Product Description

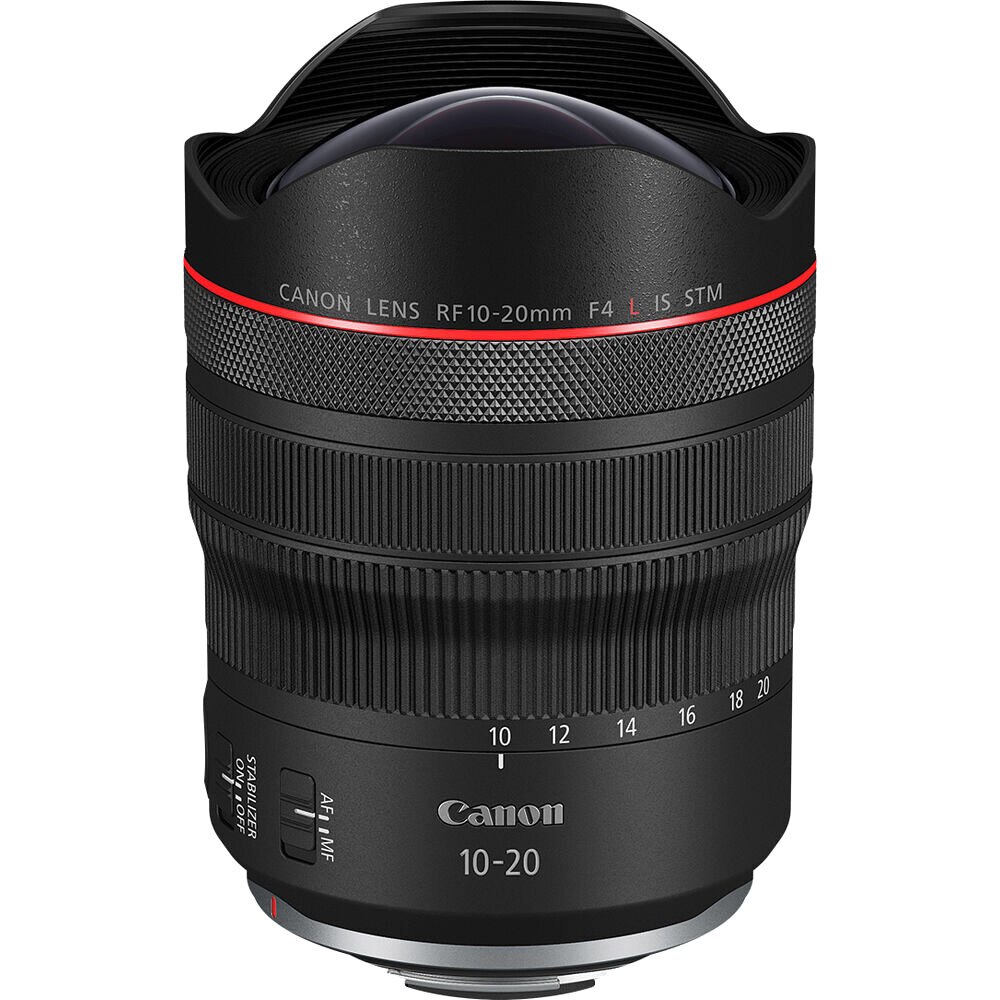

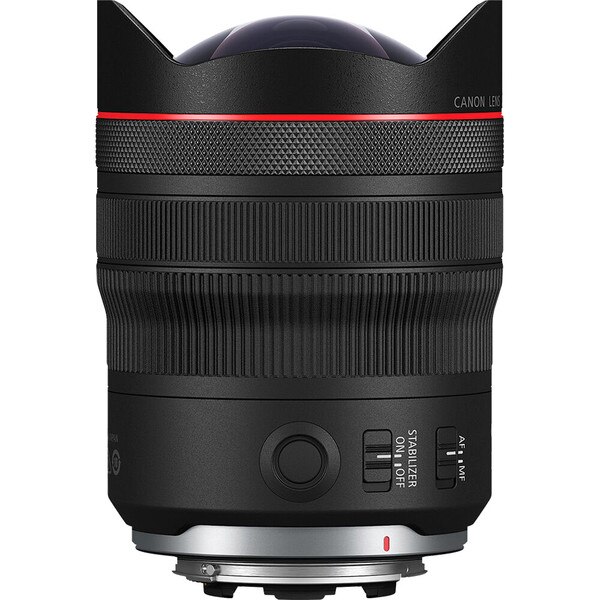

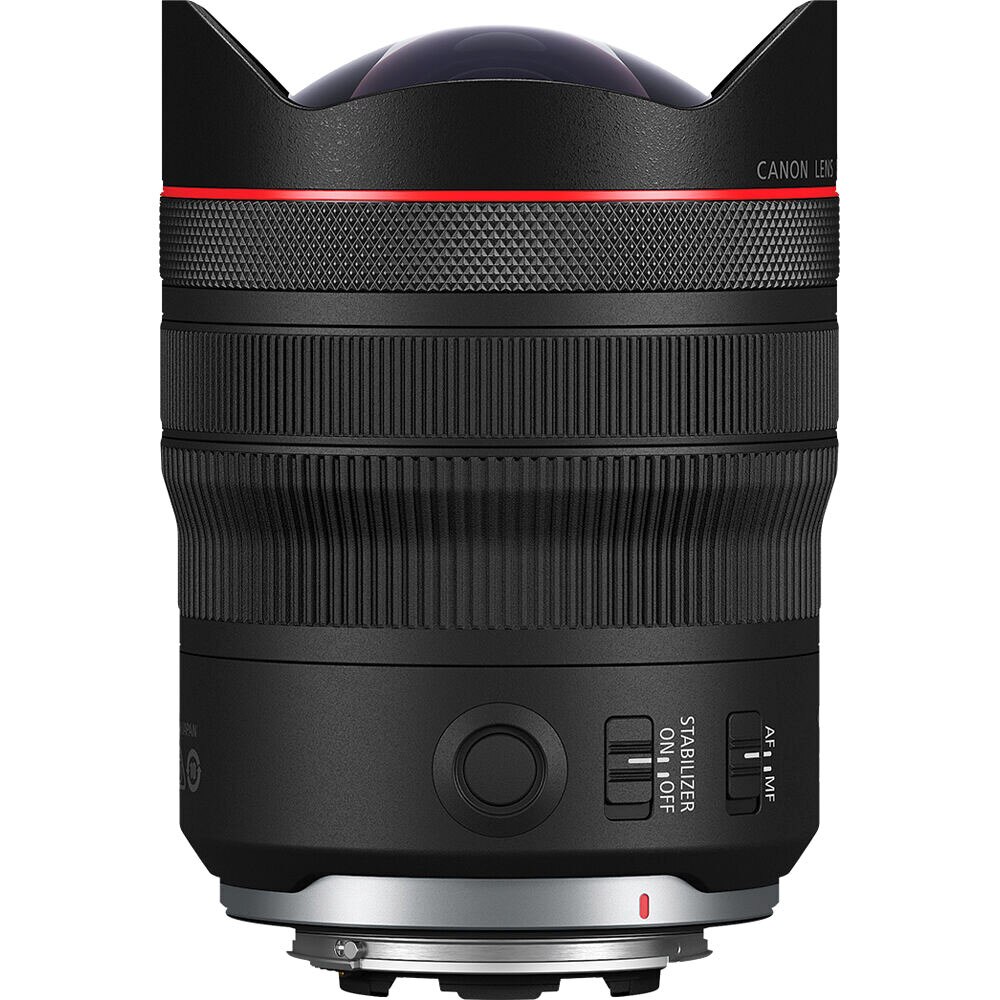

Canon RF 10-20mm f/4 L IS STM Lens
- RF ultra-wide-angle lens for full-frame cameras
- Incredible 10-20mm coverage for stills and video
- Excellent image quality with 1 super UD lens, 3 UD lenses, 3 aspheric lenses
- Subwavelength structure coating (SWC) and Air Sphere Coating (ASC) to reduce ghosting
- Minimum focus distance of approx. 9.8 in./0.25m with a maximum magnification of 0.12x
- Canon leadscrew-type STM (stepping motor) focus drive for smooth, quiet video AF operation.
- Optical image stabilization up to 5.0 stops of shake correction and up to 6.0 stops Coordinated IS when paired with EOS R series cameras featuring In-Body Image Stabilizer (IBIS)
- Rear slot for pre-cut gel filters
- Petal-type hood integrated into the lens barrel
The RF10-20mm F4 L IS STM is a unique ultra-wide-angle lens with corrected, rectilinear coverage to an incredible 10mm with full-frame cameras. Great for still photography and videography, the 10mm ultra-wide-angle effect is outstanding for its dramatic look, lending visual drama to your landscape, interior, architecture, travel, and even photojournalism images. This lens features true L-Series quality with optical and digital corrections for distortion, and optical image stabilization (OIS) for better low-light performance, especially when shooting video. Autofocus is handled by a tried-and-true STM-type focus motor, allowing the overall lens design to be more compact while still providing rapid AF and smooth focusing during video recording.
In addition, this lens can achieve image stabilization correction of 6.0 CIPA standard stops with coordinated IS. The front lens element is coated in Fluorine for added durability, so you can easily wipe away oils and fingerprints. Canon SSC (Super Spectra Coating, and advanced ASC (Air Sphere Coating) and SWC (Subwavelength Structure Coating) technologies to help reduce flare, ghosting, and other aberrations. The optical quality of this lens is impressive, with 16 elements in 12 groups, including one super UD element, three UD glass elements, and three aspheric elements. This lens also has a minimum focus distance of just under 10 inches at all focal lengths.
Technical Specifications
- Focal Length: 10-20mm
- Maximum and Minimum Aperture: f/4 - f/22
- Lens Mount Type: RF Mount
- Compatible Cameras: Canon EOS R-series, full-frame and APS-C (focal length equivalent to approx 16-32mm when used on an APS-C camera)
- Minimum Focusing Distance: 0.25m (9.8 in.)
- Maximum Magnification: 0.12x (at 20mm)
- Field of View, at Minimum Focus Distance: Approx. 520 × 347mm (20.5 x 13.7 in.) at 10mm; 284 x 189 (11.2 x 7.4 in.) at 20mm
- Angle of View (Diagonal): Approx. 130° 25’– 94°
- Lens ConstructionLens Construction: 16 elements in 12 groups
- Special Elements: 1 super UD lens, 3 UD lenses, and 3 aspheric lenses
- Lens Coating: Canon SSC (Super Spectra Coating), SWC (Subwavelength structure coating), ASC (Air Sphere Coating), Fluorine coating.
- Filter Size Diameter: None (inserted in gelatin filter holder at the rear of the lens)
- Aperture Blades: 9
- Image Stabilization: 5.0 stops correction with In-lens Optical Image Stabilization (6.0 stops correction with EOS R series in-body coordinated Image stabilization)
- Focusing Drive System: Canon STM (Leadscrew type STM)
- Full-time Manual Focusing: Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Maximum Outer Diameter x Length: Approx. ø3.3 in. (ø83.7mm) x 4.4 in. (112mm)
- Weight: Approx. 20.1 oz. / 1.3 lbs. / 570g
