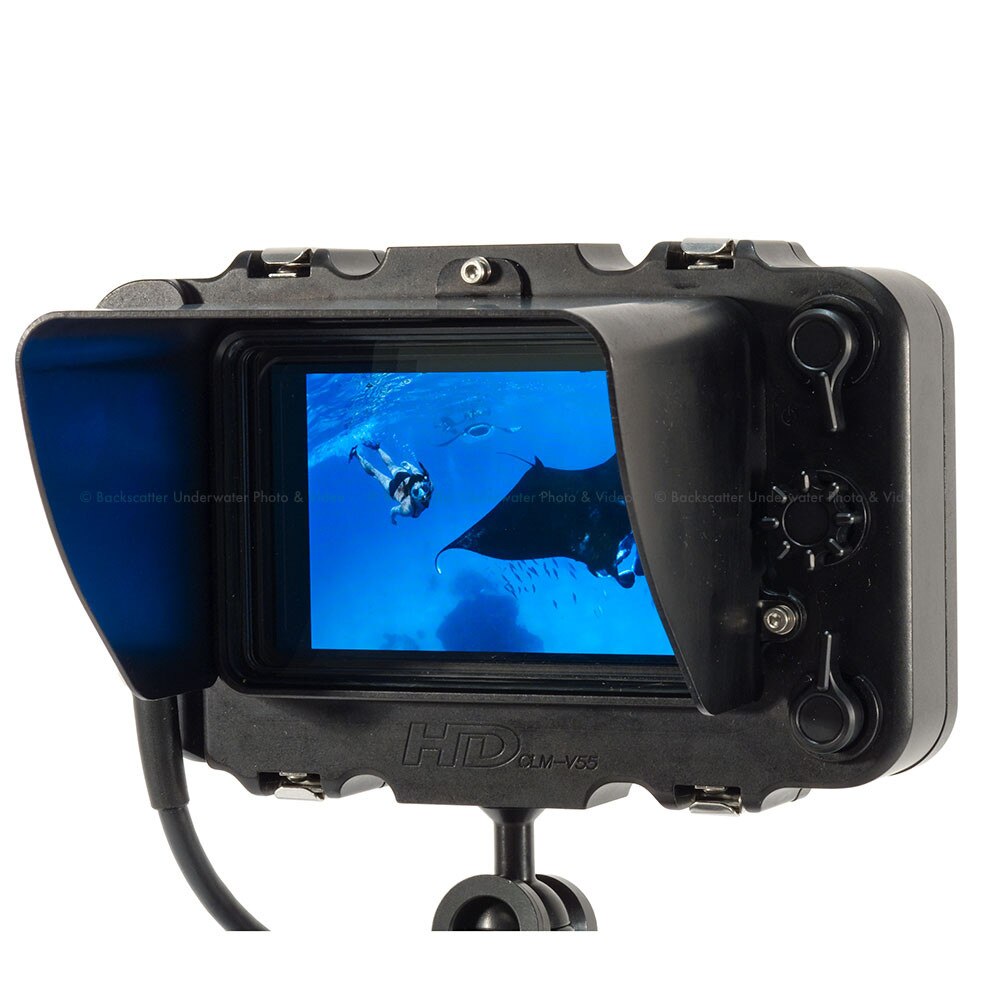

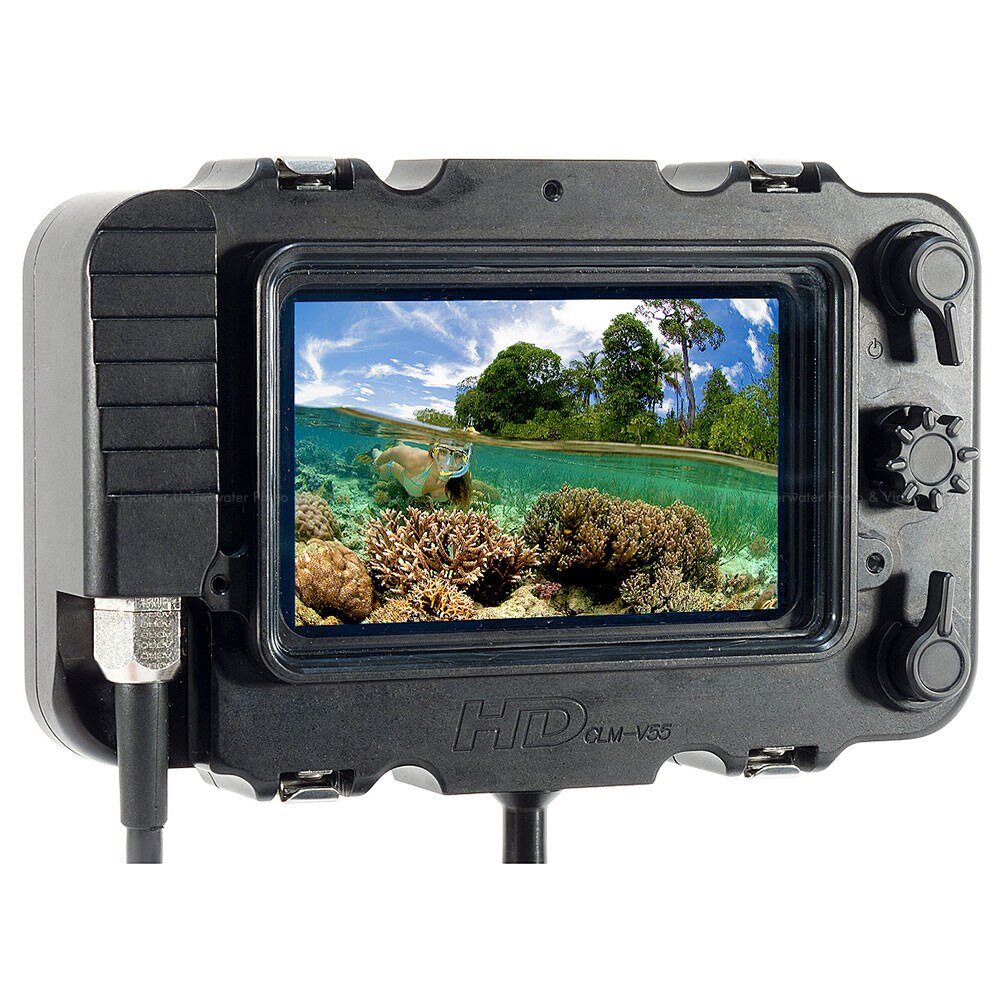

Wahoo HD Underwater Monitor Housing for Sony CLM-V55 Monitor

Wahoo HD Underwater Monitor Housing for Sony CLM-V55 Monitor

DOWNLOAD THE QUICK GUIDE


EYE CANDY

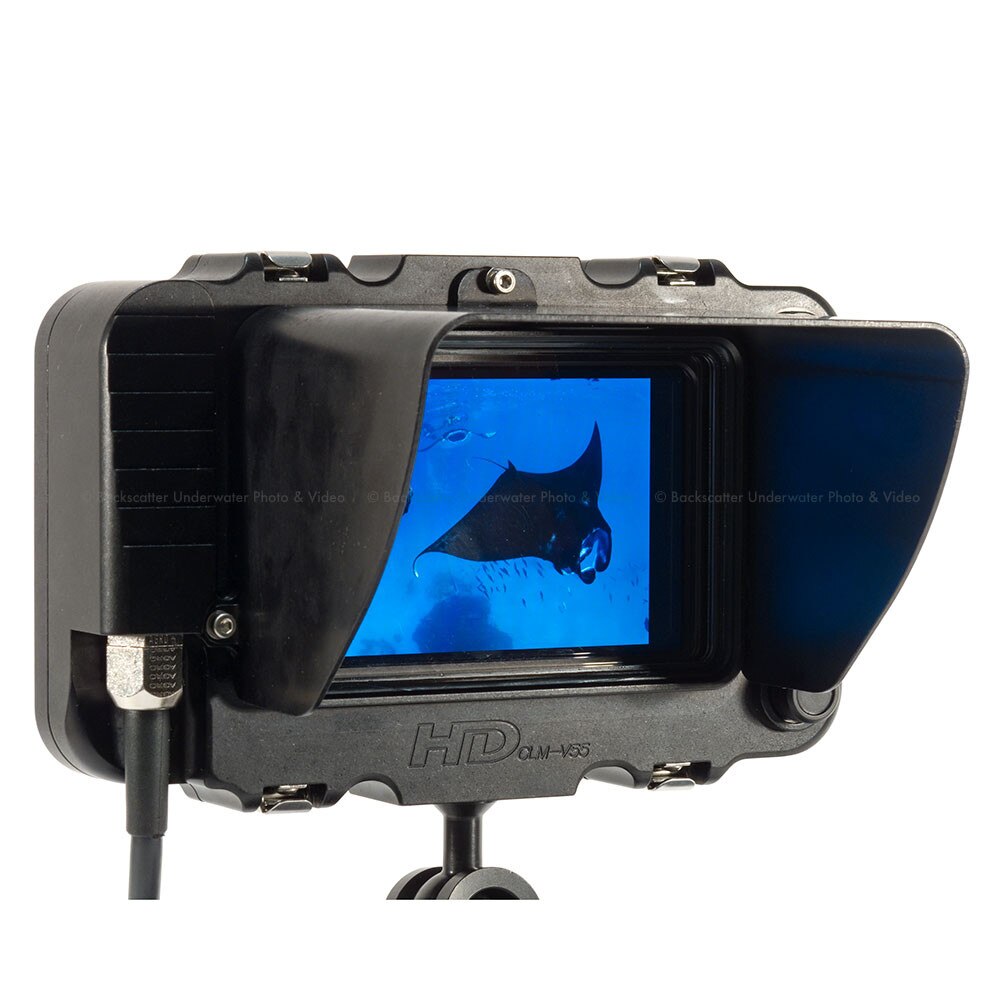

The Wahoo HD offers visual inspiration for creative underwater video and photography. With over 1.1 million dots densely packed on a 5 inch screen, the Sony CLM-V55 monitor offers the sharpest image available in a compact monitor. Configured with HDMI connectors, it delivers unparalleled image quality with 720 and 1080 signals. Finally, DSLR users can see critical focus and white balance color underwater.

FOCUS PEAKING
Not sure if that pygmy seahorse is in focus? With a click you can activate Focus Peaking mode. The high resolution screen switches to black and white for maximum contrast. Sharp areas are highlighted in bold red outlines making it easier to follow focus when subjects are on the move.

450 Ft / 137 M DEPTH RATING

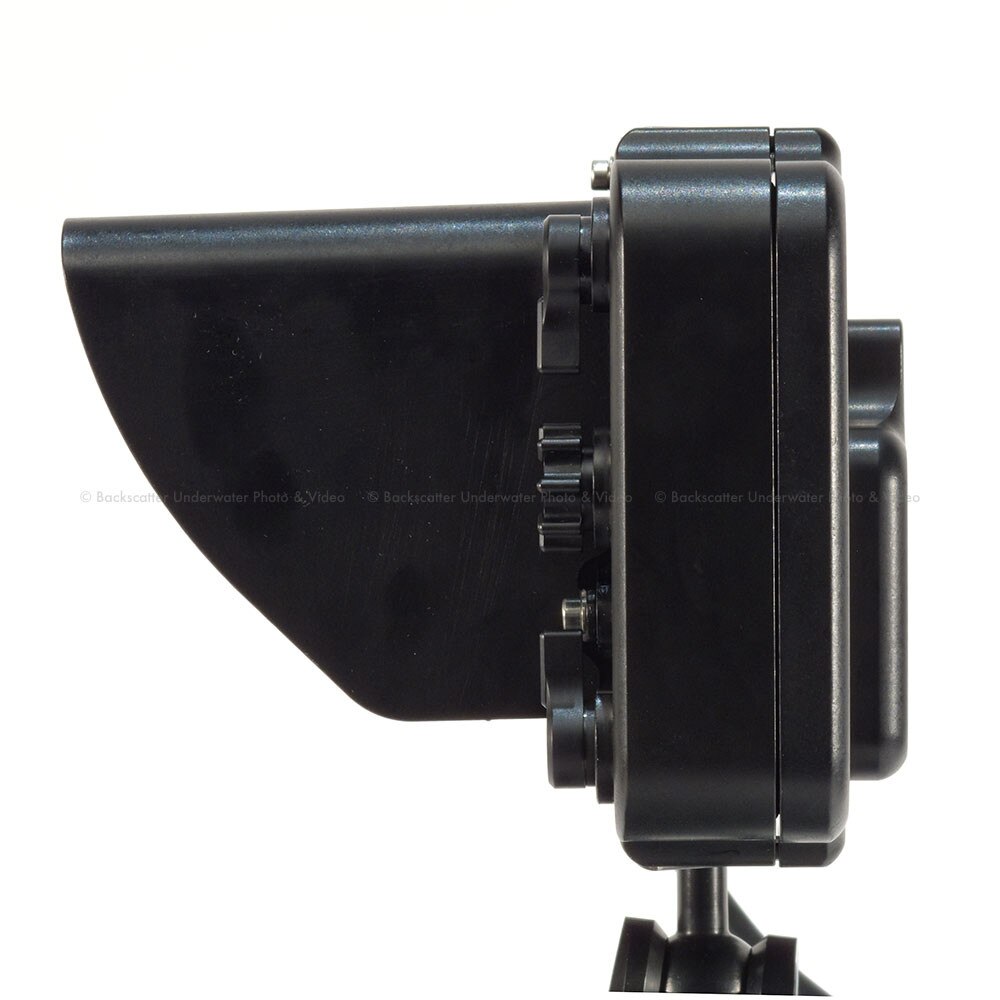

The rugged aluminum WahooHD housing is engineered for technical diving to 450 feet and features oversized control knobs for easy use with gloves. You might not dive that deep, but your monitor can.

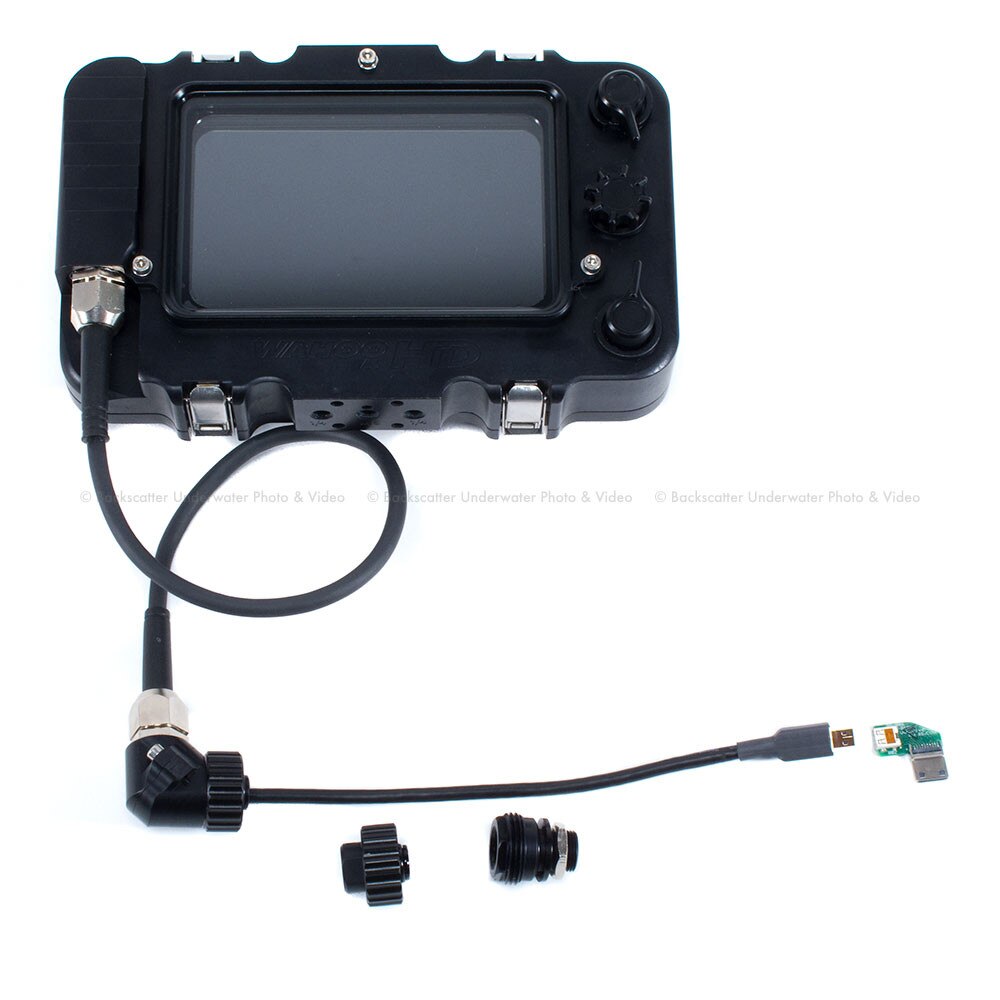

NEW PLUGGABLE CABLE DESIGN

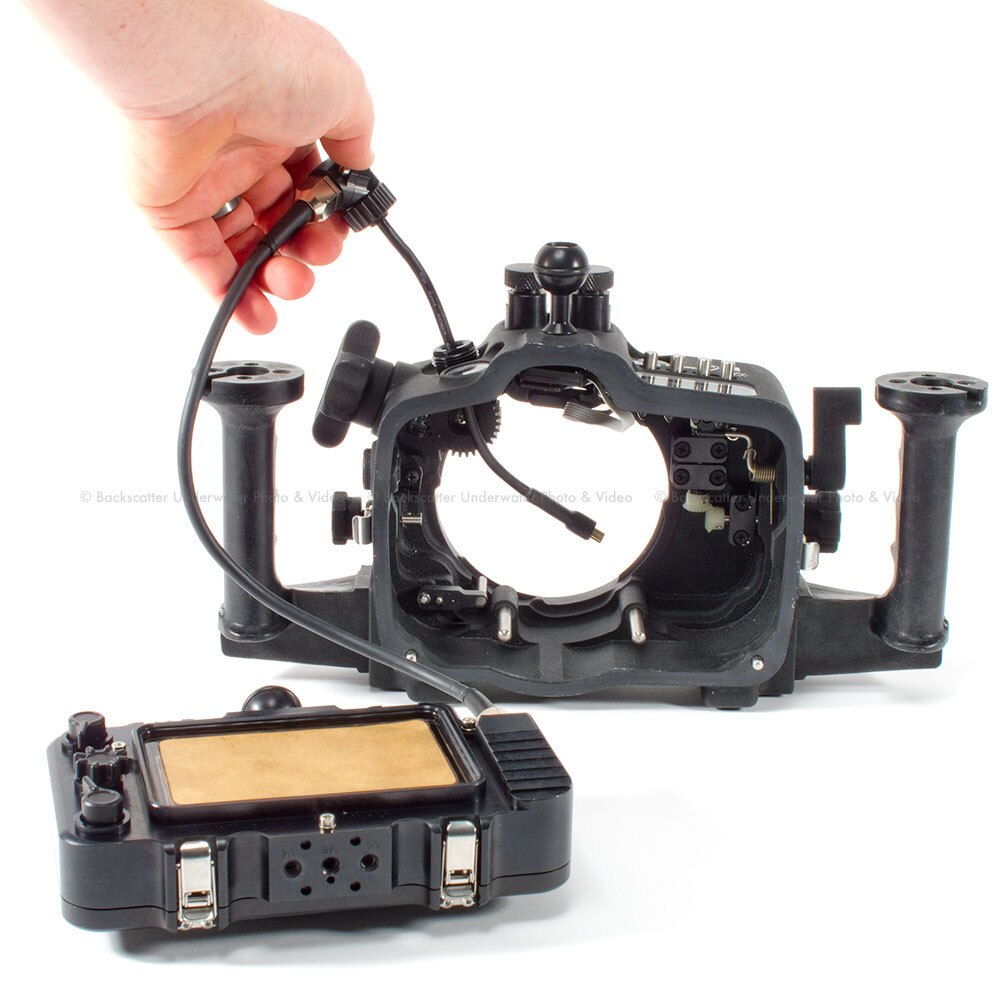

Our new pluggable cable design allows the Wahoo to be removed for travel or when not required. Most importantly we believe our pluggable design is the most reliable in the industry. HDMI connections offer a true HD signal, but they require 19 wires and are very sensitive to water and corrosion. Our "pass through" cable design keeps the connection safely inside the housing and away from accidental drips.

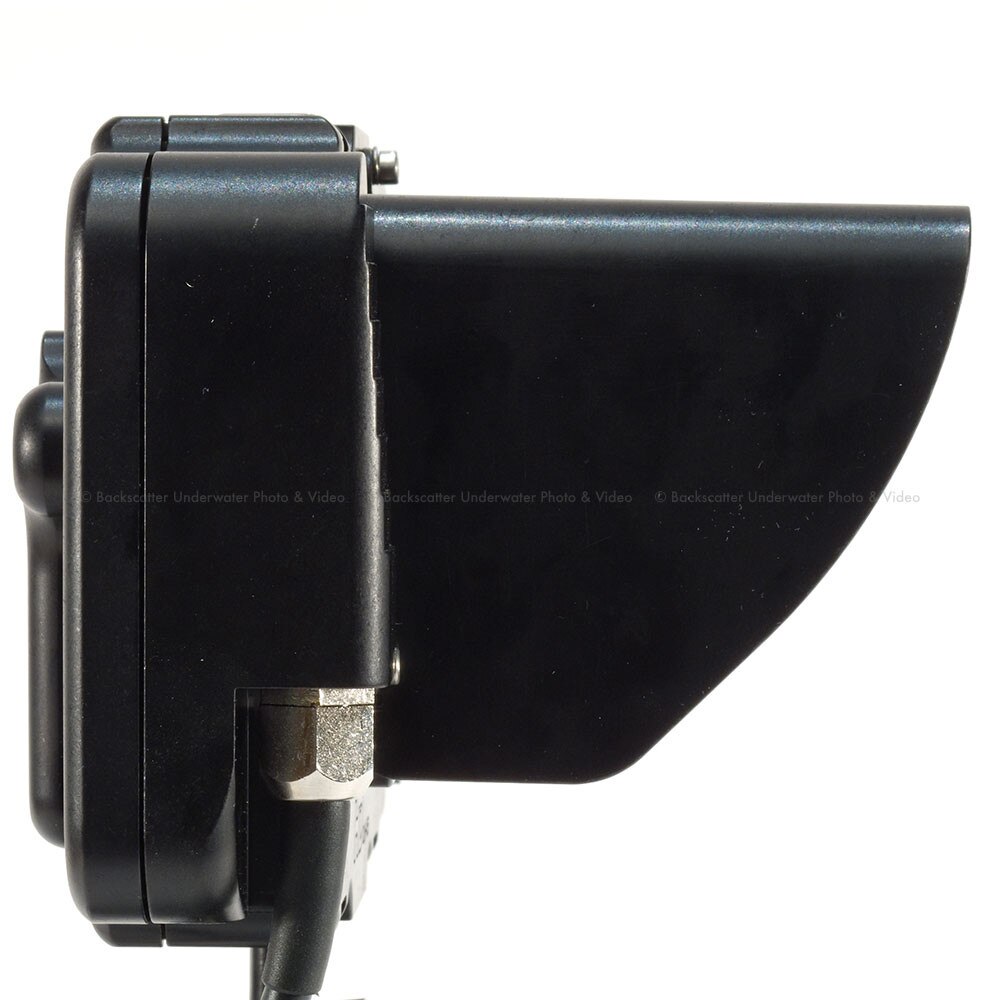

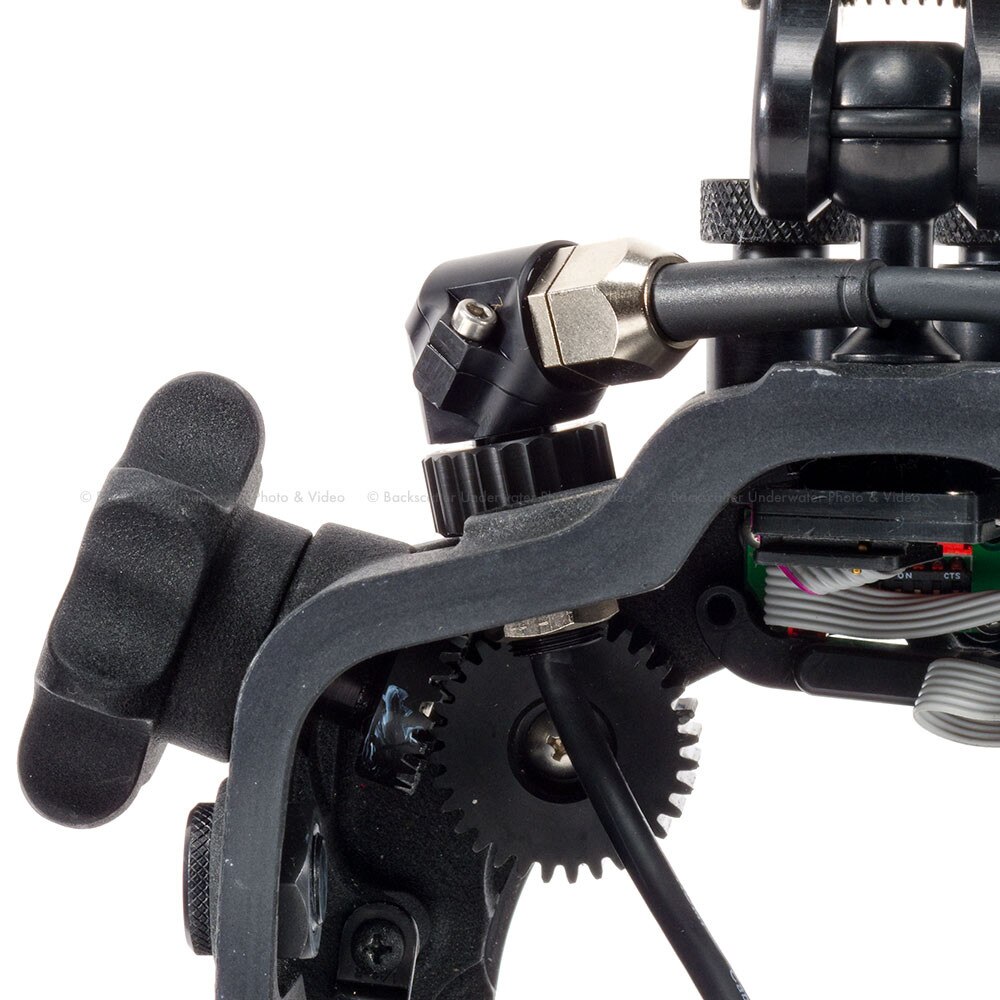

RIGHT ANGLE / LOW PROFILE BULKHEAD
Our pluggable bulkhead features a right angle cable to minimize it's footprint on the camera housing and cleanly direct the cable from any mount position. When the Wahoo is unplugged and not in use, a low profile waterproof cap makes the footprint even smaller.

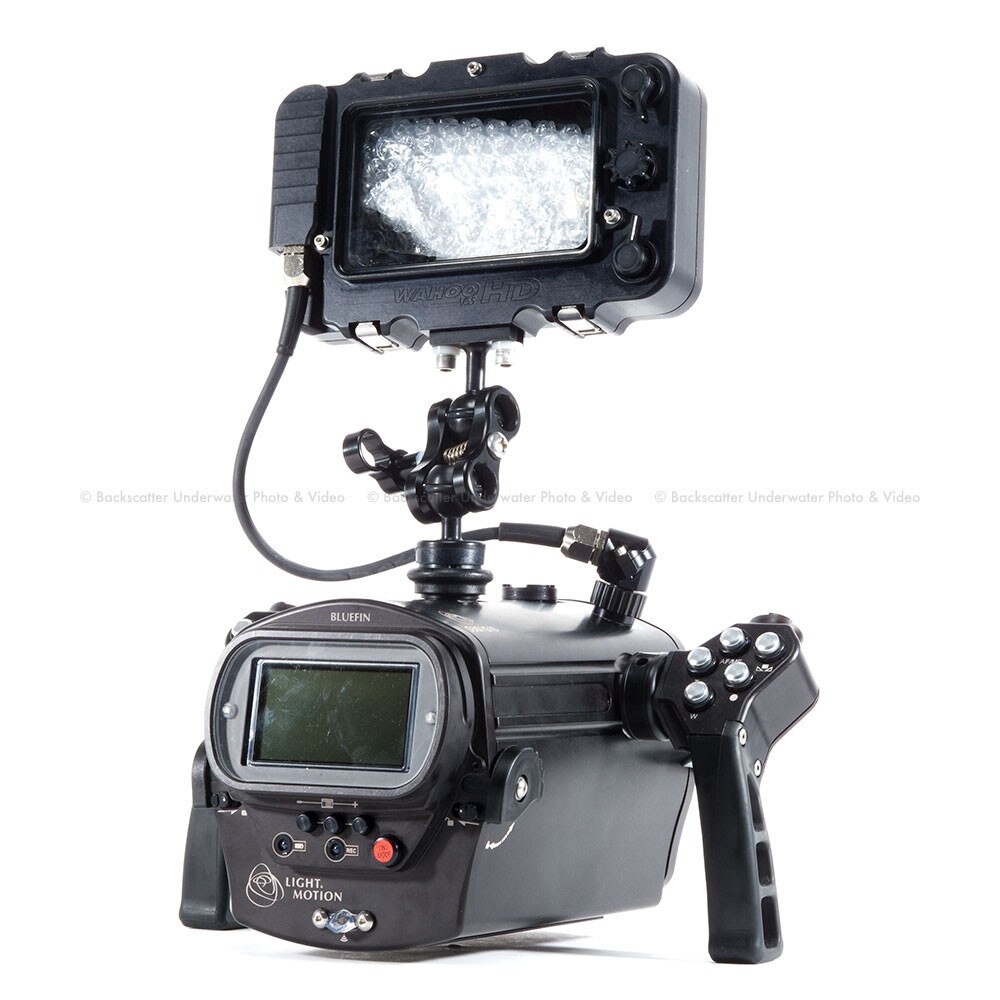

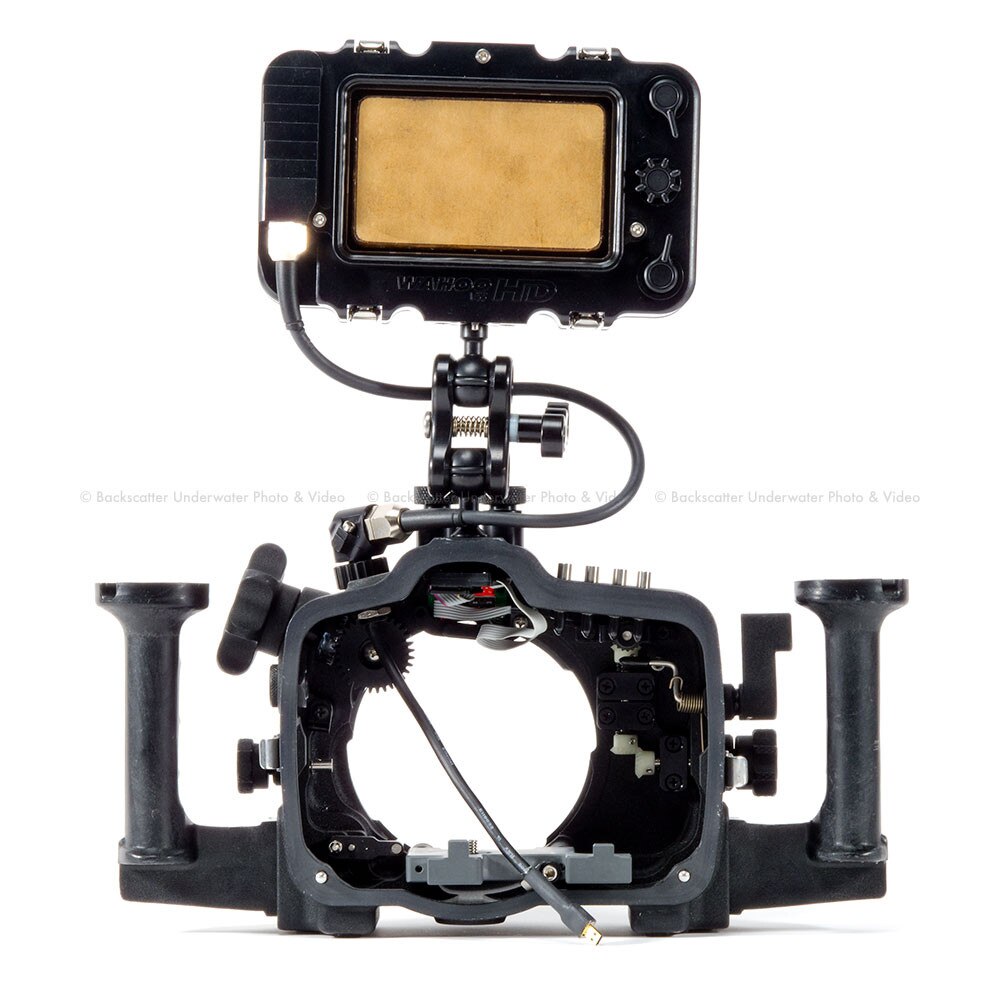

HOUSING COMPATIBILITY
We are still in the process of testing the Wahoo HD with all camera and housing combinations. If your camera or housing is not listed, please contact us.

COMPATIBILITY WITH 2012 CAMERA MODELS:
Our engineering team has worked closely with all major camera housing brands to verify Wahoo compatibility for Nikon D4, Nikon D800, and Canon 5D Mark III housings. We will update the chart below once our technicians confirm installs. Please call to confirm your order.

	Aquatica	Ikelite	Nauticam	Sea & Sea	Subal	Seacam
CANON
5DmkII	YES	?		YES (3) order)	NO	?
5DmkIII	YES	?	YES	YES	?	?
7D	YES	?	YES	NO	NO	?
T2i	YES	?	NO	YES (4) aluminum cable jacket, not recommended)	NO	?
T3i			?
T4i	?	?	?	?	?	?
NIKON
D7000	YES (1) alarm)	?	YES (2)	YES (3)	YES	?
D800	YES	?	YES	YES	?	?
D3s	?			?	YES (5) only)	?
D4	?		?		?	?

(1) Must remove leak alarm
(2) New 2012 version only
(3) Special order with custom bulkhead
(4) Requires removal of Wahoo aluminum cable jacket / not recommended
(5) Requires removal of Wahoo aluminum cable jacket / custom option available
(?) Untested

SPECIFICATIONS

WAHOO CLM-V55 HOUSING

• ORIGIN: Designed and manufactured in the USA
• CONSTRUCTION: Aircraft grade anodized aluminum
• DEPTH RATING: 450 feet / 137 meters
• CONTROLS: All monitor functions accessible by smooth oversized controls designed for use with cold water diving gloves

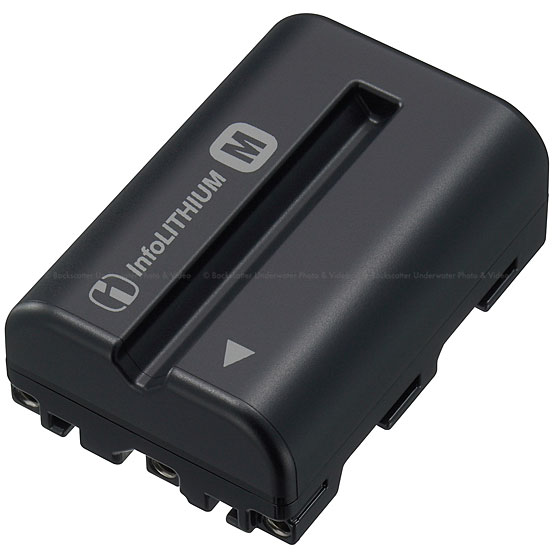

• BATTERY: Compatible with Sony NP-FM500 battery for a 3.6 hour burn time

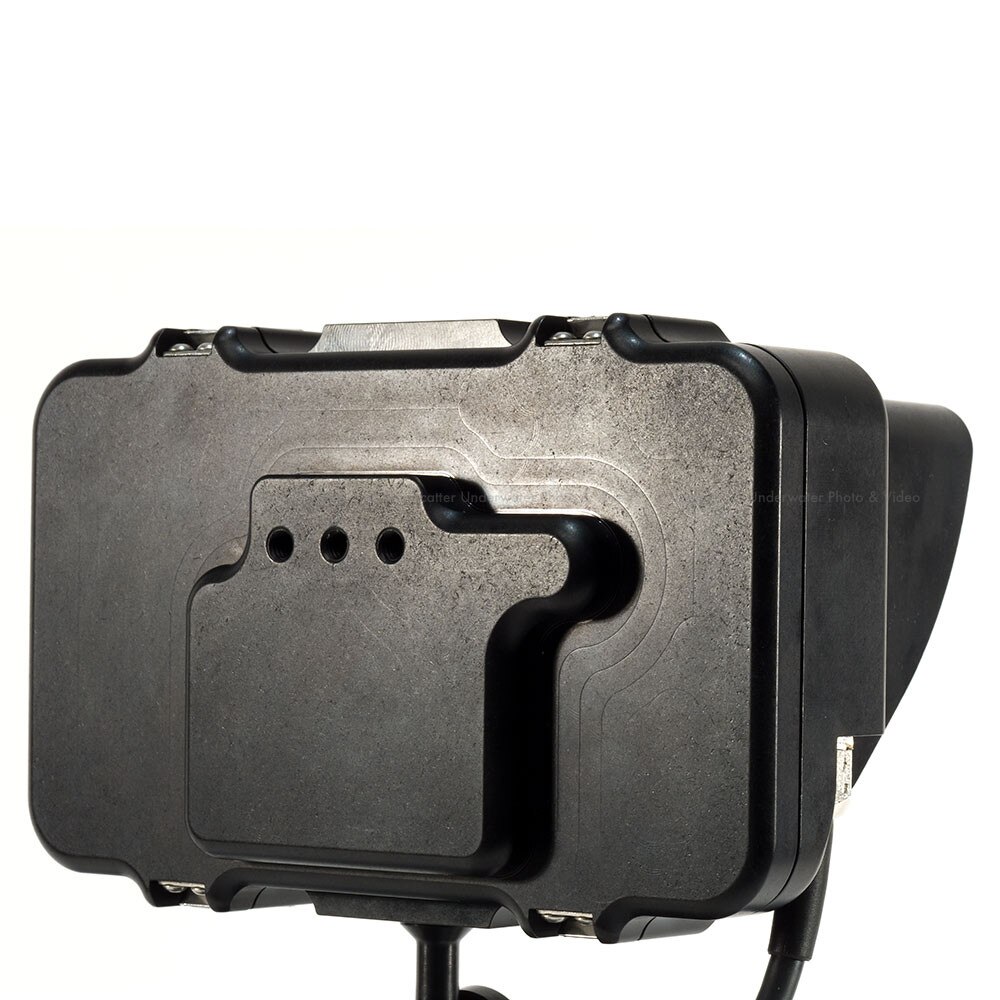

• MOUNTING: 1/4-20 and M6 threaded holes in three locations for maximum flexibility.

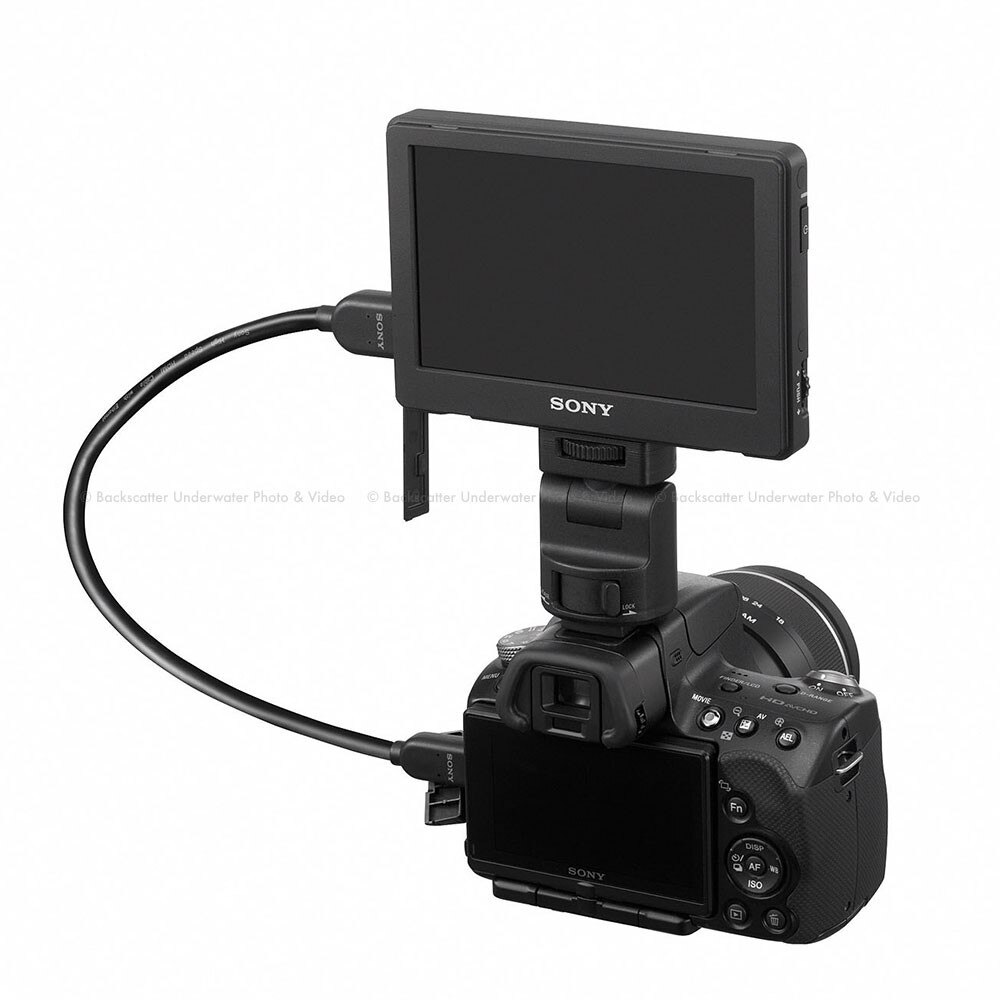

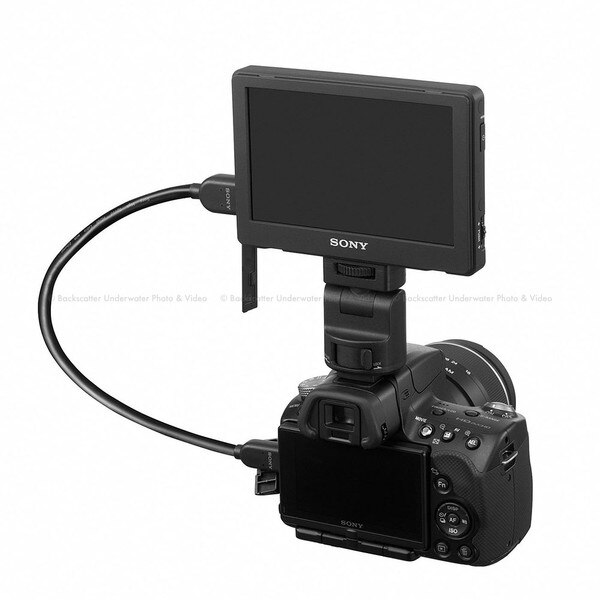

SONY CLM-V55 MONITOR

• SCREEN SIZE: 5 Inches
• SCREEN TYPE: TFT LCD
• VIEWING ANGLE: 90 degrees / 90 degrees
• RESOLUTION: Super dense 1152K Dots / 800x 480 pixels
• FORMAT:
• Auto switching
• 1080 / 720 resolutions
• 16:9 / 4:3 aspect ratios
• PAL / NTSC formats
• CONNECTOR: HDMI
• BURN-TIME:
• 3.6 Hours with NP-FM500 Battery
• FOCUS PEAKING: Easy focus verification in black & white for maximum contrast with red highlights on sharp areas
• CONTROLS:
• Power
• Focus Peaking
• Pixel Magnification
• TV Safe Display Masks
• Brightness
• Contrast
• Color-tone (Hue)
• Backlight
• Color Temperature
• Built-in Speaker Volume
