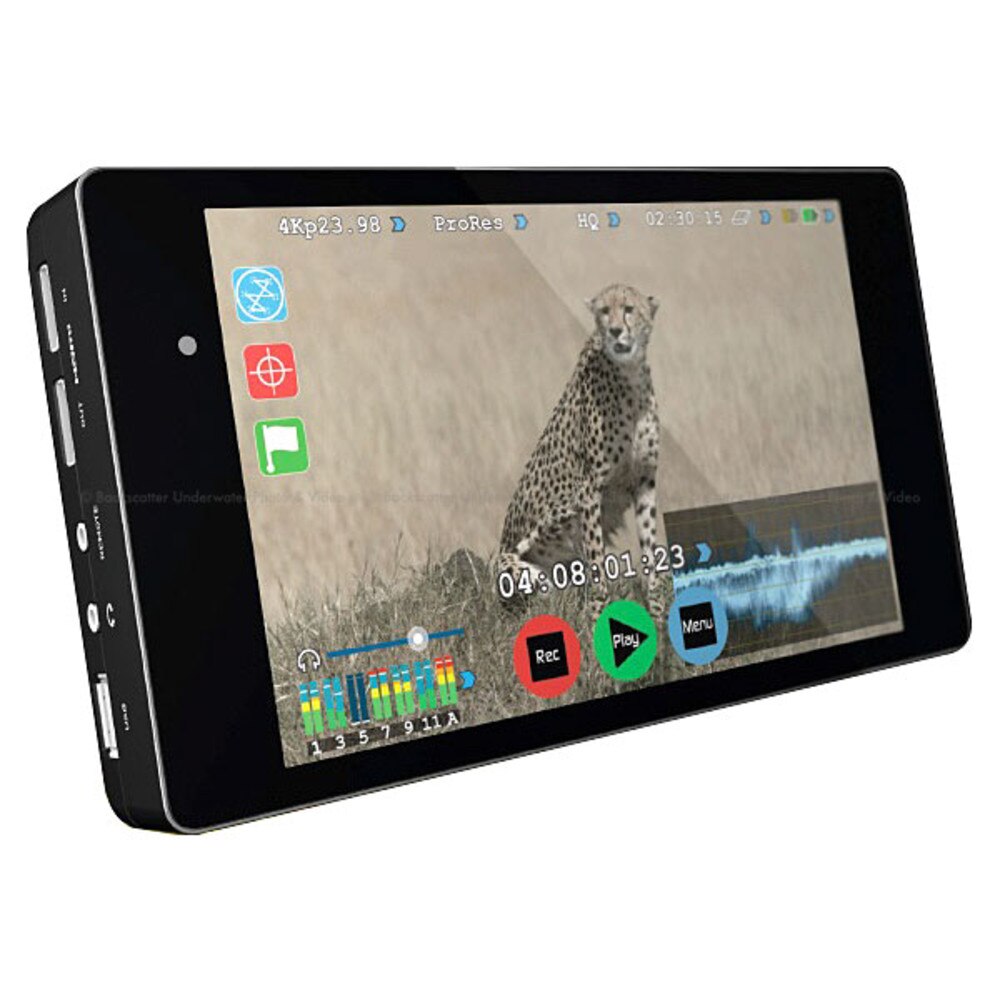

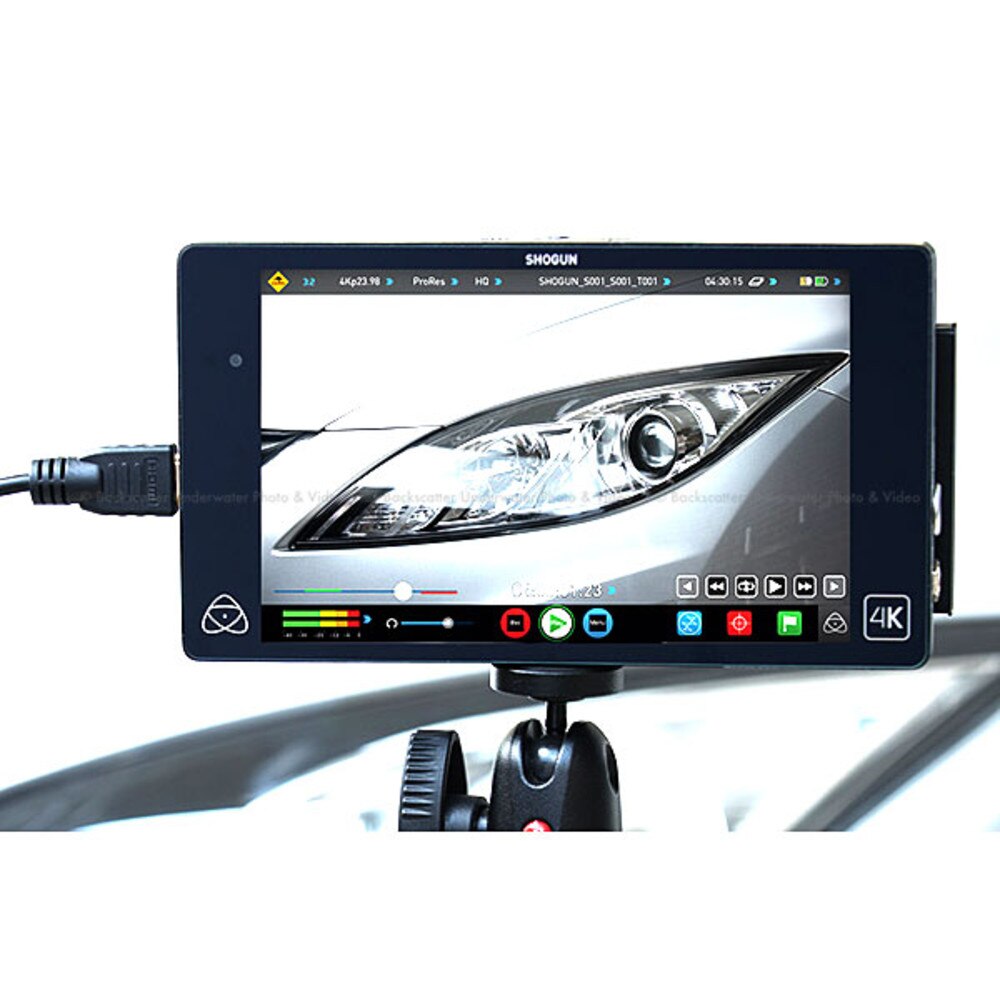

Record straight from the cameras sensor in pristine 4K Apple ProRes or Cinema DNG Raw over HDMI and 12G-SDI. Seamlessly switch between 4K cameras with HDMI to SDI and SDI to HDMI conversion.
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
| SPECIFICATIONS | SHOGUN | |
| Weight | ||
| Without batteries & HDD | 720g/25oz (without batteries & HDD) | |
| With batteries & HDD | 994g/35oz (with batteries & HDD) | |
| Dimensions (W x H x D mm) | 196 x 110 x 47mm | |
| Construction | High quality lightweight ABS Polycarbonate for durability & portability Heat pipe cooling technology | |
| Power | ||
| Operating power | 6.8W - 11W | |
| Compatible batteries | NP series, D-Tap and supporting accessories (Nikon ENL6, Canon EL6) | |
| Input voltage (battery) | 6.2V to 16.8V | |
| Battery time (based on 7.4V) | 2600mAh - up to 3hrs 5200mAh - up to5hrs 7800mAh - up to 8hrs | |
| DC Out | DC Out 5A Max (via optional Powerstation) | |
| Continuous power * Patent pending | via optional Power station | |
| Powerstation continuous power dual supply | Optional | |
| Touchscreen | ||
| Size | 7.1 | |
| Resolution | 1920 x 1200 | |
| PPI | 320 | |
| Aspect ratio | 16:9 native | |
| Color standard | REC709 HDTV | |
| Native frame rate playback | 48-60Hz | |
| Technology | SuperAtom IPS panel (capacitive touch) | |
| Video input/loop out | ||
| HDMI | 1 x HDMI (1.4b) | |
| SDI | 1 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) | |
| Signal | Uncompressed 10/8bit 4:2:2 (camera dependent) | |
| Video output (play out) | ||
| HDMI | 1 x HDMI (1.4b) | |
| SDI | 1 x 12G HD/SD-SDI (SMPTE) | |
| Signal | Uncompressed 10/8bit 4:2:2 (Playback file dependent) | |
| Supported loop out formats | ||
| HDMI to HDMI | 1280 x 720p 50/60/120, 1920 x 1080i 50/60 1920 x 1080p 24/25/30/50/60/120, 3840 x 2160p 24/25/30 | |
| SDI to SDI | 720p 50/60, 1080i 50/60 1080psf 24/25/30/50/60/120 1080p 24/25/30/50/60/120 2160p 24/25/30 | |
| Video signal conversion | ||
| HDMI to SDI | 720p 50/60, 1080i 50/60, 1080p, 24/25/30/50/60/120, 2160p 24/25/30 | |
| SDI to HDMI | 720p 50/60, 1080i 50/60, 1080p, 24/25/30/50/60/120, 2160p 24/25/30 | |
| Supported formats (in/out) | ||
| 4K | 3840x2160 - 30p/25p/24p | |
| HD - high frame rate | 1080p120, 1080p60/50, 720p120 | |
| HD | 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94, 720p50, SD 480i, 576i | |
| Realtime hardware encoding | ||
| 4K-UHD 3840x2160 8/10-bit 4:2:2 to | Apple HQ 422 LT | Lossless Cinema DNG (data rate camera dependent) |
| 1920x1080 8/10-bit 4:2:2 to | Apple HQ 422 LT | DNxHD 220/220x 145 36 |
| Onboard processing | ||
| 50i from 25PSF > 25P (2:2 Pulldown) 60i from 30PSF > 30P (2:2 Pulldown) 60i from 24P > 24P (3:2 Pulldown) 60i from 23.98P > 23.98P (3:2 Pulldown) | ||
| Audio input (48kHz PCM audio) | ||
| Analog Line | - | |
| HDMI | 2 or 8 Ch 24 bit, Camera dependent | |
| SDI | 12ch 24bit | |
| XLR | 2ch balanced analog. Line +24dBu / mic -40 dBu. 96 dB SNR, analog input gain software controllable | |
| Audio output (48kHz PCM audio) | ||
| Analog line / Headphone | - | |
| HDMI | 2 or 8 depending on 8 | |
| SDI In | 12ch 24bit | |
| Balanced Line (XLR) | 2ch balanced analog. Line +24dBu / mic -40 dBu. 96 dB SNR, analog input gain software controllable | |
| Mic Level | -40db Analog Gain, Line +24dB | |
| Remote start/stop | ||
| HDMI | Auto HDMI Trigger Supported Protocols - Canon, Sony, Atomos Open Standard | |
| SDI | SDI Trigger Camera Selectable | |
| Other | LANC control - Master and Slave | |
| Recording | ||
| Supported media (Approved List Only) | 4K / HD (50/60/120p) CFast SSD 2.5 Raided HDD (5,400 to 10,000rpm) | |
| Master caddy case | Master Caddy 2 (included) 75mm x 105mm x 12mm Raided disc caddy (optional) 75 x 115 x 25 | |
| Master caddy dock | 2.5 SATA to USB 2.0/3.0 | |
| Supported applications | Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015+ | |
| Accessories included | Main unit, AC Adapter, Master Caddy 2 x 5, Battery x 1, Battery charger, Lemo to XLR cable, Docking station, Rugged carry case, GH4 battery plate, A7s battery plate | |
| Optional extras | Sunhood, Master Caddy 2 Raid, Powerstation, D Tap adapter, CFast adapter | |
| Our future proof platform (Powerful Generation 2 Processor, Sata 3 @ 6Gb/s, Large FPGA with upgradability) is designed for the following in the future | 12G-SDI 4KP60/50 Support 4:4:4 10bit 3D LUTs FS700 RAW decode Full 4K - 4096 x 2160 support | |
