Atomos Shogun Inferno External Recorder/Player/Monitor

Set your set ablaze with Shogun Inferno, the ultimate 7" HDR monitor/recorder. Record ProRes RAW, ProRes, DNxHR or CDNG.

Record ProRes RAW

Unlock the true potential of your RAW cinema camera with the Shogun Inferno. Preserve your sensor’s pristine pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Inferno is compatible with the Sony FS series, Canon C300MKII/C500 or Panasonic EVA-1/Varicam LT.

10-bit ProRes/DNxHR up to 4Kp60

Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera’s capability.

The depth and quality of the image are preserved with data rates of up to 1.8Gbs, 220MB/s.

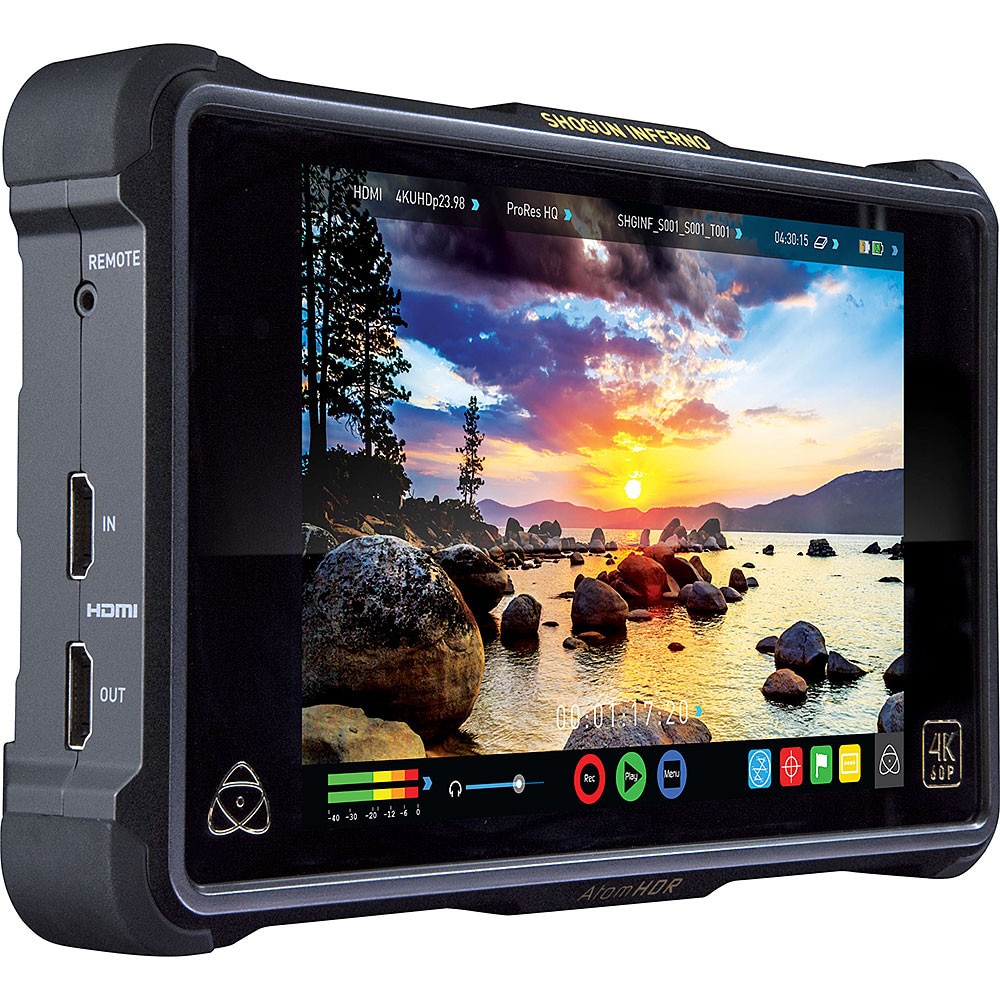

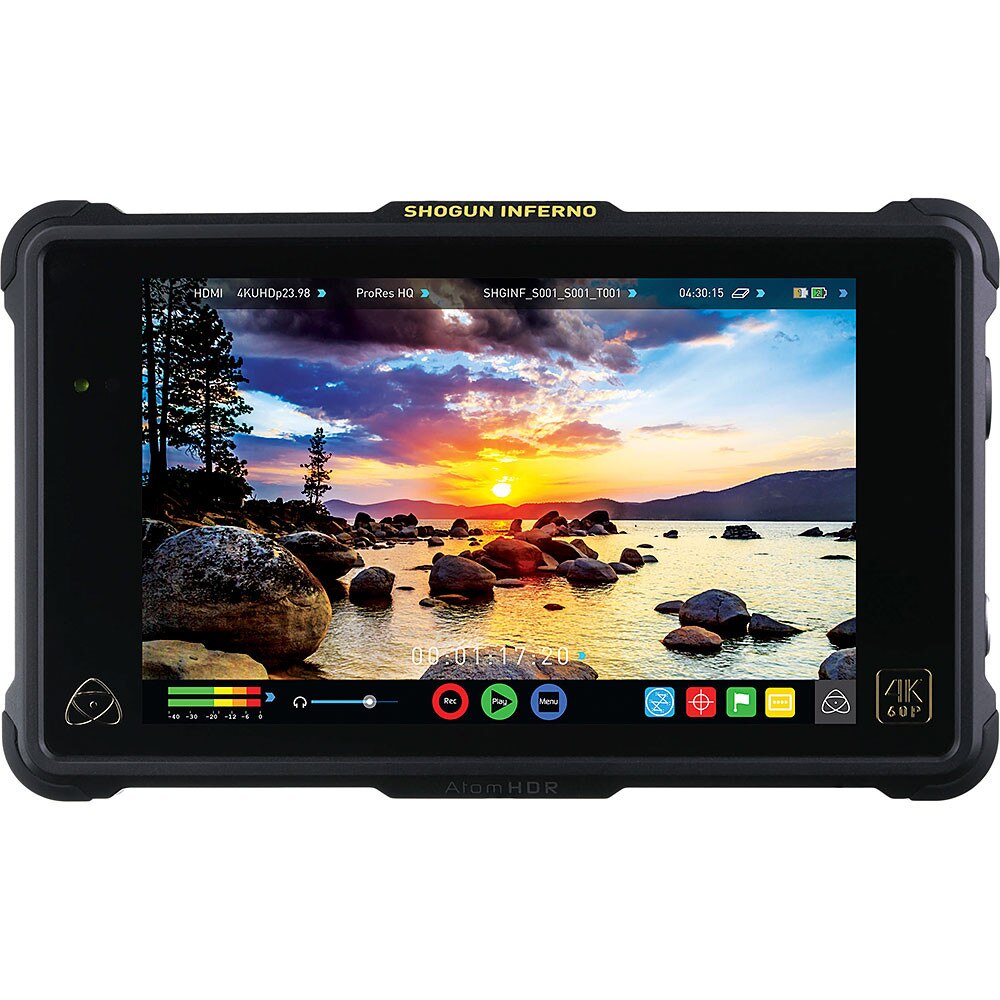

Bright, vibrant HDR images anywhere

The 7” 1920x1200 1500nit high bright HDR display allows you to see your images with unparalleled accuracy. Nail focus and exposure, even outside in daylight. The AtomHDR panel shows 10+ stops of HDR resolved in real-time from RAW/Log/PQ/HLG sources.

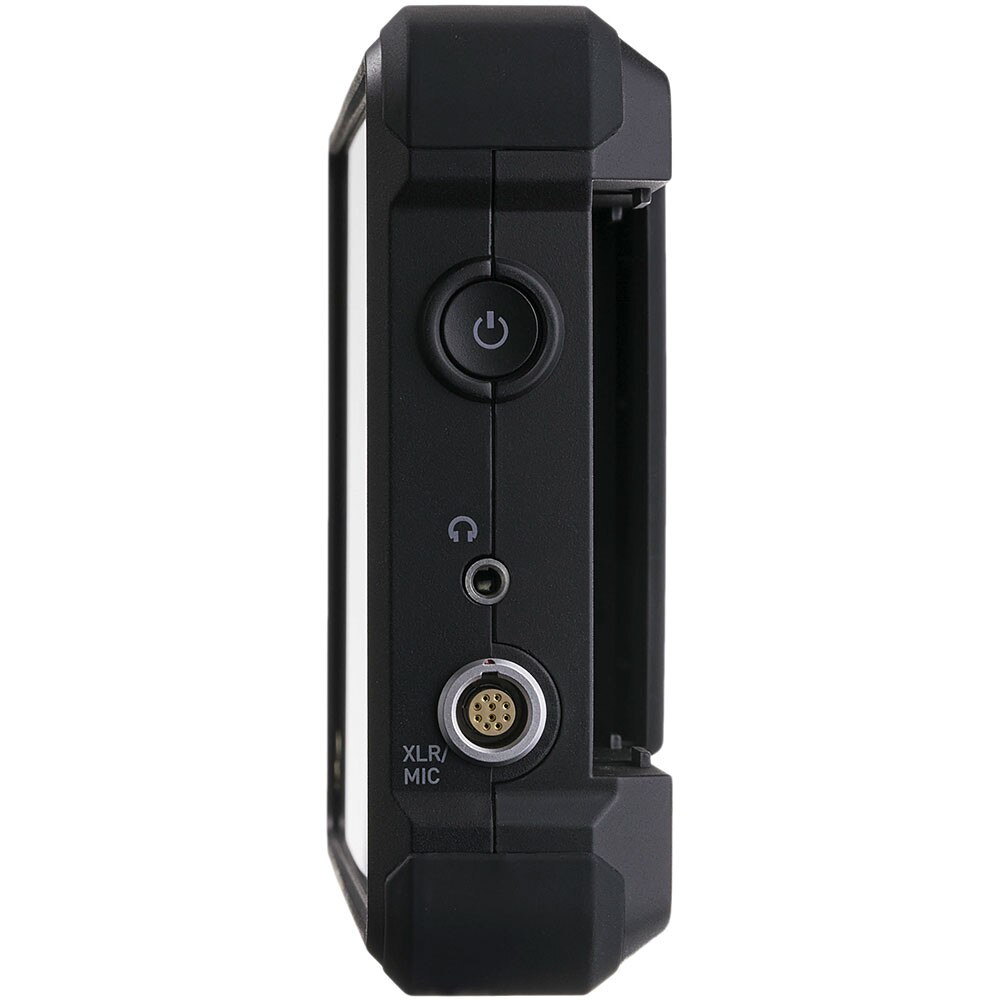

Balanced XLR Monitor & record

Eliminate the need for a separate audio recorder. Add 48V stereo mics via the balanced XLR breakout cable. Select Mic or Line input levels, record up to 12 channels of digital audio from HDMI or SDI. Monitor selected stereo via the 3.5mm headphone jack. There are dedicated meters, gain controls and adjustments for frame delay.

Professional monitoring tool

Shogun Inferno has extensive monitoring tools, including custom 3D LUTs, false color, peaking, movable 1-1 and 2-1 pixel magnification, waveform, RGB parade, vectorscope. You can even calibrate for color accuracy.

Portable Playback Deck

The ultimate battery-powered playback deck, review, and playout footage anywhere - scrub through, jog frame-by-frame and even watch back in slow motion. Metadata tag footage as you go to mark favorites, rejects and more. Bring your footage into your timeline and immediately filter your tags.

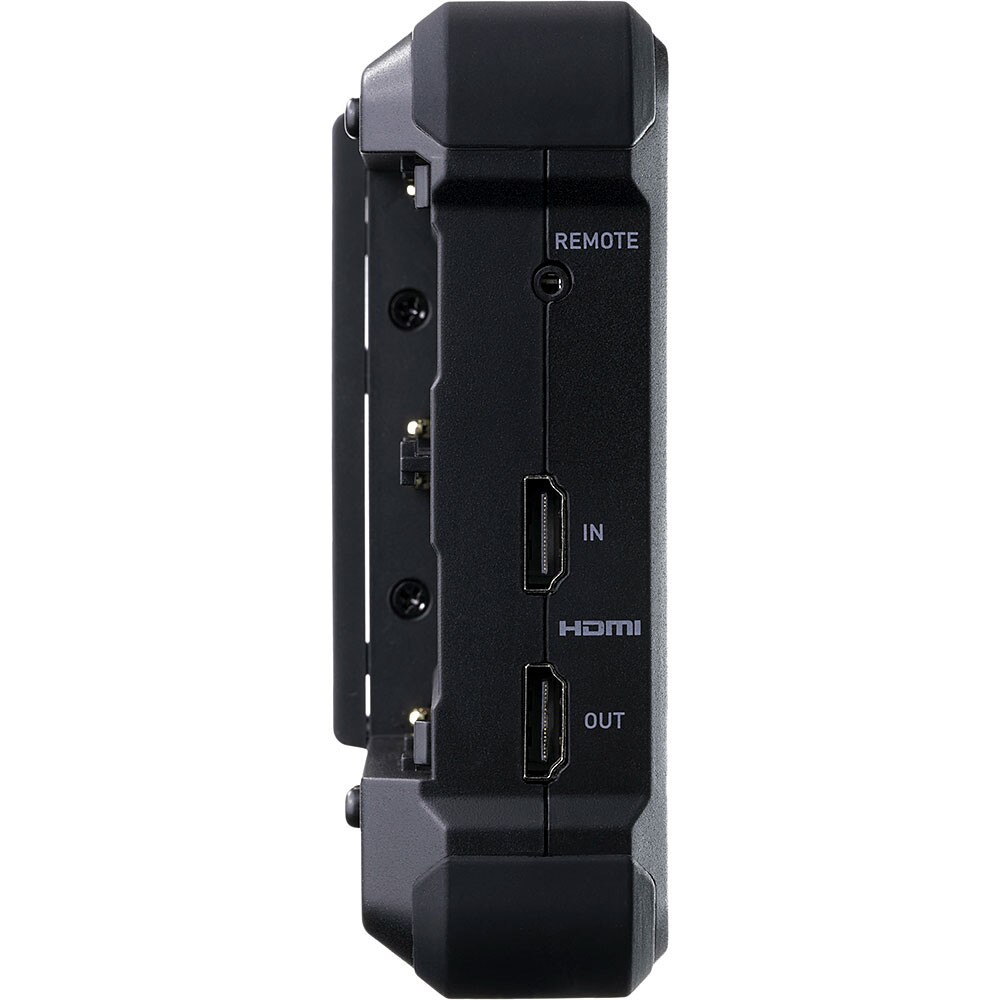

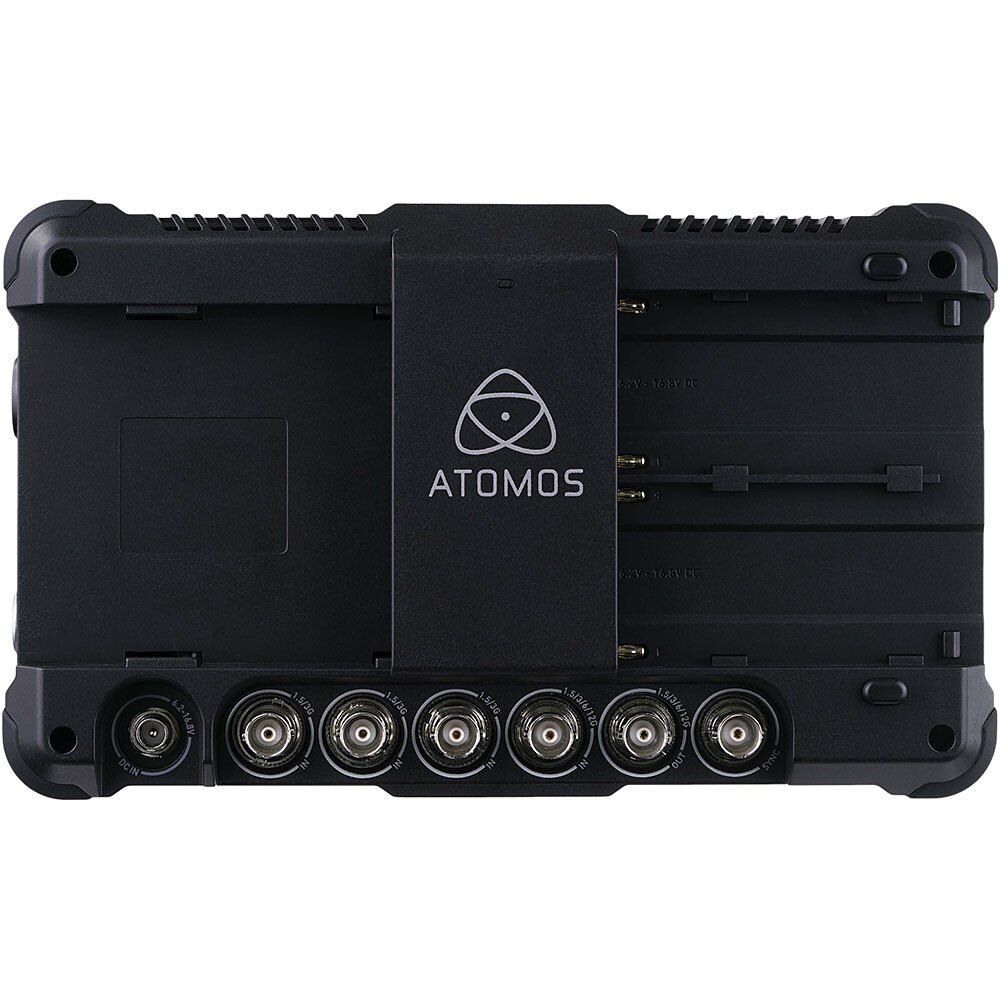

Quad SDI & HDMI 2.0 In/Out

Seamlessly connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink SDI in almost any combination and eliminate the need for specialist converters.

Edit HDR in the field

After shooting, immediately feed HDR into your Shogun directly from your Final Cut Pro X timeline using an I/O box for mobile HDR grading. We support any NLE or Grading suite that supports our file formats - basically all of them!

Atomos Shogun Inferno with Panasonic EVA1 on set with 360

We recently teamed with Australian hip hop emcee 360 for the filming of his new video. For this production, we used the Atomos Shogun Inferno with a Panasonic EVA1. Watch the behind the scenes clip to see how we utilized the Shogun Inferno and EVA1 together with Sumo 19 and more.

Specs:

Weight

• Without batteries & media: 709g / 25.0oz
• With batteries & media: 1153g / 40.7oz
• Dimensions (W x H x D mm): 214 x 127 x 45mm, 8.4 x 5 x 1.8”
• Construction: High quality lightweight ABS Polycarbonate for durability & portability
• Built-in armor protection

Power

• Operating power: 10 - 33W
• Compatible batteries: NP-F series and supporting accessories
• Input voltage (battery): 6.2V to 16.8V
• Battery time (based on 2 x 7.4V): -
• 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
• 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
• DC In: 1 x DC in (6.2 - 16.8V)
• Continuous power: Primary-secondary battery system.
• Change batteries without losing power
• Loop batteries continuously

Touchscreen

• Size: 7.1”
• Resolution: 1920 x 1200
• PPI: 325
• Aspect ratio: 16:9 native
• Color Gamut: REC709 HDTV
• Look up table (LUT) support: 3D LUT (.cube format)
• Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
• Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR

• AtomHDR: Yes
• Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
• Supported Gamuts:
• Sony SGamut / SGamut3 / SGamut3.cine
• Canon Cinema / BT2020 / DCI P3 / DCI P3+
• Panasonic V Gamut
• Arri Alexa Wide Gamut
• Bit depth: 10-bit (8+2 FRC)
• Brightness: 1500nit (+/- 10% @ center)
• HDR input (PQ/HLG)Yes / Yes
• HDR output (PQ/HLG): Yes / Yes

Video-Input/Loop Out

• HDMI: 1 x HDMI (2.0)
• SDI: Quad link 4 x 3G SDI* or up to 12G single link SDI
• Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)

• HDMI: 1 x HDMI (2.0)
• SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
• Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Loop Out Formats

• HDMI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60
• SDI to SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60

Video Signal Conversion

• HDMI to SDI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60
• SDI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60

Onboard Processing

• Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
• 4K UHD downscale for HD monitoring: Yes - Loop-out and playback (Not available in RAW)

Audio In/Out (48kHz PCM Audio)

• HDMI: 2 or 8ch 24-bit, camera dependent
• SDI: 12ch 48kHz 24-bit
• Audio: 2ch balanced XLR analog in/out, Dynamic range >90dB, Max signal level +24dBu, Max analog gain +52dB, 48V Phantom Power for Mic

Remote Start/Stop

• HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard
• SDI: SDI trigger camera selectable
• Other: LANC control - Slave

Playback

• Playlist / Genlock / LTC: Yes / Yes / Yes
• CDNG (Recorded content): No support
• ProRes (Recorded content): All recorded files can playback. Playback in slow motion >= 100fps
• DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >= 100fps

Recording

• Pre-roll record: Yes (HD 8s, 4K 2s)
• Custom timelapse: Yes
• Metadata tagging: Yes (10 tags available)
• Supported media: 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
• Master caddy case: Master Caddy II (included), 75mm x 105mm x 12mm
• Master caddy dock: 2.5” SATA to USB 2.0/3.0
• Supported applications: Supported Applications FCPX/FCP7+ / Media Composer, 5.0+ / Premiere 5.5+, EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
• XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
• Accessories included: Shogun Inferno unit, Master Caddy II x 1, 12V-3A AC power supply, Breakout XLR cable
