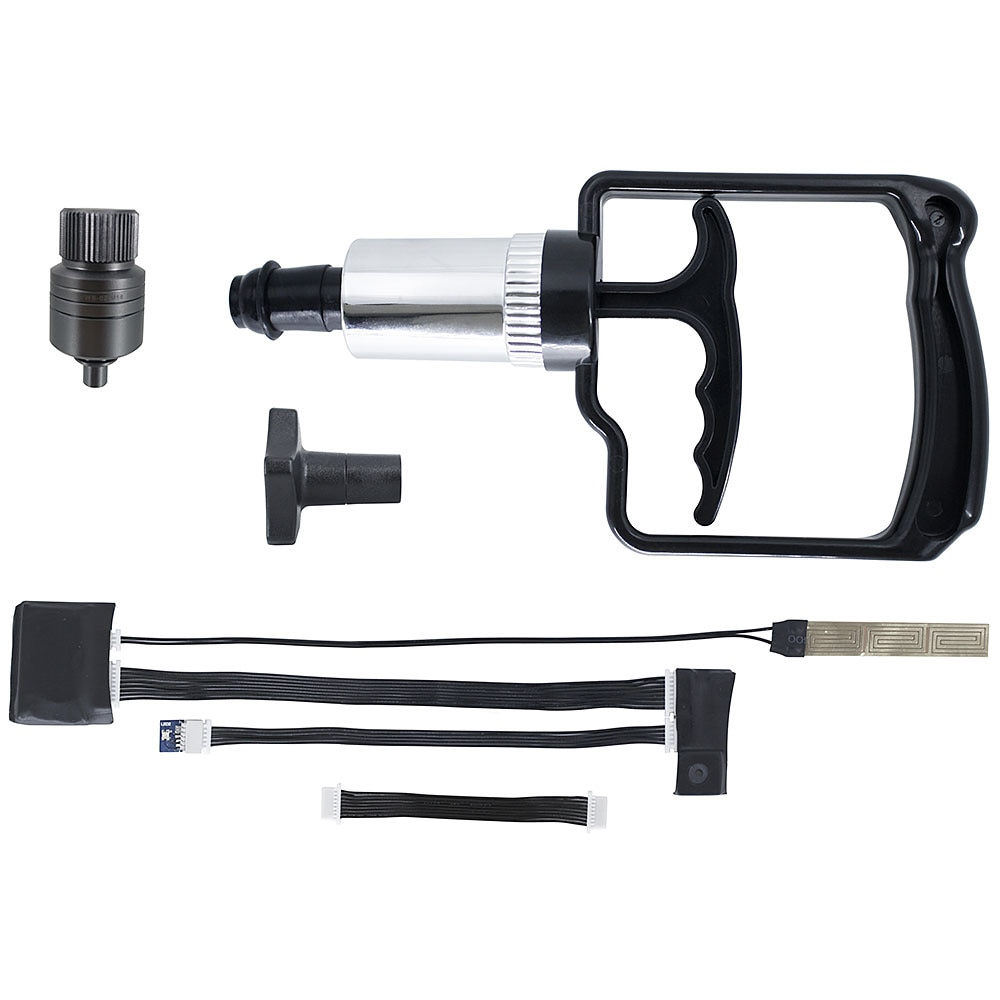

AOI VWS-02-M16 Vacuum Analyzation & Wet Detection System Kit

SPECS:

• Model: VWS-02-M16
• Description: Vacuum Analyzation & Wet Detection System Kit
• Valve Fastening: M16
• Valve Material: Black Anodized Aluminum Alloy
• Depth Rated: 100M / 330Ft
• Charging Time: 1.5 Hours
• Charging Port: 5V, 0.3A Micro-USB charging Port
• Power Switch: Sliding ON / OFF Switch
• Operation Time Per Full Charge: 4 Days (Powered by 3.7V 110mAH Lithium Polymer Rechargeable Battery)
• Vacuum Analyzing Time: Approx. 4 Minutes
• Wet Detection: All time Operation
• Indicator Signal Output: Piezo Buzzer (Audio Signal)
• Tri-color LED (Blue, Yellow, Red & Green Visual Signals)
• Dimension:
• Vacuum Valve: Φ 22 x 34 mm (H)
• Main Unit: 28mm(L) x 18mm (W) x 7 mm (H)
• Signaling & Charging Unit: 30 mm (L) x 14mm (W) x 7 mm (H)
• Long Connection Cable: 140 mm (L) x 5 mm (W)
• Short Connection Cable: 75 mm (L) x 5 mm (W)
• Extension Visual Signal Board Cable: 120 mm (L) x 3 mm (W)
• Weight: Vacuum Valve: 16.5 g
• Wet Detection: 5.5 g
• Power Source: 2.8 g
• Accessories: Vacuum Pump
• Multi Purpose Key
