  • AOI UWL-03PROII Wide Angle Lens for Action Cameras & Smartphones
GoPro / Lenses / Wet Lenses /

AOI UWL-03PROII Wide Angle Lens for Action Cameras & Smartphones

  • 140° Underwater Angle of Coverage
  • AOI Bayonet QRS-2 Lens Mount Included
  • M55, M52 & M46 Mounts Sold Separately
  • Glass Dome Element
  • Black Shade
  • Depth Rating: 100m / 330ft

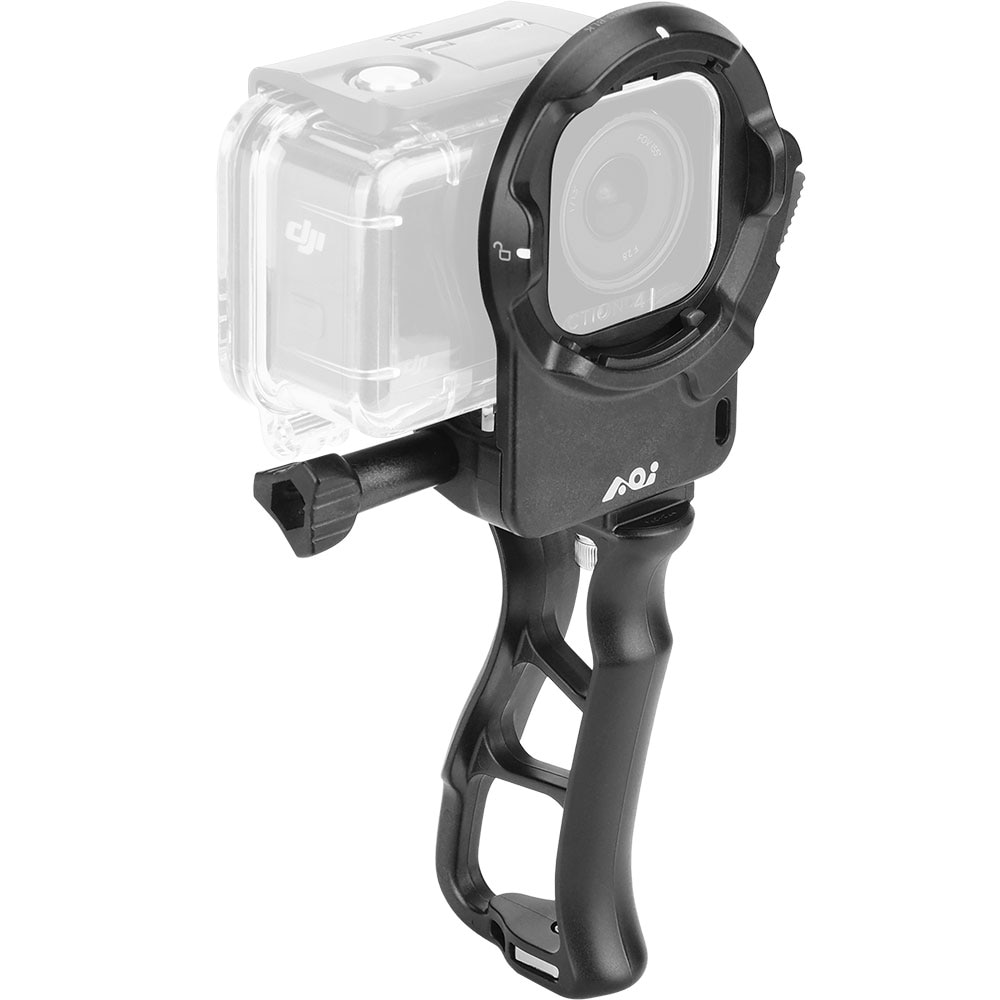

  • QRS-2 Handle & Mount Sold Separately

SKU: # aoi-uwl-03proii

FREE Standard Shipping to USA / Canada!

Price $590.00
Back

Custom Options

Add the Lens Mount Base

Add a Lens Adapter

The UWL-03PRO II lens comes with the QRS Bayonet adapter installed. To thread it onto another housing, add one of these threaded adapters.

Price as Configured


Overview / Product Description

AOI UWL-03PROII Wide Angle Lens for Action Cameras & Smartphones

SPECS:

  • MODEL: AOI UWL-03PROII
  • DESCRIPTION: Underwater 0.73X Wide Angle Conversion Lens Pro Mark II for Action Camera & Phone
  • LENS CONSTRUCTION: 4 Elements in 4 Groups
  • LENS COATING: All Glass Elements with Multi-layers AR Coating Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating
  • FIELD OF VIEW: 140° (underwater) / 150° (on land)
  • MAGNIFICATION: 0.73X (underwater)
  • MOUNTING SYSTEM: Using AOI Quick Release System- 02 (QRS-02) - Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount) - Optional Mounting Adapter in M55, M52 & M46 available
  • DEPTH RATING: 100 Meters / 328ft.
  • LENS BARREL / DOME LENS / LENS HOOD MATERIAL: Aluminum Alloy with Black Hard Anodized / Glass Lens / Polycarbonate
  • WEIGHT (ON LAND / UNDERWATER): 400g / 14.1oz (on land) - 200g / 7.1in (underwater)
  • DIMENSIONS: 99mm (D) X 40.3mm (H) / 3.9oz (D) X 1.6in (H)
  • ACCESSORIES Dome Lens Hard Cover (AOI DHC-02) & Rear Lens Cap (AOI QRS-02-RC1), Lens Secure Line, Lens Pouch
