  • Ikelite 200DL Underwater Housing for Nikon D500 DSLR Camera
Ikelite 200DL Underwater Housing for Nikon D500 DSLR Camera 200' (60m) depth rating Supremely functional for maximum creative controlaccess is provided for all important camera functions Extra-large, soft touch zoom knob next to the left handle The NEW Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses Vacuum valve included (pump sold separately) Flash bulkhead connector for manual exposure with most popular underwater strobesIkelite, 200ft, Underwater, Housing, with, DL, Port, Mount, for, Nikon, D500, DSLR, Camera, 200dl

Ikelite 200DL Underwater Housing for Nikon D500 DSLR Camera

<ul> <li>200' (60m) depth rating</li> <li>Supremely functional for creative control access</li> <li>Extra-large zoom knob next to the left handle</li> <li>The NEW Dry Lock (DL) Port System</li> <li>Vacuum valve included (pump sold separately)</li> <li>Flash bulkhead connector for manual exposure</li></ul>

SKU: # ike-71005

FREE Standard Shipping to USA / CANADA!

Price $1,595.00

Base Price $

Price as Configured $

Price $1,595.00
Price $1,595.00

Custom Options


Overview / Product Description

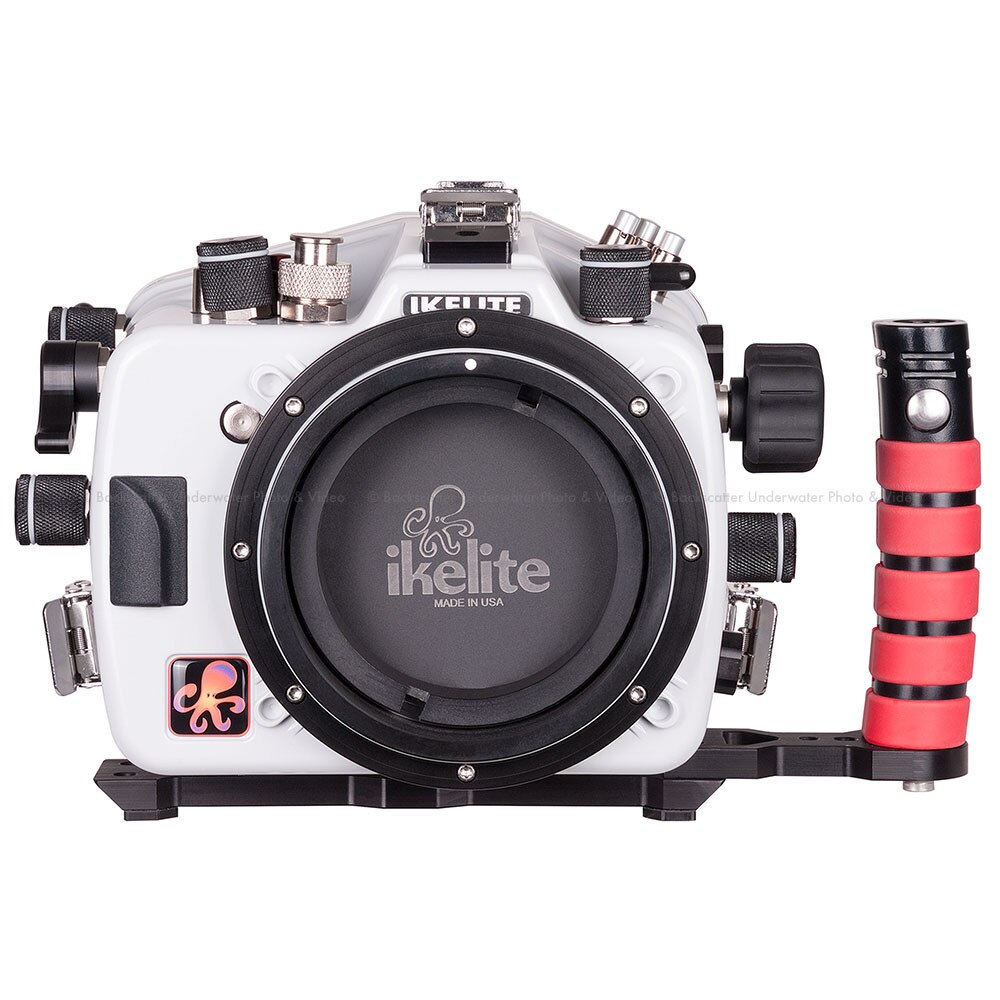

Ikelite 200ft Underwater Housing with DL Port Mount for Nikon D500 DSLR Camera





Product Highlights

  • 200' (60m) depth rating
  • Supremely functional for maximum creative control access is provided for all important camera functions
  • Extra-large, soft touch zoom knob next to the left handle
  • The NEW Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses
  • Vacuum valve included (pump sold separately)
  • Flash bulkhead connector for manual exposure with most popular underwater strobes
  • ABS-PC and Lexan construction is fundamentally corrosion-resistant
  • Made in the USA
  • Each housing is individually inspected for fit and water pressure tested to depth
  • Includes a balanced aluminum base with left-hand quick release handle
  • 1 year limited warranty

Lenses

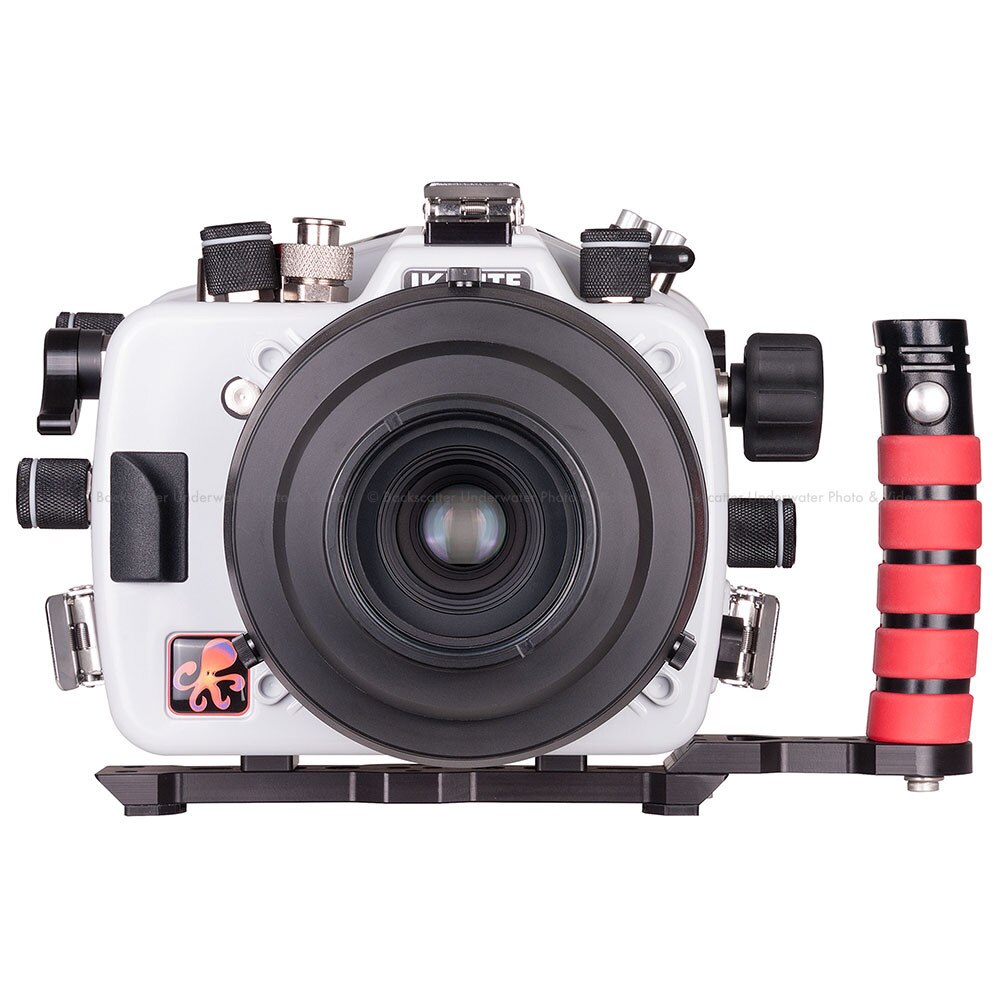

  • Accepts any Ikelite DL-series port to accommodate most popular zoom, macro, and wide angle lenses
  • Zoom is accessible for many lenses when the correct zoom gear is used

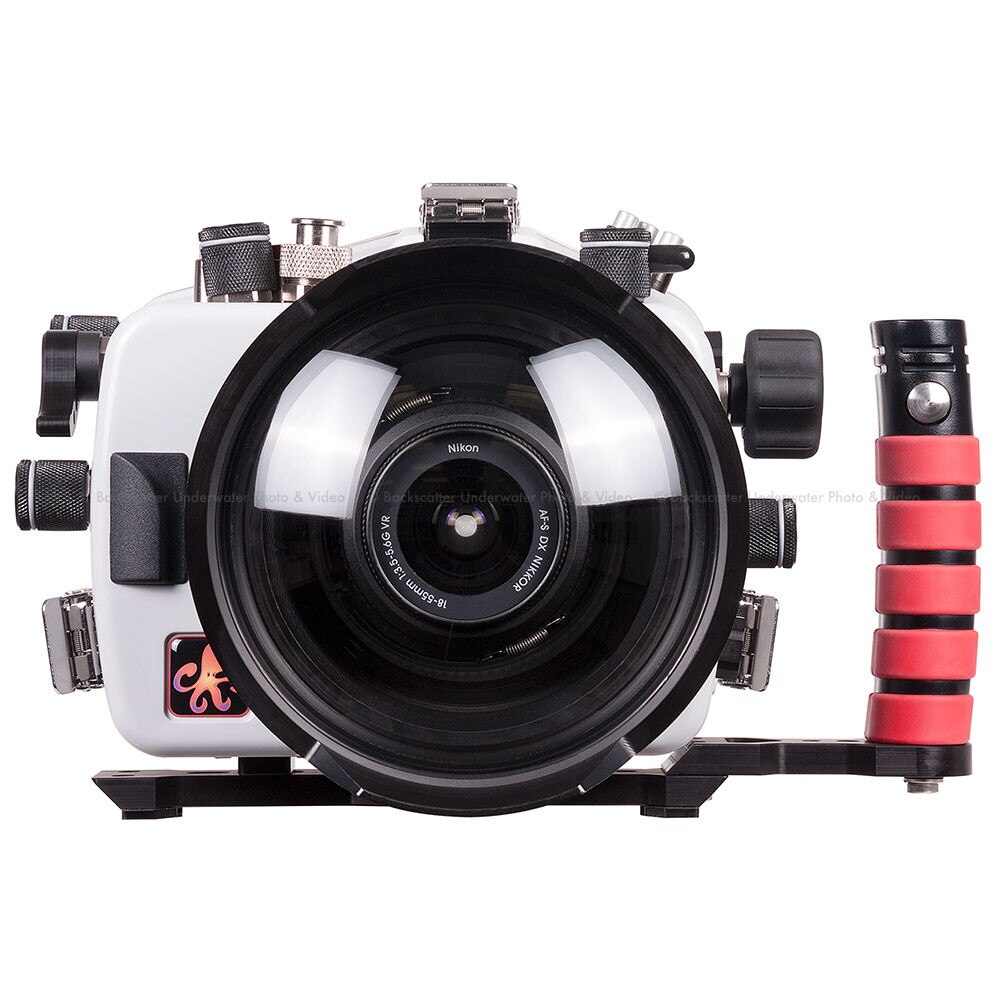

  • Dome ports are recommended for wide angle and zoom lenses under water
  • Flat ports are recommended for macro close-up lenses

Lighting

  • Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes
  • Optional TTL hotshoe and Nikon TTL Converter (Product number 4301.3) provide TTL operation with compatible Ikelite DS strobes

Ergonomics

  • Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel
  • Sensitive new trigger lever is extendable for comfortable use when holding the optional right-hand quick release handle
  • The back is completely clear for an unobstructed view of the camera and o-ring seal
  • Control symbols are laser etched into the back and will never fade or rub off
  • Quick install camera mount plate does not need to be removed for battery or memory card access
  • One spare 1/2-20 threaded accessory mount locations on the front of the housing for the addition of optional accessories

Controls Provided

  • Shutter-release button
  • Power switch
  • Movie-record button
  • Sub-command dial
  • Exposure compensation (+/-) button
  • ISO button
  • MODE button
  • WB button
  • Metering button
  • BKT button
  • Lens release button
  • AF-ON button
  • Main command dial
  • Multi selector
  • Info button
  • Live view selector
  • Lv button
  • Playback button
  • MENU button
  • OK button

What's Included

Optional Accessories

Camera Compatibility

This housing is only compatible with the Nikon D500 DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.



Differences in lens and control placement prevent other Nikon DSLR models from being used in this housing. Ikelite is not aware of any other models which may be used in or adapted to this particular housing.

Specifications

  • 200' (60m) depth rating
  • 1/4-20 thread base mounts with 3.5" spacing
  • Near neutral buoyancy in fresh water
  • Actual buoyancy varies depending on choice of lens and port
  • Weight 5.1 lb (2.3 kg) not including tray + handles
  • Dimensions 9.2 x 7.1 x 6.6" (234 x 180 x 168 mm) including projections

Spare Parts





Side-by-Side Comparison

Three housing versions are available to suit the Nikon D500 DSLR camera. All versions feature:
  • Controls for Shutter-release button, Power switch, Movie-record button, Sub-command dial, Exposure compensation (+/-) button, ISO button, MODE button, WB button, Metering button, BKT button, Lens release button, AF-ON button, Main command dial, Multi selector, Info button, Live view selector, Lv button, i button, Playback button, Trash button, MENU button, Key/? button, Magnify + button, Magnify - button, OK button, Fn2 button
  • Ikelite ICS-5 bulkhead and manual flash hot shoe
  • Aluminum base with Left-Hand Quick Release Handle
  • A completely clear back for an unobstructed view of the camera and o-ring seal
  • Control symbols laser etched into the back for easy to read labeling that will never fade or rub off
  • A quick install camera mount plate which does not need to be removed for battery or memory card access
  • 1 year limited warranty
200ft Underwater Housing with Four Lock Port Mount50ft Water Housing with Dry Lock Port Mount200ft Water Housing with Dry Lock Port Mount
Model6812.57300571005
PurposeSupport older lens ports for legacy usersLightweight for pool, surf, and use near the surface of the waterFully functional and fully depth rated
Depth Rating200ft/60m200ft/60m Front

50ft/15m Back
200ft/60m
Port SystemLegacy Four Lock (FL)NEW Dry Lock (DL)NEW Dry Lock (DL)
Vacuum SystemOptionalIncludedIncluded
Additional Controls
  • i button
  • Trash button
  • Key/? button
  • Magnify + button
  • Magnify - button
  • Fn2 button
  • None
  • i button
  • Trash button
  • Key/? button
  • Magnify + button
  • Magnify - button
  • Fn2 button
Spare 1/2-20 Threaded PortsTwoOneOne
ViewfinderSuperEye Viewfinder

Optional Straight or 45_ Magnified Viewfinder
Glass Viewfinder

Optional Straight or 45_ Magnified Viewfinder
SuperEye Viewfinder

Optional Straight or 45_ Magnified Viewfinder
US MSRP$1,395$1,395$1,595
Full DetailsSee the 200ft Housing with Four Lock MountSee the 50ft Water Housing with DL MountSee the 200ft Housing with DL Mount
