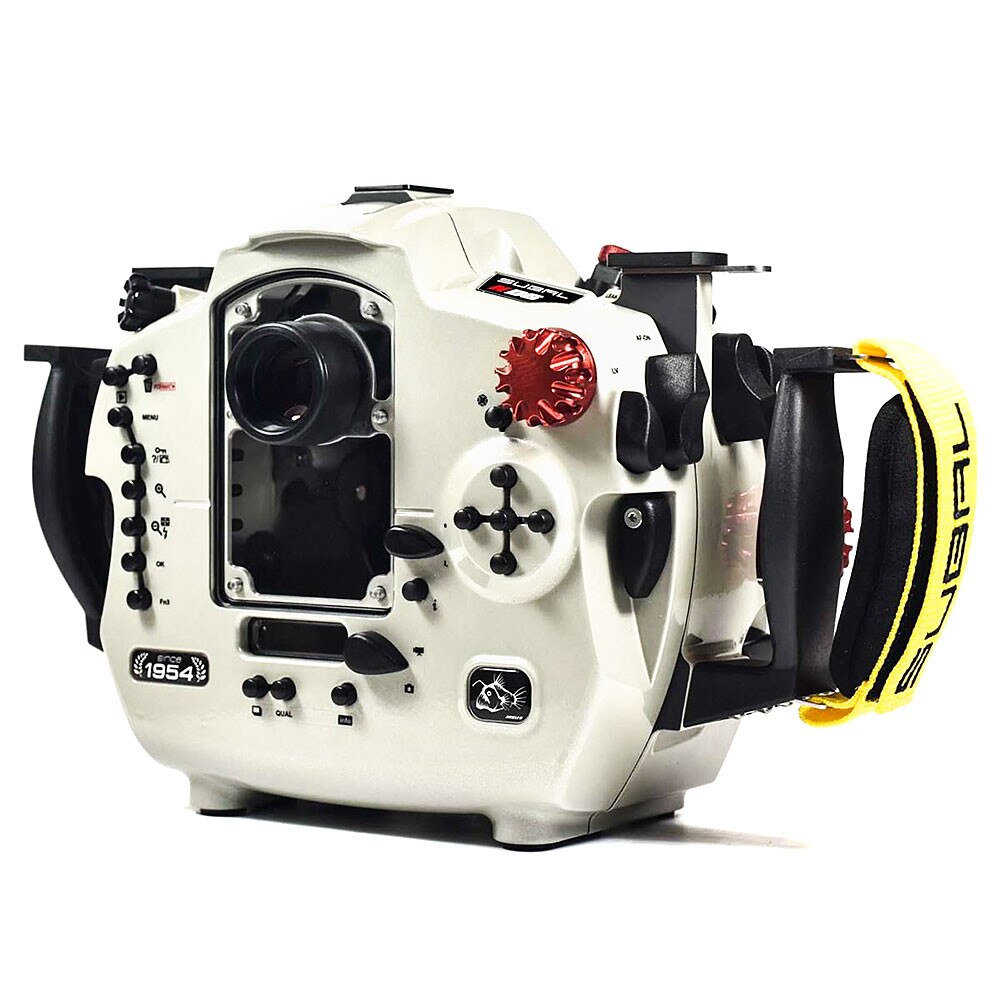

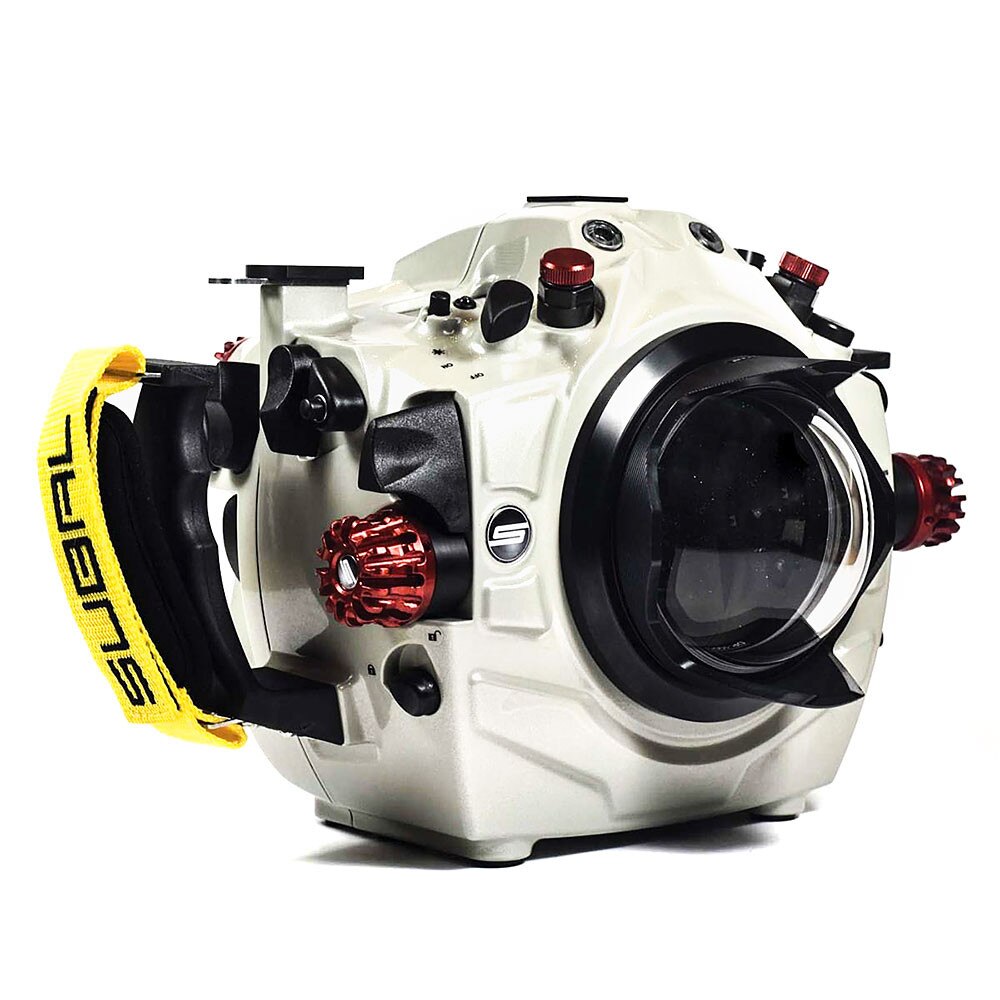

Subal Nikon D6 Underwater Housing ND6

With the SUBAL ND6 for the Nikon D6, SUBAL offers Nikon cameras an aluminum housing for the latest development of the compact full-frame.

SUBAL ND6 is a new design and engineering masterpiece. Housing provides access to all functions and buttons of the Nikon D6 camera. The ergonomic SUBAL design and arrangement of all important elements of the housing allow the camera an easy operation without letting go of the handle. The camera is mounted on a special sled, to mount the camera with precision in the housing, this allows a faster and secure mounting. A 4mm O-ring and the SUBAL QuickLock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow attaching Rails etc. Pilot lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast insight on the camera monitor. Material selection, processing, surface protection, and finish conform to the usual standard level of quality that is all the SUBAL products. SUBAL offers for this housing model 4 different search systems: the standard viewfinder slimmed reduces the viewfinder image, so that it can fully be overlooked despite a diving mask. The GS 180 and the 45° viewfinder offer a viewfinder in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45°. The new Prism Finder PS-30 shows the camera monitor image at the same size at a viewing angle of 30°. The insight is with normal reading distance, which is why the PS-30 is ideal for video recording that Nikon D6 has in 4K resolution. All Subal viewfinders systems are interchangeable and can be mounted easily by the user. All SUBAL ports with bayonet mount on this case can be used.

Also, this housing has a plug-in system for installing the camera into housing - there is no need for any setting of the camera before putting it into housing. With this self-adjusting system with springs, the only thing that customers should do is fix the camera on the camera tray, and to slide it into housing.

Technical data:

Seawater resistant aluminum alloy worked from the block. Hard Coating and corrosion treatment are applied to the surface of the housing. Also, 3 layers of powder coating paint are applied to give the housing the subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel, and high-quality plastics, to endure all working conditions. SUBAL QuickLock closure system.

Width x height x depth:

Approx. 220 x 231 x 128mm (w/o port and handles)

Accessories:

• On the backside, there is a thin red line for showing the middle of the objective. This is for easy positioning camera when taking photos by SPLIT technique
• 5 pin standard connectors
• Optical connector optional
• TTL V1 system optional for Sea&Sea & Inon strobes
• 16mm thread for vacuum sensor and remote control system
• The ability for connecting with Subal HDMI or SDI monitors
• The ability for using all underwater camera tripods.

Flash arm mounting:

2 x T-plates 25 mm, TLC - or ultralight base optional shoe, top shoe mounting

Transmission and features:

All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, operation voters of types of, AF-lock, AF-ON, port-lock, photo/video switching.

Push buttons for:

Mode, exposure compensation, bracketing, Flash method, AF mode, lock, video start/stop, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, microphone, multifunction button, info, live view. AF-on, PV, FN, AF mode

Specs:

• Maximum depth: 80m/260ft
• Weight: Approx. 3.5kg / 7.7lbs (without port and accessories)
• Weight in water: nearly neutral (depending on the port and accessories)
