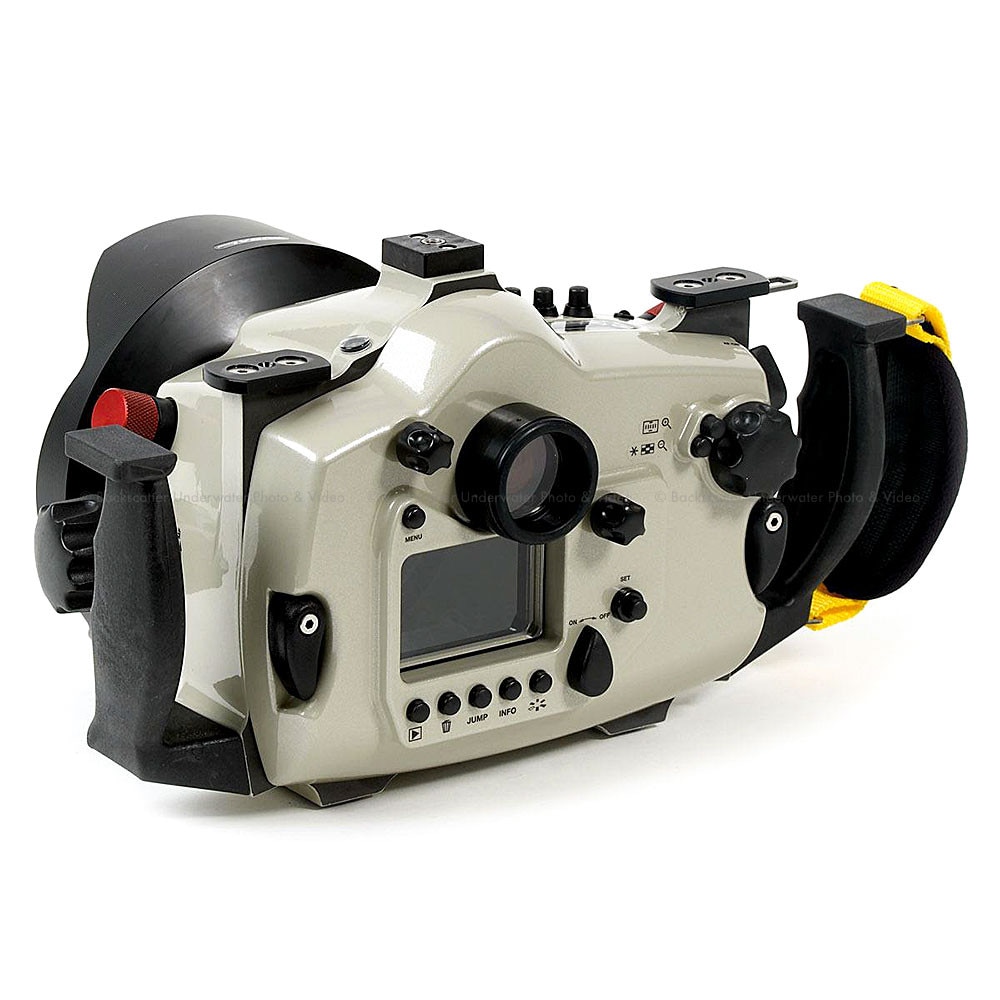

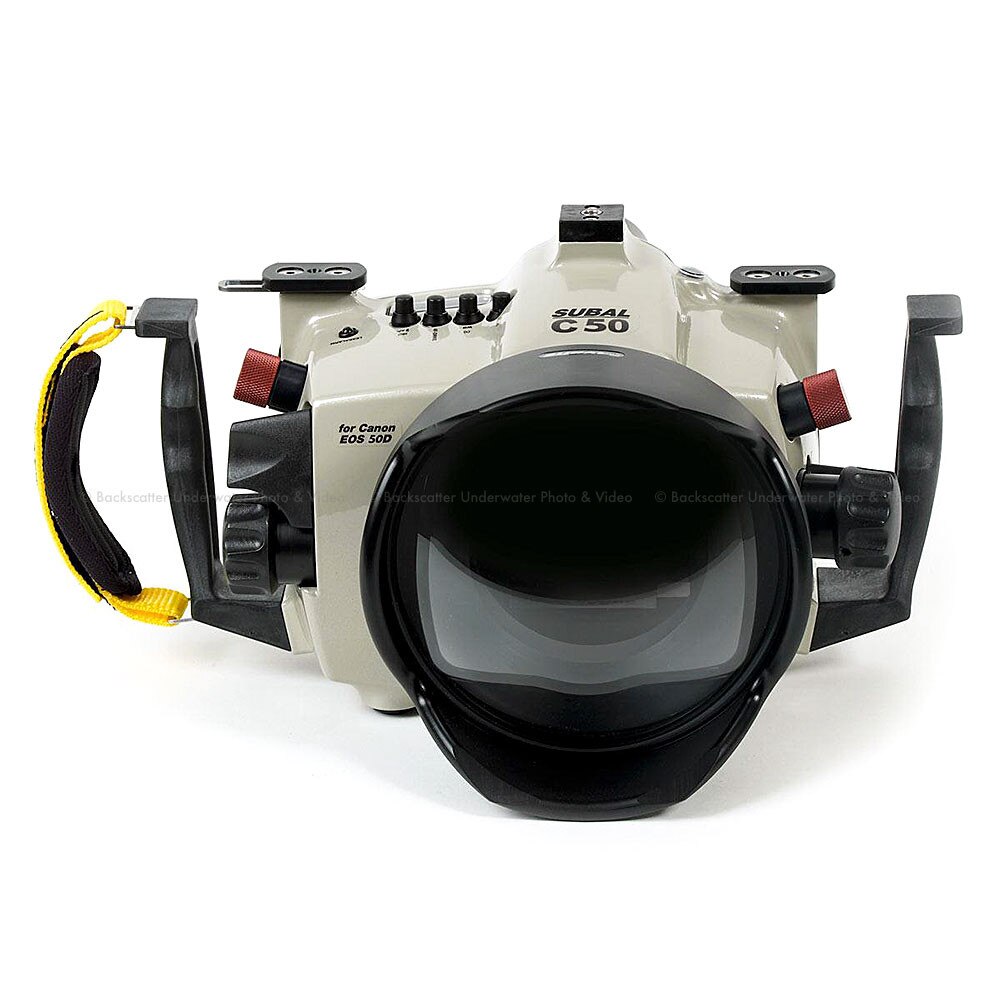

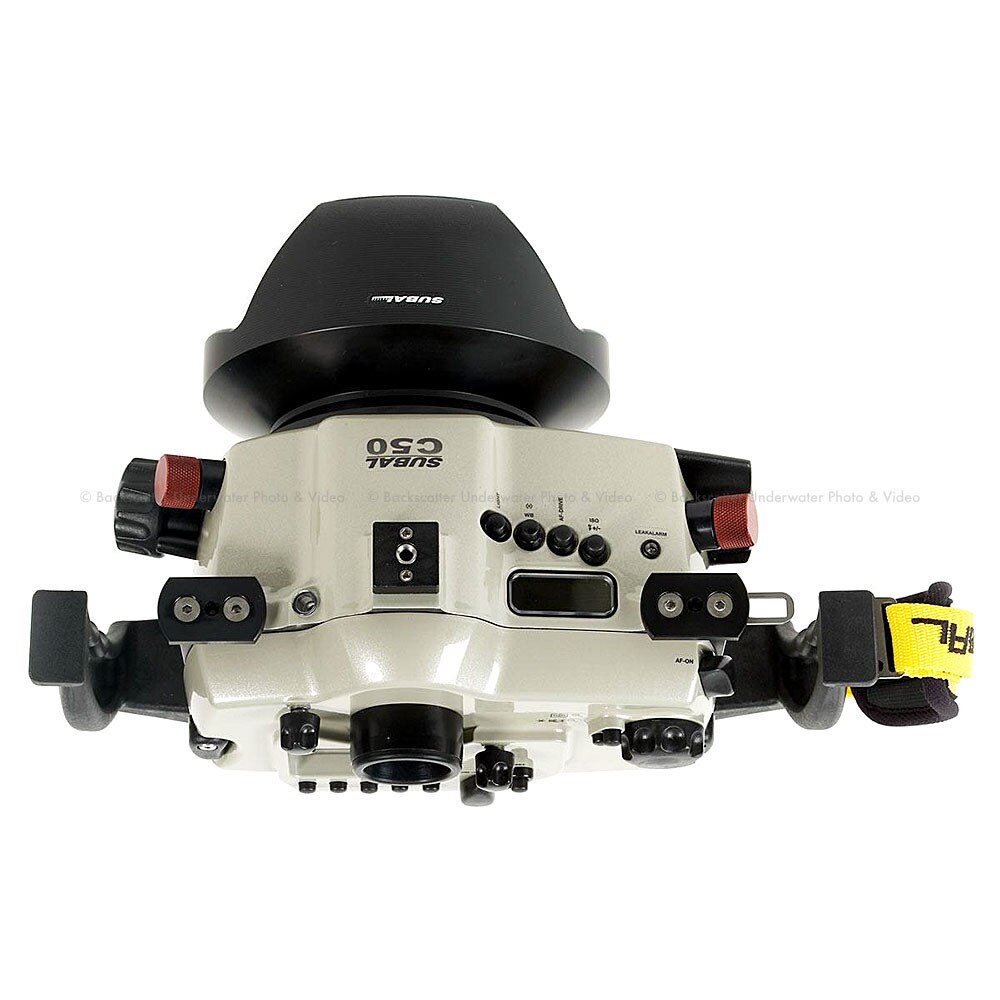

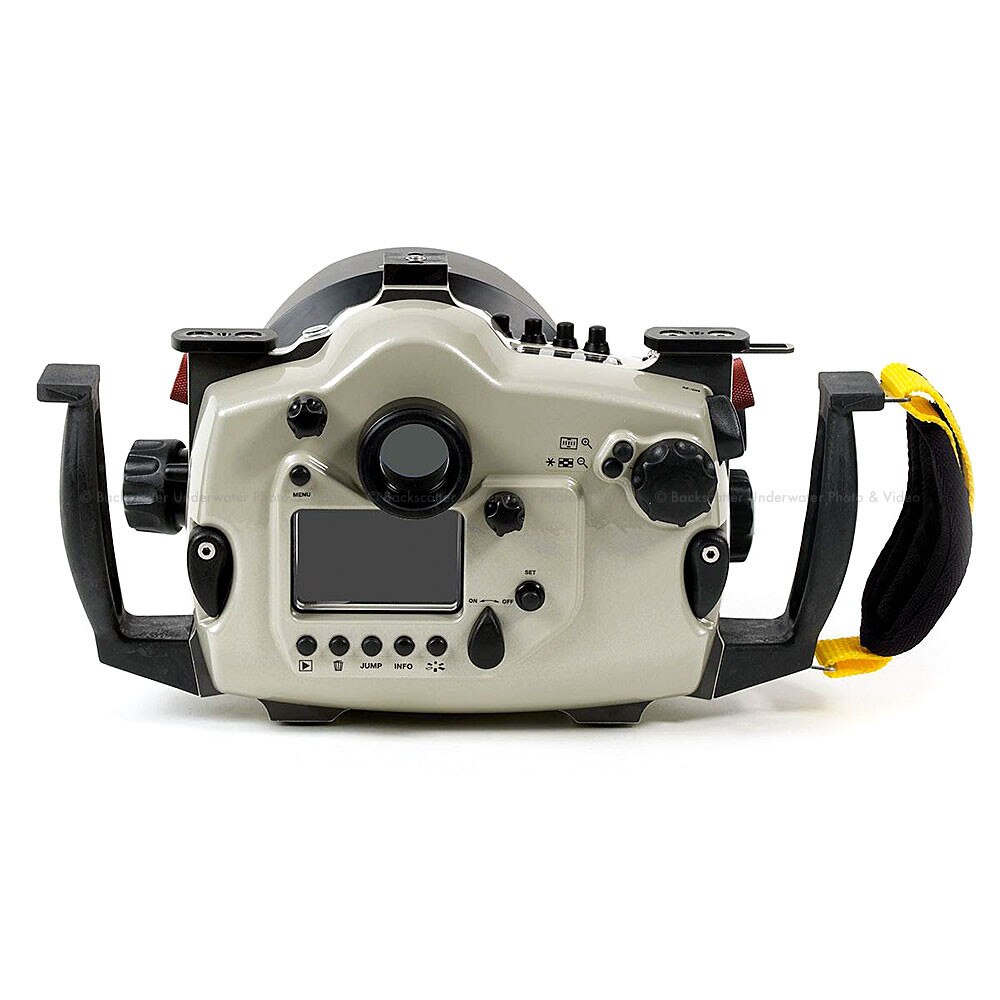

Subal C50 Underwater Housing for Canon EOS 50D DSLR Camera
With the SUBAL C50, SUBAL complements its successful range of aluminum enclosures for digital SLR cameras from Canon. Also, the SUBAL C40 follow the proven concept of the new generation of housing.
The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special sled, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4mm O ring and the SUBAL Quick Lock closure system, prevents accidental crushing of the O-ring and ensures maximum safety.
The Subal monitor window provides a glare-free view to the brilliant image of the camera monitor and supports so ideally the HD-video function of the camera. Pilot lights can be attached or mounted to the top shoe.
Only high-quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to confirm the standard quality level that you get in every SUBAL product. SUBAL offers for this housing model, 3 different search systems: the standard viewfinder slimmed the viewfinder image so that it can fully be overlooked despite diving mask. The GS 180 and the 45° viewfinder offer a view in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45°.
Technical data:
Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment are applied to the surface of the housing. In addition, 3 layers of powder coating paint are applied to give the housing the unique SUBAL color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel, and high-quality plastics, to endure all working conditions. SUBAL QuickLock closure system.
Width x height x depth:
Approx. 255 x 170 x 140mm (w/o port and handles)
Flash connection:
2 Flash connectors: Optionally Nikonos V, IKELITE or Subtronic S6 Sockets TTL connected in parallel, function only with S6 socket and original Canon flash unit possible!
Flash arm mounting:
2 T-plates 25mm, TLC - or ultralight base optional
Transmission and features:
Main switch, release, zoom (manual focus), front and rear main dial, lens release, program mode, AF-ON, cursor.
Push buttons for:
Light metering mode white balance AF-drive, ISO Flash compensation, playback, delete, jump, info, menu, picture style, set, AE lock, AF area selector and live view
