Nauticam Panasonic GH5, GH5s & GH5 II Underwater Video Housing NA-GH5SV

Panasonic hybrid camera systems have revolutionized all levels of motion imaging capture. Pairing high-quality interchangeable lenses with compact camera bodies, the video camera of choice for underwater filmmakers has undergone an incredible transformation in recent years. It has become the Panasonic GH5 and GH5S. An exceptional hybrid housing to complement an exceptional hybrid camera, the NA-GH5 is designed from the ground up with both video and still shooters in mind.


THE PANASONIC GH5 AND GH5S

The Panasonic GH5 is a new camera body, positioned above the successful GH4, and improving it in every way. At the core is a 20-megapixel sensor with completely revamped video functionality. When shooting motion, GH5 reads the entire 5K sensor, then resamples in camera to create each individual 4K frame. This results in increased sharpness with no change in lens angle of coverage! Panasonic didn’t stop there, unlocking UHD video capture at up to 29.97 fps with 4:2:2 10-bit chroma sub-sampling. Simply put, this means the GH5 can capture twice the color information with 64x the precision of a 4:2:0 8-bit system. The GH5S, featuring the same body as the GH5 is even more video focused than its sibling. The GH5S features an anamorphic 10.2MP sensor featuring Dual Native ISO technology borrowed from the high-end VariCam that can record DCI 4K internally at up to 30fps with 10-bit 4:2:2 color and HDR Hybrid Log Gamma support.


Panasonic GH5 Key Features

• 20MP Four Thirds sensor (no OLPF)
• 5-axis in-body image stabilization system with 'Dual IS 2' support
• All 4K footage taken using the full width of the sensor (oversampled from 5.1K footage)
• Internal 4K/30p 10-bit 4:2:2 video capture
• 4K/59.94p and 50p shooting with 10-bit 4:2:2 output or 8-bit, 4:2:0 internal recording



Panasonic GH5S Key Features

• 10MP Anamorphic sensor
• Dual Native ISO of 400 and 2,500
• DCI 4K 10-bit 4:2:2 at 30fps internal recording with simultaneous 10-bit 4:2:2 feed through HDMI out
• 1.8x crop factor vs 2.0x crop factor of GH5



THE NAUTICAM NA-GH5 UNDERWATER HOUSING

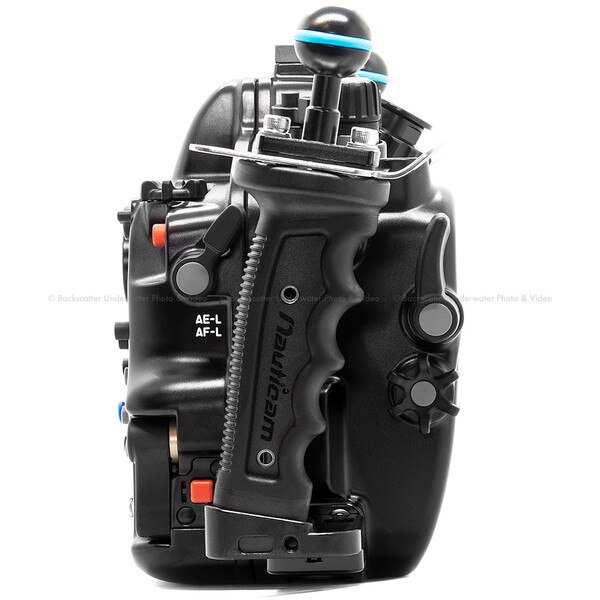

The NA-GH5 housing is small, but not at the expense of functionality or ergonomics. Integrated handles provide a sturdy and comfortable base to operate the system from. A sculpted shutter release lever, thumb lever for AE-L / AF-L, and well-placed control dials provide the same operational feel as any Nauticam DSLR housing. Control buttons are placed within easy reach of the handles, with sufficient spacing to allow easy operation, even by feel. The NA-GH5 is a professional grade underwater housing, built with cutting edge manufacturing technology, supporting the pro-level GH5/GH5S camera bodies to its full potential.

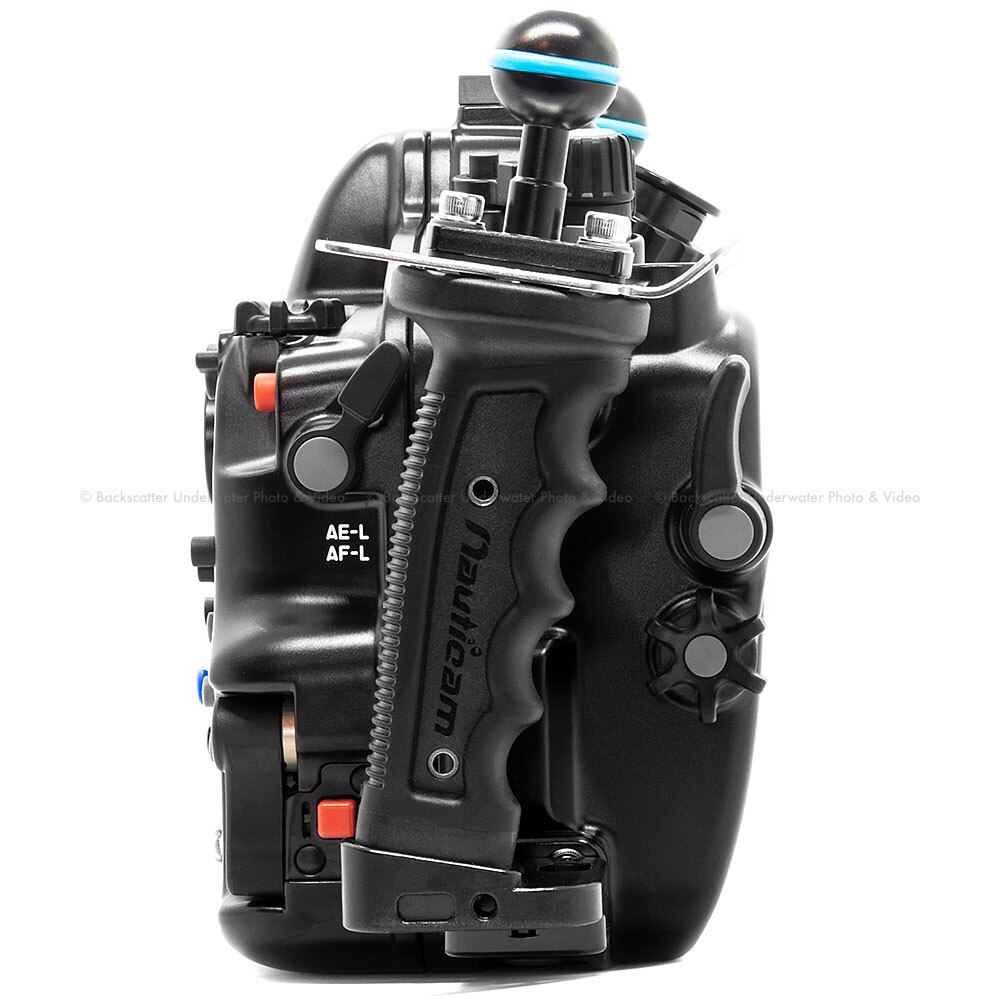

The GH5/GH5S feature four custom White Balance Presets allowing the video shooter to store settings for various depths as well as natural/artificial light scenes and switch between them quickly on a dive. Access to these presets is a breeze with the NA-GH5 mission control layout. A second thumb lever on the right side of the housing, easily accessed from the handle, brings up the white balance presets. Simply scroll to the desired preset and film away.


PREMIUM PROFESSIONAL OPTICS

The variety of optics solutions for the NA-GH5 are staggering. Whether you're choosing an MFT open-source standard lens such as the Panasonic 8mm Fisheye or the ultra-fast Olympus 60mm macro lens there is an N85 port system port for you.

Looking for zoom-through capability and both macro and wide on the same dive? The WWL-1 and CMC wet-mate system allow for unmatched corner sharpness for your wide angle and ridiculous reproduction ratios for your macro. The bayonet mount system allows for switching underwater.


TTL AND MANUAL OPTICAL STROBE TRIGGERING

Add the optional Panasonic DMW-FL70 Flash inside the housing for reliable, accurate triggering of optical TTL compatible strobes. Rapid fire manual triggering is also available with the Nauticam Mini Flash Trigger.


FULL-SIZE HDMI OUT

The GH5/GH5S camera features a full size “Type A” HDMI Connector on the camera body, providing a reliable user-friendly connection for external monitors. A new Nauticam Internal HDMI Cable supports this format!

Matched with the integrated tripod mounting ball attachment points the NA-GH5 can be turned into a steady macro or time-lapse platform.


FEATURES

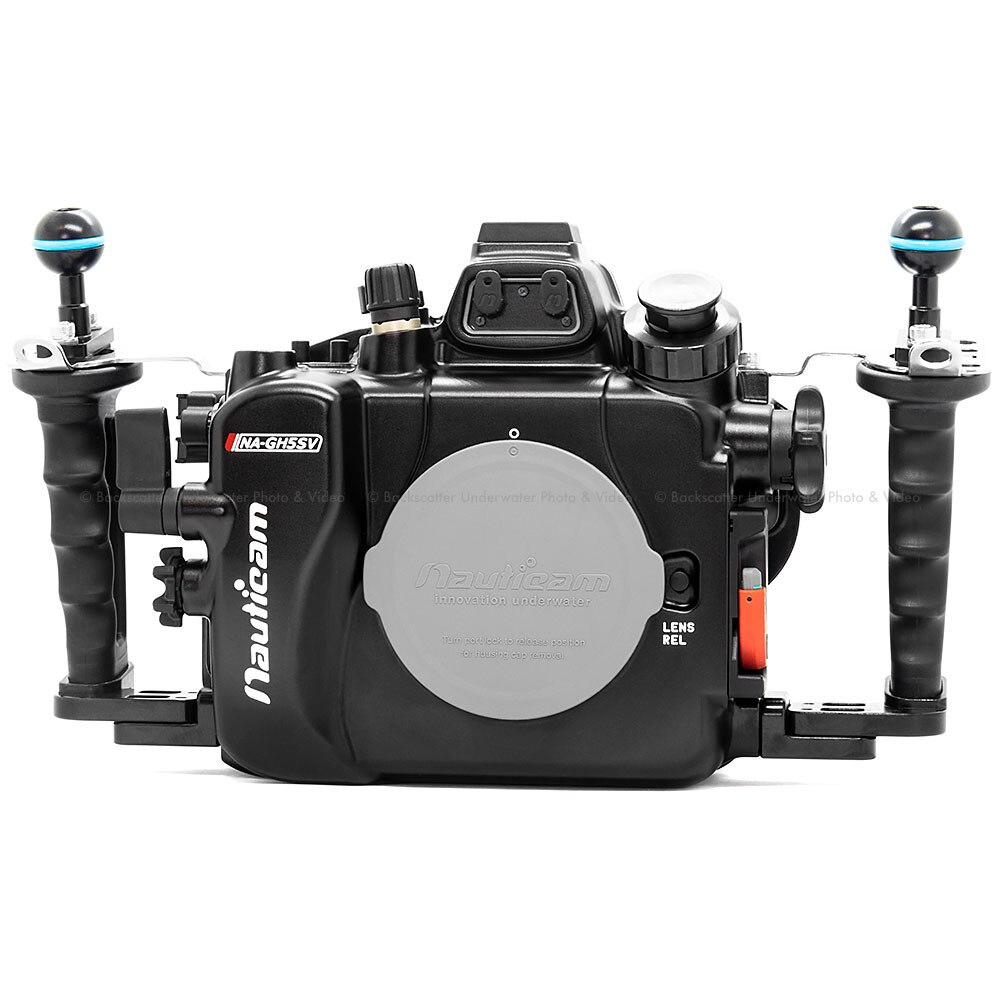

PATENTED PORT LOCKING SYSTEM

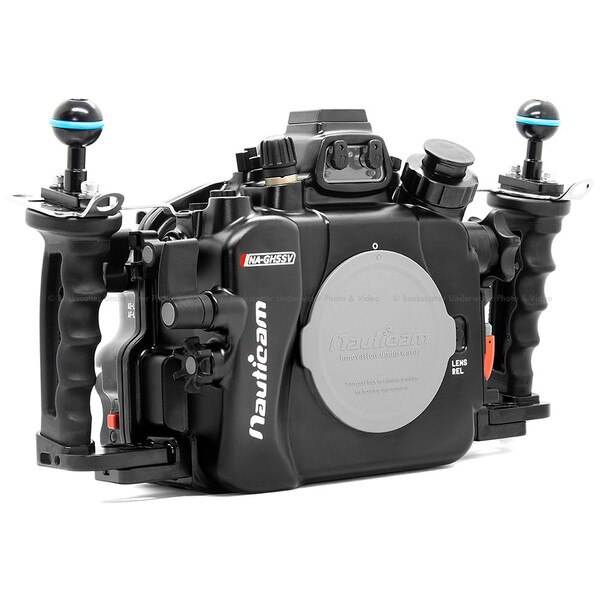

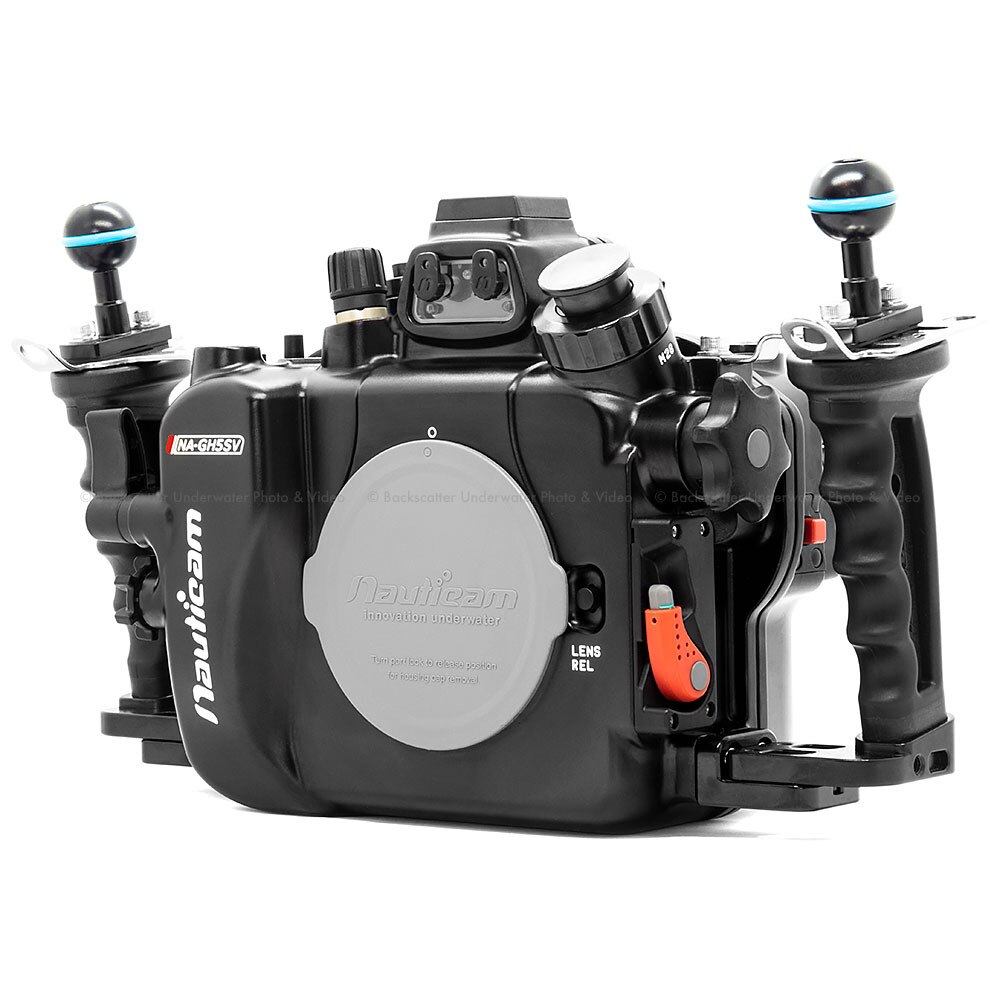

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.

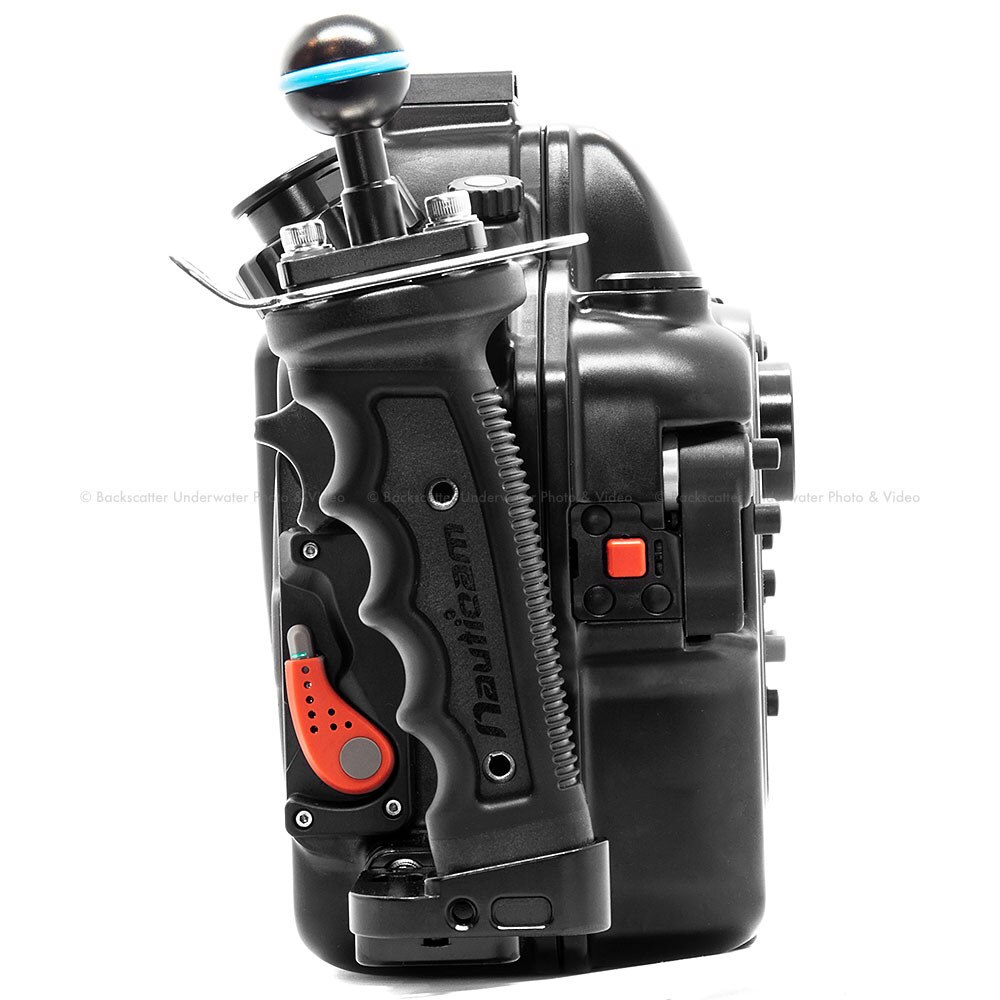

HOUSING LOCKING LATCHES

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening but are easy to open when needed for a quick battery or memory card change.


HDMI OUTPUT

The GH5 camera features a full size “Type A” HDMI Connector on the camera body, providing a reliable user-friendly connection for external monitors. A new Nauticam Internal HDMI Cable supports this format!


INTEGRATED TRIPOD MOUNTS

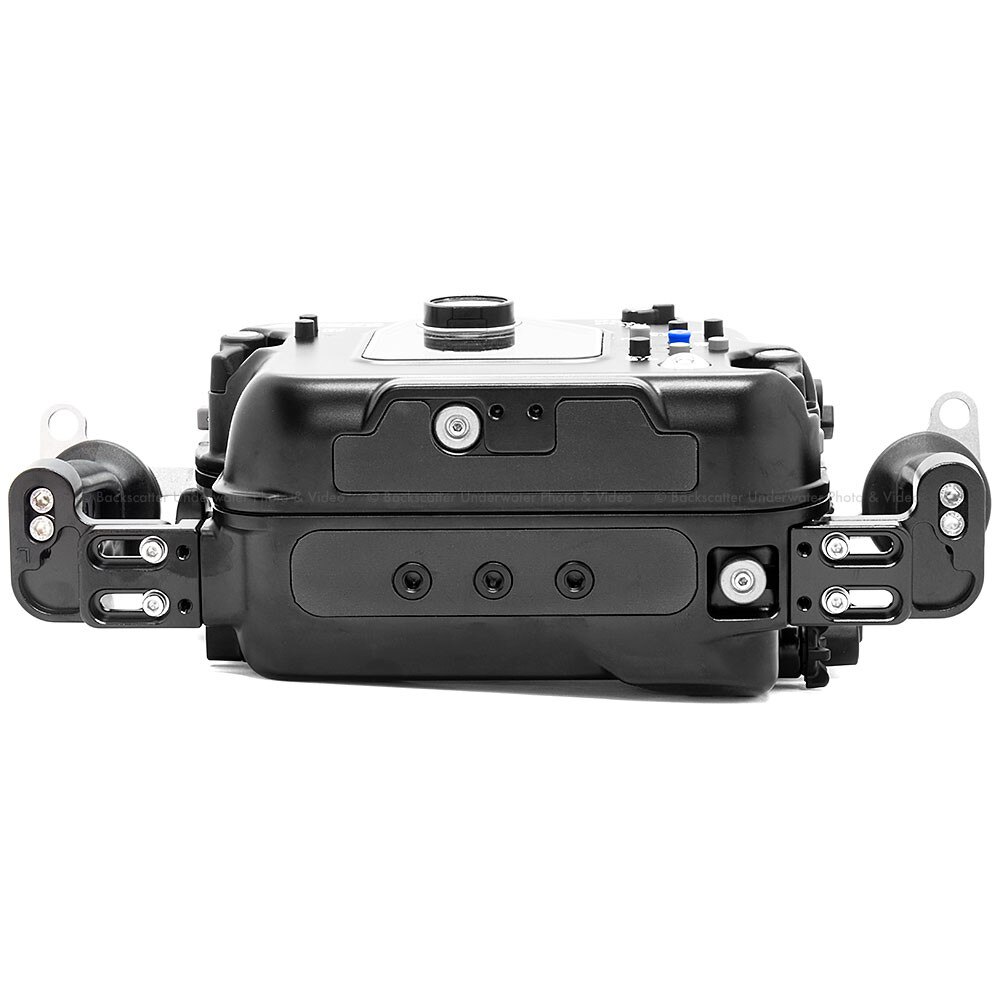

The NA-GH5 has integrated mounting points on the bottom for industry standard 1" ball-mounts that can be used to attach tripod legs.


MISSION CONTROL

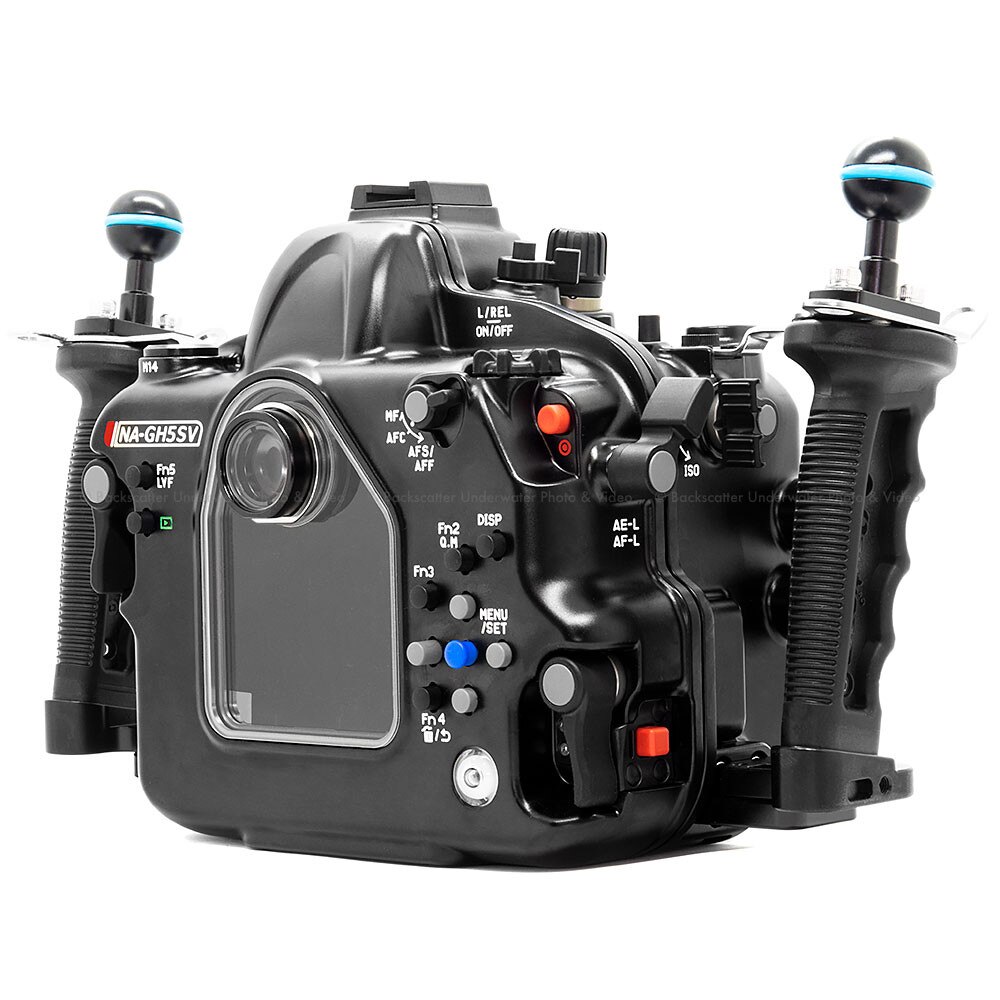

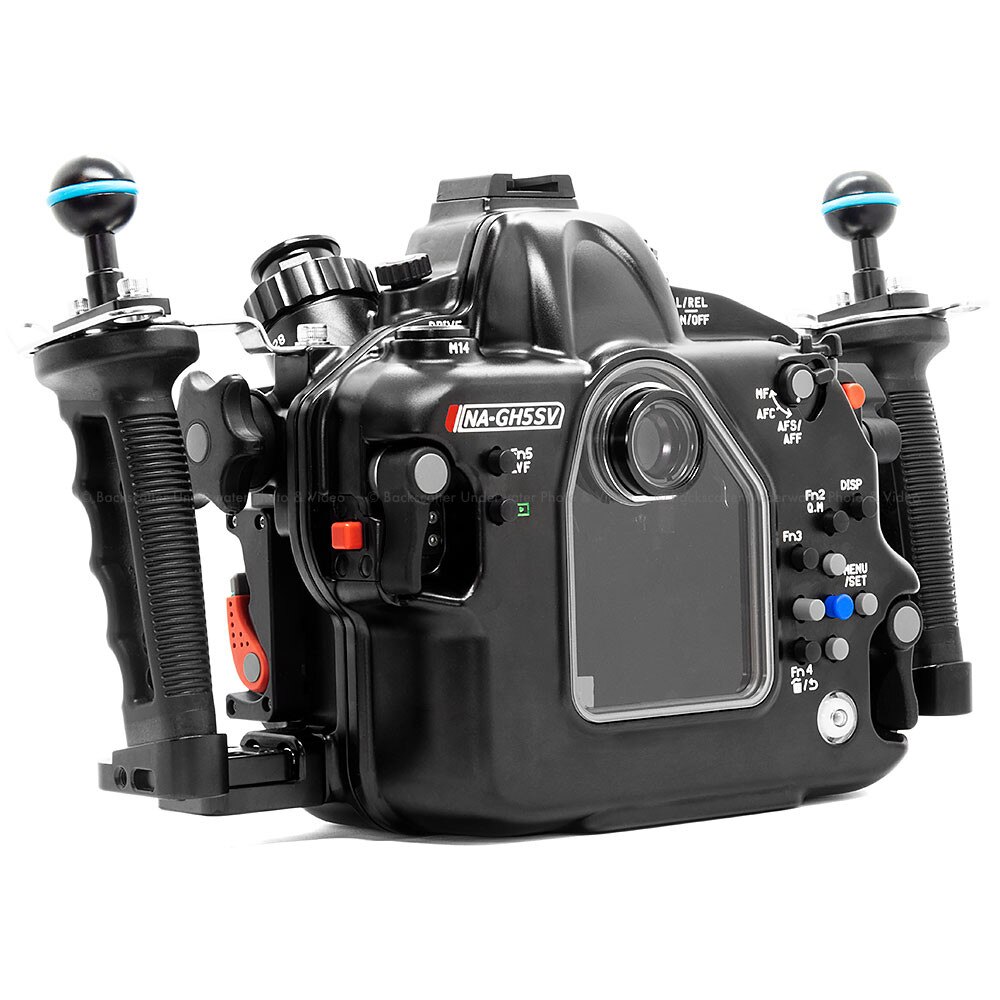

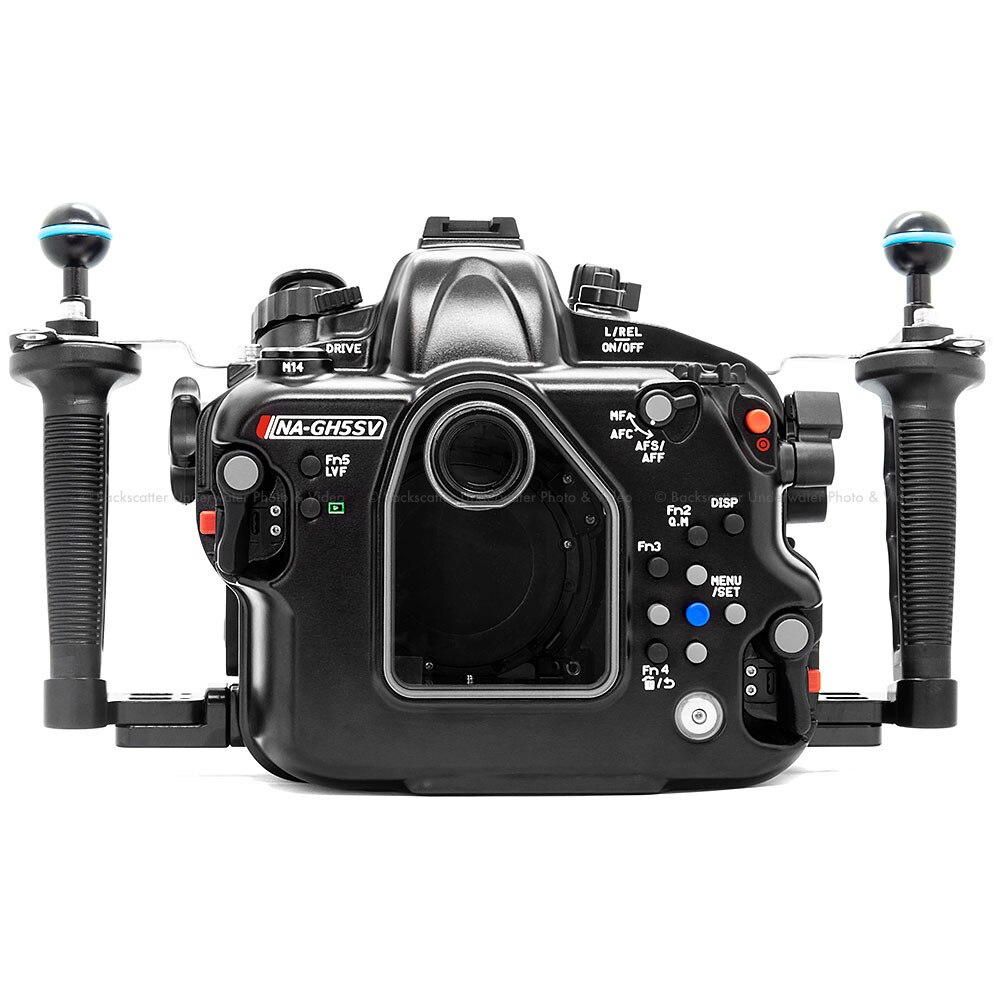

Nauticam engineers focus on getting the essential shooting controls to where they are most accessible making the handles of the NA-GH5 Mission Control for both still and video underwater imaging including the all-important custom white balance!


WHAT'S IN THE BOX?

• NA-GH5 Housing
• Spare Main O-ring
• O-ring Remover
• CR-2450 Battery (for Moisture Alarm)
• Lubricant
• Set of Allen Keys



TECHNICAL SPECIFICATIONS

• Depth Rating: 100m
• Weight: 2.36kg
• Dimensions: 331mm (W) × 184mm (H) × 110mm (D)
• Port Opening: N85 for Olympus and Panasonic Micro Four Thirds
