Isotta Panasonic LX10/LX15 Underwater Housing for Panasonic Lumix LX10 & LX15 Cameras

The housing for Panasonic Lumix DMC-LX10 allows to capitalize on the camera full potential and to capture amazing pictures underwater.

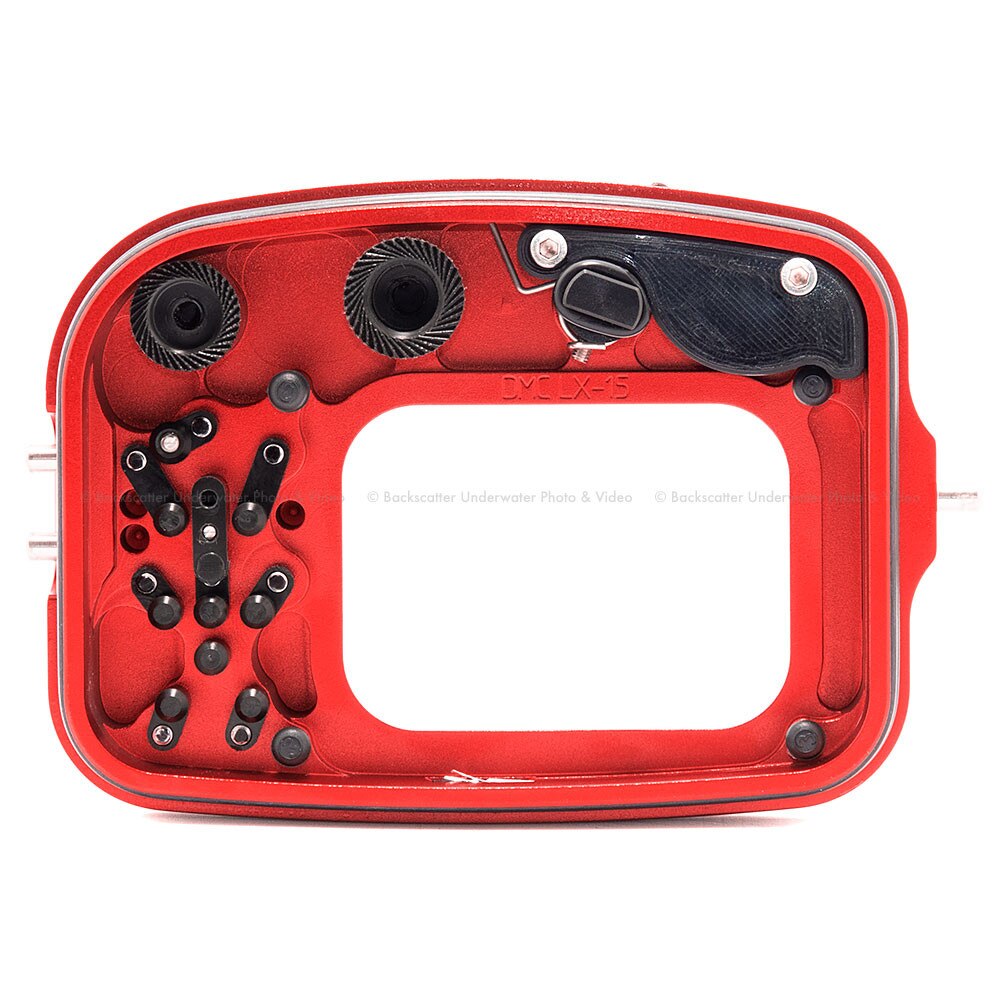

An easy to use, highly professional product has been created through techniques and innovations gained from years of experience. The housing for Panasonic Lumix DMC-LX10 perfect handling by means of adjustable strips. Easy access to all key/main camera controls by means of clearly labeled laser-engraved longlasting buttons. An easy and quick release camera mounting plate allows the camera positioning; the back door has a large window for a fine camera display view and it is entirely detached from the front body to make easier the camera fitting.

ONE HAND OPEN/CLOSE

It's very easy to open and close Panasonic Lumix DMC-LX10, without any efforts by the user thanks to the side helicoid screw and the bottom centered pins; the camera is placed easily into the housing on a sliding tray that keeps the camera robustly in place. A lever locks the tray safely inside the housing. The housing stands with great stability due to sturdy and wide rubber feet located on the bottom.

PORT, CLOSE-UP AND WIDE-ANGLE LENSES

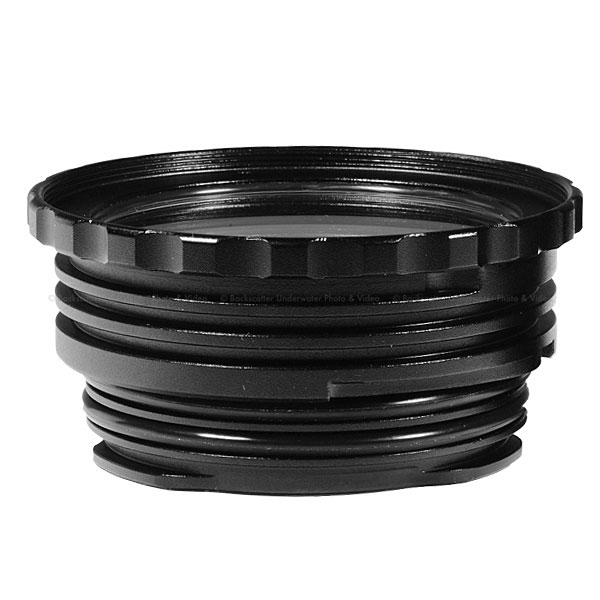

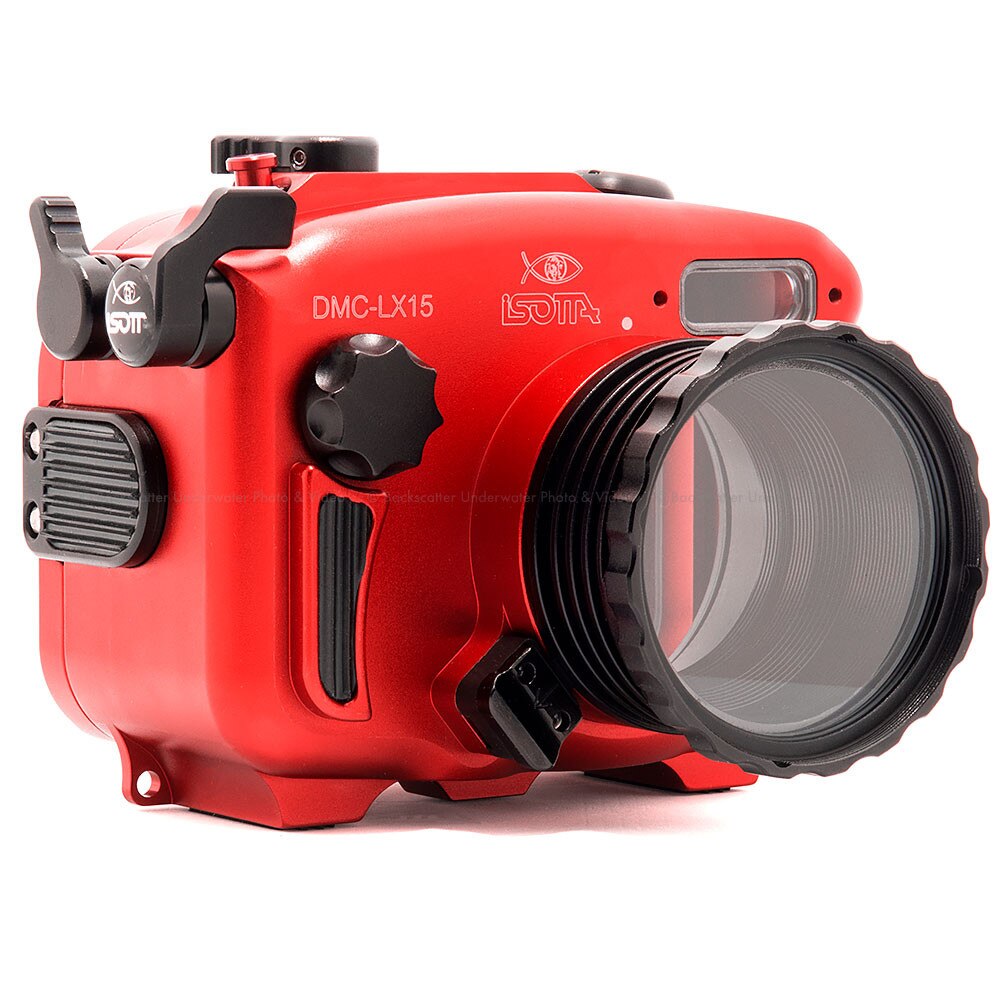

Front portholes are built with high-quality standards of materials to ensure perfect image quality. A removable flat port is fitted thanks to markers and a bayonet connection to Panasonic Lumix DMC-LX10 housing. An M67 threaded end allows the use of additional wet wide angle lenses and macro lenses.

LIGHTING

Panasonic Lumix DMC-LX10 own strobe lighting can be used fitting an outside diffuser on the porthole. For better performance with wide angle lenses, one or two external strobes can be connected by optical fiber using the adaptor included.

CONSTRUCTION AND SAFETY

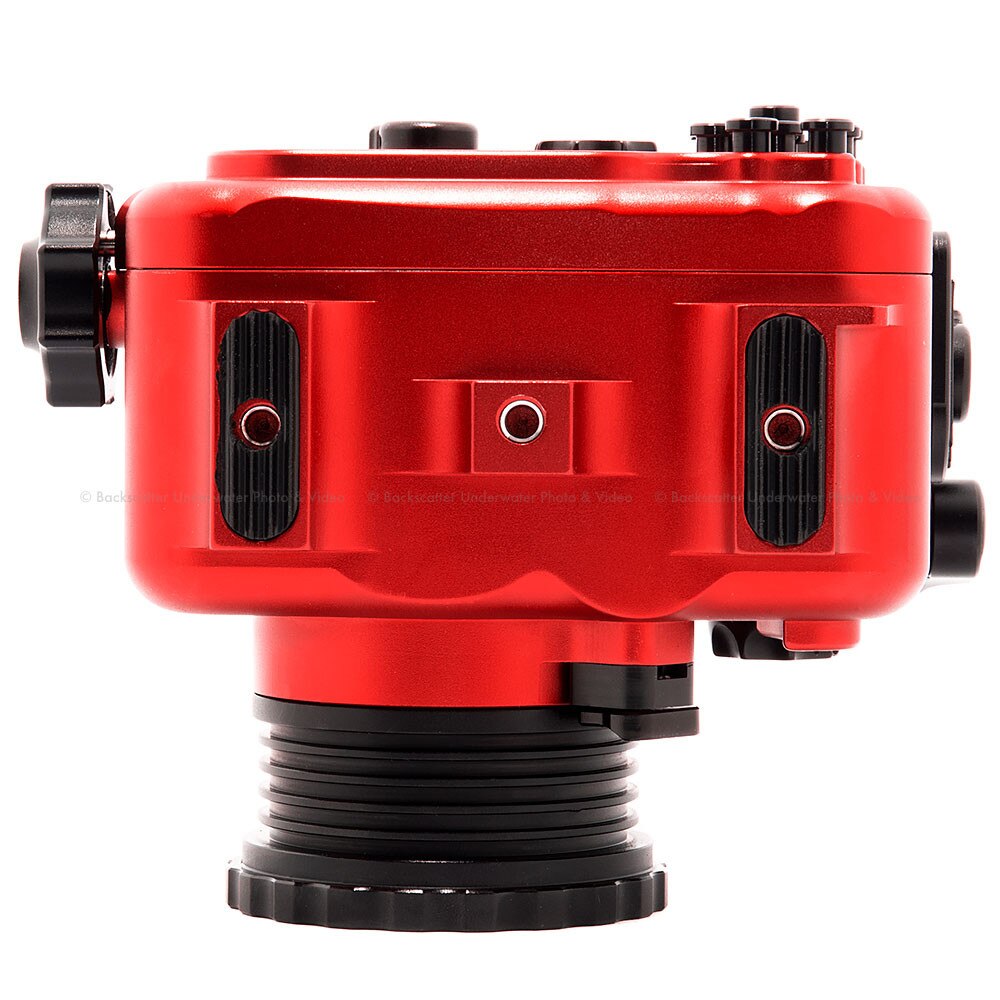

Only the best materials are used to manufacture our housings such anodized aluminum which is anticorodal and thermo-coated and stainless steel. A longlasting product that requires easy and simple maintenance by the user. So small and so rich in technology! Dual high precision and quality O-Ring seals protect and ensure a perfect and secure watertight for all movable and/or removable parts; a red alarm for humidity/water inside the housing is powered by a battery replaceable by the user. Working depth is 100 meters. A hole positioned on the bottom allows to secure the housing for Panasonic Lumix DMC-LX10 with a line/strap. Different accessories can be fitted by means of a threaded M8 hole and double threaded M6 holes and one 1/4W on the bottom.

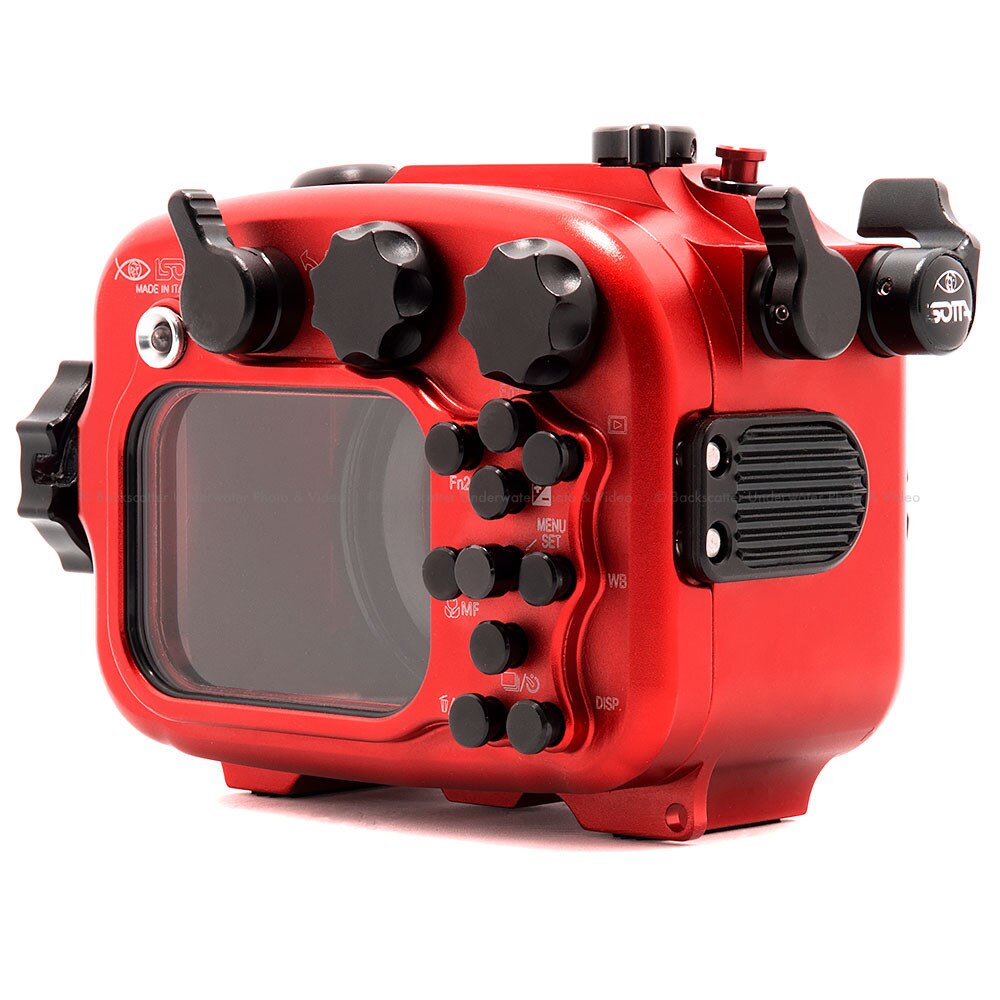

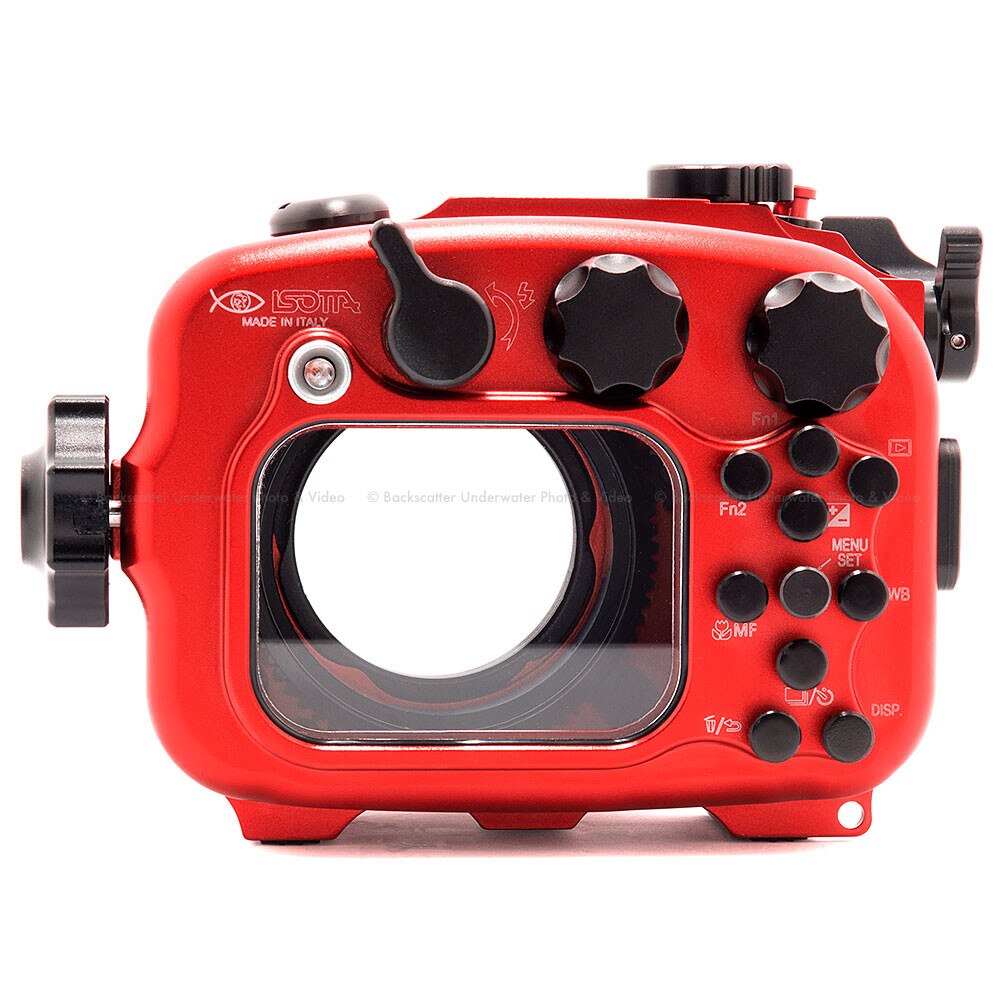

Controls

• ON/OFF of Panasonic Lumix DMC-LX10
• Own camera strobe open/close
• Ergonomic camera focusing and shutter button for easy use with gloves
• Shutter speed priority and all other buttons of the camera
• Lens aperture

What's included

• Housing
• Lens cap
• Replacement O-Ring Kit
• Silicone Grease 15gr / 0.5 oz
• Strobe diffuser
• Optical fiber adaptor
• 2 years manufacturer warranty

Technical data

• 100 meters depth rating
• All Panasonic Lumix DMC-LX10 key main controls
• M16x1 hole for vacuum system or external monitor
• Easy one hand housing open/close
• Moisture sensor
• Double high precision and quality O-Ring seals
• Weight: 770gr/1.7lbs
• Dimensions: 110 x 140 x 110mm

Spare parts

• AS127 - Set O-ring Panasonic Lumix DMC-LX10
• AS882 - Shutter Trigger Extension for Index Finger
• AS883 - Shutter Trigger Extension for Thumb Finger
• AS733 - Dual Fiber Optic Cable Adaptor
• AS833 - Round diffuser
• AS006 - M67 Cover
• AS046 - Tray with double handles
