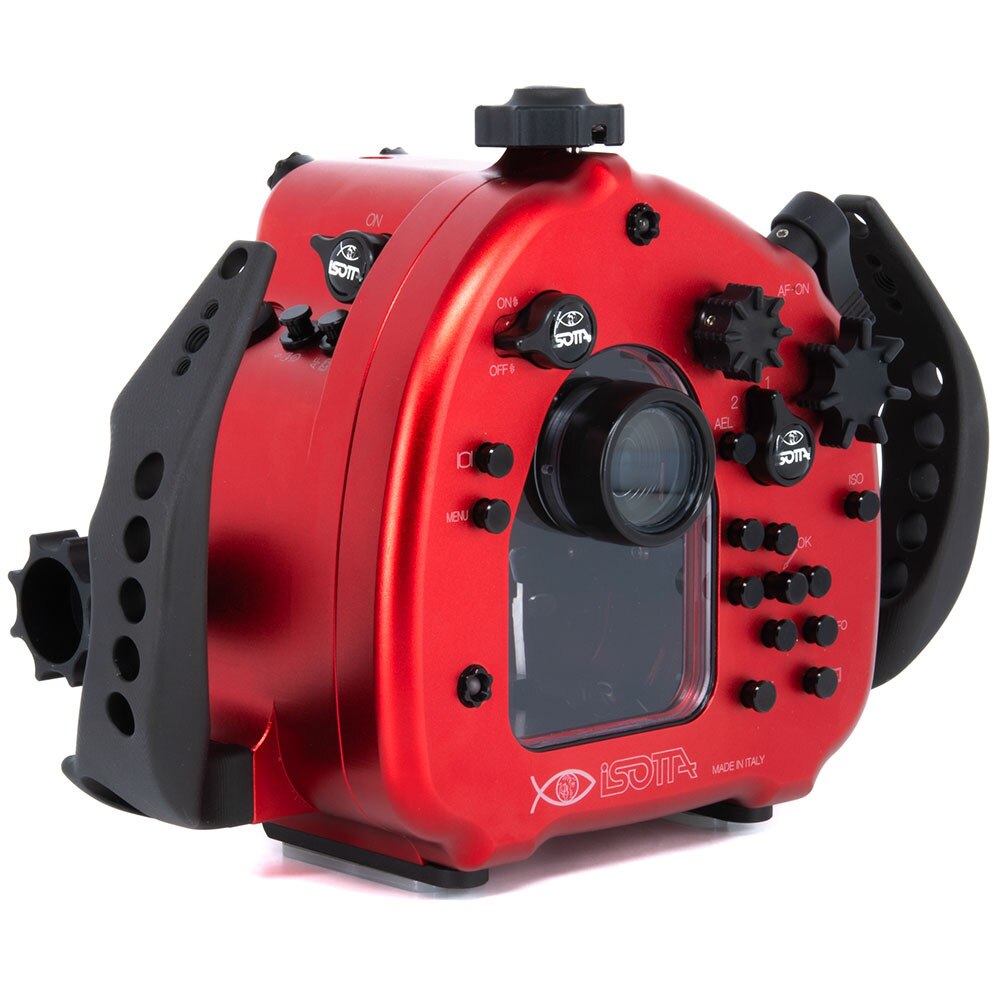

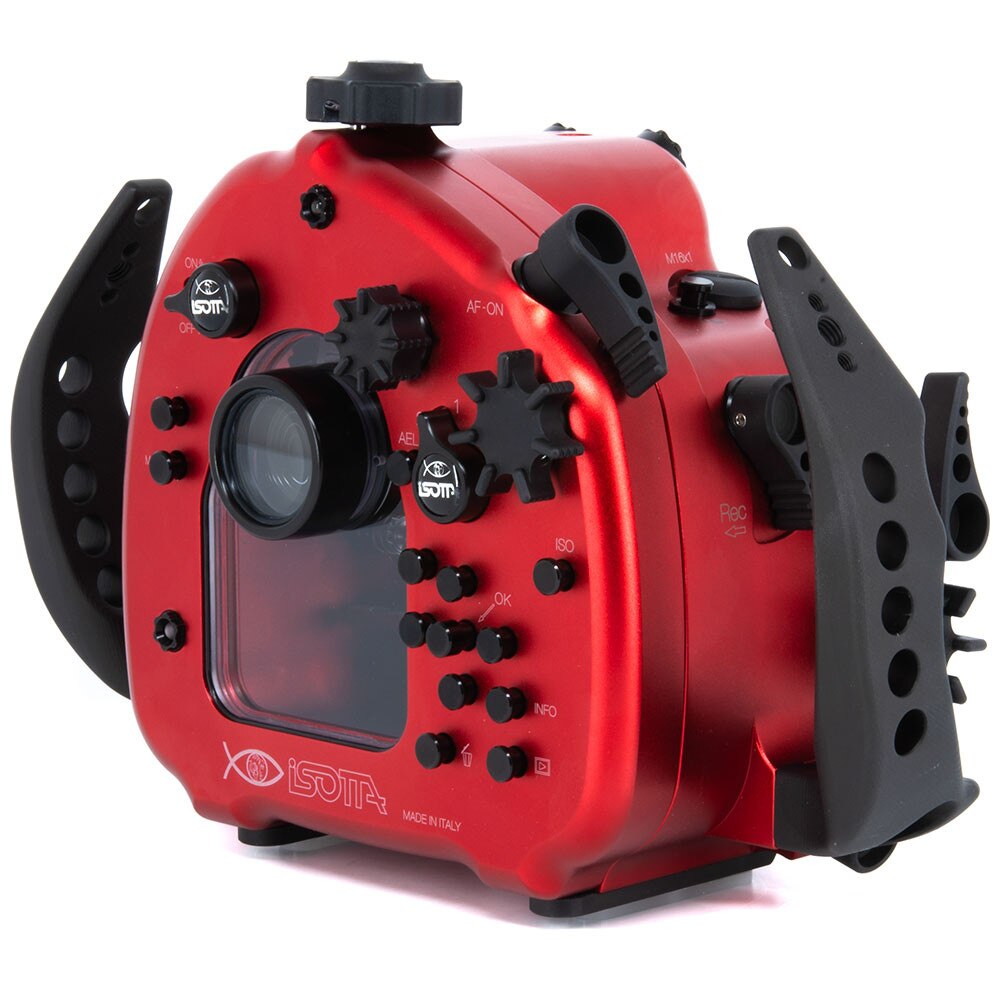

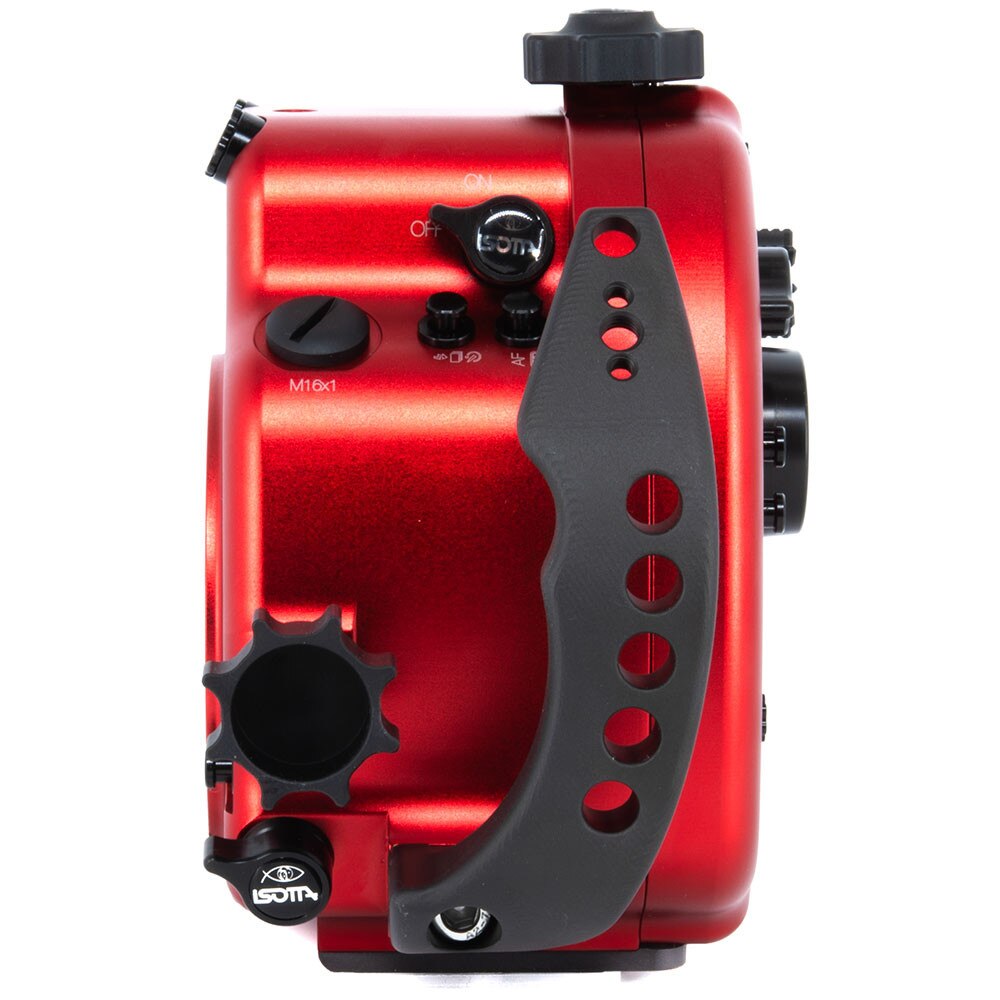

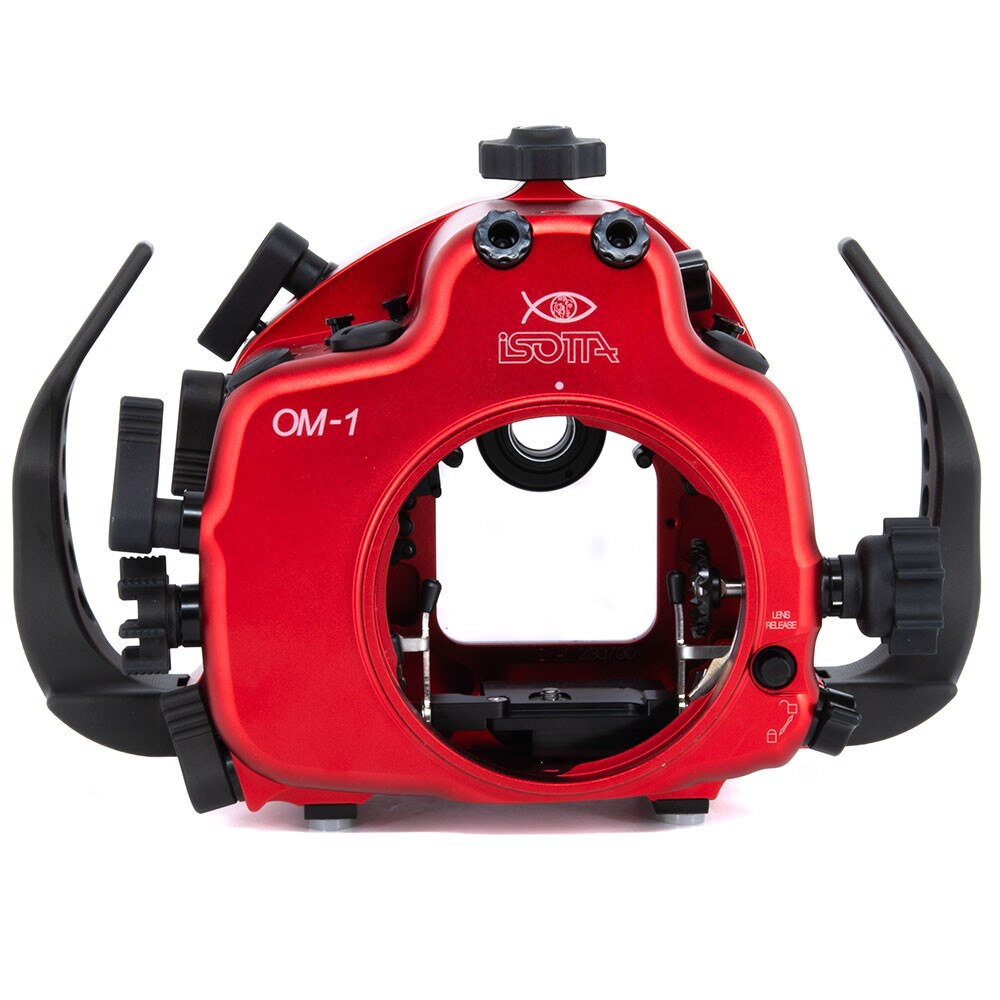

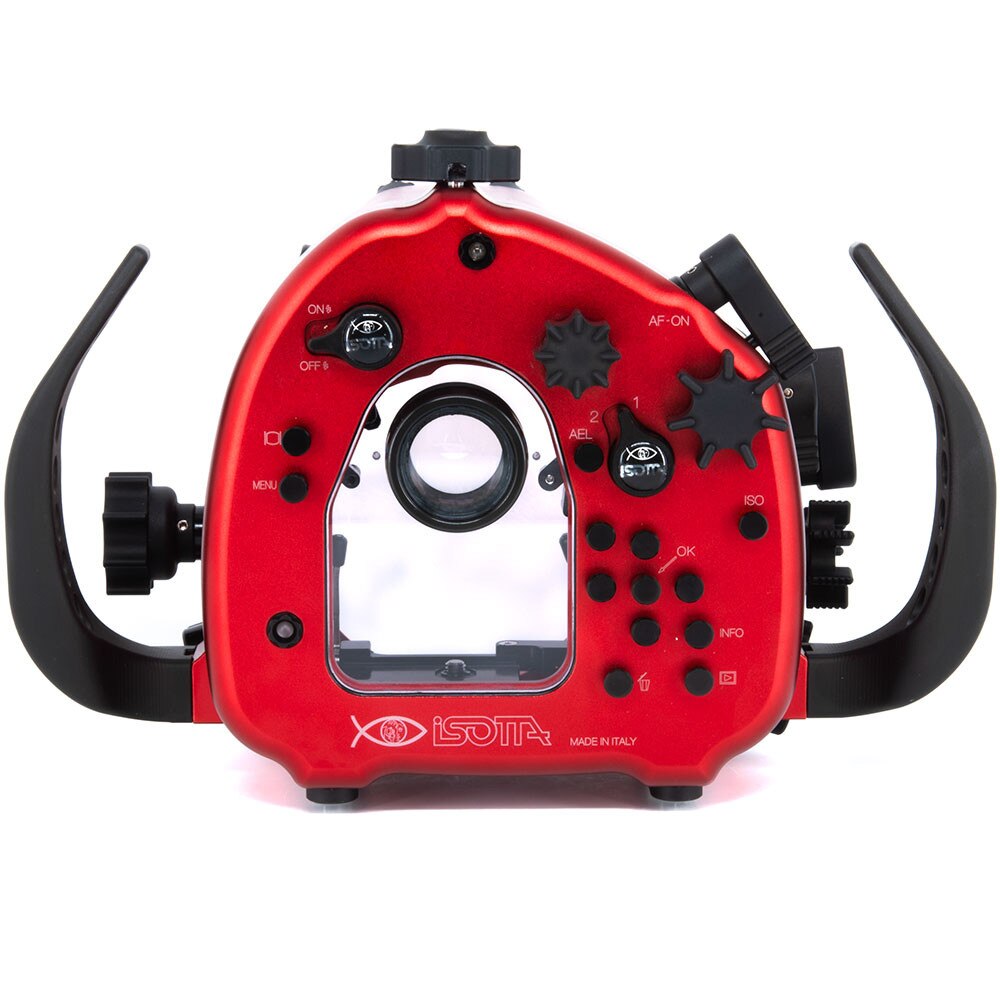

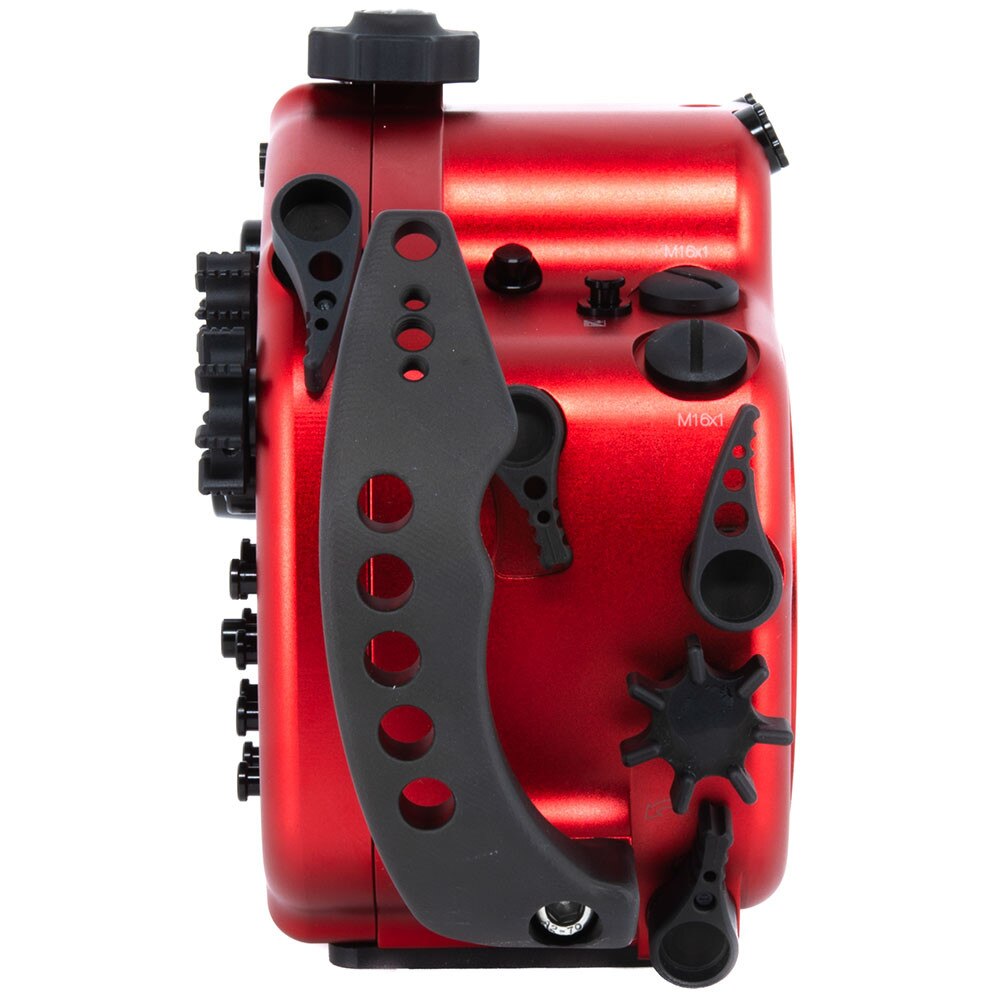

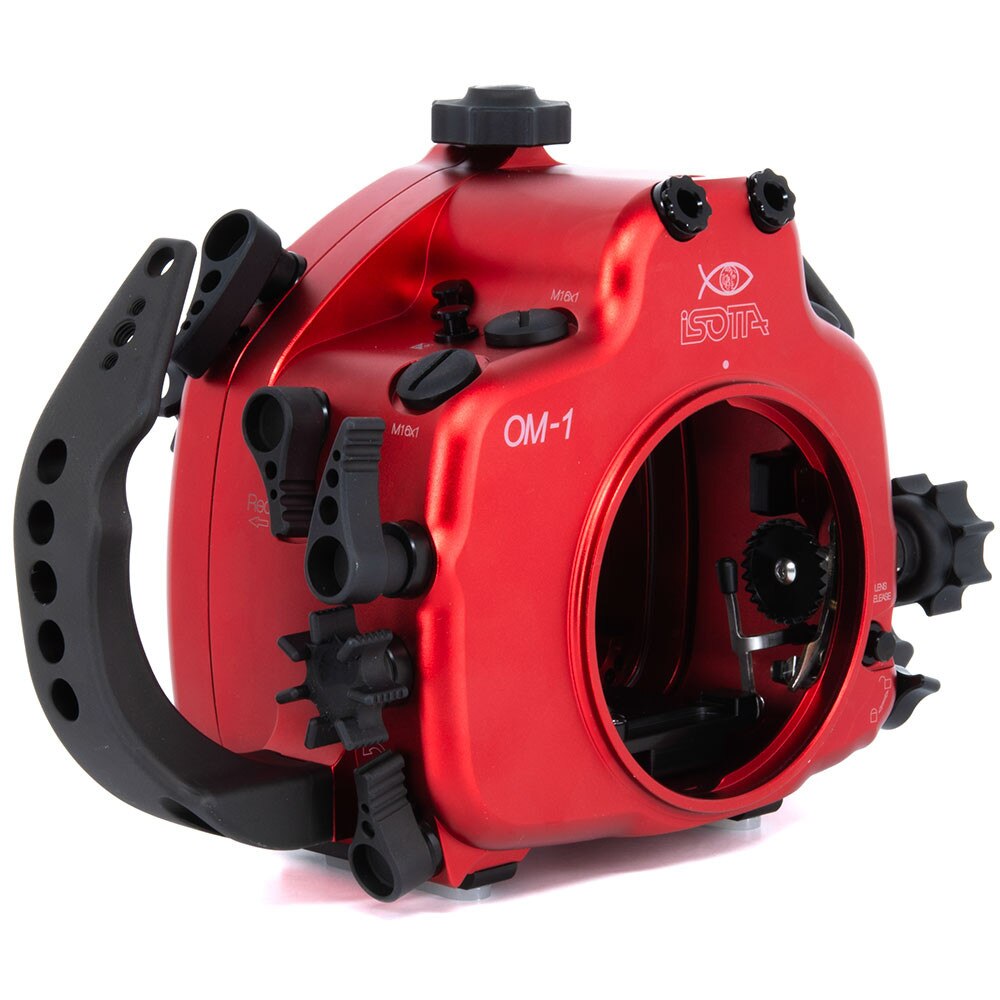

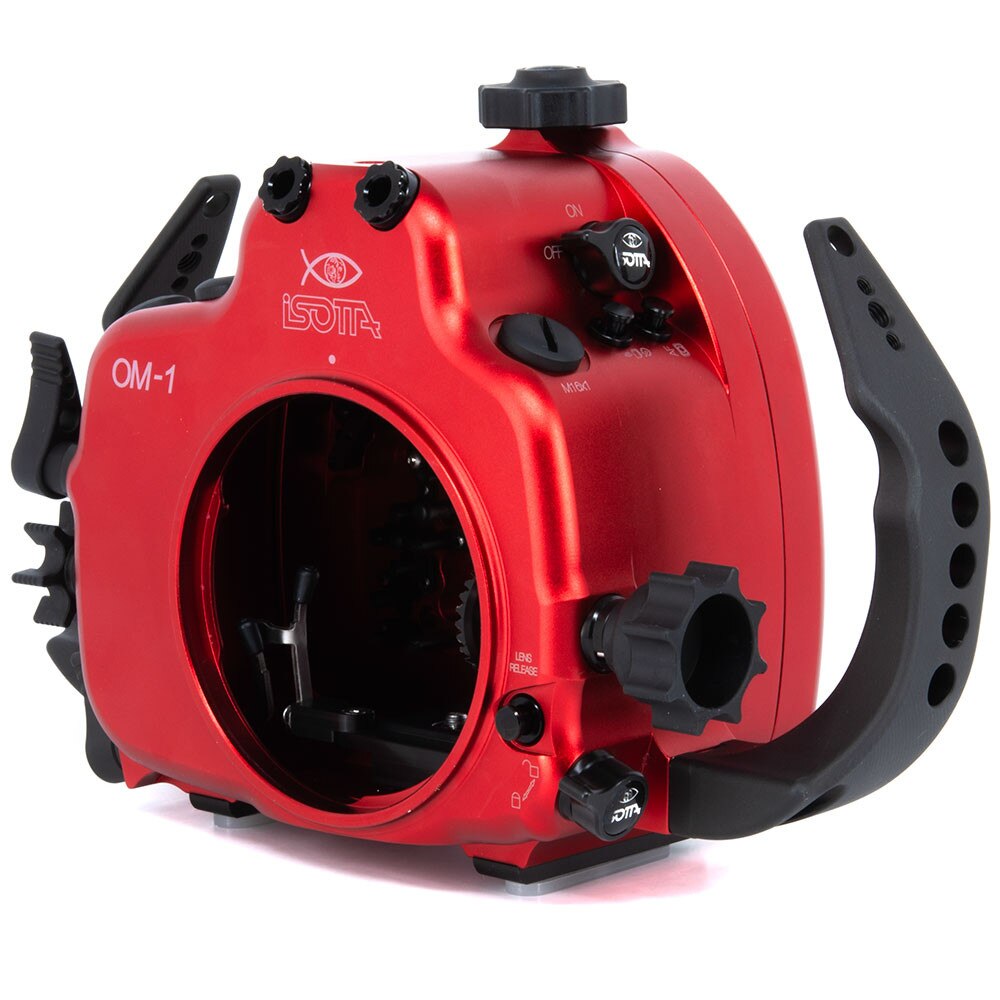

Isotta OM System OM-1 I & II Underwater Housing

Isotta OM System OM-1 I & II Underwater Housing

COMMANDS

• ON/OFF lever of the OM System OM-1
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Front dial
• +/- button (Exposure compensation)
• Mode dial lock button
• AF/metering mode button
• Sequential shooting/self-timer/ flash button
• ZOOM gear
• Port safety lever
• Movie button (REC)
• AF-ON button
• Rear dial
• Mode dial
• Menu button
• AEL button
• Arrow pad
• Playback button
• OK button
• One-touch white balance button
• FN lever
• External flash ON/OFF lever
• INFO button
• Erase button
• ISO button
• Multi selector button

WHAT IS INCLUDED

• Housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections (to use the flash needs an optional trigger)
• Spare o-ring kit
• Silicone grease 15gr / 0.5 oz
• 2 years manufacturer warranty (excluding batteries)

TECHNICAL DATA

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections are standard (to use the flash needs an optional trigger)
• Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
• The back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Double O-ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port 120 mm bayonet
• Ports security latch to prevent accidental opening

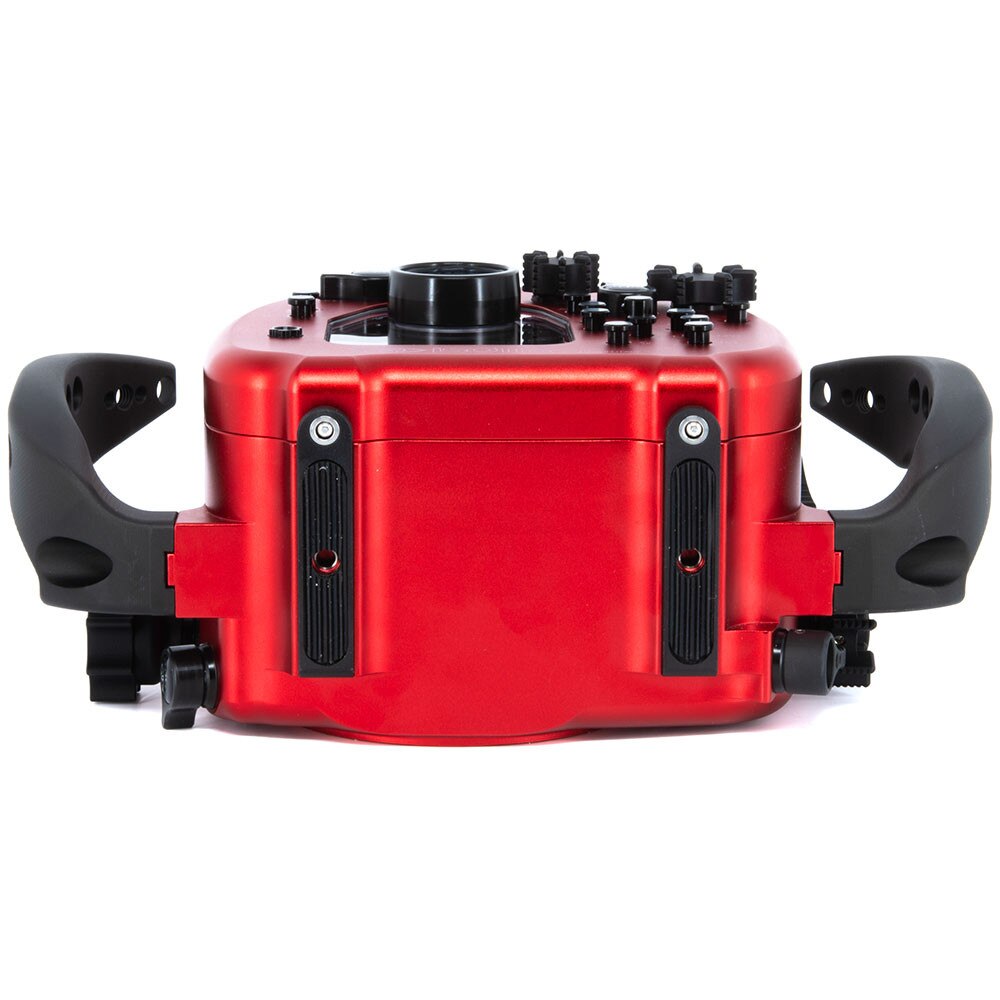

• Wide, rubber-covered feet for solid footing on boat floors or sea floor
• M8 hole located on the upper side of the housing for various accessories such as focus lights
• Two M6 holes located on the housing bottom side for different accessories, such as brackets for strobes or tripods
• External viewfinders can be mounted, INON X-2 compatible
• Sizes (LxHxP): 285.2x192.7x120.6
• Depth rated to 100 meters / 330ft

SPARE PARTS

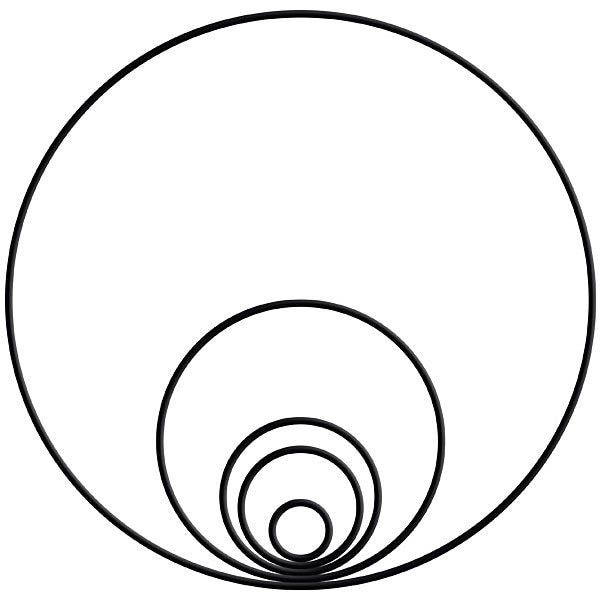

• 1858 - Maintenance o-ring set for OM System OM-1 housing
• 1866 - B102 Housing front lid

OPTIONAL

• Trigger
• Nikonos 5 bulkhead
• S6 bulkhead
• Handles extension
• Vacuum System
