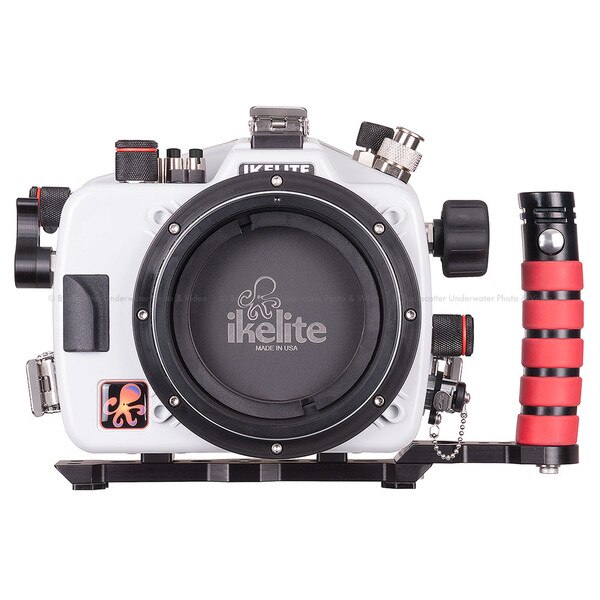

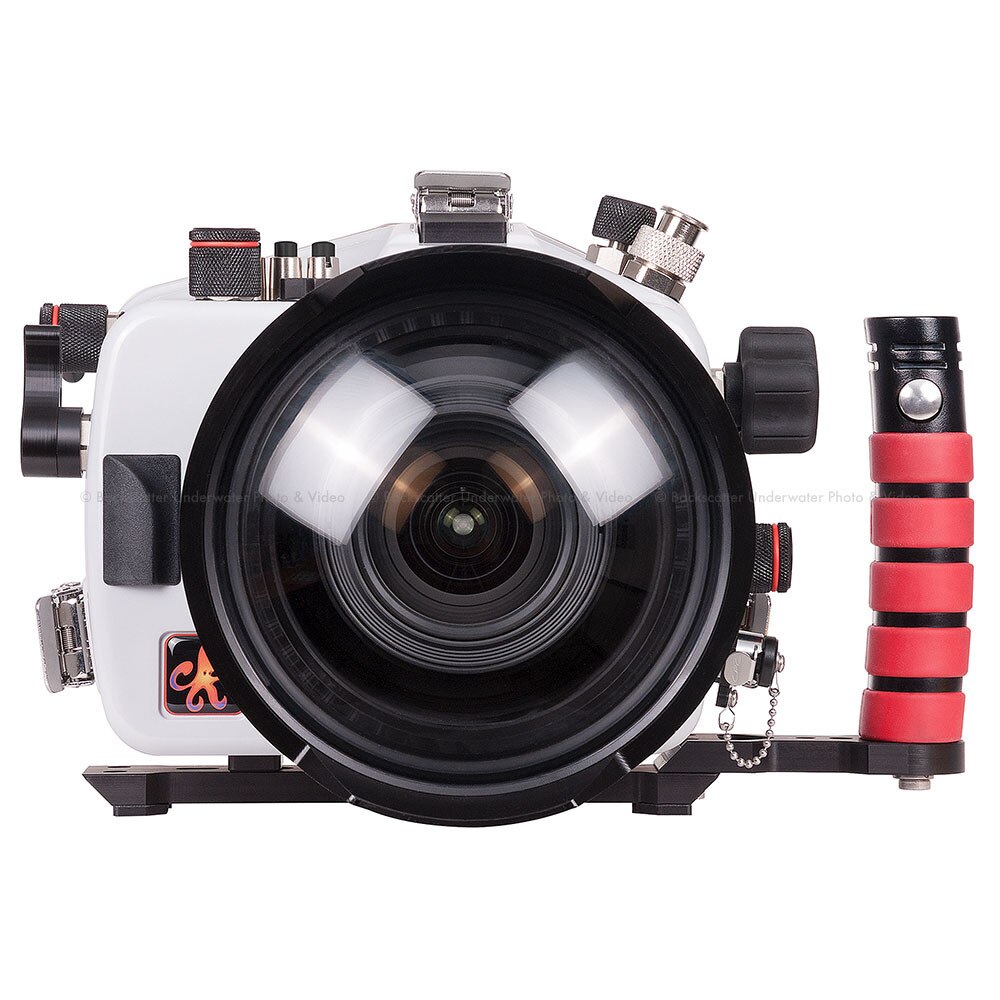

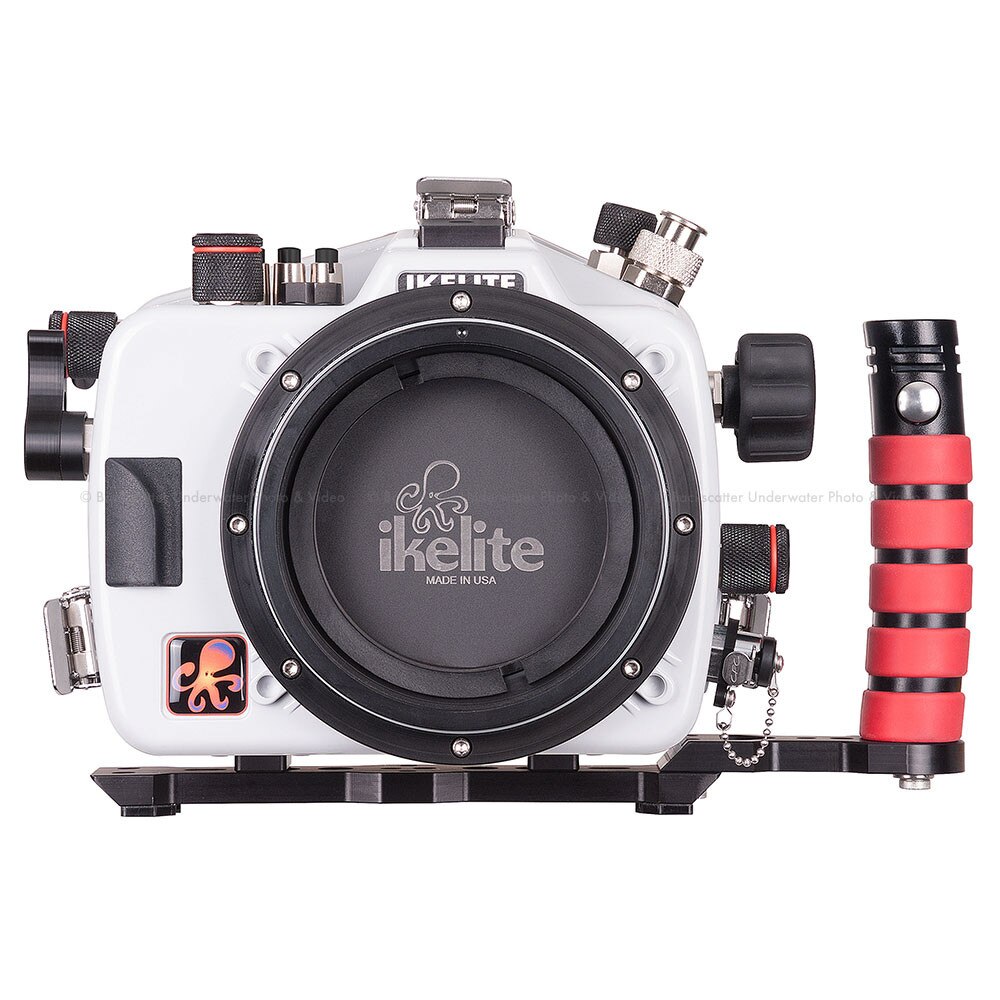

  • Ikelite 50DL Water Housing for Canon 5D Mark IV, 5D Mark III, 5DS & 5DS R
Ikelite 50DL Water Housing for Canon 5D Mark IV, 5D Mark III, 5DS & 5DS R 50ft Depth Rating Dry Lock (DL) Port System Extra-large, soft touch zoom knob Included Ikelite ICS-5 bulkhead connector Control symbols are laser etched into the back Quick install camera mount plate Left-hand quick release handleIkelite, 50DL, Water, Underwater, Housing, for, Canon, 5D, Mark, IV,, 5D, Mark, III,, 5DS, &, 5DS, Rmark, mk, , m, iv, lv, 4, 1v, dslr, camera, 5d4, 5div, 5dlv, 5d1v, 5, d

Ikelite 50DL Water Housing for Canon 5D Mark IV, 5D Mark III, 5DS & 5DS R

<ul> <li>50ft Depth Rating</li> <li>Dry Lock (DL) Port System</li> <li>Extra-large, soft touch zoom knob</li> <li>Included Ikelite ICS-5 bulkhead connector</li> <li>Control symbols are laser etched into the back</li> <li>Quick install camera mount plate</li> <li>Left-hand quick release handle</li></ul>

SKU: # ike-73702

FREE Standard Shipping to USA / CANADA!

Price $1,495.00

Base Price $

Price as Configured $

Price $1,495.00
Price $1,495.00

Custom Options


Overview / Product Description










Ikelite 50DL Water Housing



for Canon EOS 5D Mark III, 5D Mark IV,



5DS, 5DS R DSLR Cameras




Featuring the new Dry Lock (DL) port system with a pool & surf back rated to 50' (15m). Vacuum valve included. TTL circuitry sold separately.
  • 200' (60m) front with lightweight 50' (15m) back; Back is interchangeable with optional 200' back sold separately
  • Supremely functional for maximum creative controlaccess is provided for all important camera functions
  • The NEW Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses
  • Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system
  • Vacuum valve included (pump sold separately)
  • Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL circuitry provides automatic exposure with compatible Ikelite DS strobes
  • Control symbols are laser etched into the back and will never fade or rub off
  • Quick install camera mount plate does not need to be removed for battery or memory card access
  • One spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories
  • Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately
  • Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel
  • ABS-PC and Lexan construction is fundamentally corrosion-resistant
  • Made in the USA; Individually inspected for fit and water pressure tested to depth
  • 1 year limited warranty




Controls Provided

  • Shutter-release button
  • Zoom control (see port chart)
  • Power switch
  • Record start/stop button
  • Main dial
  • Mode dial (lock release)
  • Metering mode/white balance button
  • AF mode/drive mode button
  • ISO button
  • Lens release button
  • AF-ON button
  • MENU button
  • INFO button
  • Index/magnify/reduce button
  • Playback button
  • Erase button
  • Live view shooting/movie shooting switch
  • * AE Lock button
  • AF point selection button
  • Quick control button
  • SET Setting button
  • [Q] Quick control dial




What's Included

  • Underwater Housing with 50 ft (15m) Back
  • Base with Left-Hand Quick Release Handle # 4077.67
  • Waterproof Bulkhead Cap # 9104.5
  • Silicone Lubricant 1cc Tube # 0184.1




Optional Accessories

  • Right-Hand Quick Release Handle with Extension # 4077.02
  • Straight Magnified Viewfinder # 6890
  • 45 Magnified Viewfinder Type 1 # 6891.1




Camera Compatibility

This housing is only compatible with the Canon EOS 5D Mark III, 5D Mark IV, 5DS, 5DS R DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.



Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.Strobe Options

TTL Exposure


Install optional Canon TTL Kit Product number 46070 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the Canon TTL Kit installed, but will not provide TTL exposure.Non-Ikelite Strobes

SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.Ikelite Non-Digital Strobes

Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.Fiber Optic

Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.Remote Triggering

Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter Product number 4403 or the Water Wizard system (manufactured and sold by Aquatica).



Specifications

  • 50' (15m) depth rating
  • 1/4-20 thread base mounts with 3.5" spacing
  • Near neutral buoyancy in fresh water
  • Actual buoyancy varies depending on choice of lens and port
  • Weight 4.5 lb (2 kg) not including tray + handles
  • Dimensions 9.2 x 7.1 x 6.3" (234 x 180 x 160 mm) including projections
Spare Parts

  • 0132.61 - Main o-ring
  • 0132.41 - Port o-ring
  • 9104.5 - Waterproof bulkhead cap
  • 0184.2 - Silicone lubricant resealable 2cc tube
