Handy Underwater Light with Quality CRI 90/6500K LED

Multi-use Light for Diving, Macro Imaging

Maximum 600 lumen with standard 30-degree coverage suitable for photography/videography as well as for general diving. Having a high CRI LED chip enhances color reproduction and visibility. Even light distribution is ideal for macro imaging. Useful underwater light for various diving situations.

INON “h” series LED light is equipped with a quality CRI 90/6500K LED module providing superior color reproducibility. The LE600h-S delivers ideal light quality as a focus light and lighting source for macro imaging.

Higher color temperature attains a similar color tone as a strobe light and fits in with strobe photography without showing up.

Refined surface coating by specific paint offers superior corrosion resistance and abrasion resistance for further durability.

Optional "W50° Filter LE" effectively increases the beam coverage up to approx. 60-degree thanks to its fly-eye lens structure and flexibly supports different applications.

The LE600h-S comes with "Red Filter LE" not to stimulate shy underwater life by changing light beam color to red.

A wide range of optional accessories is available to install on a camera or camcorder.

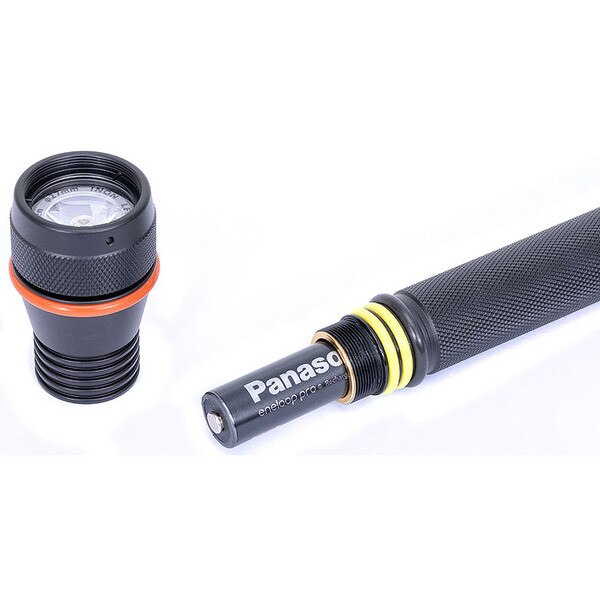

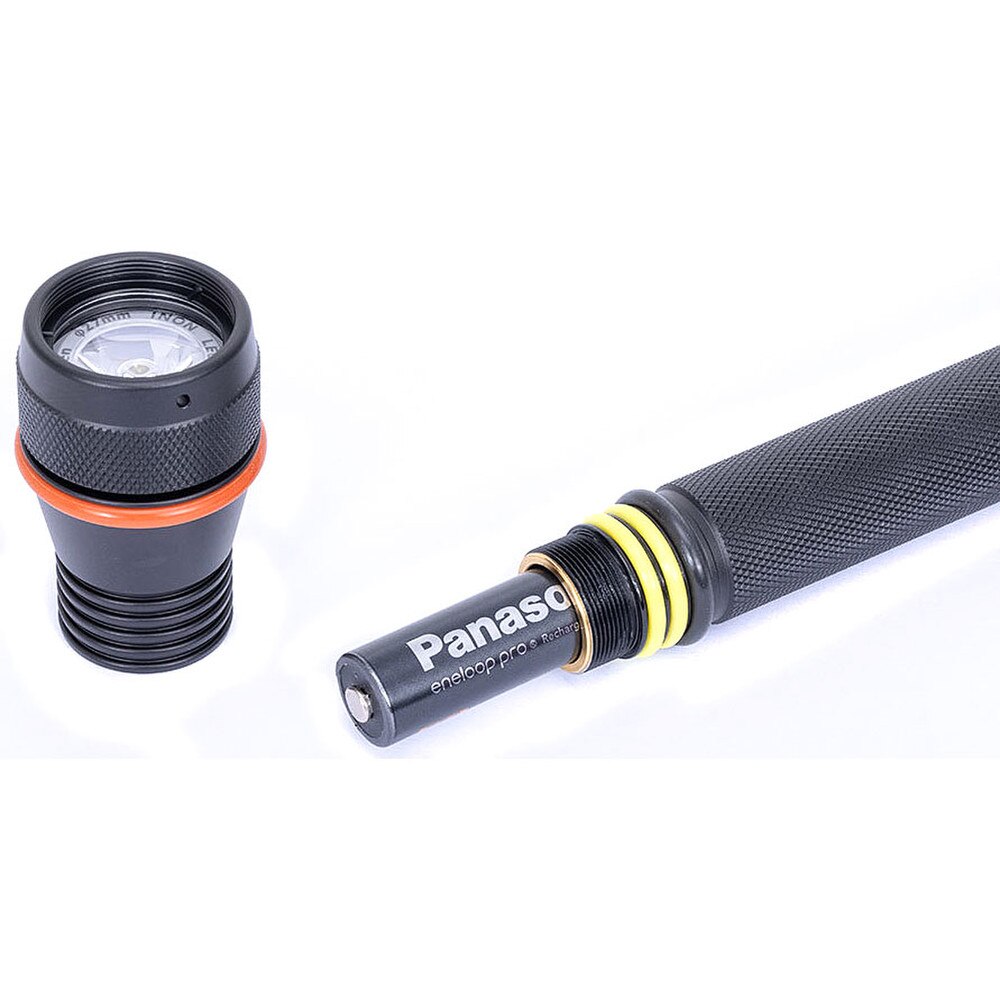

The LE600h-S runs on easily obtainable 3 x AA size batteries. Compatible rechargeable battery like "Eneloop" / "Eneloop pro" etc. gives you approx. 80 minutes run time underwater* with low running cost.

*Average time to get half brightness when continuously turn ON the product with Eneloop pro batteries

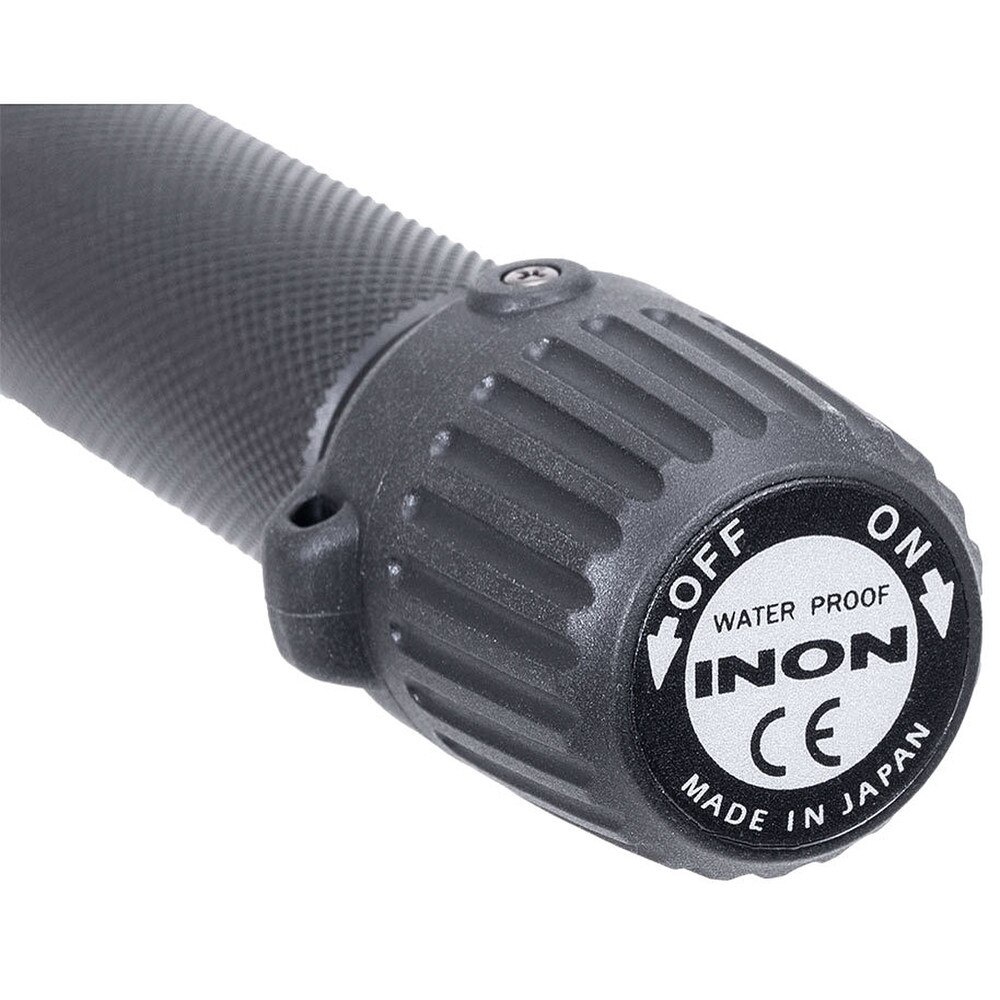

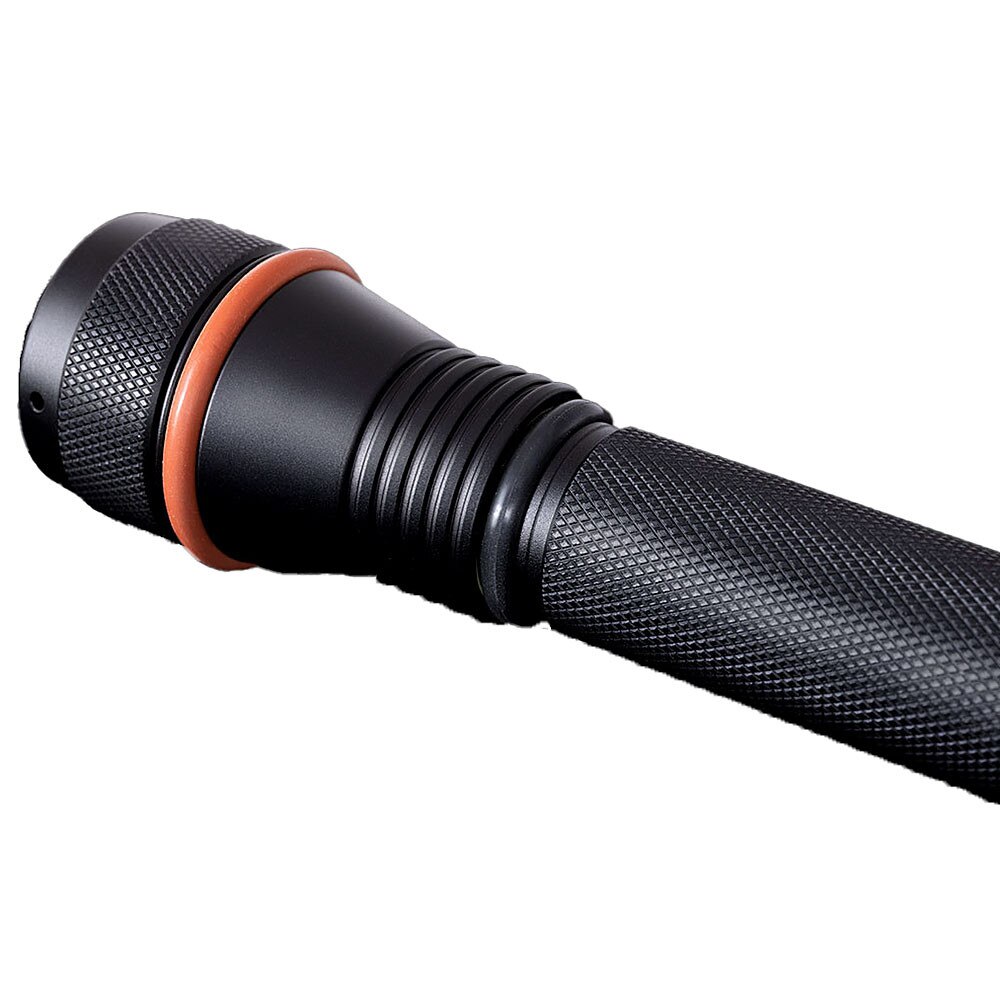

The light head and battery box are made from corrosion-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over-loosening.

Gold coating on electrical contacts of the light head and battery box provides maintenance-free circumstances under normal usage.

The light head is interchangeable with any light head of 3x AA operated "LE700-S Type2", "LE700-S","LE700-W Type2","LE700-W", "LE600h-W", "LE550-S", "LE550-W", "LE350 Type2", "LE350", "LE330h", "LE250" to use for different applications and support possible upgrading to future model.


BEAM ANGLE

• Beam Angle Without a filter: 30 degree
• Beam Angle With W50° Filter LE: 60 degree



SPECIFICATION:

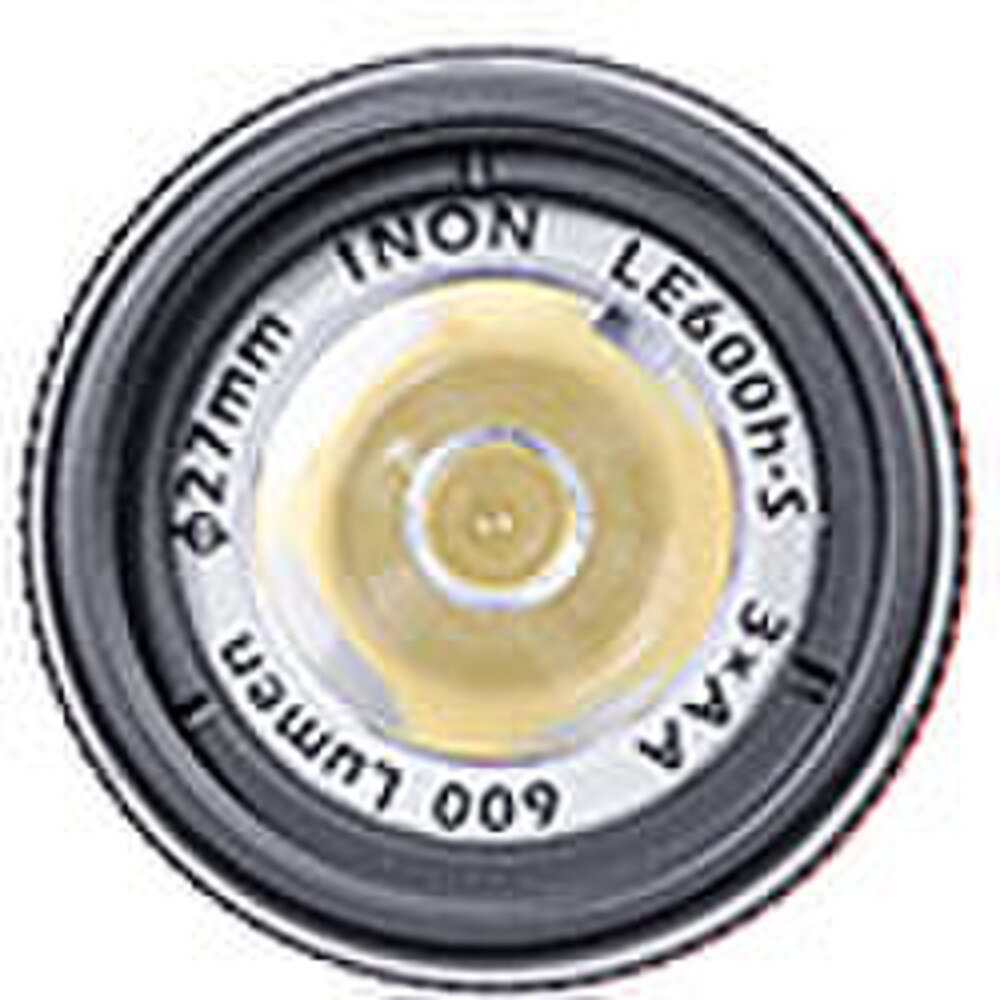

• LED: High-intensity power LED (Cree XM-L2”T4”)
• Luminous Flux (*2)(*3): 600 lumen
• Beam Angle: 30° [without a filter and with packaged Red Filter LE]
• 60° [with packaged W50° Filter LE]
• Color Temp. (*3): approx. 6500K
• Run Time (*4)(*5):
• approx. 60 minutes [“Eneloop” battery]
• approx. 80 minutes [“Eneloop pro” battery]
• Compatible Battery:
• AA “eneloop” / “eneloop pro” battery x 3 (*6)
• AA NiMH [good quality] x 3 (*7)(*8)
• AA Alkaline battery [good quality] x 3 (*8)
• AA Lithium battery [good quality] (1.5V) x 3 (*8)
• Depth Rating: 120m / 394’(*9)
• Size (*10): Max. diameter 33.7mm/1.3” x 198.0mm/7.8”
• Weight (*10): Air: 217g/7.7oz, Underwater: approx. 128g/4.5oz
• Working/Storage Temperature: 0℃-30℃/32°F-86°F
• LED life time: approx. 10,000 hours
• Material/ Finishing:
• Corrosion-resistant aluminum alloy/rigid almite,
• PBT, optical glass, etc.
• Standard Accessory:
• Red Filter LE
• W50°Filter LE
• Hand strap
• INON grease
• EMC standards:
• EN 55015:2013, EN 61547:2009,
• CRF 47 FCC Part 15 Subpart A and B,
• ICES-003:2020(Issue 7), AS CISPR 15:2017



• (*1): Subject to change without prior notice
• (*2): Nominal value calculated from LED manufacture specification sheet.
• (*3): Due to individual variability of LED, drive circuit or battery etc., luminous flux, color temperature, or intensity may vary within rated specification.
• (*4): Average time to get half brightness when continuously turn ON the product with below-listed batteries underwater (approx. 25℃/77°F).
• - ”eneloop” battery: : Panasonic ”eneloop”, BK-3MCC, 1.2V, Min.1,900mAh
• - ”eneloop pro” battery: : Panasonic ”eneloop pro”, BK-3HCD, 1.2V, Min.2,500mAh
• (*5): Actual measured data by INON. The value may vary depending on product individual variability, battery manufacture/model, test condition.
• (*6): "New generation" NiMH batteries carrying less self-discharging and heat-generating characteristic compared to "conventional" or "high-capacity" NiMH including batteries listed below have been confirmed compatible by INON INC. as same as recommended Panasonic "Eneloop"/ "Eneloop pro" battery (BK-3MCC, BK-3HCC / BK-3HCD).
• Panasonic Corporation: : Model name: eneloop [recommended] /Model code: BK-3MCC
• Panasonic Corporation: : Model name: eneloop pro [recommended] /Model code: BK-3HCC / BK-3HCD
• SANYO Electric Co.,Ltd: : Model name: eneloop [recommended] /Model code: HR-3UTG/ HR-3UTGA/ HR-3UTGB
• SANYO Electric Co.,Ltd: : Model name: eneloop pro [recommended] /Model code: HR-3UWX
• Sony Corp: : Model name: Cycle Energy Blue/Model cod : NH-AA-2BKA, NH-AA-4BKA
• Panasonic Corporation: : Model name: Rechargeable Ni-MH (AA)/Model code : HHR-3MPS
• Maha Energy Corporation: : Model name: IMEDION/Model code : MHRAAI4
• GP Batteries International Ltd: : Model name: ReCyko+ /Model code : 210AAHCBE
• ANSMANN AG: : Model name: maxE/Model code : 5030991, 5030992, 5035052
• Electrochem Automation Inc: : Model name: NEXcell energyON/Model code : n/a (AA 2000mAh)
• (*7): Some ”conventional” or ”high-capacity” NiMH rechargeable batteries have significant self-discharge and heat-generating characteristic resulting difficulty to keep their performance during usage. We recommend using recommended batteries.
• (*8): Run time very much depends on battery characteristics, quality. Make sure to use quality battery supporting continuous discharge of large current not to have battery leakage as well.
• (*9): Without operating the ”switch”. INON has a confirmed depth rating 84m/276’ including switch operation.
• (*10): Including 3 x AA ”eneloop” batteries
