  • Gates TVL55 Pass through External Underwater Monitor Housing for TV Logic VFM-058W Field Monitor
Gates TVL55 Pass through External Underwater Monitor Housing for TV Logic VFM-058W Field MonitorGates TVL55 External Underwater Monitor Housing for TV Logic VFM-058W Field Monitor Pass through version is a compact, feature-rich external monitor option for Gates broadcast and cinema caliber underwater imaging systems. Designed specifically for the TV Logic VFM-058W field monitor (not included), the TVL55 is a full 1920_1080 resolution on a 5.5" / 125mm diagonal display. A variety of focus and exposure tools are available like false color, zoom, peaking, vectorscope and waveform. Three assignable buttons give quick access to your favorite, most used functions.Gates, TVL55, Pass, through, version, External, Underwater, Monitor, Housing, for, TV, Logic, VFM-058W, Field, Monitor

Gates TVL55 Pass through External Underwater Monitor Housing for TV Logic VFM-058W Field Monitor

Gates TVL55 External Underwater Monitor Housing for TV Logic VFM-058W Field Monitor Pass through version is a compact, feature-rich external monitor option for Gates broadcast and cinema caliber underwater imaging systems. Designed specifically for the TV Logic VFM-058W field monitor (not included), the TVL55 is a full 1920_1080 resolution on a 5.5" / 125mm diagonal display. A variety of focus and exposure tools are available like false color, zoom, peaking, vectorscope and waveform. Three assignable buttons give quick access to your favorite, most used functions.

SKU: # gt-50-25-108A

FREE Standard Shipping to USA / CANADA!

Price $1,875.00

Base Price $

Price as Configured $

Price $1,875.00
Price $1,875.00

Custom Options


Overview / Product Description

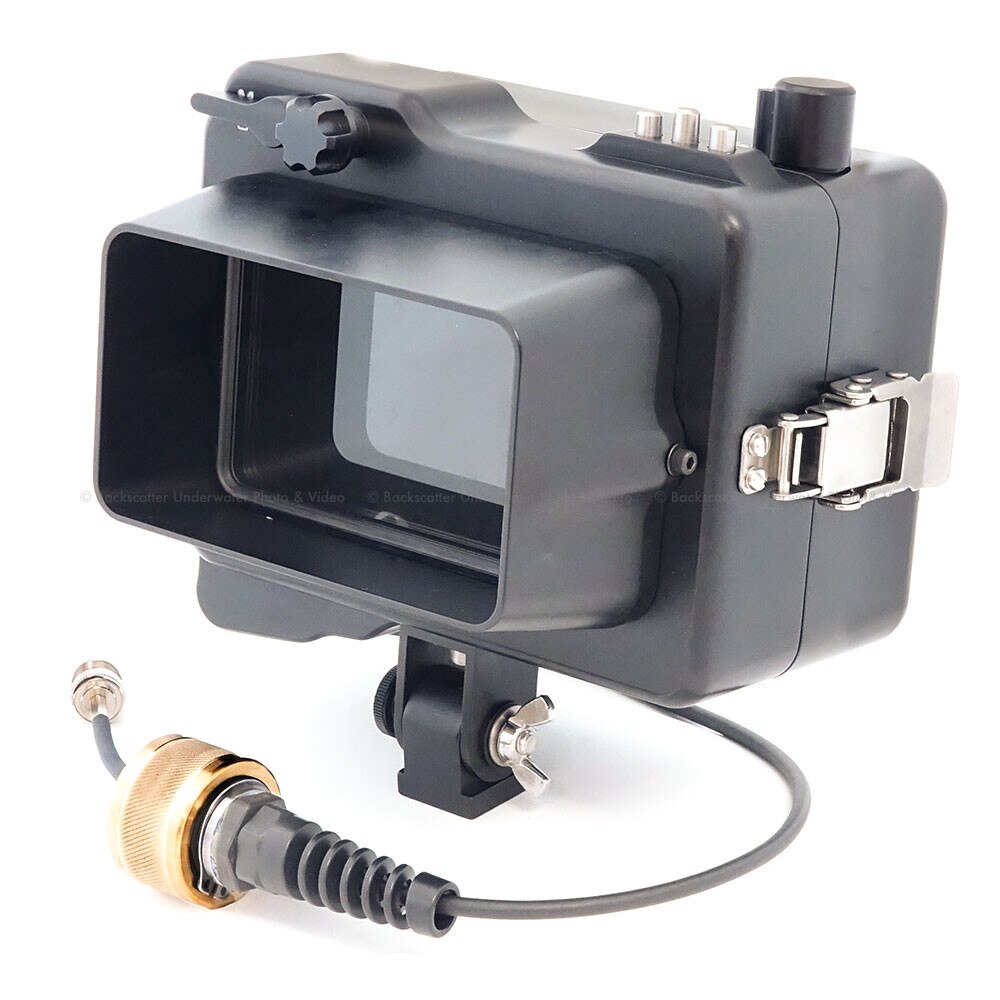

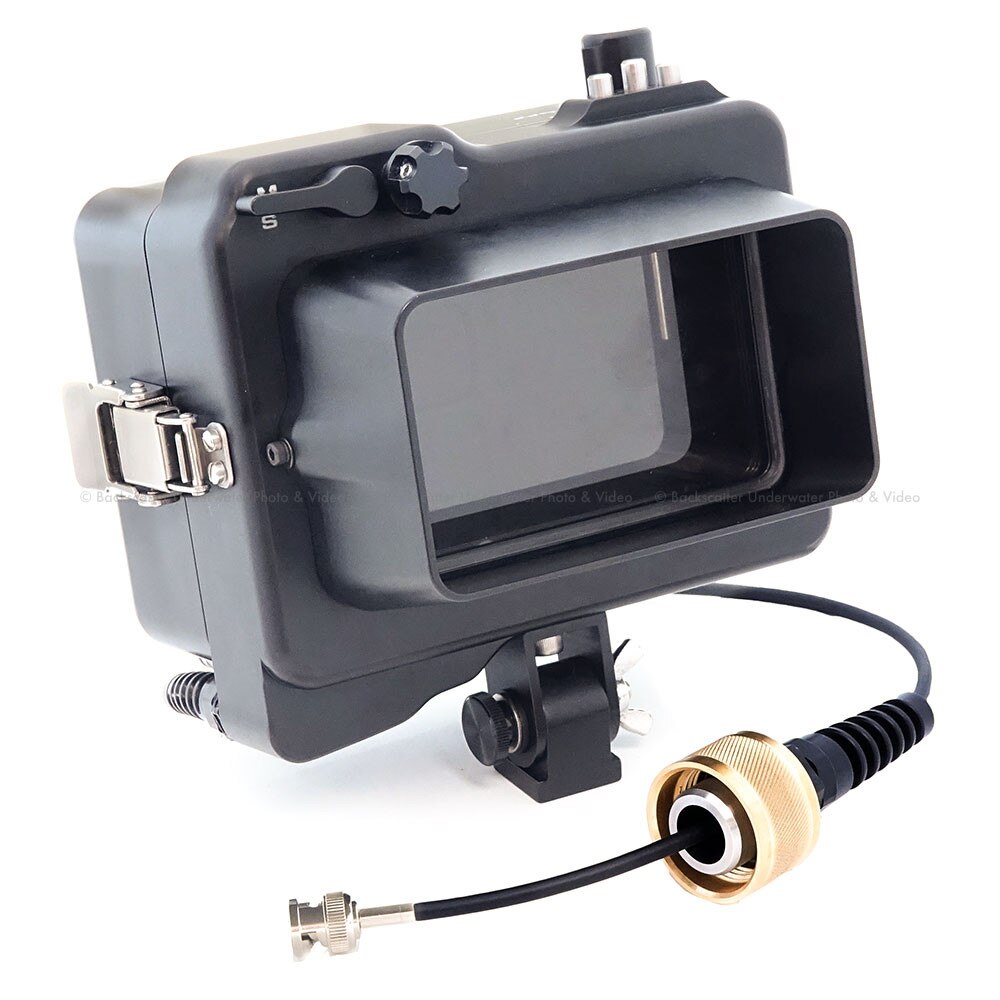

Gates TVL55 External Underwater Monitor Housing for TV Logic VFM-058W Field Monitor - Pass through version





TVL55 External Monitor Tour from Gates Underwater Products on Vimeo.





The Gates TVL55 External Monitor is a compact, feature-rich external monitor option for Gates broadcast and cinema caliber underwater imaging systems. Designed specifically for the TV Logic VFM-058W field monitor (not included), the TVL55 is a full 1920_1080 resolution on a 5.5 / 125mm diagonal display. A variety of focus and exposure tools are available like false color, zoom, peaking, vectorscope and waveform. Three assignable buttons give quick access to your favorite, most used functions.



Of course, the TVL55 comes with Gates 2 year renewable warranty and bulletproof construction. Reliable, durable, dependable the Gates hallmark since 1969.



Key Features:

  • Full 1920x1080 Resolution on a compact 5.5in / 140mm color LCD.
  • Focus and Exposure Tools: Vectorscope, waveform, peaking, false color and zoom.
  • Marine Grade, Water Blocked Cable has a touch polyurethane jacket. A Gates original design.
  • Designed specifically for the TV Logic VFM-058W field monitor with access to full menus and assignable controls.
  • 2-Year Warranty. Only Gates offers a 2-year renewable warranty on all housings.
  • 2.5 Hour Run Time from two Canon LP-E6 low profile LiOn batteries.
Specifications:

  • Compatibility: TV Logic VFM-058W Field Monitor (not included)
  • Resolution: 1920 x 1080
  • Controls
    • Menu
    • Assignable x 3
    • Menu Roller
    • Power
  • Dimensions
    • 7.5" W x 4.3" D x 6.8" H
    • 19Wx11Dx17.2H cm
  • Housing Connection Options
    • Gates pass-through Penetrator
    • Gates 3G-SDI Bulkhead Connector
  • Material
    • Machined aluminum, type III hard anodize Finish
    • Stainless Steel hardware
    • Marine grade cable with polyurethane jacket and water block
  • Weight
    • Dry TBA
    • In Water: 1oz / 28g negative
  • Depth Rating: 450 feet / 137 meters
  • Warranty: 2 Years Renewable
  • Cable / Connections
    • Marine-Grade 3G-SDI Cable
    • Gates Pass Thru Bulkhead Connector
  • Power / Run Time
    • Two Canon LP-E6 low profile batteries
    • Run Time 2.5 hrs
    • Other battery options available by custom order
  • Required TV Logic Equipment:
    • VFM-058W Field Monitor
    • BB-058E Canon LP-E6 Battery Plate
Notes/Limitations:

  • The TVL55 cannot be used simultaneously with 3G-SDI surface feed video on certain cameras. Contact Gates for compatibility.
  • The TV Logic VFM-058W is not included
