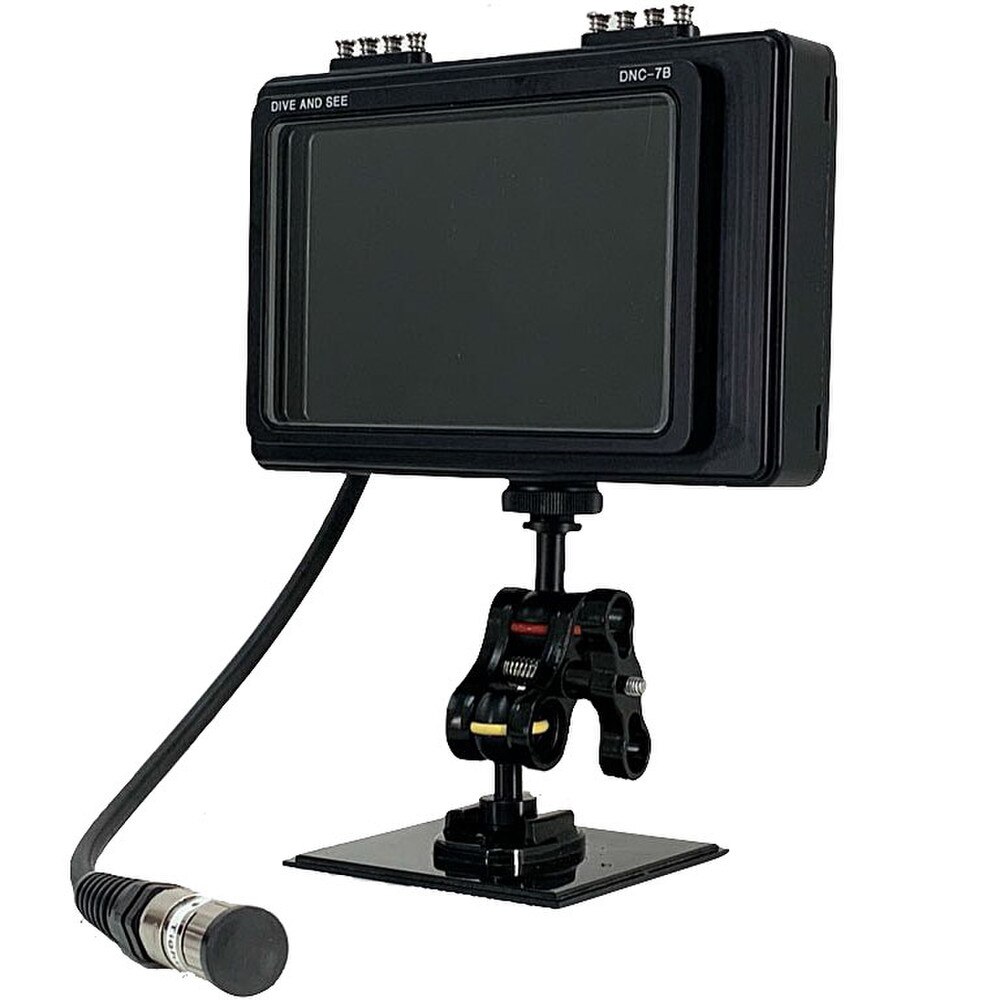

Dive & See DNC-7B (S1) 7-inch Monitor & Housing with SDI Input

Dive & See DNC-7B (S1) 7-inch Monitor & Housing with SDI Input

• 7-inch External Monitor & Housing Combo
• SDI Connection
• 6 Hours Of Non-stop Operation
• Completely sealed, Embedded Battery
• Resolution: 1920x1200
• Depth Rating: 328ft / 100m

7 Inch External Uwater Monitor |4k HDMI or SDI | Anamorphic Mode | Completely sealed, Embedded Battery |6 Hours Of Non-stop Operation

PRODUCT DESCRIPTION

• HDMI Video Monitor fits and works with all brands of housings
• Set of the monitor includes: Sealed monitor, Battery charger, Monitor Hood, Hot shoe Ball Mount, Bulkhead connector per your choice
• The monitor is manufacturing sealed and cannot be opened, Depth Rating: 328 ft / 100 m
• Screen Size: Diagonal 7" (16:10), resolution 1920x1200
• Video Formats: Supports 4K 3840x2160p 4096x2160p (24Hz)
• Battery Life: One battery charge - 6 h 30 min of continuous use

DNC-7B(H1) - underwater broadcast quality Video Monitor with HDMI input, works seamlessly with Sony Alfa A7R II, Blackmagic Cinema Camera, Panasonic GH5, Canon cameras, and any 4K cameras.

A completely manufacture sealed design eliminates one most common problems of leakage of the equipment after the open-close procedure.

This is the monitor with a resolution of 1920 by 1200 pixels, an IPS type of panel with 450 nits brightness, a wide view angle that allowed one to see the color-critical picture without color distortion, and a contrast ratio of 1200:1.

The weight of the monitor in the water is neutrally buoyant.

The Video Screen has full menu access.

It is a very rich menu future.

External push buttons help you navigate through the menu.

Power ON/OFF switch, onscreen battery status indicator, and 2 user configurable push buttons for most common functions, allowing the user for quick access without scrolling through the menu.

The advanced feature includes a Peaking filter, Anamorphic Mode, Pixel to Pixel, Image Flip, Screen marker, Check Field, False colors, Histogram, Scanning mode, Center marker, Segmentation, Zoom, Freeze, and much more.

For evaluation of the focus, the monitor has Pixel To Pixel future.

Peaking filter or Focus Assist – will turn an image to mono and give you a color outline, when a subject is in a focus.

Another mode of Peaking filter switches the image to the full-color stage and be able to see an image in color outline.



• Display panel: IPS LED
• Two user-programmable function buttons
• HDMI Input/Output Support Formats:
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840x2160p (30/29.97/25/24/23.98 Hz)
• 4K 4096x2160p (24Hz)
• SDI Support Formats:
• 480i/576i
• 720p (60/59.94/50/30/29/25/24/23.98
• 1080i (60/59.94/50)
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.89sF)
• Brightness: 450 cd/m2, sunlight readable
• Depth Rating: 270 ft / 82 m
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
• Reverse polarity protection circuit

CONNECTION/COMPATIBILITY

Dive & See offer bulkhead connectors for most popular brands of the underwater housings on the market.

Dive & See has solutions for all HDMI camera connectors:


• Full size - Type A
• Mini - Type C
• Micro - Type D
• Thread size for bulkhead connectors:
• 7/16-20
• 1/2-20
• M14x1
• M16x1
• M16x1.5
• M24x1
• M24 Aquatica special
• M28x1

INPUT AND OUTPUT OPTIONS:

• DNC-7B(H1) - this model has only HDMI input
• DNC-7B(H2) - this model has HDMI input and additional HDMI output loop through Bulkhead connector for Live streaming video
• DNC-7B(S1) - this model has only SDI input
• DNC-7B(S2) - this model has SDI input and additional SDI output loop through Bulkhead connector for Live streaming video out up to 1080p60 (3G signal)
• DNC-7B(HS) - this model has HDMI input, SDI live streaming video out connector. Resolution of HDMI wust be 1080p60, to get SDI 1080p60 Out

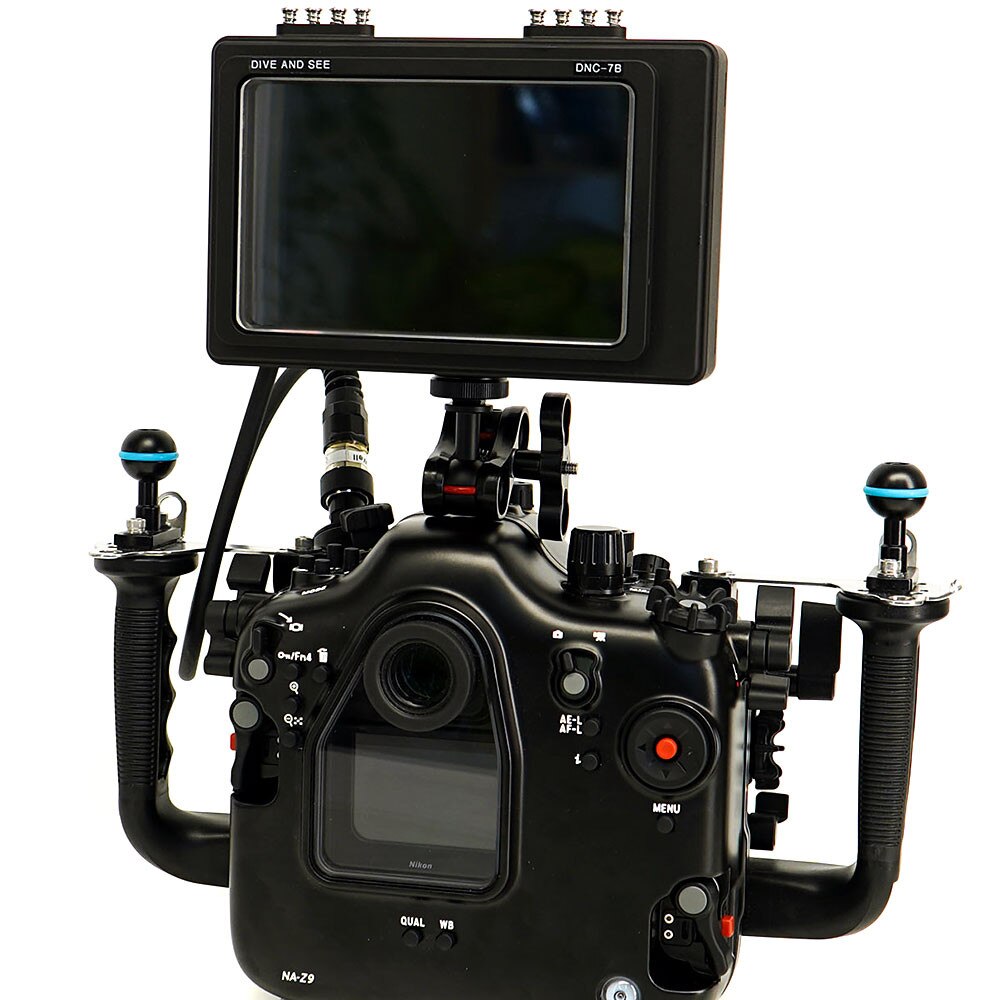

DNC-7B 7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector with Nauticam NA-C200Sea&Sea MDX R housing camera Canon EOS R



SPECIAL OPTION

A video signal or diagram from the computer send from the surface to the diver over an 80m SDI cable.

7" monitor with 80m SDI cable

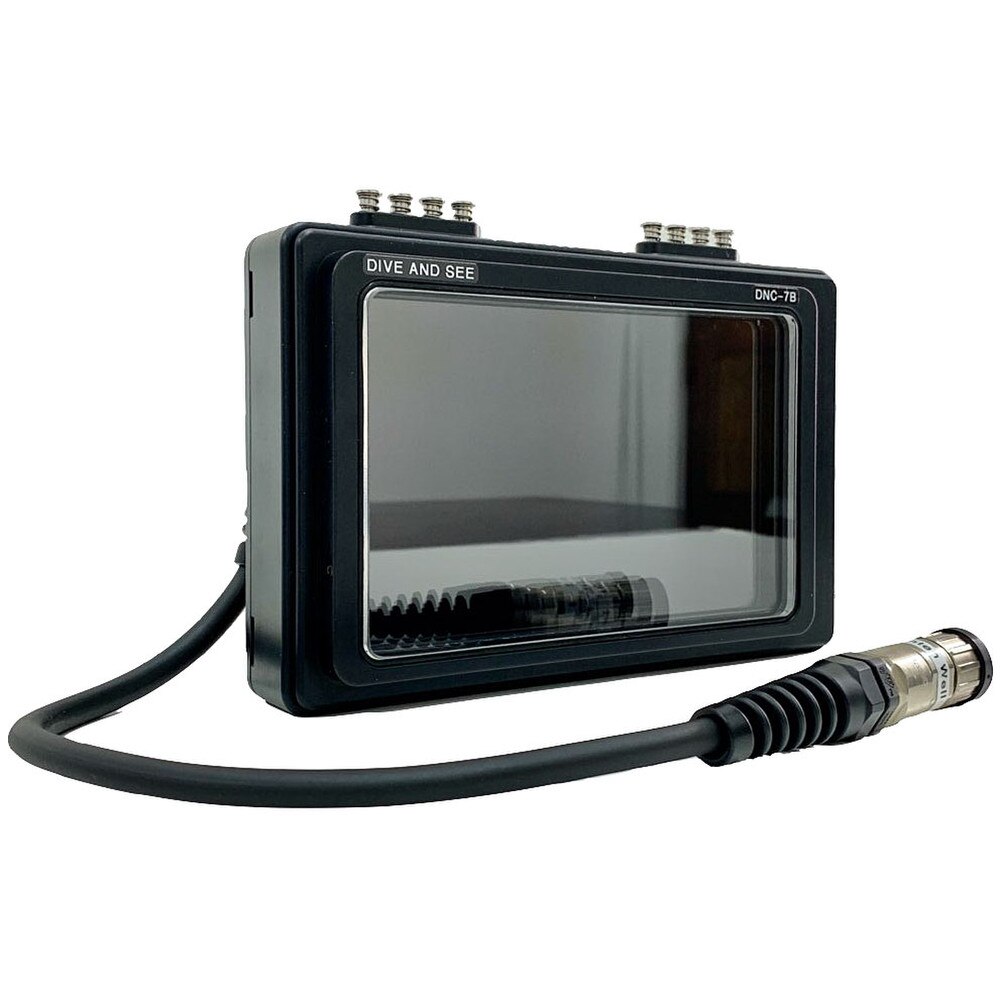

DURABLE & SEALED

• Compact 201 x 142 x 74 mm, rugged, safe design.
• The monitor guarantees NEMA 6 (IP 68).
• Strong and lightweight aluminum shell, over hard anodized coating, resistant to salt water, a perfect tool for professional underwater photography.
• The monitor is sealed and cannot be taken apart or opened.
• You will never get water or sand inside, or have to worry about properly sealing the monitor after charging it.

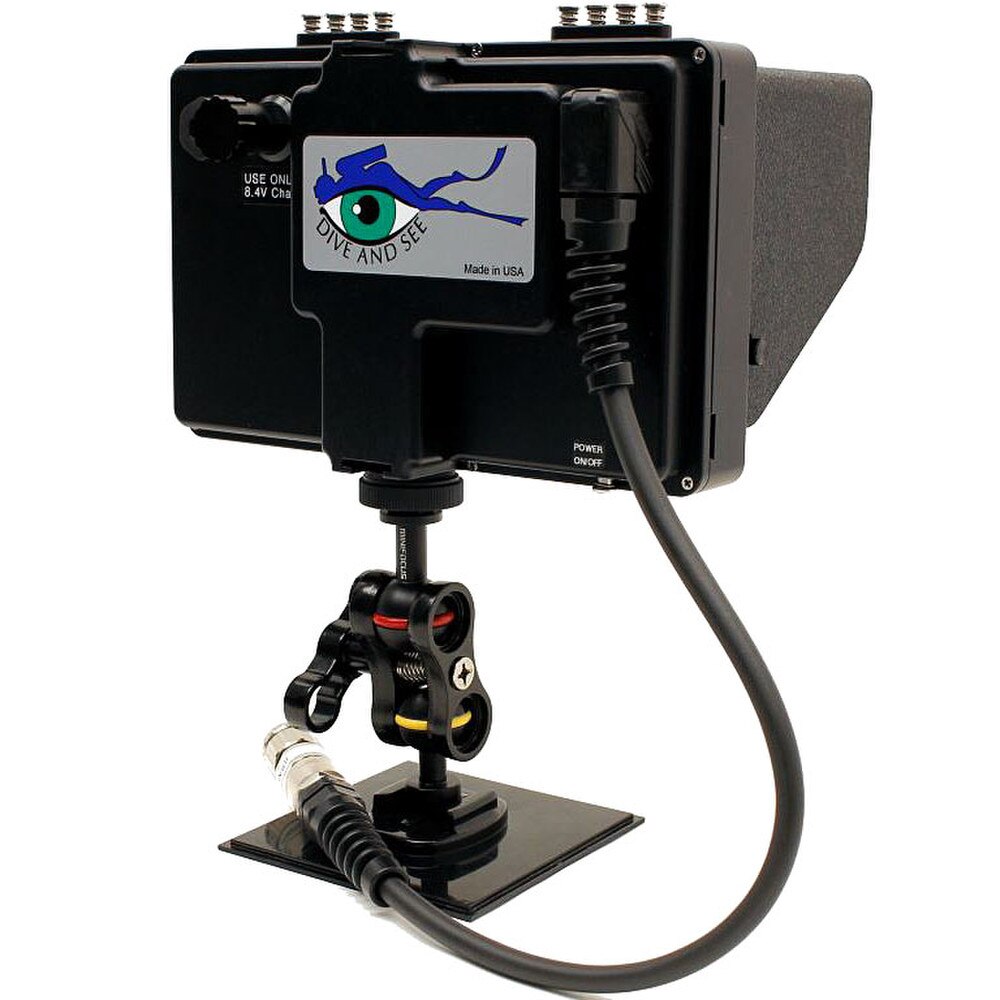

MOUNTING CAPABILITY

• The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with 1" ball on the end.
• Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms.
• It is useful for lighting or an external microphone.

DNC-7B 7inch 7 underwater external monitor 4k hdmi sdi monitor with shoe ball mount7" monitor with SDI Nauticam housing



BULKHEAD CONNECTOR

• We have bulkhead connectors (fittings) for all brands of housings.
• Custom length and other HDMI connector types are available.
• All of our bulkhead connectors have water blocks and are open-face pressure rated to 150 PSI (100 meters).
• Water block will protect and keep the vacuum inside the housing when using AirLock Vacuum System.
• Protect the housing against penetration of the water, if something happens with the external cable or connection between the cable and bulkhead connector.
• The DNC-7B(H1) has a detachable HDMI cable for a quick connection with a bulkhead connector on the housing.
• The unpluggable cable is convenient for transportation.

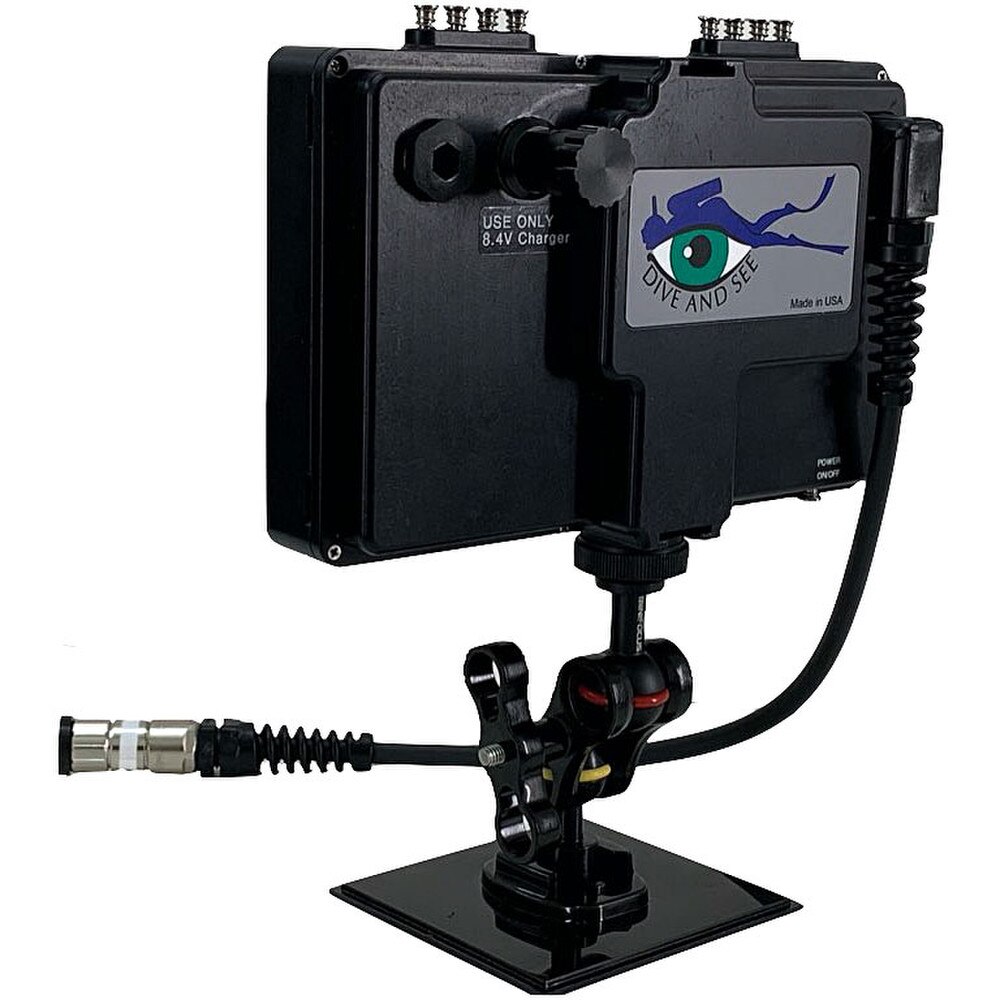

POWER AND CHARGING CONFIGURATION

Option 1 - Standard

• Built-in rechargeable UN/DOT 38.3 Certified Li-Ion battery.
• Continuous run time of HDMI version - 6 hours 30 minutes.
• Recharging time of the battery - 5 hours.

DNC-7B 7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector with battery charger



Option 2 - No battery inside.

This option is suitable:

• When you need to use the extended monitor period of time.
• Or you do not have time to recharge the battery of the monitor.
• In this configuration, you will take power from Camera Housing.
• Power for the monitor and SDI signal going through one combo waterproof cable with an appropriate waterproof connector (option).
• This Power configuration works only for the SDI signal, not for HDMI.
• Power consumption of the monitor: 9W
• The monitor has a reverse polarity protection circuit.

SDI and Power feed monitor trough one single waterproof cable



SPECIFICATION

• Screen Size: Diagonal 7" (16:10)
• Display panel: IPS LED
• Physical Resolution: 1920 x 1200
• Video Formats: 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)
• 4096×2160p (24Hz)
• View Angle: 178(H) 178(V)
• Brightness: 450 cd/m2
• Contrast Ratio: 1200:1
• Depth Rating: 328 ft / 100 m
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7.91 x 5.59 x 2.91 inch / 201 x 142 x 74 mm
• Voltage: DC 8.6V
• Buoyancy: neutral in fresh water/salt
• Battery Life: 6 hours 30 minutes - continuous.
• Battery recharge time: 5 hours

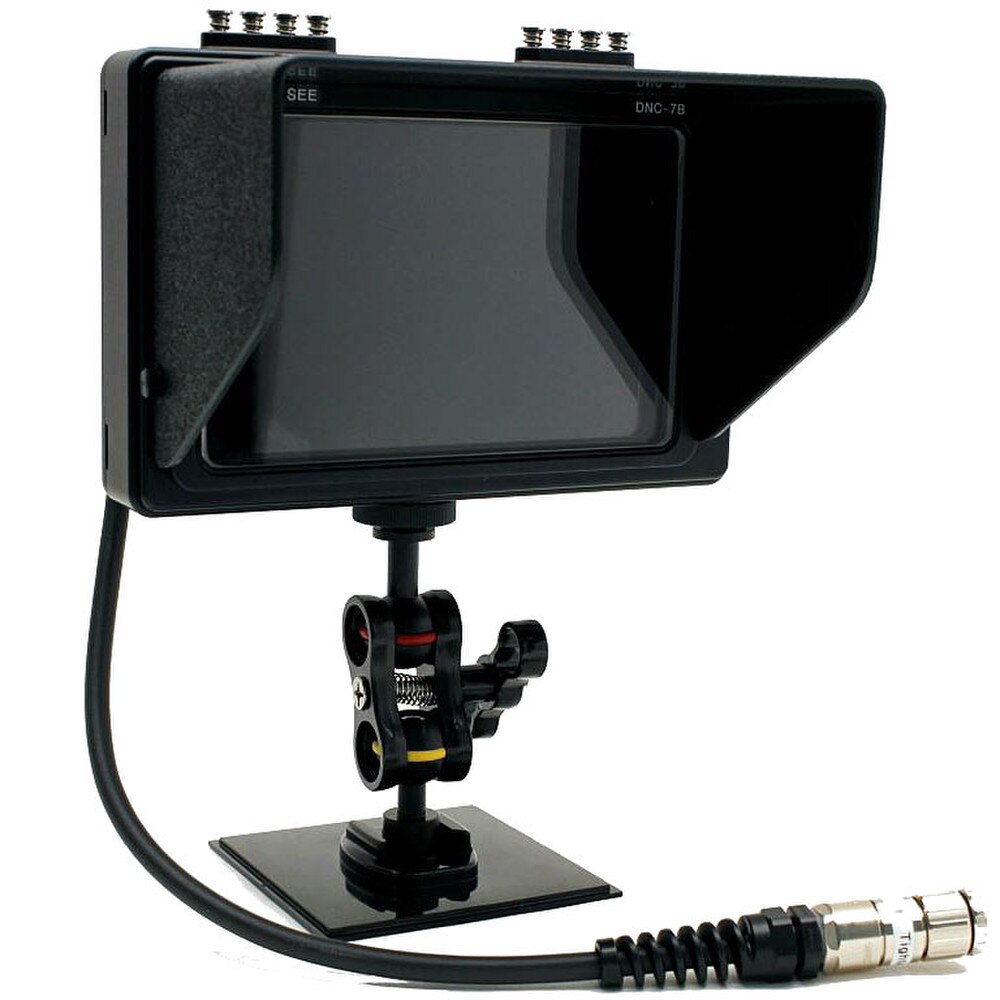

Monitor Hood

• Removable Sun hood greatly eliminates glare in shallow water, and outdoor viewing and protects delicate monitors from the elements.
• Constructed of durable plastic can stand up to the rigors of use in the field.
• Spare screws include the monitor kit. The Monitor hood is easy to install.

DNC-7B 7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector, underwater monitor with sun shade

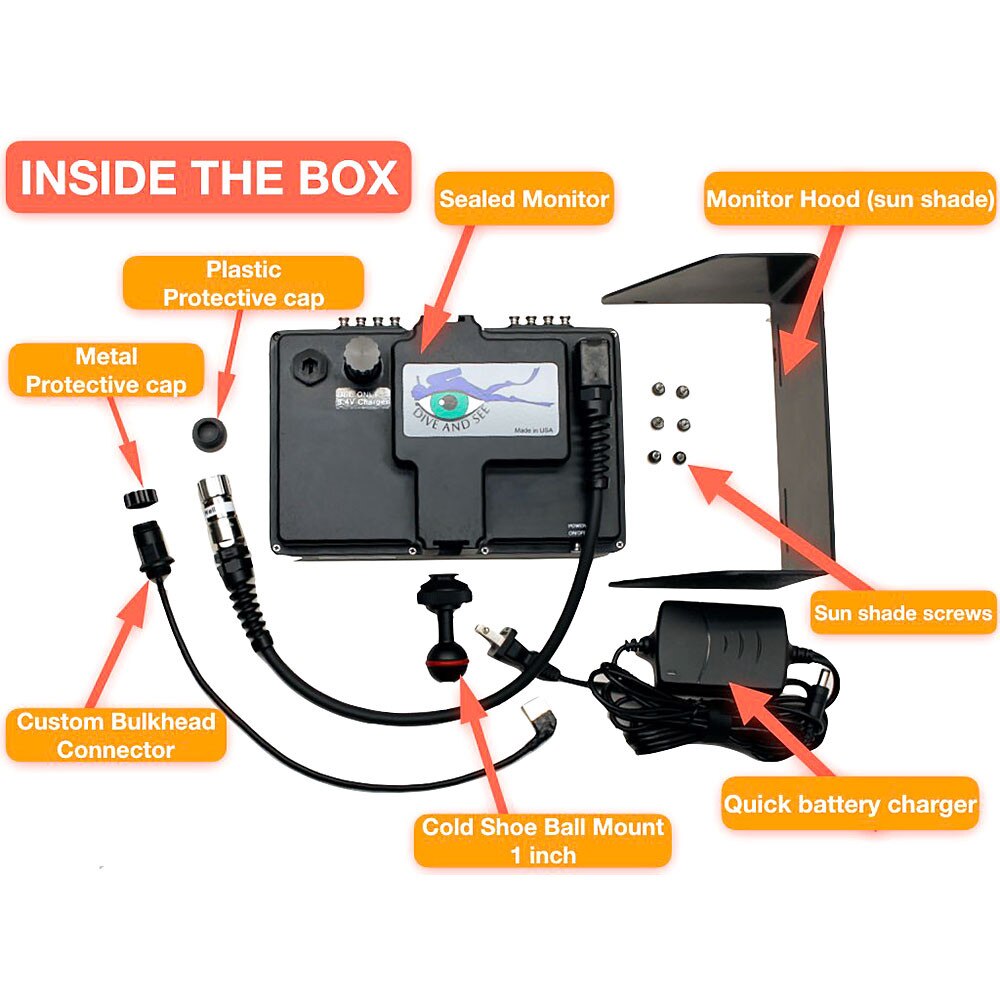

THE SET INCLUDES:

• DNC-7B 7 inch Underwater External Monitor, 4k HDMI, SDI monitor, sealed monitor with custom bulkhead connector, anamorphic mode
• Sealed Monitor
• One bulkhead connector (specify a type of your housing)
• 1 metal and 1 plastic protective cap
• Cold shoe ball mount 1 inch
• Battery charger
• Monitor hood (sun shade)
