Dive & See DNC-7B (HS) 7-inch Monitor & Housing with HDMI Input and SDI live streaming video out connector

Universal 7 Inch External Underwater Monitor |Two Inputs - HDMI and SDI | Anamorphic Mode | Completely sealed, Embedded Battery |6 Hours Of Non-stop Operation

• Multi-Input Video Monitor - SDI and HDMI, fits and works with all brands of the underwater housings

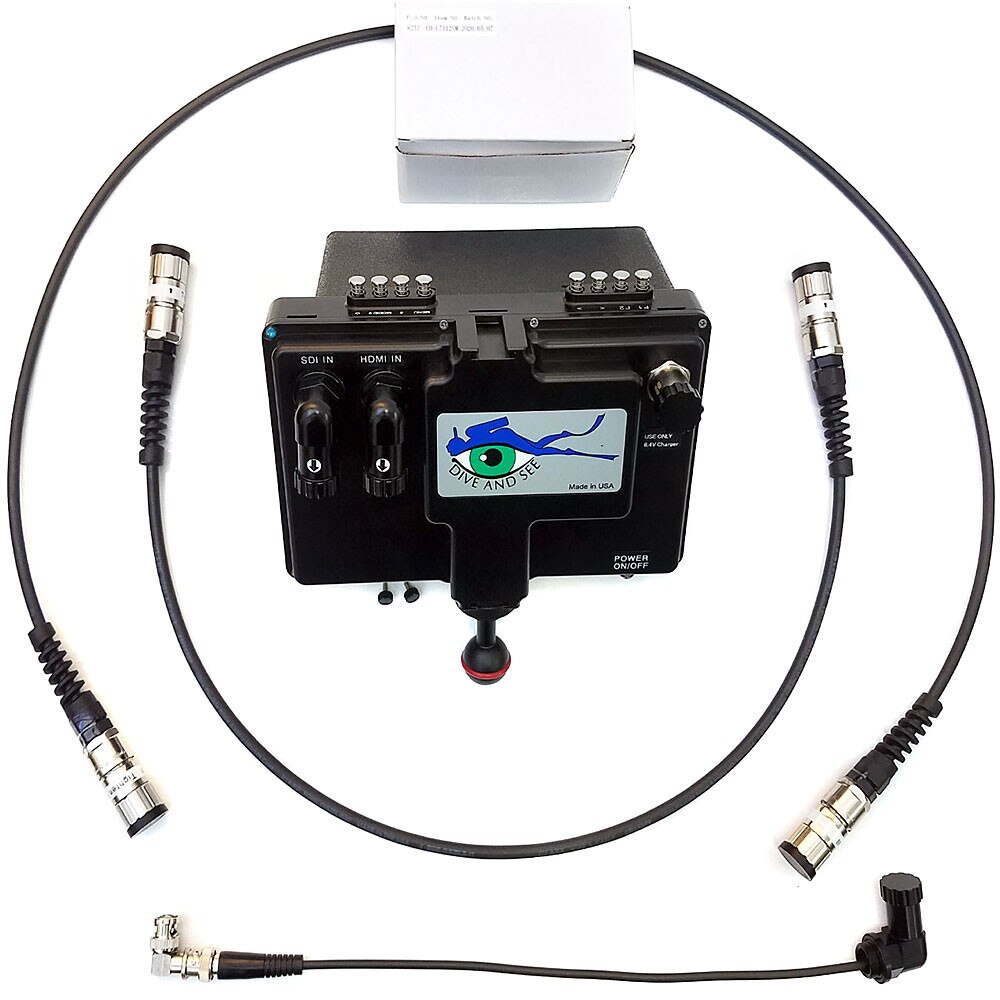

• Set includes: Sealed monitor, SDI, and HDMI rotatable Low profile bulkhead connectors, Battery charger, Monitor Hood, Hot shoe Ball Mount
• The monitor is manufacturing sealed and cannot be opened, Depth Rating: 328 ft / 100 m
• Screen Size: Diagonal 7" (16:10), resolution 1920x1200
• Video Formats: Supports 4K 3840x2160p 4096x2160p (24Hz)
• SDI Formats: 3GSDI
• Battery Life: One battery charge - 6 h 30 min of continuous use

DNC-7B SDI and HDMI inputs - is the best monitor for underwater applications. It means when you have two underwater devices/housings with SDI and HDMI cameras, you need just one monitor. Simply connect the appropriate Dive And See cable, and use the universal monitor with either camera.

Bulkhead connectors on the monitor have a low-profile Elbow shape.

When you attach SDI or HDMI cable, it keeps an ergonomic compact setup.

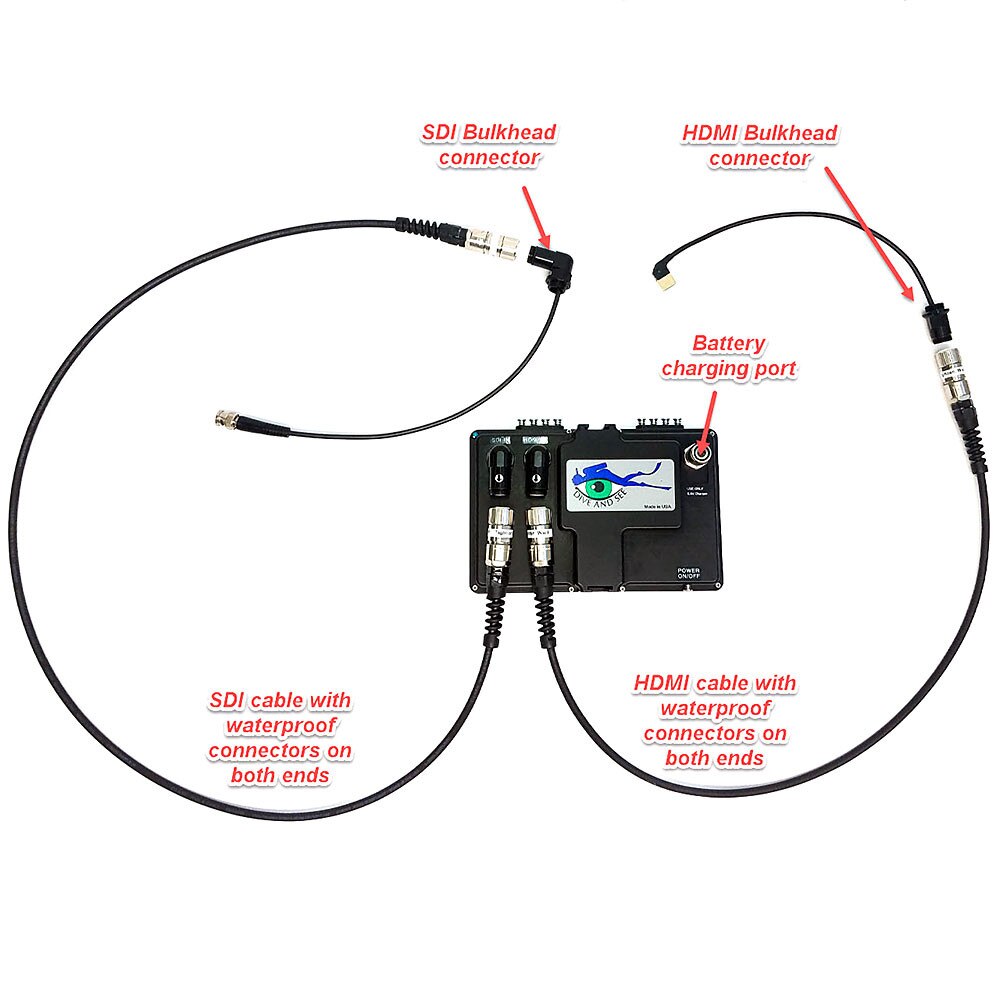

Waterproof cables with connectors from both ends, compatible with any Dive And See bulkhead connectors.

Completely manufactured sealed designs eliminate one most common problem leakage of the equipment after the open-close procedure. This is the monitor with resolution 1920 by 1200 pixels, IPS type of the panel with 450 nits brightness, wide view angle allowed to see the color-critical picture without color distortion and contrast ratio 1200:1.

Weight of the monitor in the water is neutrally buoyant.

The Video Screen has full menu access.

It is very rich menu futures.

External push buttons help you navigate through the menu. Power ON/OFF switch, onscreen battery status indicator and 2 user-configurable push buttons for most common functions, allowed user quick access without scrolling through the menu.

The advanced feature includes Peaking filter, Anamorphic Mode, Pixel to Pixel, Image Flip, Screen marker, Check Field, False colors, Histogram, Scanning mode, Center marker, Segmentation, Zoom, Freeze, and much more.

For evaluation of the focus, the monitor has Pixel To Pixel future.

Peaking filter or Focus Assist – will turn an image to mono and give you a color outline, when a subject in a focus.

Another mode of Peaking filter switch image to the full-color stage and be able to see an image in color outline.

SPECS:

• Display panel: IPS LED
• Two user-programmable function buttons
• HDMI Input/Output Support Formats:
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840x2160p (30/29.97/25/24/23.98 Hz)
• 4K 4096x2160p (24Hz)
• SDI Support Formats:
• 480i/576i
• 720p (60/59.94/50/30/29/25/24/23.98
• 1080i (60/59.94/50)
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.89sF)
• Brightness: 450 cd/m2, sunlight readable
• Depth Rating: 100m / 330ft
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
• Reverse polarity protection circuit

INPUT AVAILABLE:

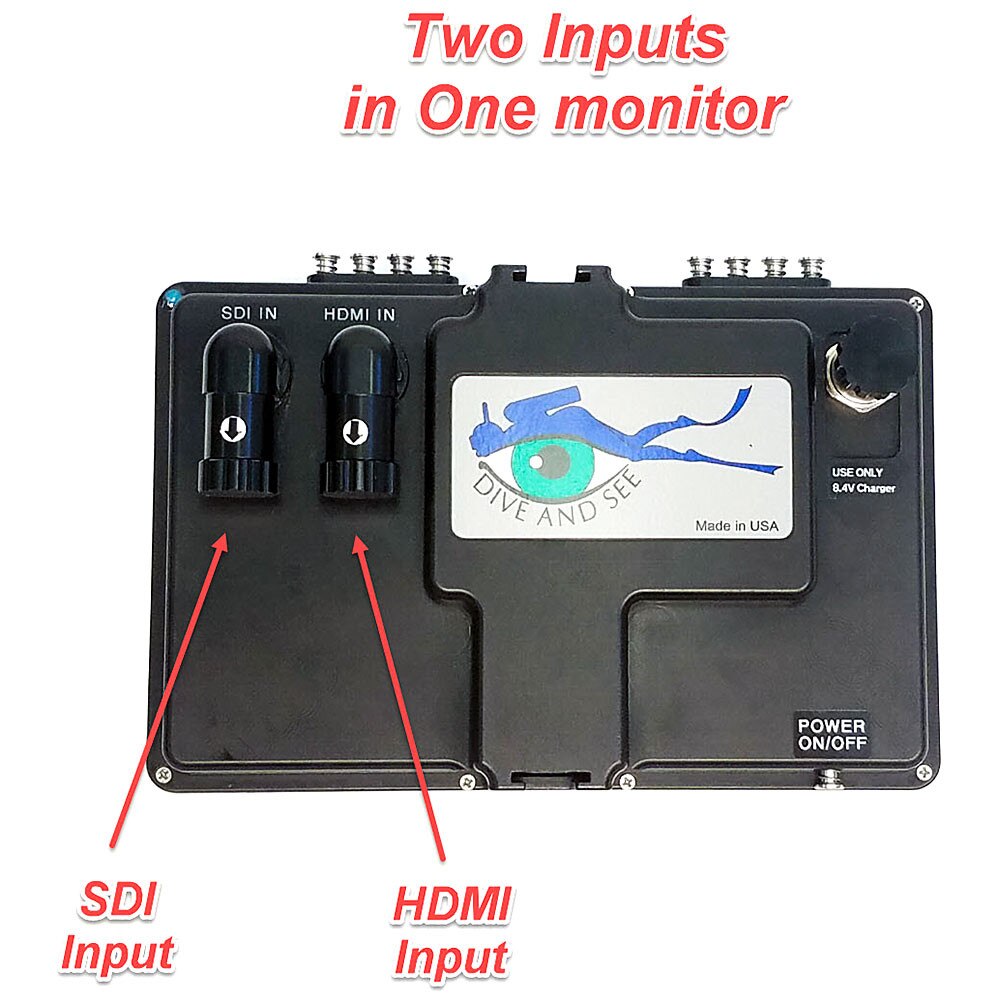

• DNC-7B comes with SDI and HDMI rotatable Inputs connectors.
• Each bulkhead connector includes a protective cap when you do not use the connection.
• Connectors have embedded water blocks.
