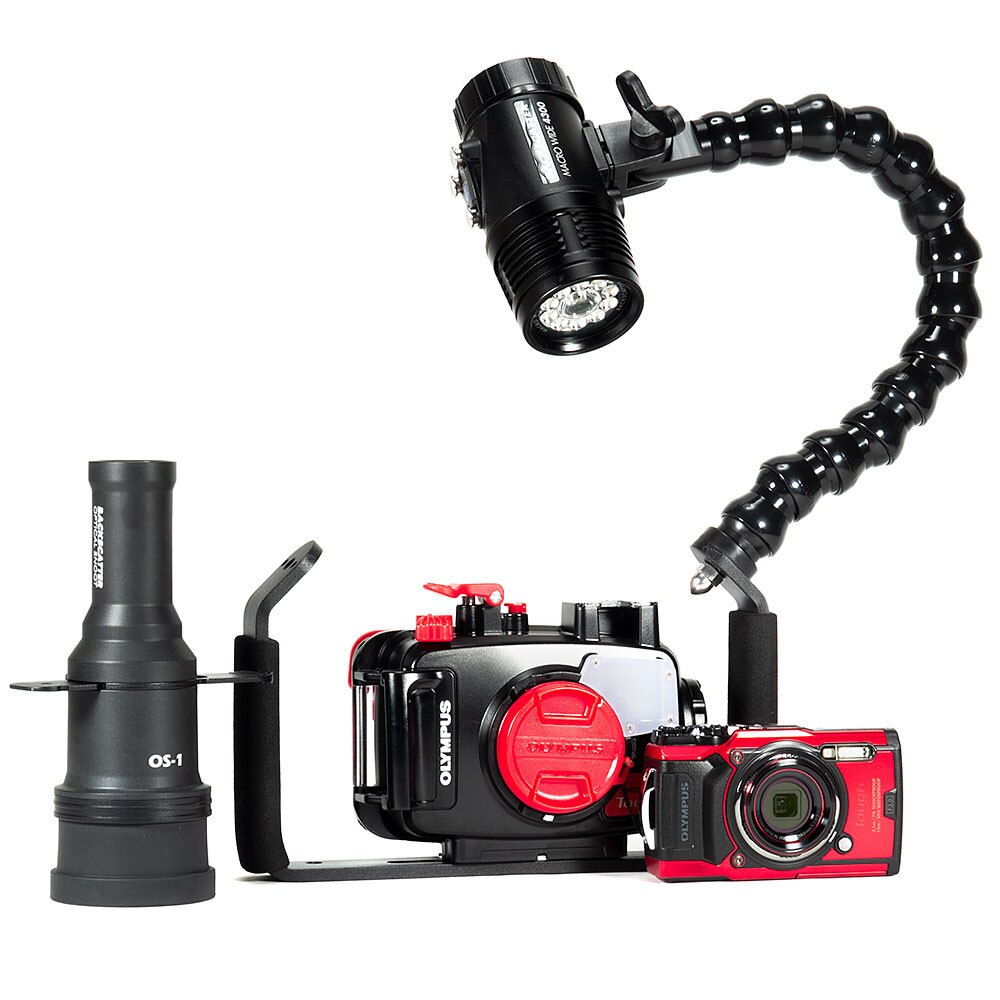

Olympus TG-6, Macro Wide 4300, & Snoot Underwater Video Package

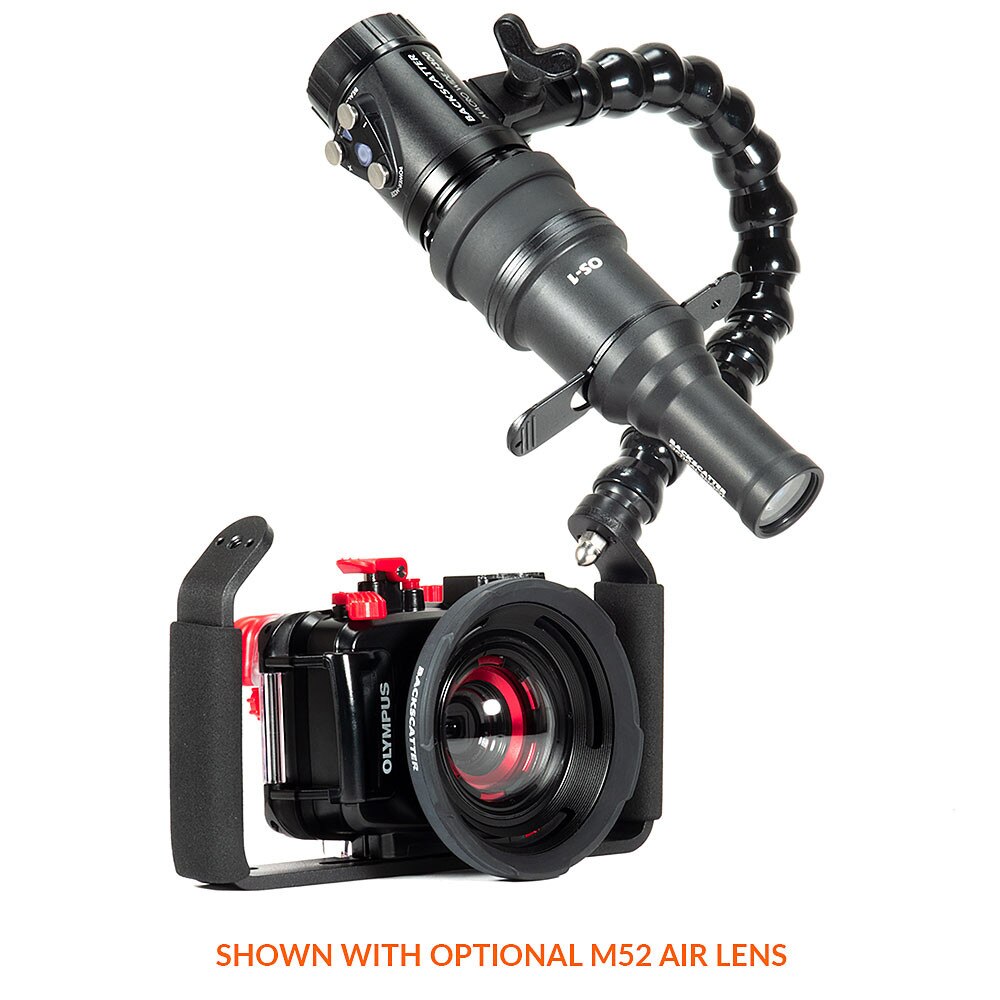

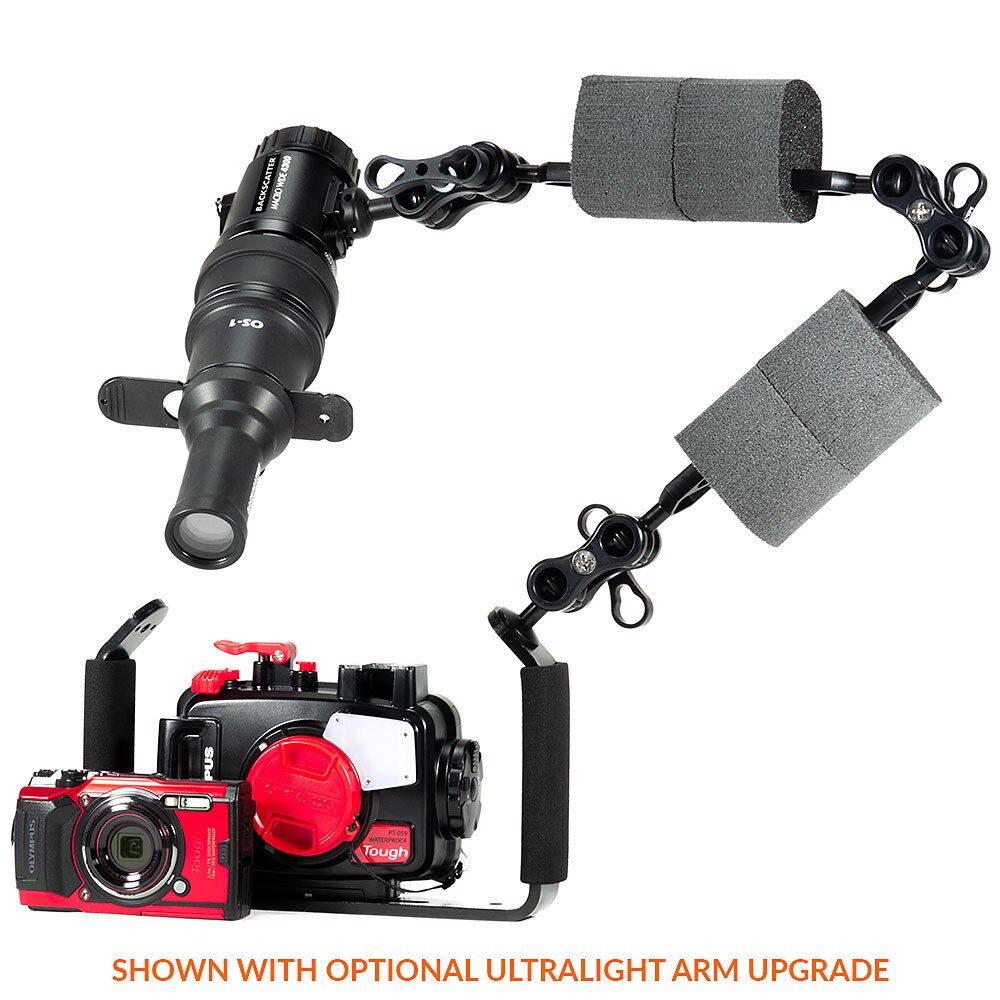

By adding a tray and arm, this package expands the capabilities of the TG-6 with the stability of dual handles and the flexibility to position the light anywhere you need.

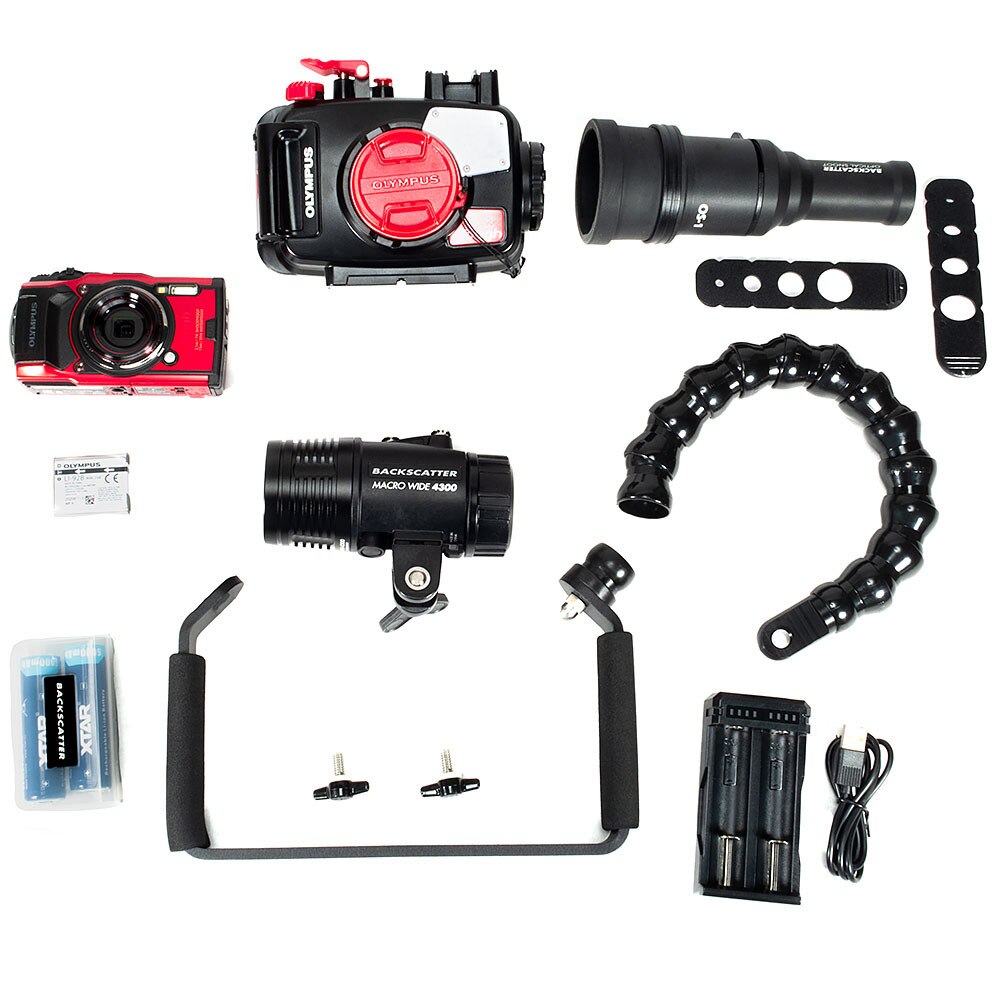

Package Includes:

• Olympus TG-6 Camera
• Olympus PT-059 Housing
• Backscatter MW-4300 Video Lights
• Backscatter Optical Snoot OS-1
• Flex Arm & Backscatter Tray

Olympus Tough TG-6 Waterproof Camera

• 12MP Hi-Speed Image Sensor
• Bright ƒ2.0 Hi-Speed Lens
• Powerful TruePic VIII Image Processor
• 4x Optical Zoom (35mm equivalent: 25mm-100mm)
• RAW Image Capture
• Waterproof to depths of 50 feet / 15m

Olympus expands rugged and underwater shooting capabilities with the new Olympus Tough TG-6, a compact digital camera with reliable Tough performance for shooting anytime and anywhere. It features a blazing fast, wide-angle ƒ2.0 lens, back-lit high-speed CMOS sensor, and powerful TruePic VIII image processor, providing the ability to capture stills and video with brilliant color and stunning detail. The Tough TG-6 is waterproof to a depth of 50 feet (15m), dustproof, shockproof to 7 feet (2.4m), crushproof to 100 kgf, freezeproof to 14ºF (-10°C), and features a dual-pane protective glass construction for superb anti-fogging performance. Its Variable Macro System goes beyond the limits of the eye with ultra-close-up shooting up to 1cm from the front of the lens. Full-featured underwater shooting modes and a new fisheye converter lens that supports circular fisheye photography are available for the Tough TG-6, along with a full lineup of other accessories for expanded shooting possibilities, making this truly the strongest field camera available.

Tough Performance for Shooting Anytime

Sealing throughout the entire camera body and double-lock construction on the camera battery cover are designed to provide waterproof performance to a depth of 50 feet for underwater shooting and excellent dustproof capabilities for use in dirty and dusty locations. Its floating construction protects the inside of the camera, clearing drop tests up to seven feet, and the reinforced body withstands loads up to 100 kgf. The Tough TG-6 is also freezeproof down to 14ºF, and the nitrogen-filled, hermetically sealed dual-pane protective glass construction prevents condensation and fogging for reliable shooting even in locations with severe temperature fluctuations.

High-Quality Images

The Olympus Tough TG-6 is equipped with a high resolution, high-speed ƒ2.0 zoom lens and a high-speed back-lit CMOS image sensor, offering excellent high-sensitivity performance and allowing you to capture bright, richly detailed images in low-light settings, ideal for shooting fast moving subjects. Anti-reflective (AR) coating incorporated in the image sensor’s sealing glass minimizes ghosting and flares. The TruePic VIII image processor, found in the award-winning Olympus OM-D E-M1X® professional model, is featured on this model, reducing noise levels and improving resolution in low contrast areas. RAW data can be recorded and then edited in post-production using the Olympus Workspace image editing software.

Variable Macro System

Conquer macro photography and creatively capture intricate detail using any of the four shooting modes, opening a new world of macro shooting. This close-up shooting performance allows high-quality image capture of the microscopic world that the human eye cannot see. The closest focusing distance of 1cm is possible for close-up shots even in Program and Aperture modes for more flexible photography.

The LED Light Guide, LG-1 (sold separately) uses the LED on the front of the camera to evenly illuminate the subject while the image is being taken. The LG-1 also assists with composing the image, acting as a constant light source to illuminate the subject.

The Flash Diffuser FD-1 (sold separately) uses the in-camera flash to illuminate the subject, offering a significant increase in the amount of light. This increase in light allows for usage of lower ISO settings and faster shutter speeds, as well as an increased working distance. The FD-1 can also be utilized under water.

Microscope Mode

With Microscope Mode, users can capture high-quality, detailed images of tiny subjects that are difficult to see with the naked eye, such as the antennae and feet of insects, the veins of a leaf on a tree, snowflakes, etc. A maximum shooting magnification of 7x8 is possible when the optical zoom is set to the telephoto end and the subject is 1 cm away from the front of the lens, delivering magnified shots similar to using a microscope.

Microscope Control Mode

Switch display magnification ratios with the press of a single button similar to switching microscope objective lenses for observing and photographing subjects at 1x, 2x, and 4x. When the subject is 1 cm from the front of the lens while using this mode, the image on the rear LCD monitor can zoom in up to 44.4x.

Focus Stacking Mode

Focus stacking mode captures multiple shots while automatically shifting the focus from the foreground to the background. Only the areas in focus are extracted and merged, resulting in a full pixel photo with a deep depth of focus. This is particularly effective for macro shooting when shots have a shallow depth of field and a narrow range of focus. Between 3 and 10 shots can be set on the Tough TG-6 so users can fine tune settings for different subjects and precision in their finished image.

Focus Bracketing Mode

With a single shot, this function captures up to 30 images while shifting the focus from the foreground to the background. Three levels of focal shift and the number of shots can be selected to perfectly match the subject and shooting conditions. This feature is convenient for instantly setting the focal position when shooting flower petals or the wings of insects, etc.

Dive Deep Into Underwater Photography

To expand the possibilities of underwater shooting ever further, the Tough TG-6 is equipped with five underwater shooting modes optimized for various situations, allowing the user to capture sharp, colorful underwater photos at all depths. The popular Underwater White Balance mode now offers three options, providing appropriate color adjustment for deep water shooting. The new Fisheye Converter FCON-T02 (sold separately), for circular fisheye photography, is now available, offering a versatile lineup of accessories to further expand shooting creativity.

Five Underwater Modes

• Underwater Wide: Optimized for shooting in dim underwater conditions and capable of shooting in deeper water.
• Underwater Snapshot: Records subjects using the natural lighting in pools and other shallow water for natural-looking photos.
• Underwater Macro: Perfect for close-up shots of small subjects such as little fish.
• Underwater Microscope: Captures even smaller subjects up to 1 cm from the front of the lens.
• Underwater HDR: Dramatically recreates the scene without losing details in dark areas.

Three Underwater White Balance Modes

• Underwater Shallow: Recommended for use in water depths up to approximately 10 feet deep to improve the red tones that tend to occur in shallow water.
• Underwater Mid-Range: Optimally tunes the color for general use in water from 10-50 feet deep.
• Underwater Deep: For use with the new Underwater Case PT-059 (sold separately) in water deeper than 50 feet, particularly for improving the blue tones in photos.

Fisheye Converter, FCON-T02

The new Fisheye Converter FCON-T02 (sold separately) delivers both circular fisheye photography and diagonal fisheye photography via zooming control. It can function even underwater for zoomed-in shots. The Converter Adapter CLA-T01 (sold separately) is required to attach this lens. FCON-T02 is only compatible with the Tough TG-6.

Advanced Video Functions

The Olympus Tough TG-6 is equipped with Ultra HD 4K Movie, ideal for recording beautiful scenery in amazing detail. Full HD 120fps High-Speed Movie is also included to capture high-quality split-second moments with playback in stunning slow motion.

Field Sensor System

The Olympus Tough TG-6 is equipped with a Field Sensor System, using tracking information obtained from various sensors in the camera to record data, including the GPS, manometer, temperature sensor, and compass. Data can then be synced to photos and video and viewed in the free Olympus Image Track (OI.Track) smartphone app. Simply press the INFO button, even when the camera is off, to display data.

Pro Capture Mode

Never miss a shot! Pro Capture Mode shoots sequentially at 10 frames-per-second (fps) for 0.5 seconds before the shutter button is pressed fully, making it perfect for capturing shots where timing may be difficult, such as an insect in flight or a drop of liquid splashing.

High Definition LCD monitor

The new rear LCD monitor now features a 1.04 million-pixel high-definition resolution for improved visibility. The brightness and color saturation are optimally tuned for use outdoors.

Date Imprint

It is now possible to embed the date and time of capture into still images for convenience and reference later. Users can turn this feature on and off to best fit their needs.

Underwater Case, PT-059

Designed exclusively for the Tough TG-6, this case can function down to a depth of 148 feet. The camera control dial is operable even when the camera is stored in the case for easy exposure compensation control underwater. Two external flash units for underwater photography (UFL-3) are compatible with multiunit flash photography in a compact system.
