Ikelite Underwater Housing for Nikon D5200 Camera
Ikelite Underwater Housing for Nikon D5200 Camera

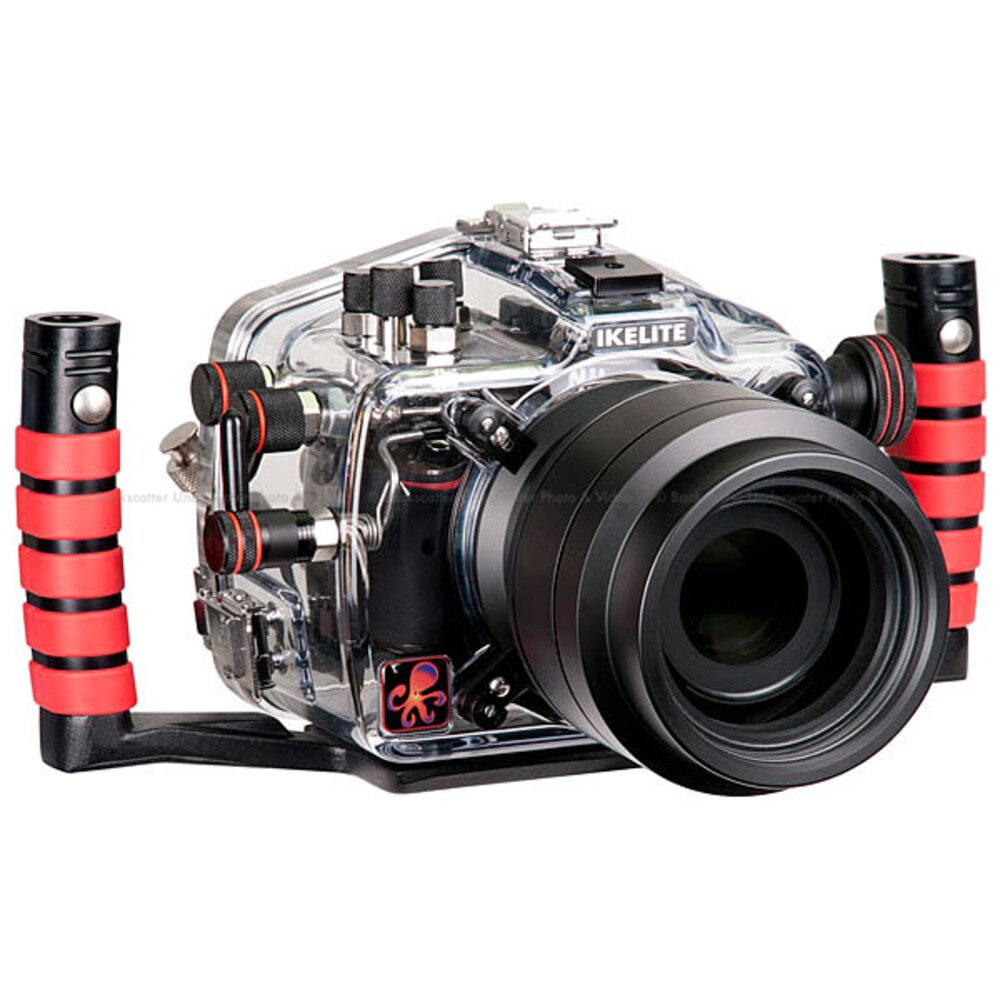

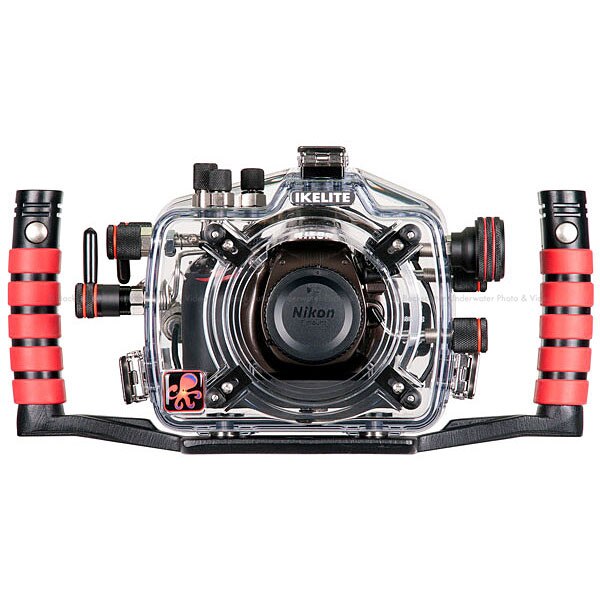

This heavy-duty clear polycarbonate case is contoured to the camera, durable, and completely corrosion free. A clear view of the main o-ring seal, port o-ring seal and camera controls provides ease of use and confidence. The housing is fully functional to a depth rating of 200 feet (60m) and only slightly negative in fresh water depending on choice of lens port (lens port required, sold separately).
SKU: # ike-6801.52
Price $1,600.00
This product has been discontinued. Please scroll down for accessories and other options.
Custom Options
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
- Access to all important camera functions
- True electrical TTL strobe exposure
- Comfortable rubber grips
- Glass optical viewfinder enhanced for underwater
- Visible o-ring seals
- Corrosion-proof solid body
- Ports available for most popular lenses

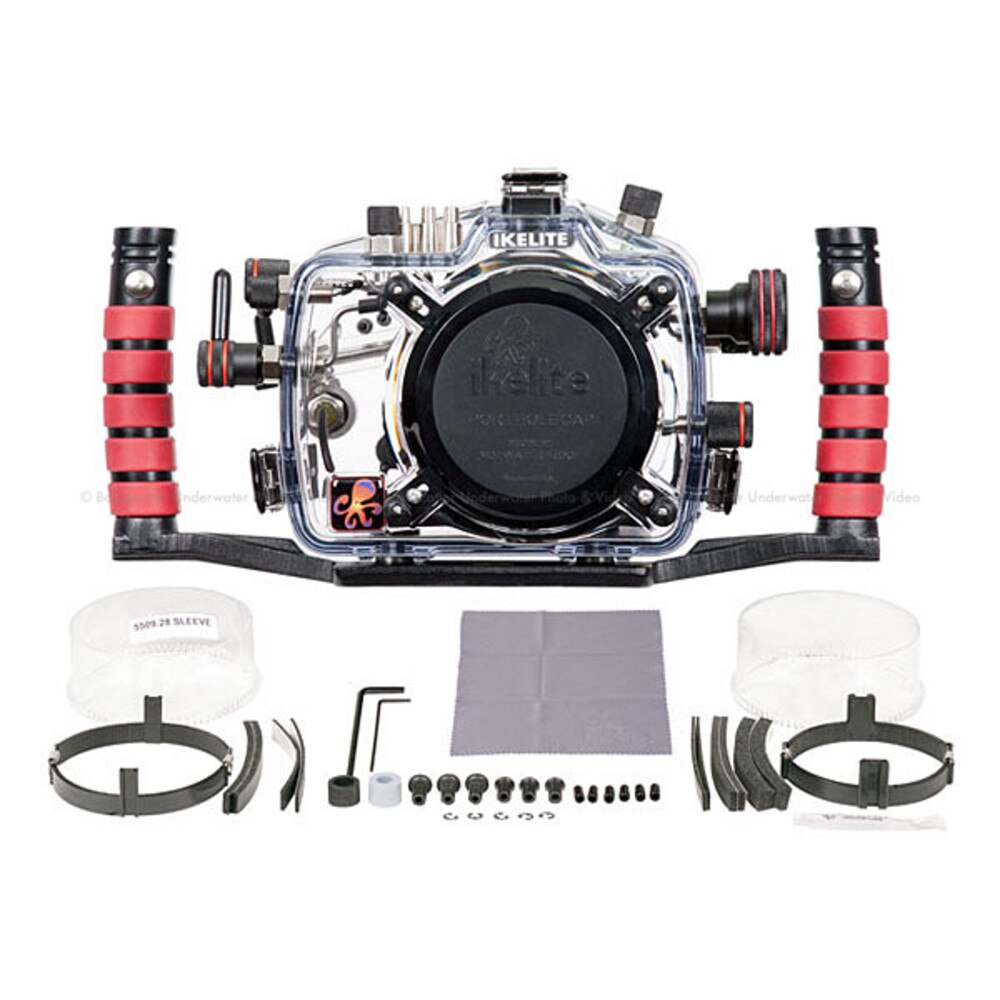

- Lens zoom gears included with housing
- 200ft (60m) depth rating
Superior flash control
Direct connect flash is the most reliable and efficient way to fire an external underwater strobe. The camera's built-in flash does not need to fire, providing the extended battery life and no lag between exposures. Our proprietary circuitry allows direct communication between the camera and current Ikelite DS Substrobes* for the most accurate through-the-lens (TTL) metering control of an off-camera flash. Electrical bulkhead and TTL circuitry are provided standard and included in the base purchase price.
Rather than reaching out to your external strobe, exposure with a current DS Substrobe can be adjusted quickly through the back of the housing using a large dial control. TTL mode provides four 1/3 f/stop increments over or under flash compensation to fine tune exposure. Or control strobe output completely through the back of the housing using one of the 7 manual power settings provided in half-stop increments.
Ergonomic handling

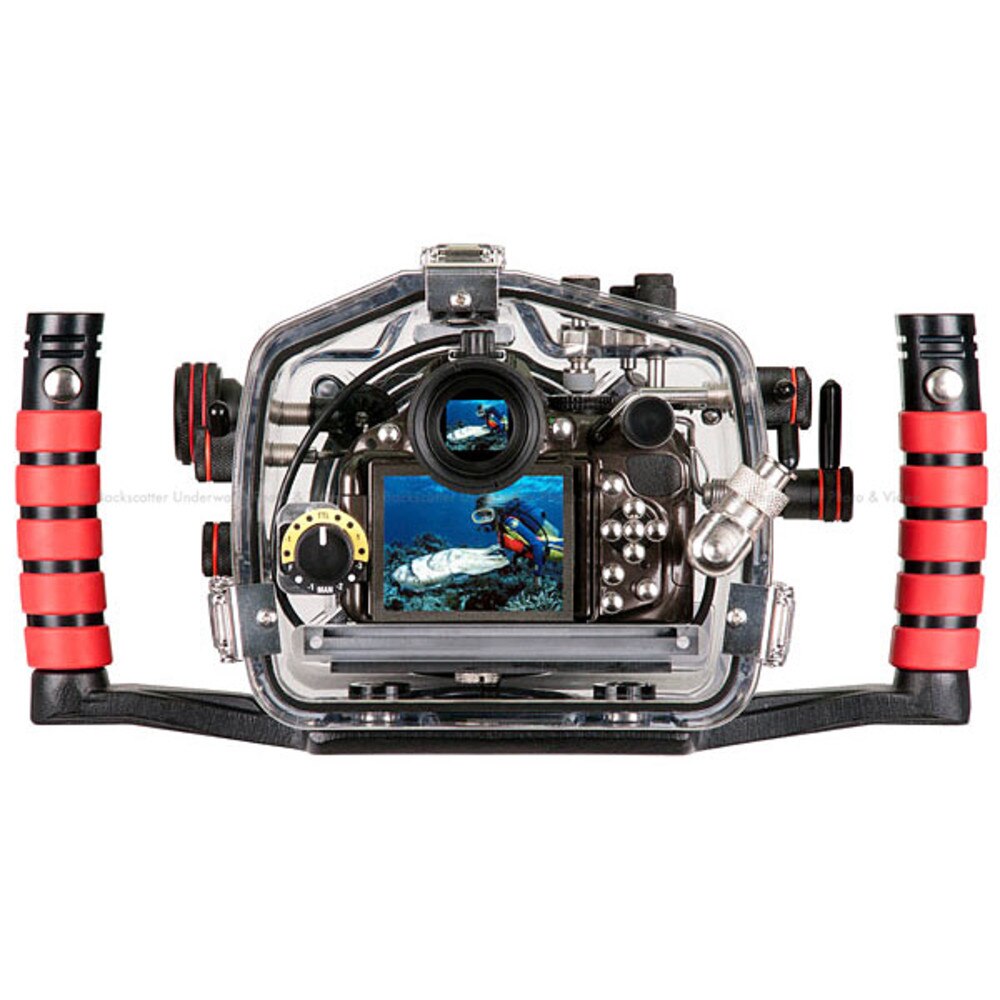

Controls are provided for every camera function except the Diopter Adjustment Control, Info Button, Self-Timer and Flash Mode/Compensation Button. Flash compensation with Ikelite DS Substrobes can be accessed conveniently through the housing with a large rear dial. Shutter, video recording start/stop, and a large zoom control knob can all be comfortably reached without removing your hands from the handles. Comfortable rubberized grips provide quick-release attachment points for strobes and accessories. The tray and handles may be removed from the housing for convenience in traveling. The complete housing is neutral or slightly negative in freshwater depending on choice of lens port.
Reliable performance
A clear view of the camera and o-ring seals facilitates easy assembly and operation. Heavy-duty polycarbonate construction is durable and corrosion-free to ensure performance in even demanding conditions. Lens ports can be removed and replaced quickly with a simple positive locking system which provides visible assurance when the housing is assembled properly.
* Requires current model Ikelite DS Substrobe. Click here for strobe requirements by serial number. TTL circuitry does not operate with non-Ikelite strobes. Non-Ikelite strobes provide manual exposure only.
Required Accessories
Ikelite Standard or Modular Lens Port
A compatible Ikelite lens port is required for operation of this housing and must be purchased separately. Lens ports vary based on length and type of lens. Quickly look up a compatibile lens port by lens model using our Nikon port chart via the link below.
Recommended Accessories
Ikelite DS-series Substrobes
Take full advantage of our exclusive circuitry for true Nikon TTL metering by attaching a current model Ikelite DS Substrobe.
PRO-2800 LED video light
The ultimate in brightness and angle of coverage for radiant high definition video. The compact light head produces an incredible 2800 lumens with a natural, daylight balanced color temperature. A 100_ spread is great for shooting with wide angle lenses. The rechargeable battery pack attaches directly to the bottom of the SLR tray with just two screws. Doubles as a great focus light for macro photography.
Sync Cords for Ikelite Substrobes
Accepts Ikelite 4103.51 single or 4103.52 dual sync cord to attach an Ikelite DS Substrobe.
Sync Cords for non-Ikelite Substrobes
Available to attach compatible Nikonos, Sea & Sea or Inon strobes. Non-Ikelite strobes disable the built-in TTL circuitry and provide manual flash exposure only. Optically triggered strobes are not compatible with this installation.
Arm Components
For the attachment of strobes, video lights and other accessories.
Specifications
Controls | All important camera functions are accessible Controls are not provided for Diopter Adjustment Control, Info Button, Self-Timer and Flash Mode/Compensation Button |
---|---|
Width | 9.8in (249mm) including controls |
Height | 6.9in (175mm) including controls |
Depth | 6.7in (170mm) including controls |
Weight | 5.4lb (2.4kg) without tray & handles |
Buoyancy | Slightly negative in freshwater |
Depth Rating | 200ft (60m) |
Built-in Flash | No |
Strobe Connection | Ikelite digital TTL electrical bulkhead |
Tray Mounting | 12-24 thread with 3in spacing (76mm) |
Main O-Ring | 0132.59 |
Port O-Ring | 0105 |
Spare Parts | 5020 Silicone lubricant in 4 1cc tubes 5512.69 O-Ring kit 0200.91 Housing body cap 9104.5 Electrical bulkhead cap |
