Subal ND7100 Underwater Housing for Nikon D7100 & D7200 DSLR Cameras

The ergonomic placement of all important controls provides convenient and comfortable handling of the camera functions. The camera is mounted on a saddle for precise positioning inside the housing. A 4 mm main-O-ring and the SUBAL QuickLock latching system make it virtually impossible to close the housing if the O-ring is not lying correctly in its groove. Maximum security is assured.

SKU: # su-10nd7100

FREE Standard Shipping to USA / CANADA!

Price $3,399.00

Base Price $

Price as Configured $

Price $3,399.00
Price $3,399.00

Custom Options


Overview / Product Description

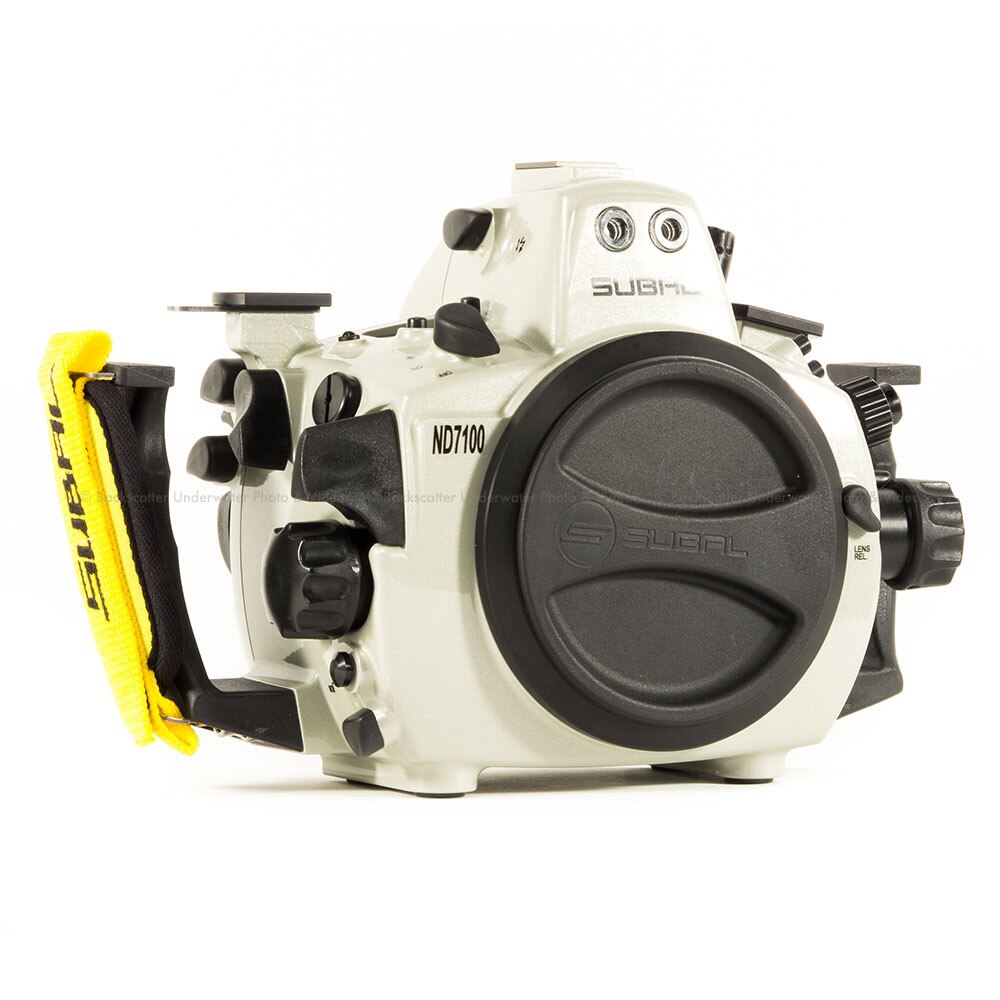

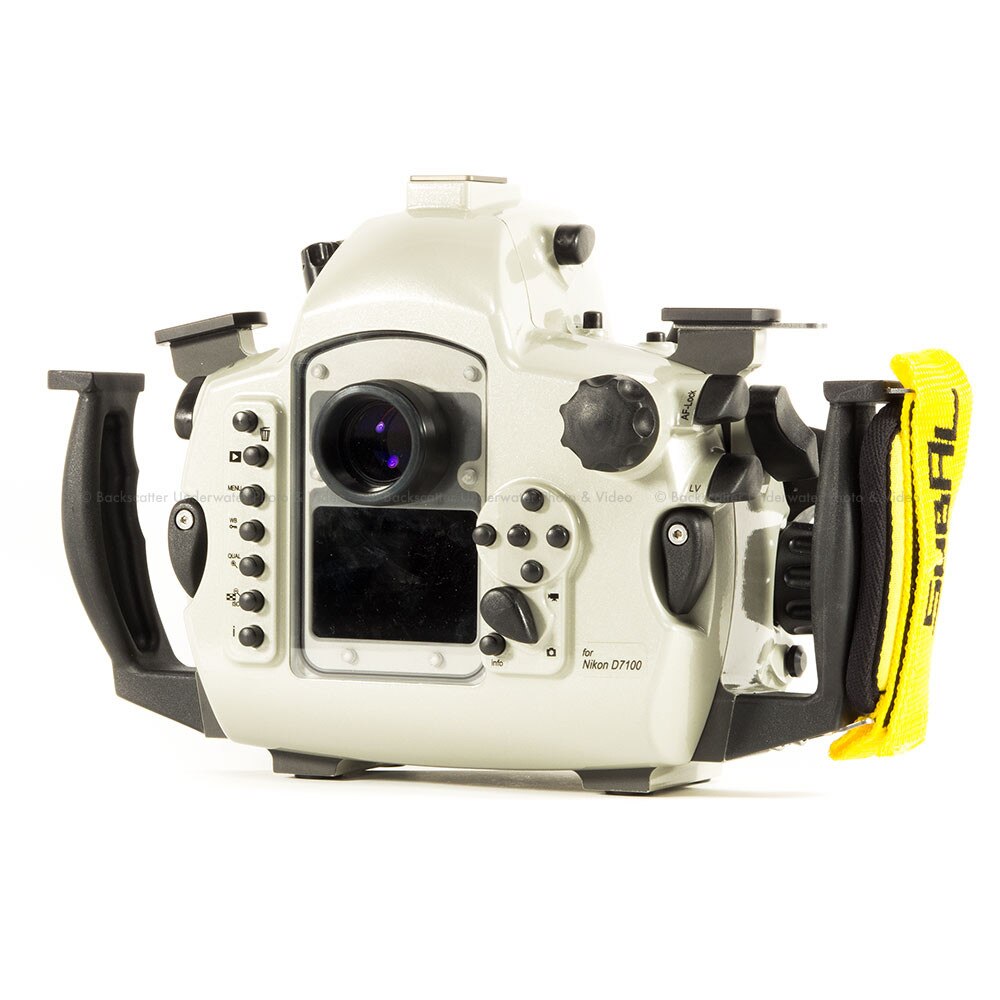

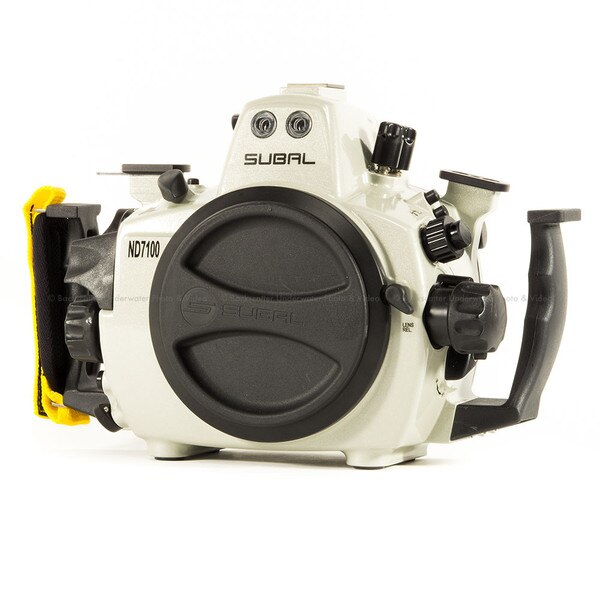

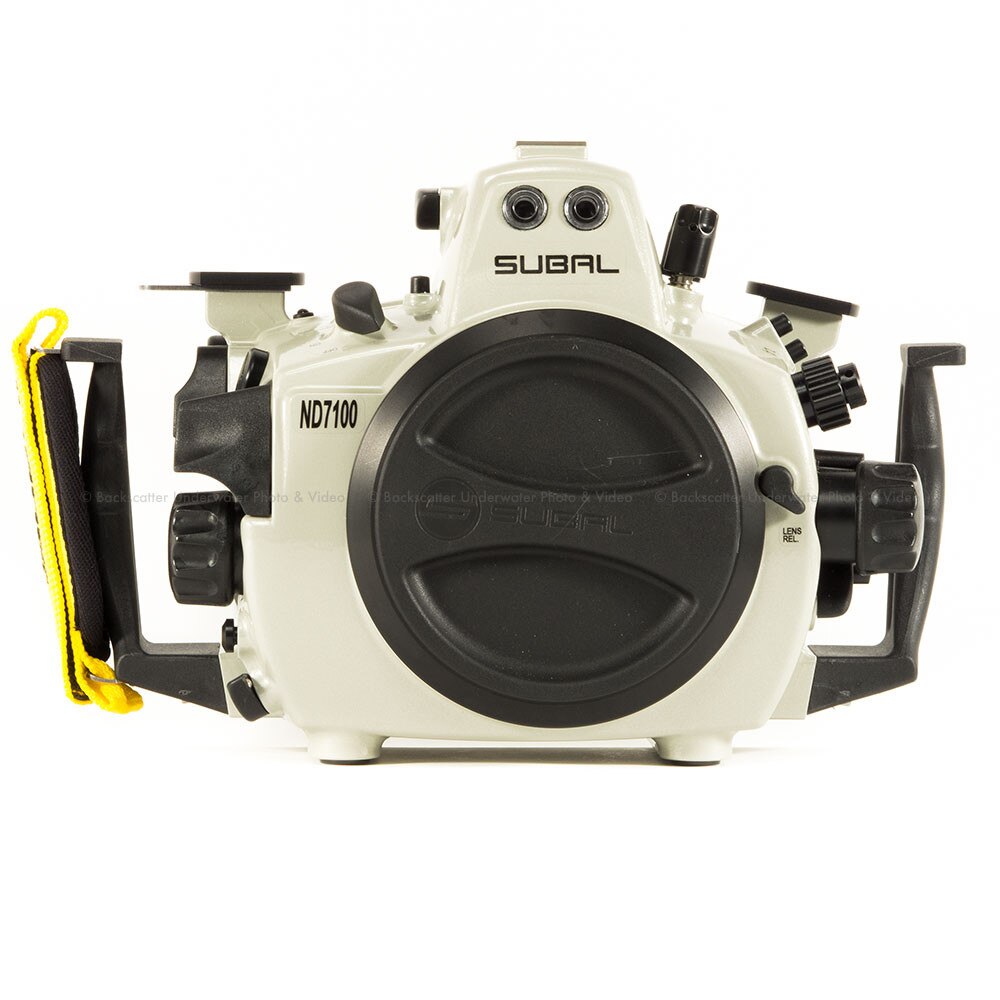

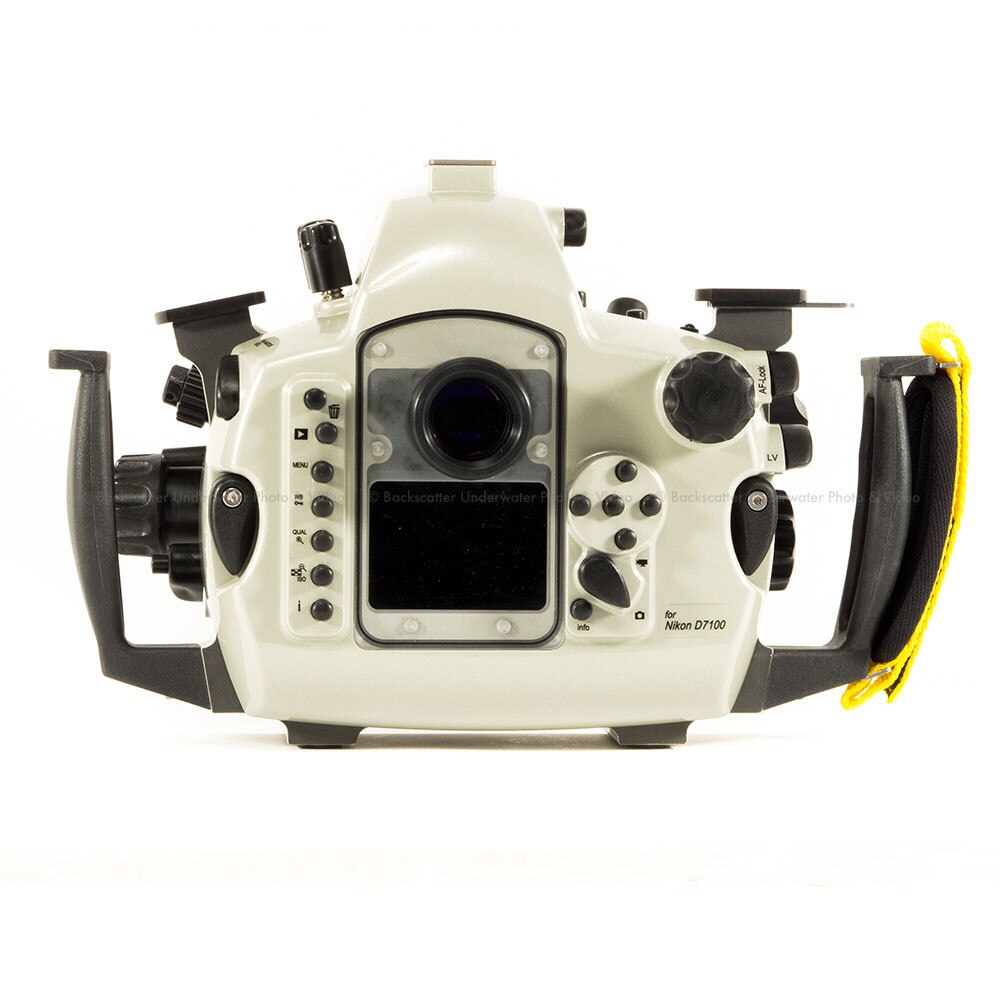

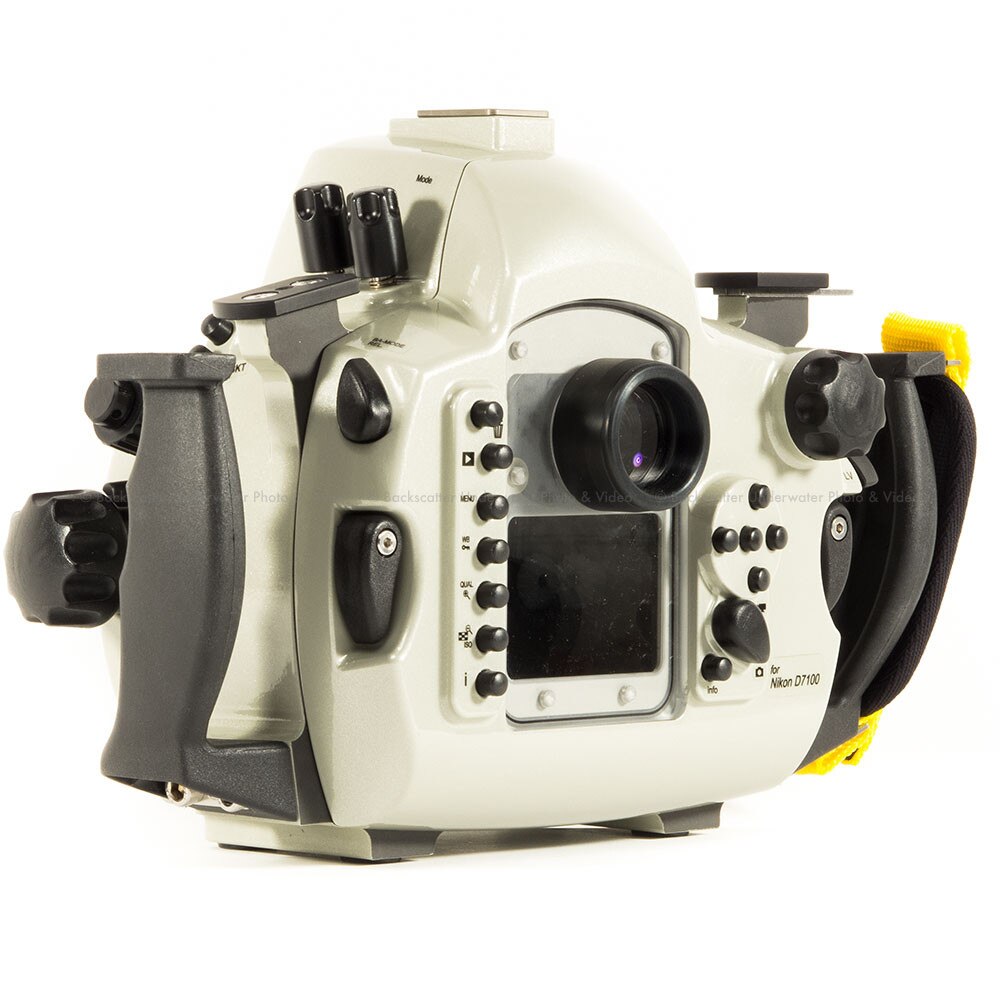

Subal ND7100 Underwater Housing for Nikon D7100 & D7200 DSLR Cameras

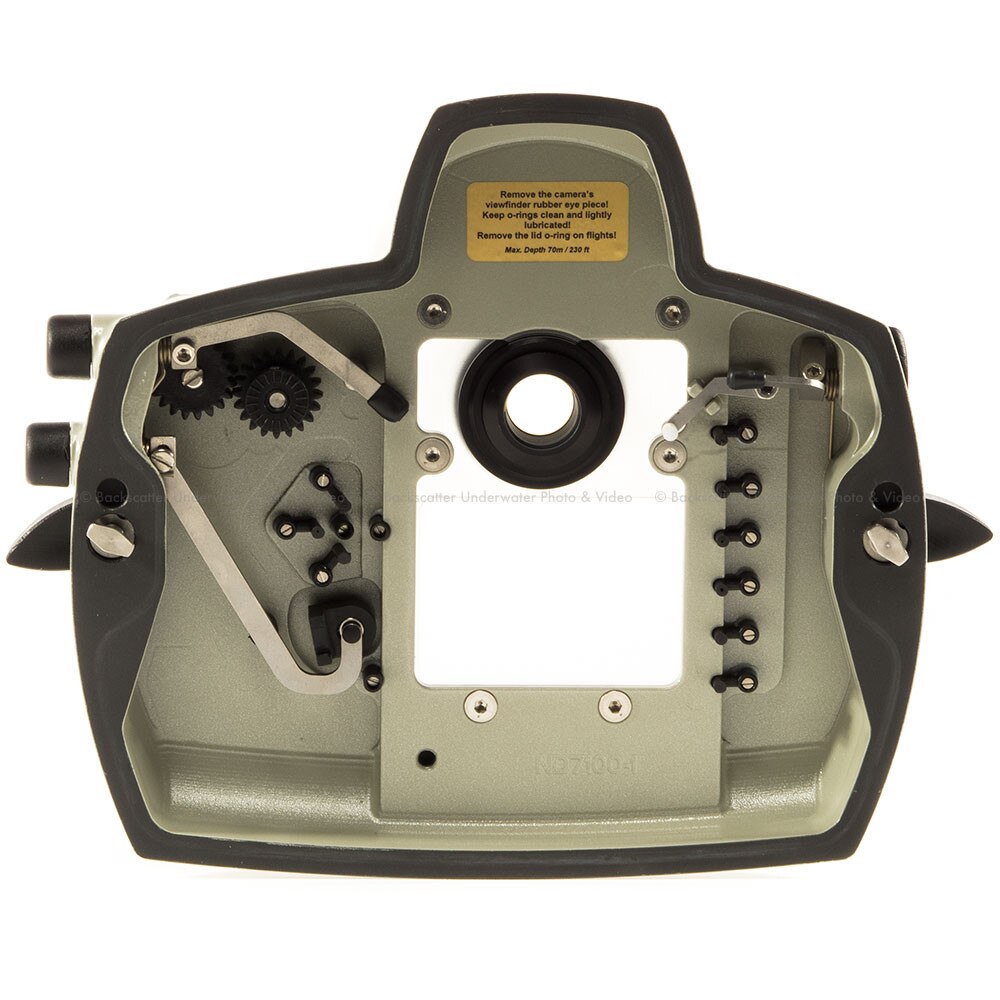

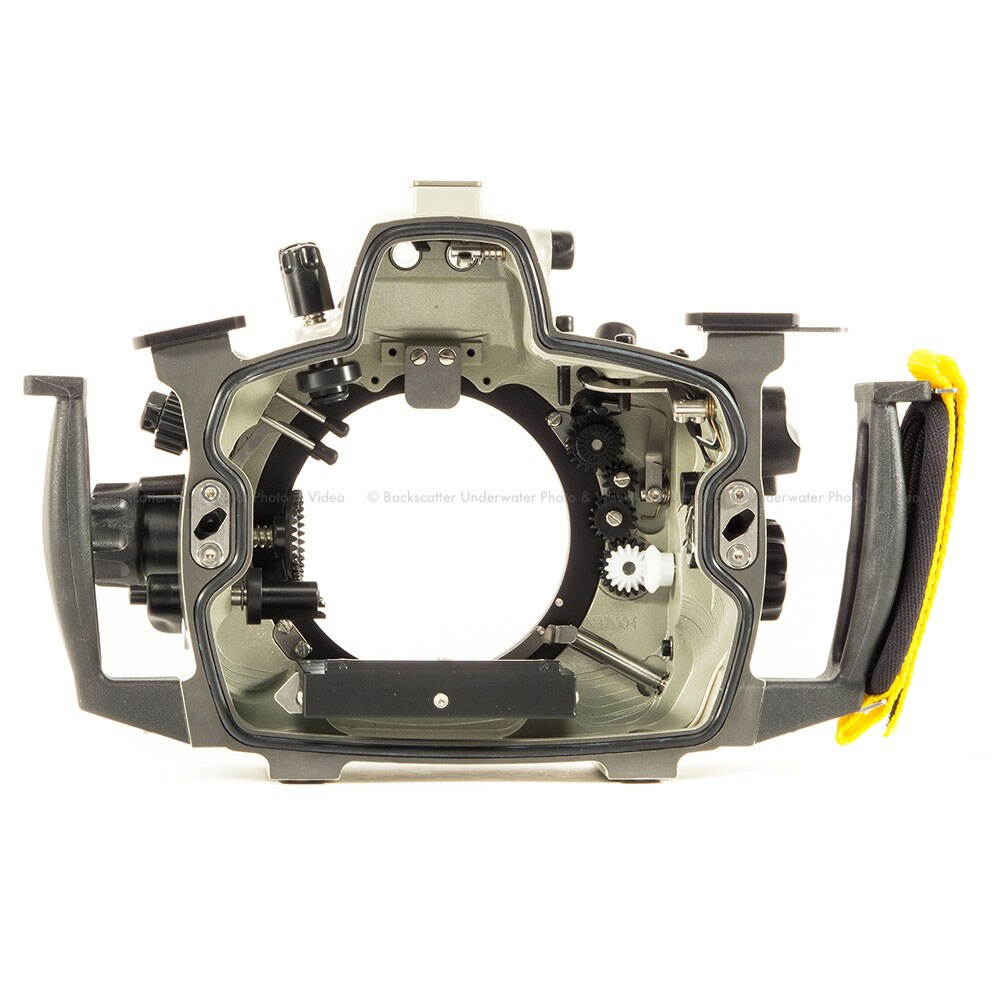

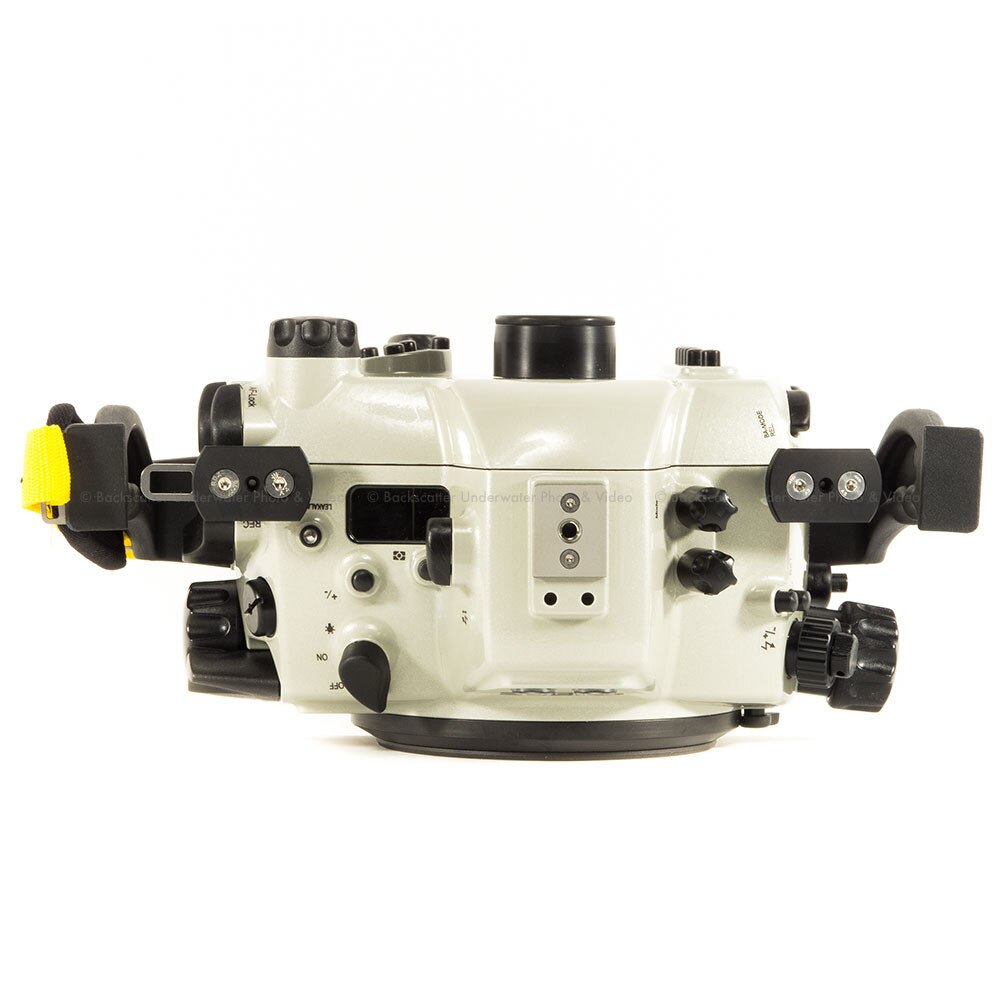

The ergonomic placement of all important controls provides convenient and comfortable handling of the camera functions. The camera is mounted on a saddle for precise positioning inside the housing. A 4 mm main-O-ring and the SUBAL QuickLock latching system make it virtually impossible to close the housing if the O-ring is not lying correctly in its groove. Maximum security is assured. Threaded holes in the base of the housing allow the mounting of trays etc. A mounting plate with threaded hole on the top of the housing may be used for a light-weighted aiming light. Generous shading of the LCD-monitor provides a dazzle-free view to the brilliant image of the camera monitor.



The first time SUBAL offers 4 different viewfinder systems for this housing:

The Standard-viewfinder reduces the viewfinder image slightly to allow the whole frame to be viewed whilst wearing a diving-mask.



GS-180 viewfinder and WS-45 angled viewfinder offer an image sized equal to the cameras viewfinder. The GS-180 viewing angle is line of sight and the WS-45 is 45_. The new Prism finder PS-30 shows the viewfinder image full sized with a viewing angle of 30_. The PS-30 has a long eye relief which is especially helpful for video shooting. The viewfinder systems are interchangeable and can be mounted easily by the user.



As with all our products choice of materials, machining, surface protection and finish conform with SUBALs well known standards of reliability and workmanship. All SUBAL ports with bayonet mount can be fitted to this housing (except DP-FE2).



Technical Data

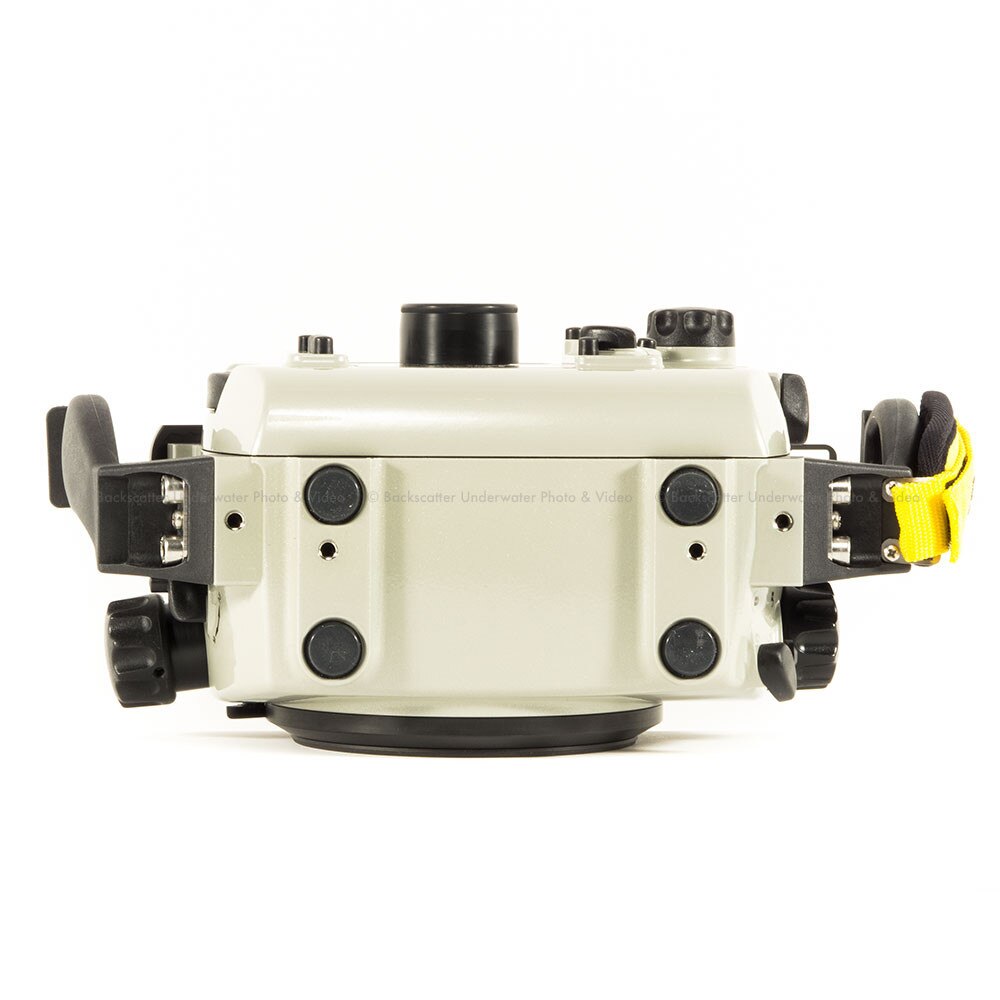

Seawater resistant aluminum alloy, machined from solid, extreme surface hardening and corrosion resistance through HardCoating. 3-layer powder coating. All parts manufactured from anodized and hard coated aluminum, acid proof stainless steel or high quality plastics. Seals are seamless precision O-rings. SUBAL QuickLock latching system.



  • W x H x D: approx. 220 x 190 x 140 mm (w/o port and handles)
  • 2 x Sea&Sea Fiberoptic Ports Flash connectors: Up to 3 Flash Bulkheads (Optionally) Nikonos V, IKELITE or S6 sockets
  • Strobe arm mounts: Two 25 mm T-Plates, TLC- or Ultralight base optional
Controls/Functions

Power Switch with Display Illumination, Shutter Release, Focus/Zoom, Focus Mode Selector, Lens Release Button, Sub Command Dial, Main Command Dial, Mode Dial, Release Mode Dial, Flash Open and Close, AE-Lock/AF-Lock, Live View Switch, Movie Record Button, Port Lock.



Push Buttons for:

  • Play Back,
  • Delete,
  • Menu,
  • White Balance,
  • ISO,
  • Quality,
  • Lock Release,
  • BKT,
  • Flash Mode,
  • Metering,
  • Exposure Compensation,
  • OK,
  • Multi Selector Buttons,
  • Info,
  • AF-Modus.
